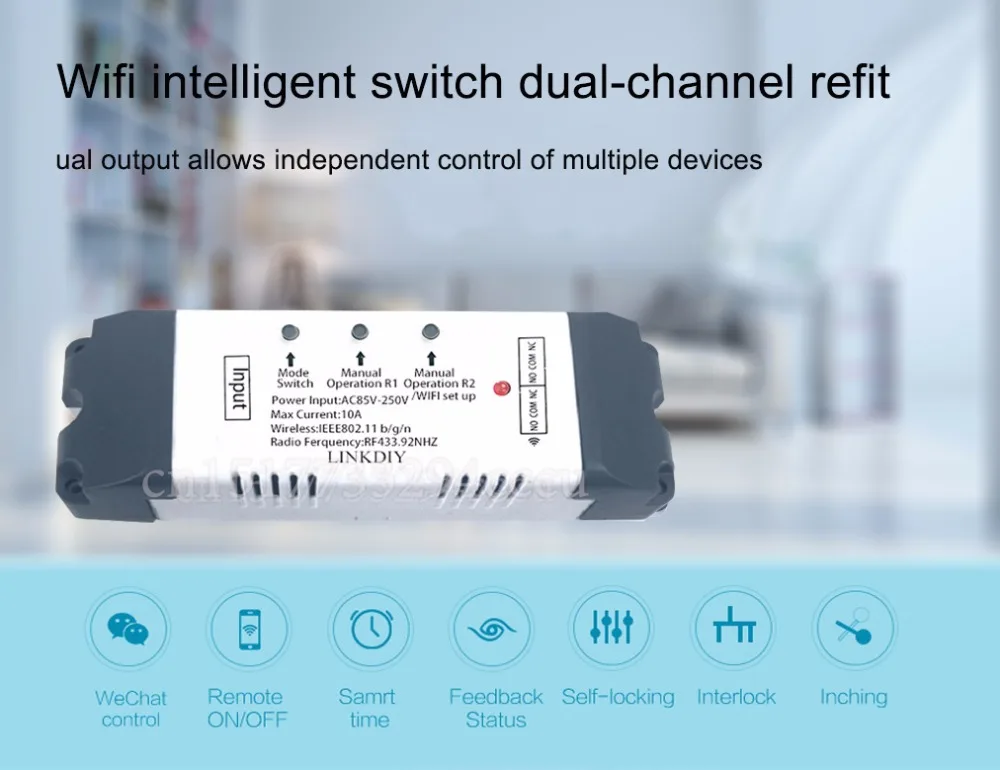

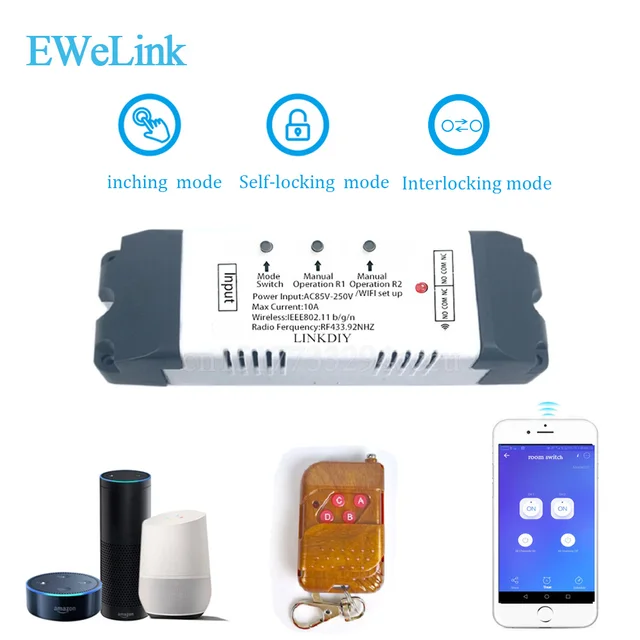

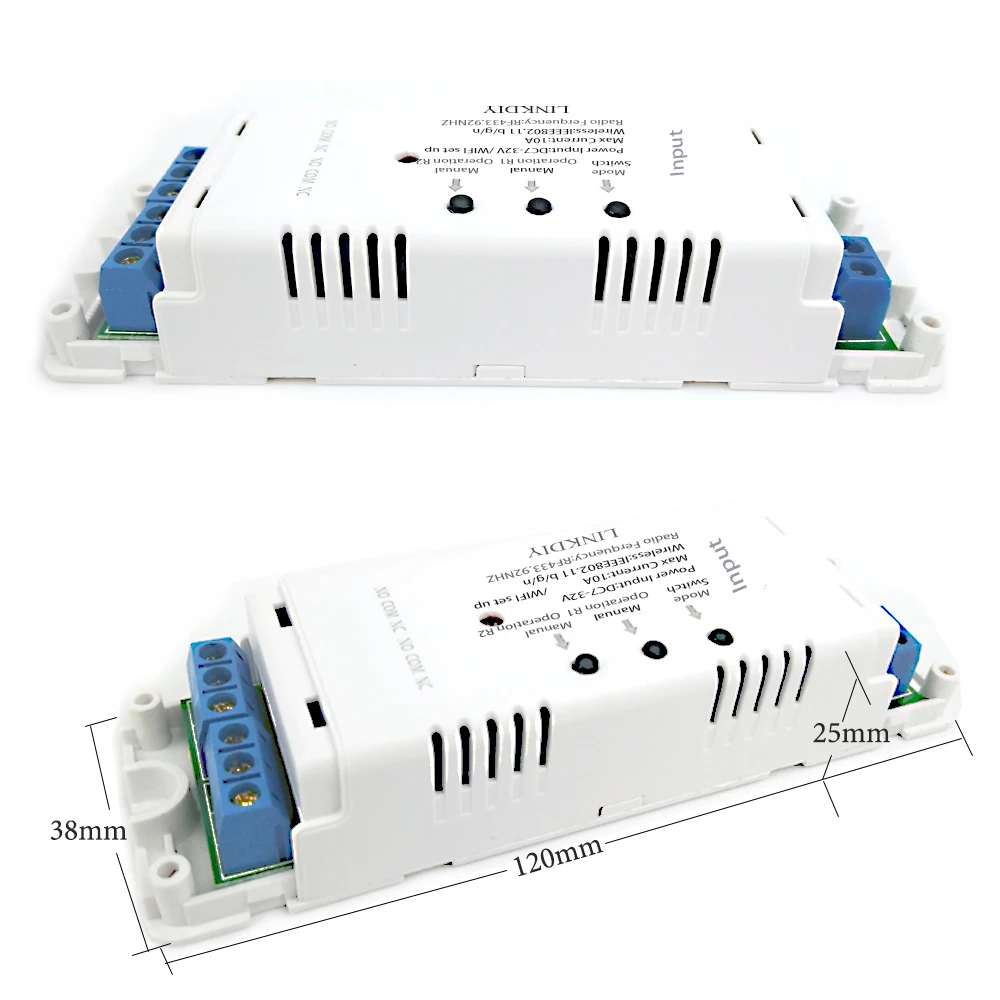

Wifi switch wireless Relay module Smart home Automation for Computer access DC7V/12v 24v 32v Inching/Self-Locking IOS Android
Camera Equipped:
No
Model Number:
ld2ch
State of Assembly:
Ready-to-Go
Brand Name:
LINKDIY
There are four specifications
a. DC 7 -32V not 433 remote control

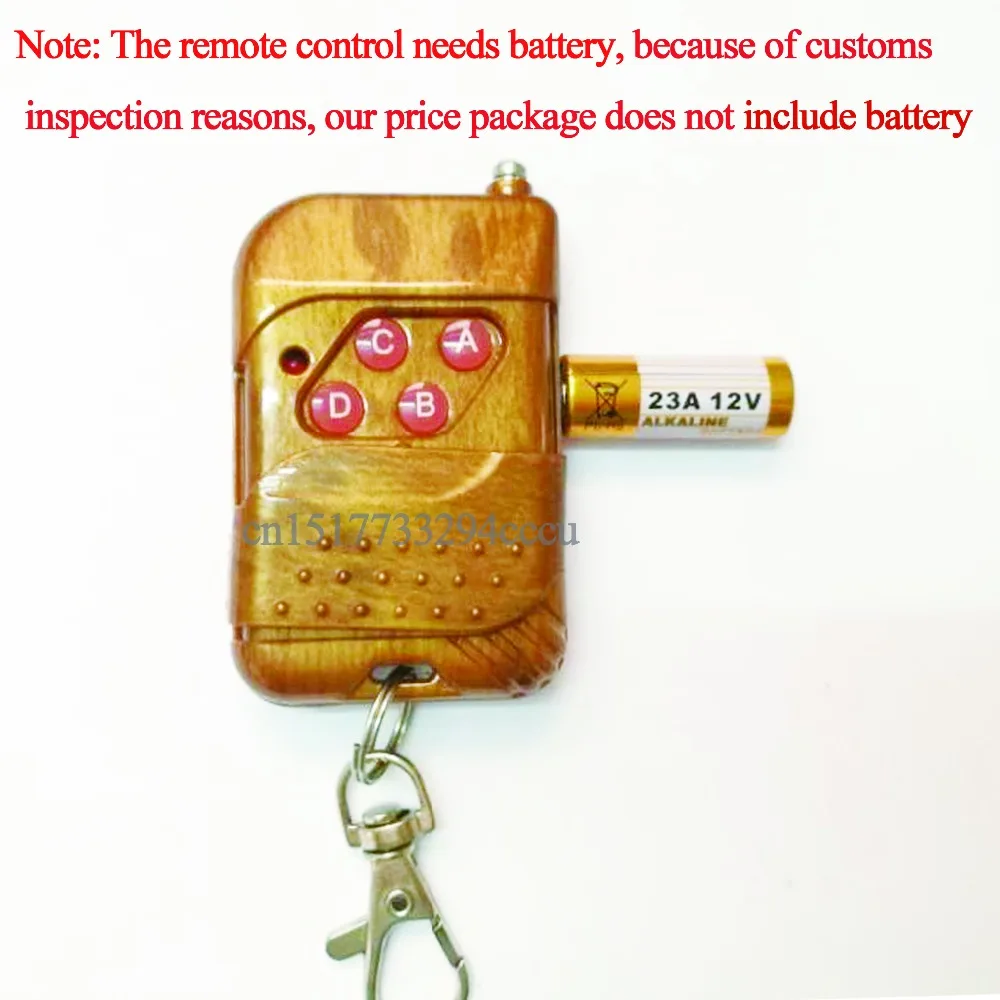

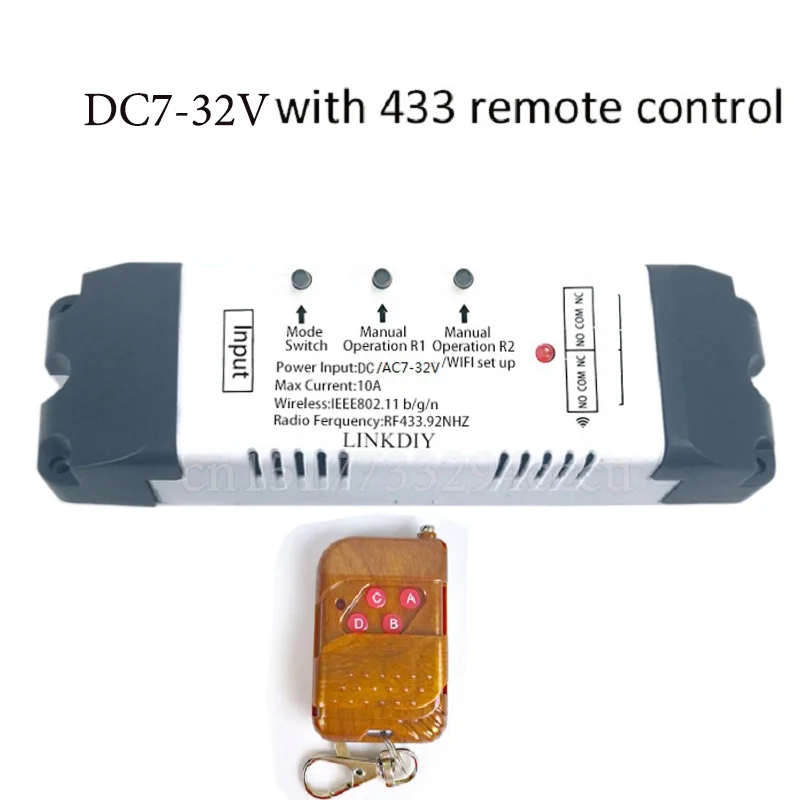

b.DC 7 -32V with 433 remote control

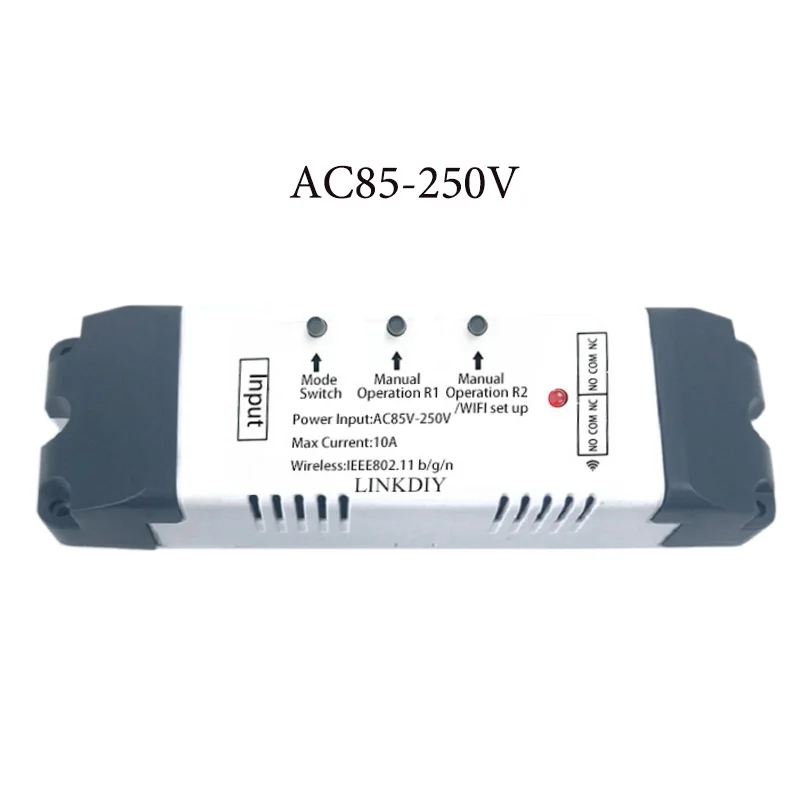

c.AC85-250V not 433 remote control

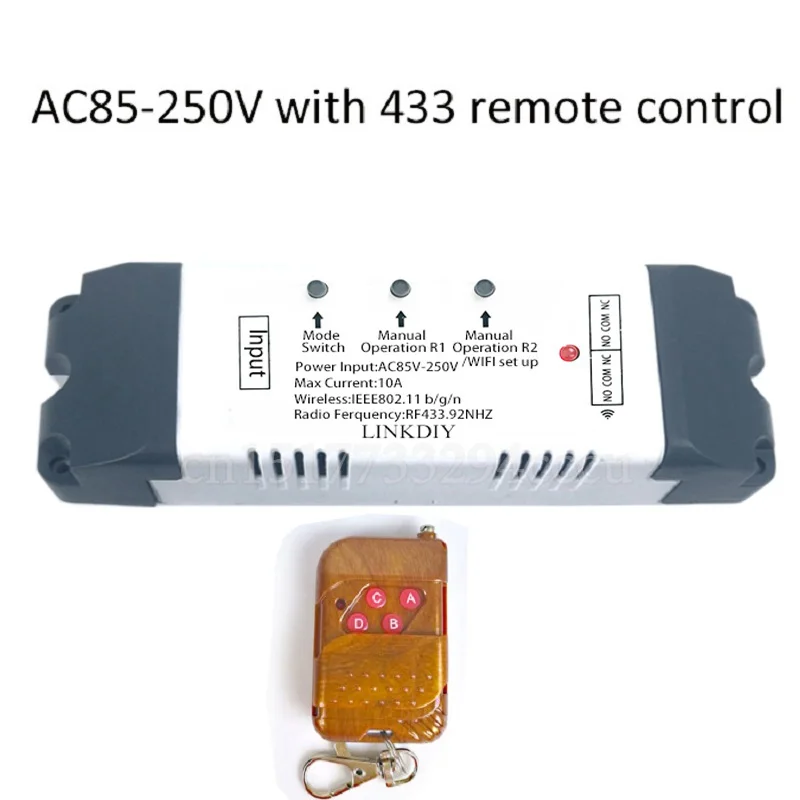

d,AC85-250V with 433 remote control
The difference between them is that the power supply to this switch is different.

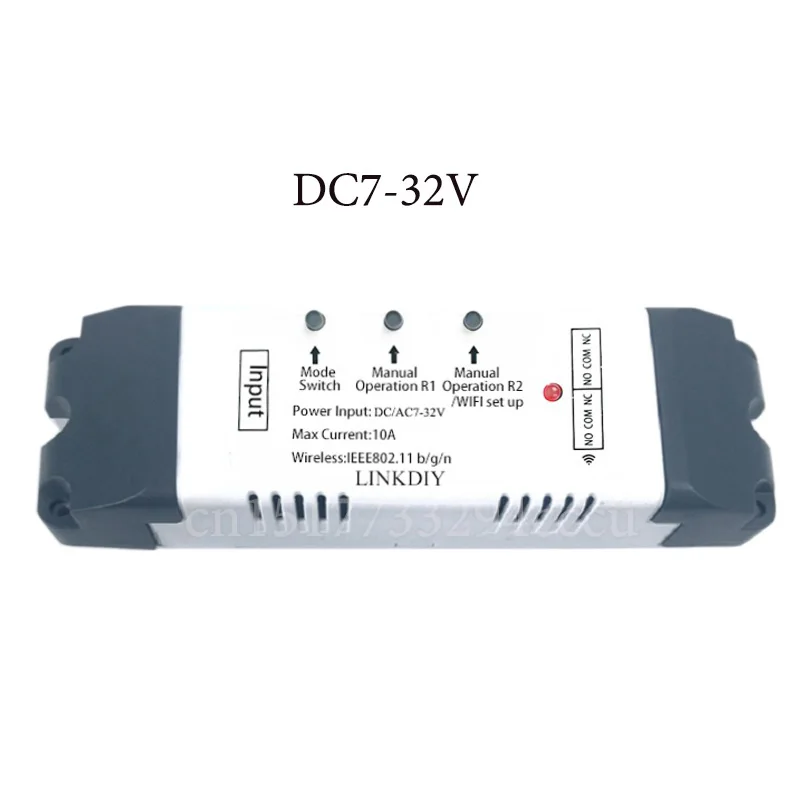

a and b is DC7 - 32V
c and d is AC85-250V

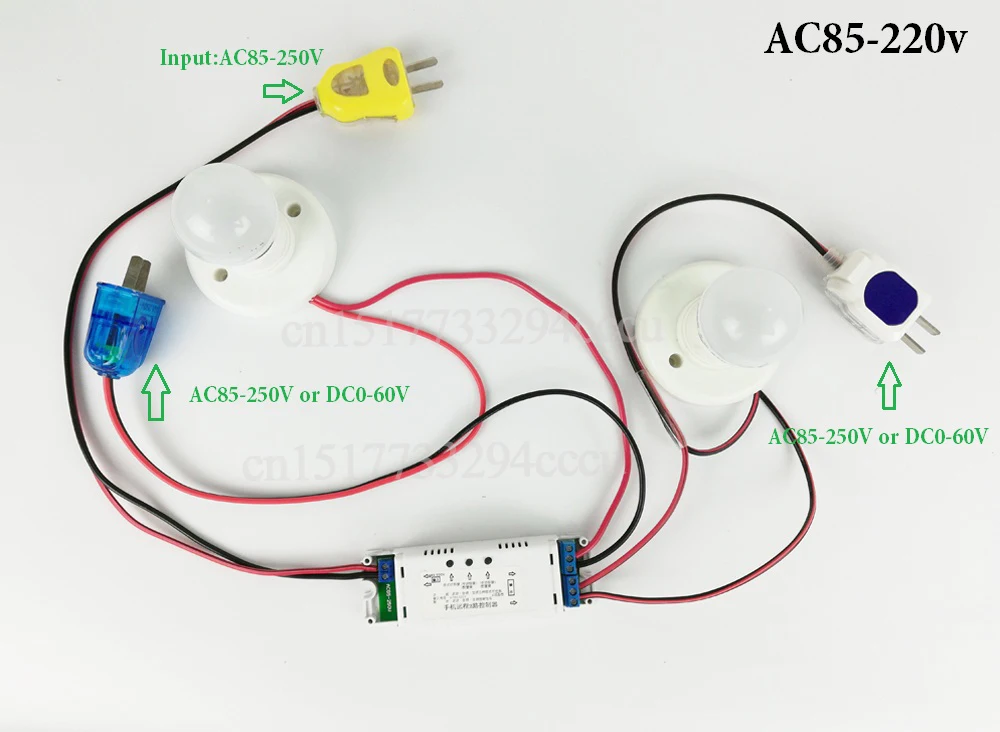

However, the devices controlled by the four specifications are the same, which can be
DC0 - 60v or AC85 - 250v

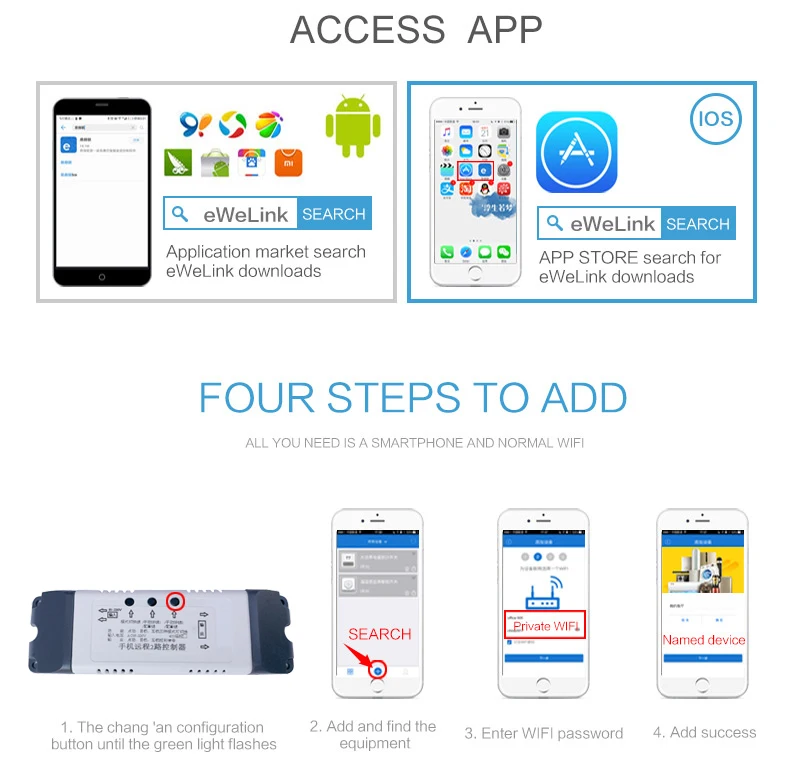

Fool type wifi control module, no programming, only need to download an APP, link WIFI can control the own cloud. As long as the module links WIFI, the phone can be controlled anywhere in the country.
1, With a signal indicator, relay pull the light.
2, The board power consumption of static current 80MA relay all open is about 380MA peak
3, 1 relay rated switching current of less than 10A, switching voltage within 250V
4, Total is 10A relays
5, Relay life of more than 1000000 times.
6, Electrical insulation resistance 100M
7, Electric shock voltage 1000V
8, The relay maximum suction time 15mS milliseconds
9, Tthe relay maximum release time 5mS milliseconds
10, The operating temperature of -40 degrees to +70 degrees
11, Working humidity 40% ~ 80% RH
Applicable occasions: smart home. Wifi control
Unit Type:
piece
Package Weight:
0.13kg (0.29lb.)
Package Size:
15cm x 6cm x 5cm (5.91in x 2.36in x 1.97in)
