Sonoff 4CH Smart Remote Control Wireless Switch Module WiFI Home Automation on off 4 Channel Din Rail Mounting Intelligent 2200W
Model Number:
Sonoff4CH
Brand Name:
SONOFF
Scale:
1:5
Control Channels:
4 Channels
State of Assembly:
Ready-to-Go
Gyro:
null
Max Speed:
null
Features:
Flashing
Size:
145 x 90 x 40mm
app:
via app ewelink
Max Power:
2200W
Features:
Automation Intelligent remote control products
Control Channels::
Sonoff 4CH 4channels Switch
Input:
AC 90V-250V ( 50/60Hz)
Humidity :
5%-95%
Function 1:
Smart home Support control 4 devices
Function 2:
Timer Switch
Function 3:
Wireless Switch
Descriptions:
100% brand new and high quality

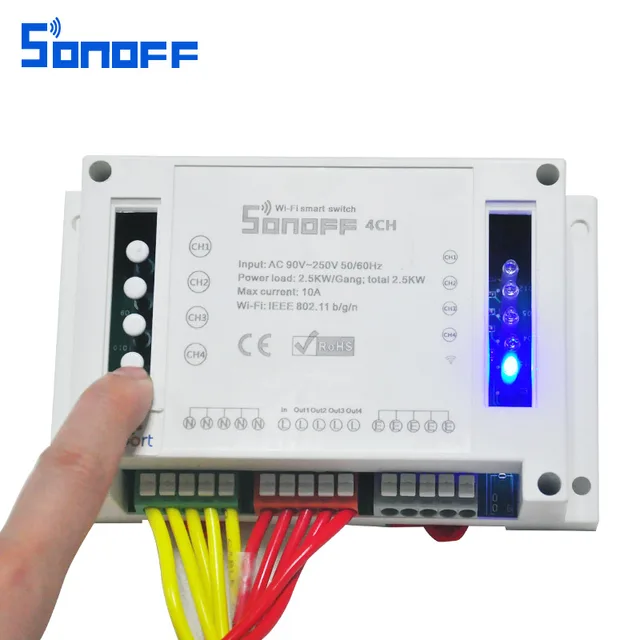

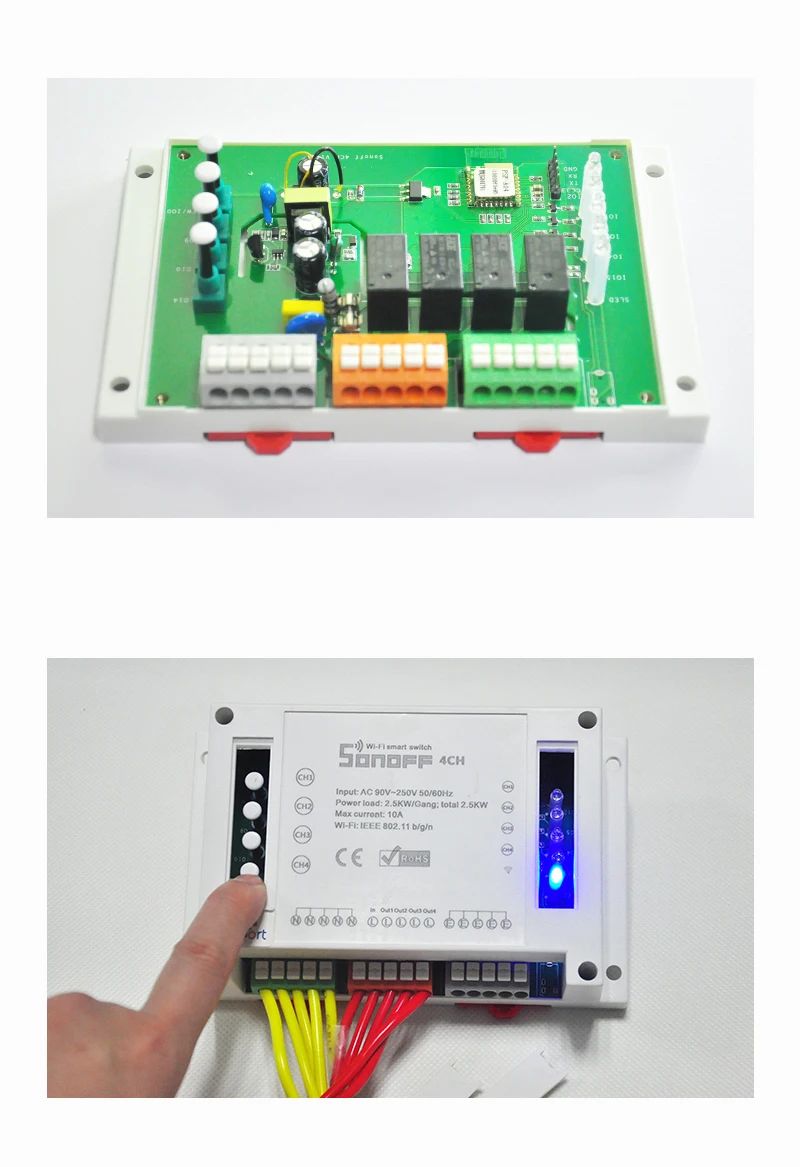

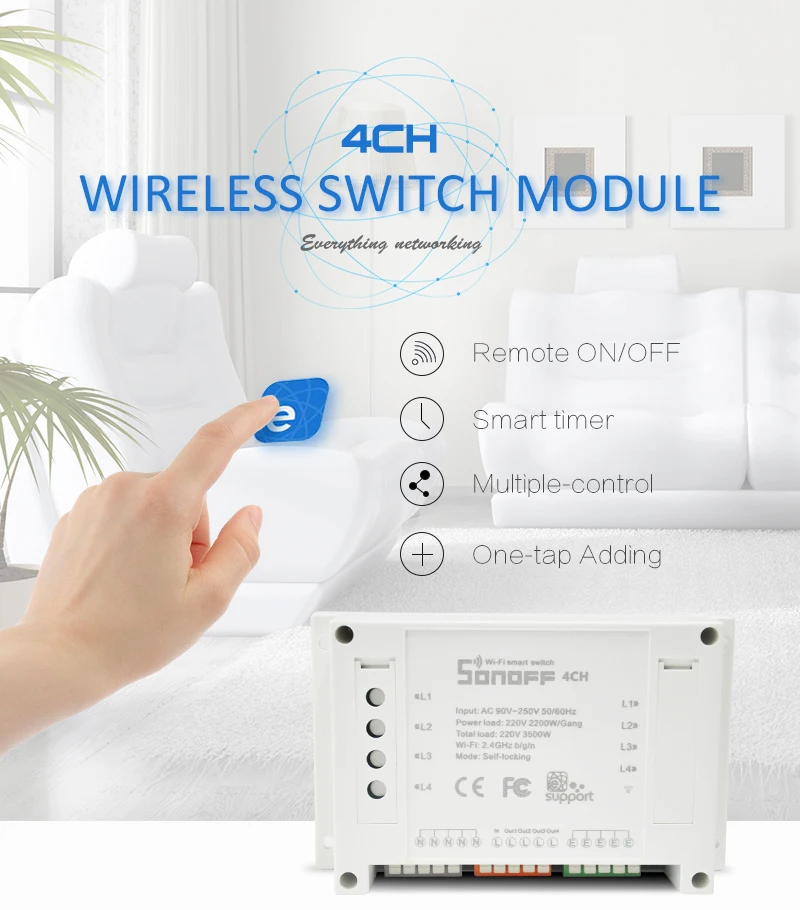

Sonoff 4CH is an ESP8285 based 4 channel (4-gang) din rail mounting WiFi switch.
Sonoff 4CH supports to connect and control 4 home appliances, which can be turned on/off separately by the buttons or iOS and Android APP EweLink. Owning a Sonoff 4CH means you have 4 Sonoff basic WiFi switches integrate together.

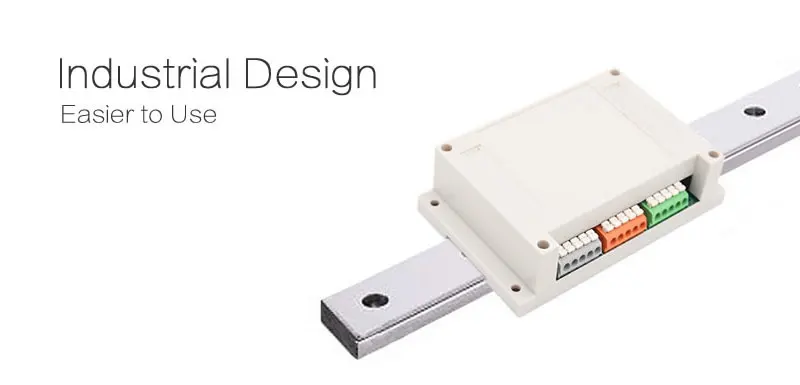

The enclosure is din rail mount supported! A DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated or chromated bright surface finish.
Sonoff 4CH belongs to Sonoff family, definitely, it bears all the functions basic Sonoff has. In EweLink, you can remote turn on/off from anywhere at any time, set single/repeat/countdown timing schedules to turn on/off at a specified time, share to others so that they can control together.
Sonoff 4CH is hacker-friendly that you can flash your firmware without difficulty.
After accessing to Google Nest, e-WeLink can receive real-time environment data like temperature, humidity from Google Nest, as well as checking if there is anybody home or not. All these can be used to create smart scene to control e-WeLink supported Sonoff devices.
Support independently turn on/off 4 home appliances
Support to control home appliances by local toggle buttons or APP
Support tracking device status and timely remote control through APP
Support countdown timing and schedule timing
Support one-key sharing device to other user

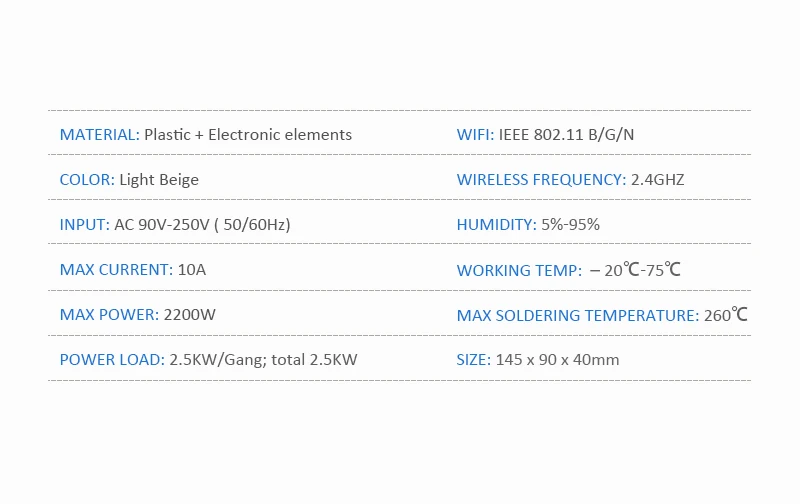

Specification:
Material: Plastic + Electronic elements
Color: Light Beige
Input: AC 90V-250V ( 50/60Hz)
Max Current: 10A
Max Power: 2200W
Power Load: 2.5KW/Gang; total 2.5KW
WIFI: IEEE 802.11 b/g/n
Wireless Frequency: 2.4Ghz
Humidity: 5%-95%
Working Temp: ﹣20℃-75℃
Max soldering temperature: 260℃
Size: 145 x 90 x 40mm

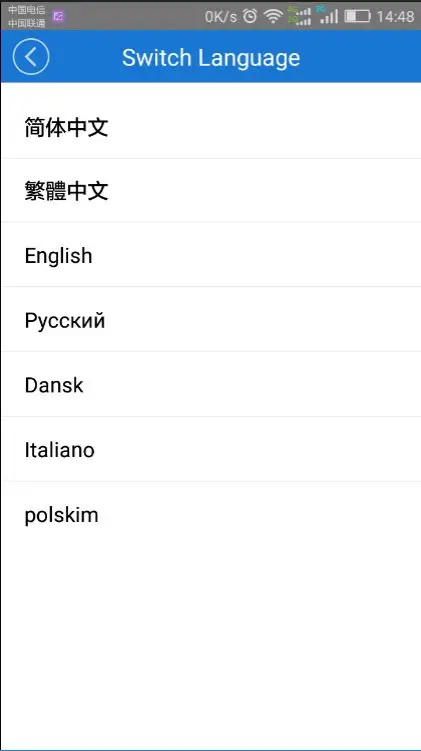

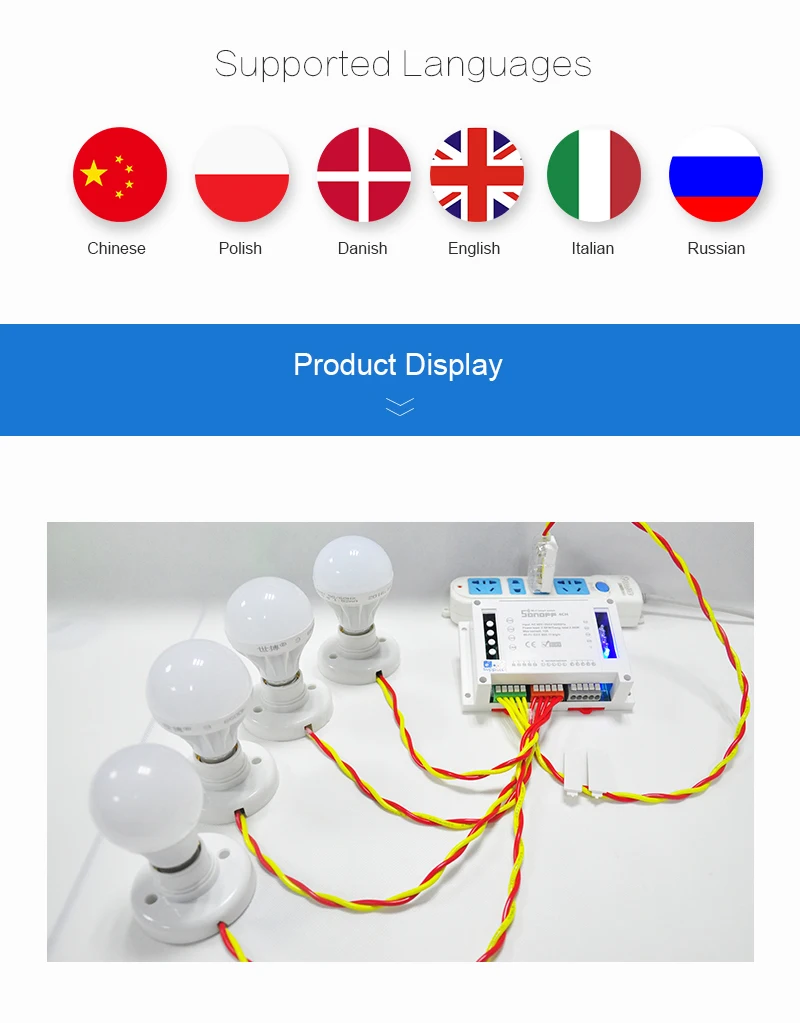

Supported languages: Chinese、 Polish 、Danish、English Italian Russian
![QQ20170422215815](https://ae01.alicdn.com/kf/HTB16l0rQVXXXXaiXXXXq6xXFXXXi/109627391/HTB16l0rQVXXXXaiXXXXq6xXFXXXi.jpg?size=23223&height=751&width=421&hash=dfd4b88d7bae295fdc0a75cee3df7a3c)
Search “eWeLink” in APP Store for iOS version or Google play for Android version.
2.Wiring instruction

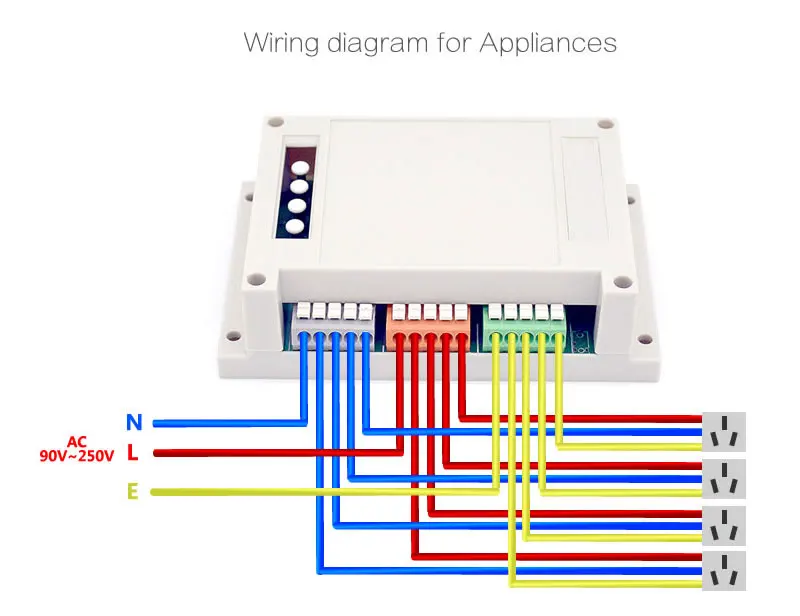

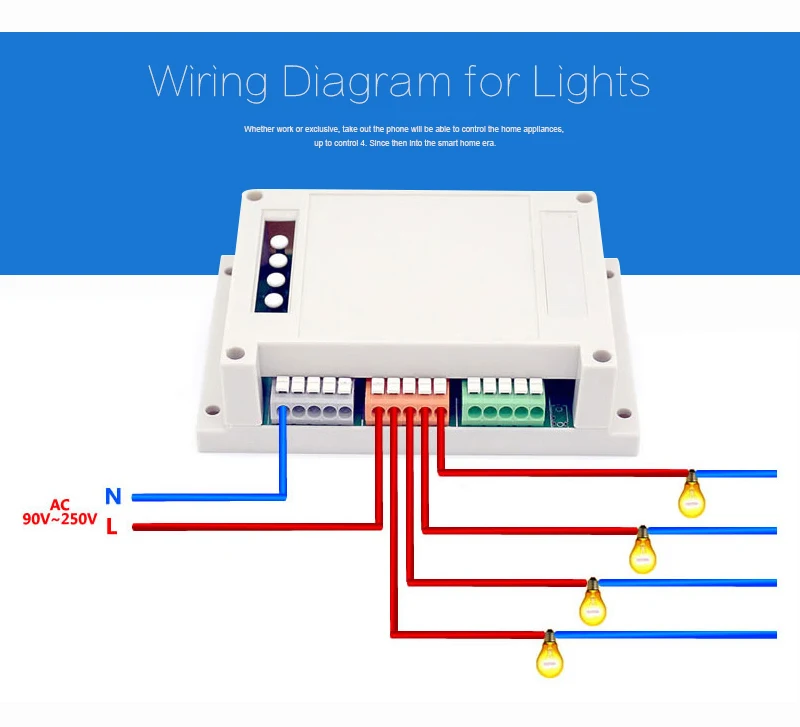

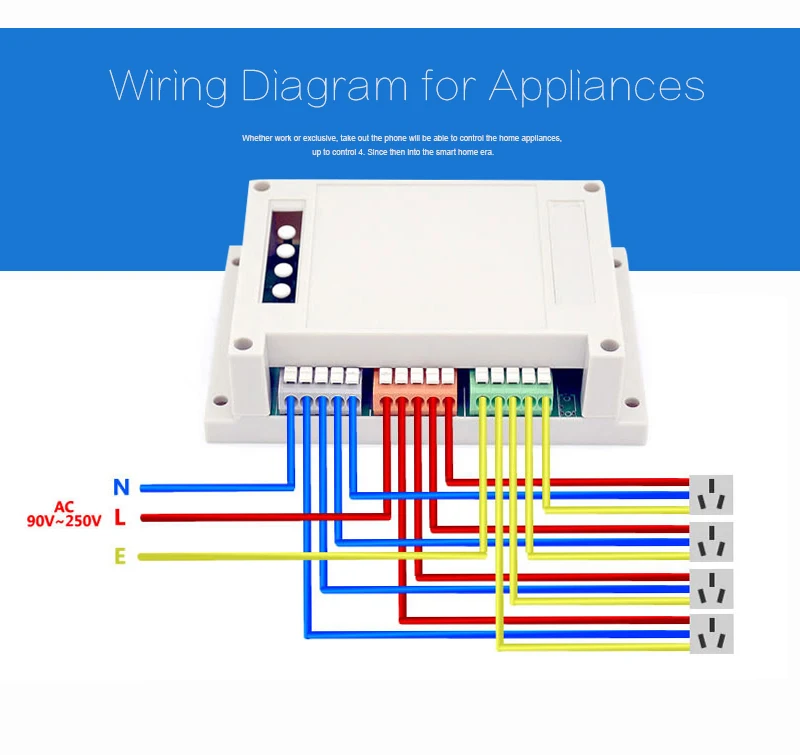

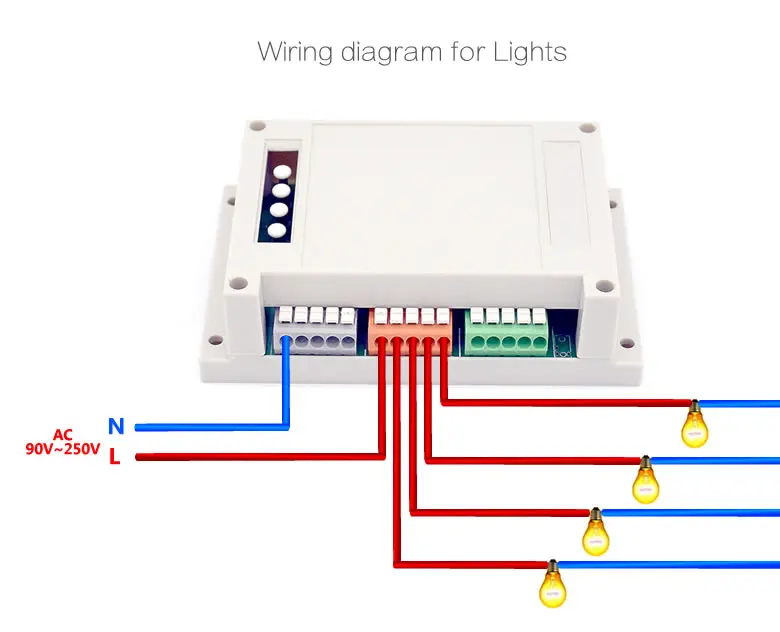

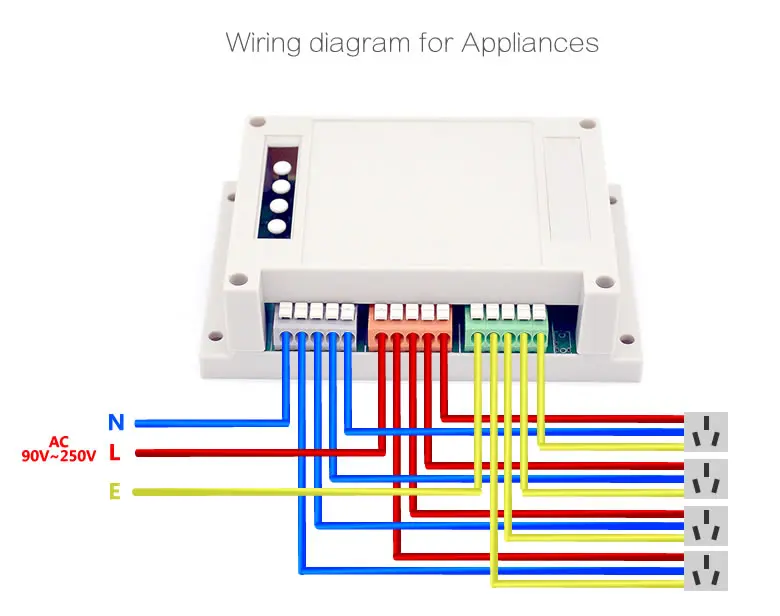

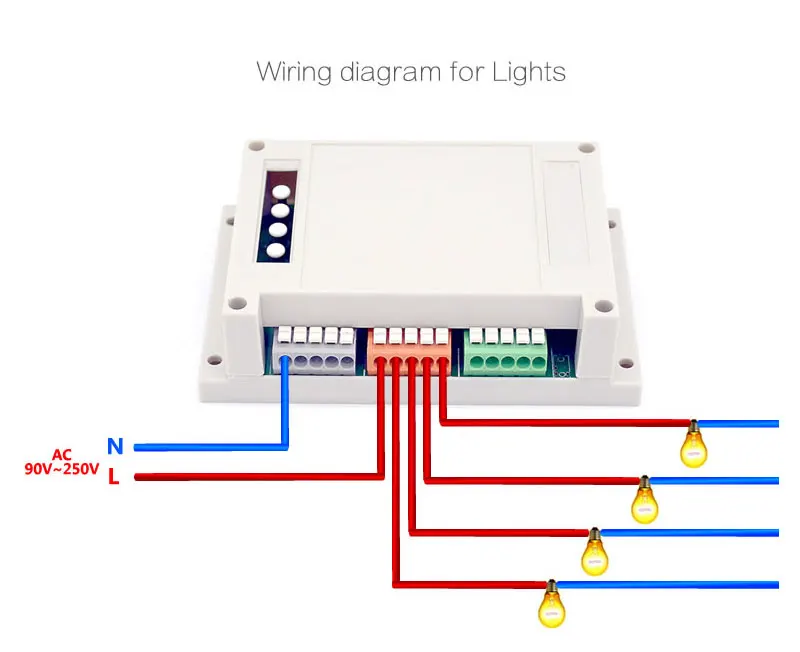

There are two kinds of wiring: one for connecting 4 lights, one for connecting with 4 home appliances.

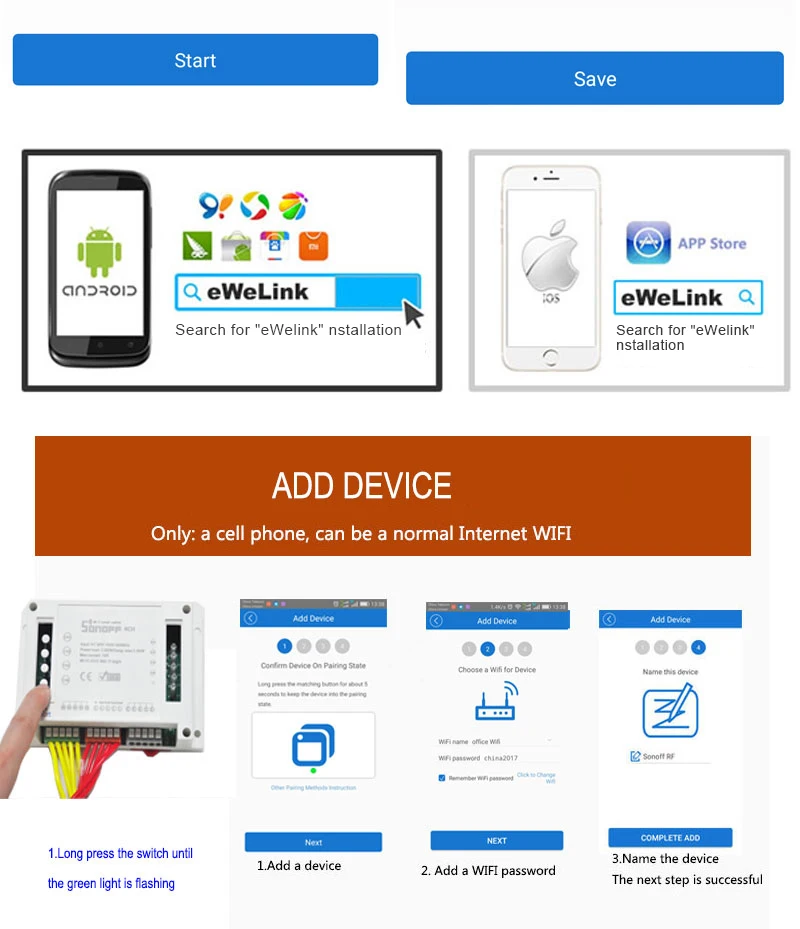

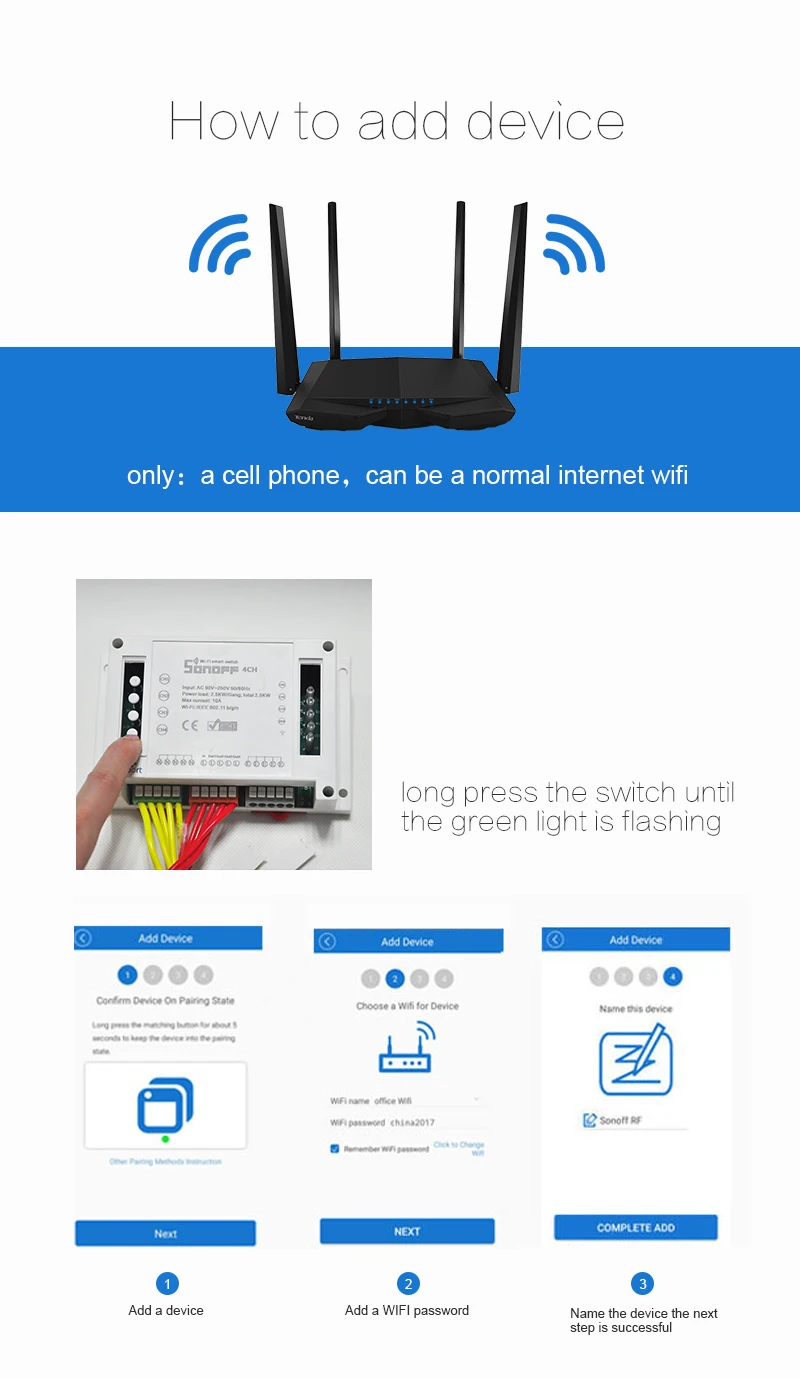

3.Add device
1.Power up your device
2.Press the first button for 7 seconds until the green LED blinks repeatedly.
![add_device](https://ae01.alicdn.com/kf/HTB1fWQrQVXXXXa2aXXXq6xXFXXXv/206320277/HTB1fWQrQVXXXXa2aXXXq6xXFXXXv.jpg?size=2175&height=95&width=99&hash=fbe6d9e364caec84585357c572f36a14)
3.For Android, please directly click the “Add” icon on eWeLink to search device, click next.
For iOS, please go to phone Setting>WiFi>connect the WiFi begins with ITEAD-******, enter default password 12345678. Go back to eWeLink, select the pairing method, click next.
The App will auto-search the device.
4.Input your home SSID & password:
4.1 Your SSID must be letters or numbers.
4.2 If no password, keep it blank.
4.3 Now eWeLink only support 2.4G wifi communication protocol, 5G-WiFi-router is not supported
5. Next, the device will beregistered by eWelink and add it to your account,it takes 1-3 minutes.
6. Name the device to complete.
7.Maybe the device is “Offline” on eWeLink, for the device needs 1 minute to connect with your router and server. When the green LED on, the device is “Online”, if eWeLink shows still “Offline”, please close eWeLink and re-open.
3.APP features

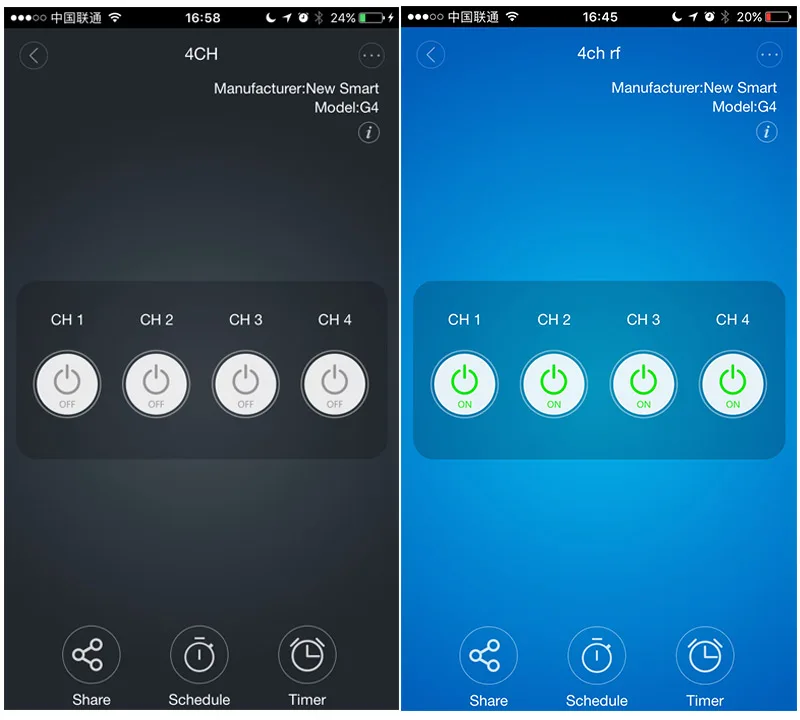

1.WiFi one-to-one remote control 4 devices.
Turn on/off by tapping on device icon. Device state and real time temperature and humidity values will simultaneously display on the interface.
2.Share device
Owner can share the devices to other accounts, but they must stay online.

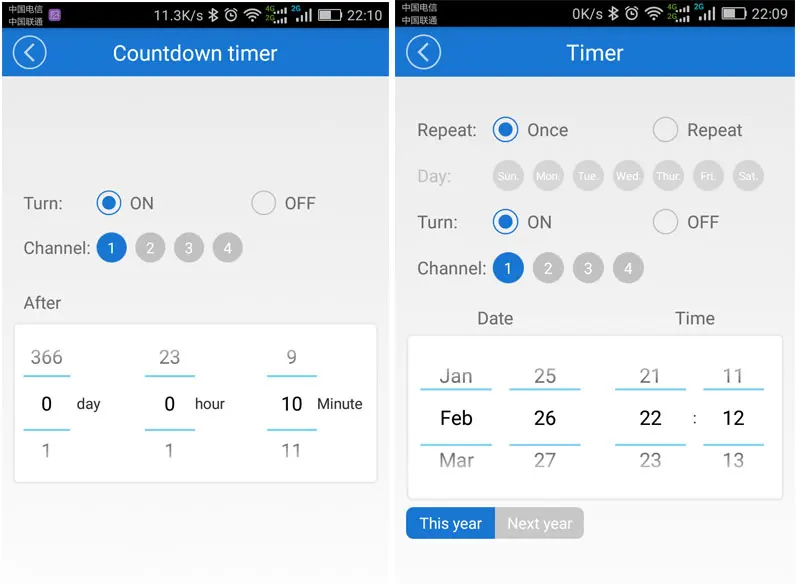

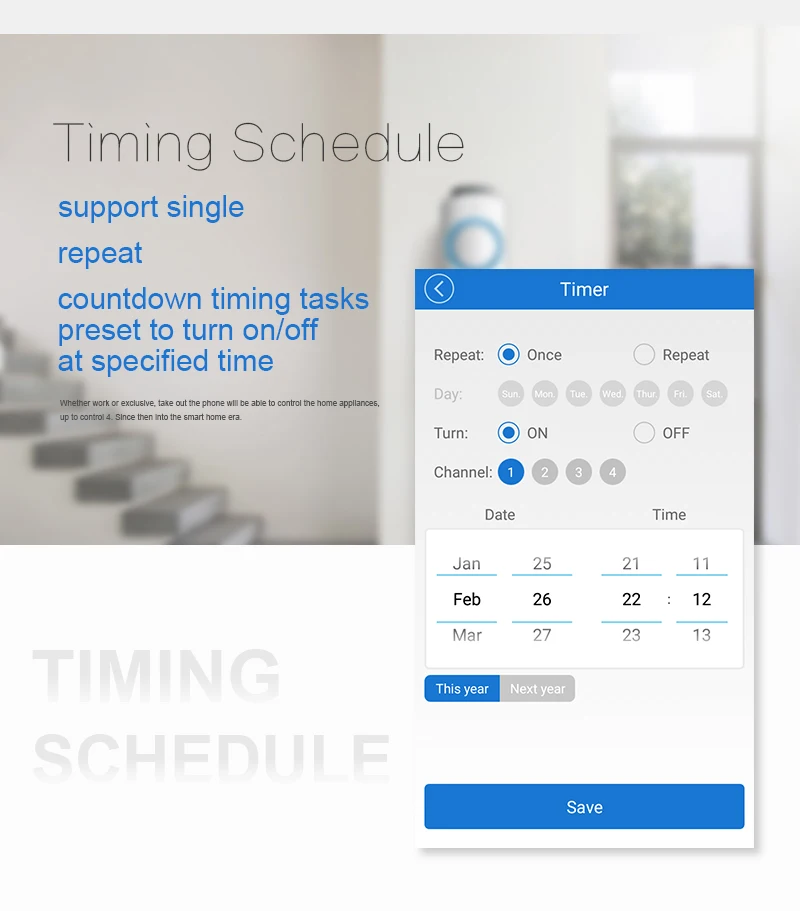

3.Timing schedules
Support max 8 single/repeat timing schedules each device. Preset timers can work even WiFi is unavailable, but the device must keep power on.
4.Security mechanism
One device one owner. Other people can not add the devices that have already been added.
5.Update
It will auto-remind you of new firmware or version. Please update as soon as you can
