Wifi Switch DIY Smart Home Automation Modules Wireless Remote Control Light Timer Relay Switches 110V 220V Works with Alexa
Model Number:
WiFi Smart Power Switches Works For Amazon Alexa
Camera Equipped:
No
State of Assembly:
Ready-to-Go
Brand Name:
QIACHIP
Compatibility:
All Compatible
Input voltage:
AC 100V - 250V
Support App Name:
Ai Socket
Support operating system:
iOS and Android
Application:
Wifi Smart Remote Control Switch for Lights Lighting fan
Timer function:
Light Timer Switch
Max Current:
10 A
Function:
Smart Remote Control
Application 2:
Smart Home Wifi Light Switch
Frequency:
2.4Ghz
RF Frequency (New Version B):
433.92 Mhz
sonoff
WiFi Switch DIY Smart Home Automation Modules Wireless Remote Control Light Timer Relay Switches 110V 220V Works With Alexa
Please note: You will get different packages by choosing different options.
Please configure the smart switch according to the instructions in the package you received.
Package list:
1) Old version
Smart Switch (Old version) * 1pcs

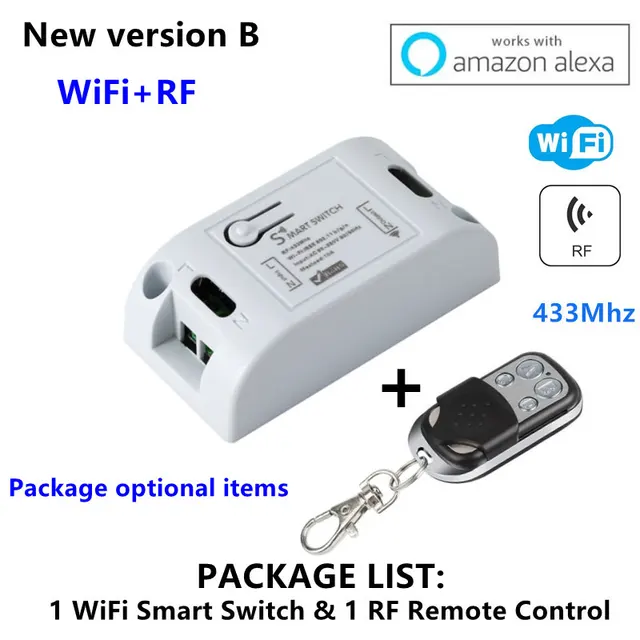

2) New version B + TXa
1) Smart Switch (New version B) * 1pcs
2) 4 button 433Mhz RF remote control * 1pcs
3) New version B + TXb
1) Smart Switch (New version B) * 1pcs
2) 1-button Wall panel RF remote control * 1pcs (Batteries not included）
Note: Battery model: CR2032
Battery installation diagram of this wall panel remote control
4) New version B + 2TX
1) 1 smart switch (WiFi Switch with 433 Mhz RF Wireless Receiver) * 1pcs
2) 4-button RF remote control * 1pcs
3)1-button Wall panel RF remote control * 1pcs (Batteries not included）
Note: Battery model: CR2032
5) New version B
1) 1 smart switch (WiFi Switch with 433 Mhz RF Wireless Receiver) * 1pcs
Features:
This Wifi switch is a through wifi connection to the internet, by mobile phones can remote control home appliances. It is a low-cost, affordable device that help you to step into the amazing smart home!
APPLICATION
Remote ON/OFF – Turn electrical devices on/off from anywhere
App Support – Free iOS and Android mobile App 'ai socket' or "Smart Life"(According to different versions)
Sync Status – Real-time device status provided to App
Timing – Set scheduled/countdown/loop timers to turn on/off at specified time
Share Control – Control your smart home together with your family
Scene – Turn on/off a gang of devices with one tap
Voice Control – Works perfectly with Amazon Alex
Product Parameters
Input voltage: AC 100-240V
Output voltage: AC 100-240V
Max Current: 10A
Wireless type: wifi 2.4GHz
Wireless standard : IEEE802 .11b/g/n
RF : 433.92 Mhz (Only the New version B has this function）
Old Version Wiring Diagram
New Version B Wiring Diagram
SIZE
INSTRUCTIONS FOR USE
Please note: You will get different packages by choosing different options.
Please configure the smart switch according to the instructions in the package you received.
How to install smart switch(New Version B)
You don't need to open the outer casing of this smart switch
You can wire directly to the terminal block
Please note: Please turn off the power before wiring.
Please connect the wires according to the following diagram
WIRING DIAGRAM
After the wiring is completed, turn on the power and operate according to the status of the smart switch indicator:
1) If the blue light of the smart switch flashes continuously at this time, it indicates that the smart switch has entered the state of waiting for connection to WiFi; then open the APP and follow the instructions to connect to WiFi.
2) If the indicator light of the smart switch is not flashing blue light, please press the button of the smart switch and keep it for more than 5 seconds until the blue light flashes continuously, then open the APP and connect to the WiFi according to the manual.
Scan the QR-code of the manual or Search ‘ Smart Life ’ to download and install the device's APP
How to match smart switch with 433Mhz RF remote control?
This smart switch has 3 working modes to match the 433Mhz RF remote:
(smart switch, hereinafter referred to as: receiver)
About receiver's Working Mode:
Momentary mode: Press the Remote control button, the receiver's relay is ON; release button, the receiver's relay is OFF.
Toggle mode: Press Remote control button for 1 time, the receiver's relay is ON; press button again, the receiver's relay is OFF.
Latched mode: Press Remote control button A, the receiver's relay is ON, Press the transmitter's button B, the receiver's relay is OFF.
Reset function: After push the receiver's learning button 8 times, the receiver Clear all the remote control data in its memory.
When the red LED flashes for a few times, it indicates that the clear function is completed.
(After cleared the code in the receiver, all the remote control cannot work with the receiver.)
Matching method:
1. Setting momentary Mode:
Press the receiver's Learning button 1 time, the receiver's red LED will be lights up, it comes into Setting state; Press the remote's button, the receiver's red LED will flash then come off, Setting successfully.
2. Setting Toggle Mode (Common working mode):
Press the receiver's Learning button 2 time, the receiver's red LED will be lights up, it comes into Setting state; Press the remote's button, the receiver's red LED will flash then come off, Setting successfully.
3. Setting Latched Mode:
(Note: When you choose "Latched Mode", you need to setting two different buttons on the Remote control, the first time learn is for “ON”, the second time learn for “OFF”.
For example: button A = ON, button B = OFF)
Press the receiver's Learning button 3 time, the receiver's red LED will be lights up, it comes into Setting state; Press the remote's A button, the receiver's red LED will flash and then remains lit; Then press the remote's B button, the receiver's red LED will flash then come off, Setting successfully.
Note: A Smart Switch can only store 12 buttons (on the remote). Saved button number of more than 12, it will cause all of the stored remote control cannot control the Smart Switch. You need reboot the power and reset the RF remote control settings (press the Smart Switch's matching button 8 times)
Q&A
1. My device has added successfully but stays “Offline”?
Answers: The newly added device need 1-2 min to connect to your router and the Internet. If it stays offline for a long time, please judge the problem by the led status:
Led quickly blinks one time and repeats, which means device failed to connect to the router. The reason may be you have entered wrong Wi-Fi password or your device is too far away from the router, which causes a weak Wi-Fi signal. The device cannot be added to the 5G-wifi-router, only the 2.4G-wifi is OK. At last, make sure that your router is MAC-open.
2. Why the APP can't find the device in pairing status?
Answers: That's because of your phone's cache. Please close the WLAN of your phone then open it after a minute. At the same time, please power off the device if you can, then power up to try again.
3. The led keeps off, even if the device is powered on. Press the button but the device does not work.
Answers: The circuit may be broken, please send it back for testing. Return shipping postage and packaging will be at buyer's expense, if the device is damaged by the buyer, and the buyer should bear extra repair cost.
Unit Type:
piece
Package Weight:
0.05kg (0.11lb.)
Package Size:
10cm x 10cm x 5cm (3.94in x 3.94in x 1.97in)
