Wifi Switch DIY 433Mhz Wireless Remote Domotica Light Smart Home Automation Relay Module Controller Work with Alexa Z15

Wifi Switch DIY 433Mhz Wireless Remote Domotica Light Smart Home Automation Relay Module Controller Work with Alexa Z15

Product ID : 32925115090

Price : $4.98

Discount Price : $4.23

Item specifics

Item Type:
Switches

Certification:
CE,CCC,RoHS

Model Number:
164149 Wall Light Learning type

Warranty:
1 Year

Features:
Wireless Remote Control Switch

Current:
10A

Material:
Plastic

Brand Name:
QIACHIP

Switch Type:
Sensor Switch

Product Description

Wifi Switch DIY 433Mhz Wireless Remote Domotica Light Smart Home Automation Relay Module Controller Work with Alexa Z15

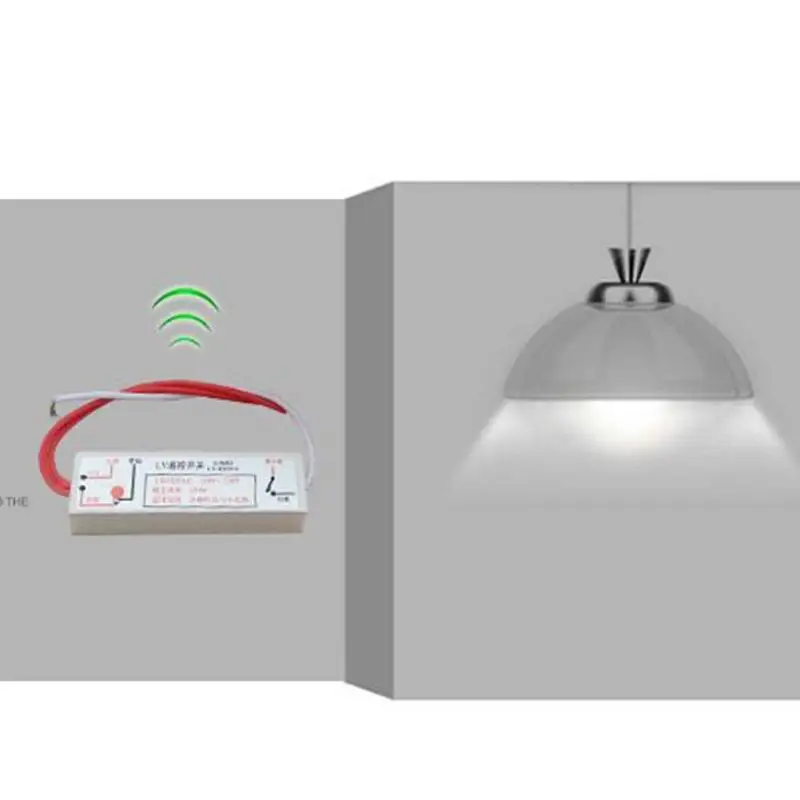

This is to be put into a normal wall switch then the normal wall switch will be turned into a smart remote controller wall switch. No need to replace the previous switch and create the smart function at cheapest cost. One wall switch can put at most 2relay most

this relay and switch can work with rmpro perfectly

One relay control one device. It can be used for lights / fan / and ect all kinds of wall switches.

Tips: one LV 3.50 remote can record 23 group codes at most, if come to 24th codes, it will exit automatically and you have to clear the codes recorded before then go on.

Steps of learning code:

1.reseting

Connecting remote to lamps and turn off the lamp before learning code. Then long-press the learning button for around 8s to reset. If the indicating light blink fast, means lv3.50 connect to the wall switch correctly.

2.Learning the code of single on, off / general on / general off

(1) .Turn off the light and long-press the resetting button for 3s, then you can see the indicating light blink once, then you can click one button on remote controller, If the instructions lights blink fast several times, means it's finished . Then this button on the remote controller can control the on and off for this lamp (the first click, on; second click, off)

(2) .Now, click the reset button once more, you will see the indicating light blink twice, this way you can record "general on" by click another button on the remote controller.

(3) Now, click the reset button for twice, you will see the indicating light blink 3times fast, then you can control the "general off" by click another button on the remote controller.

3. of the learning code mode, if not click the button of remote controller but click the button of wall switch, then the wall switch button can learn the code and control the lamp. Same as step 2- (1),

4. in the leaning code mode, if the code is not recoded in 30s, then the mode will go into normal mode automatically. In the leaning code mode, long-press the resetting button 3s again, then the learning code mode will be exited The

5.Remote control timing learning program ways. Turn on the light, long-press the resetting button for 3s enter timing learning code mode. At this moment, the indicating light is blink once by once. This way if click the resetting button once, the timing is 1min, click the second time, the timing is 3min. Totally there are 7 timing mode to choose as below.

(1) The first click, the timing setting is 1min and the indicating light blink once

(2) The second click, the timing setting is 3min and the indicating light blink twice

(3) The third click, the timing setting is 6min and the indicating light blink 3times

(4) The 4th click, the timing setting is 12min and the indicating light blink 4times

(5) The 5th click, the timing setting is 30min and the indicating light blink 5times

(6) the 6th click, the timing setting is 2h and the indicating light blink 6times,

(7) the 7th click, the timing setting is 5h and the indicating light blink 7times.

Remote control timing setting, when you choose the timing mode you want to set, then click one button on the remote controller, then you can timing timing the control.

For the wall switch, the same setting way as the remote controller. This way, when you turn on the light, the light will turn off automatically after the timing.

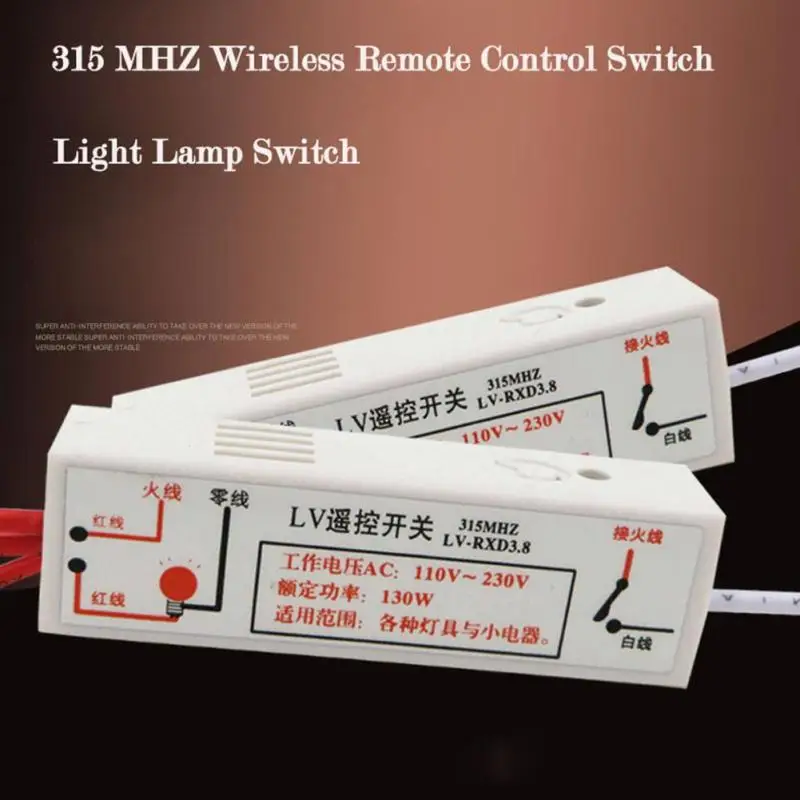

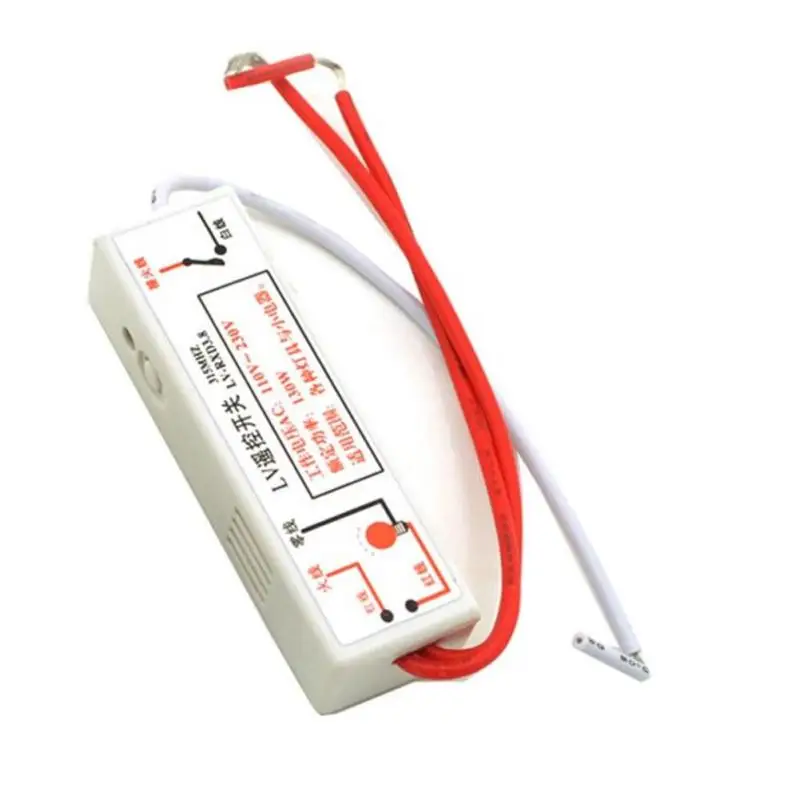

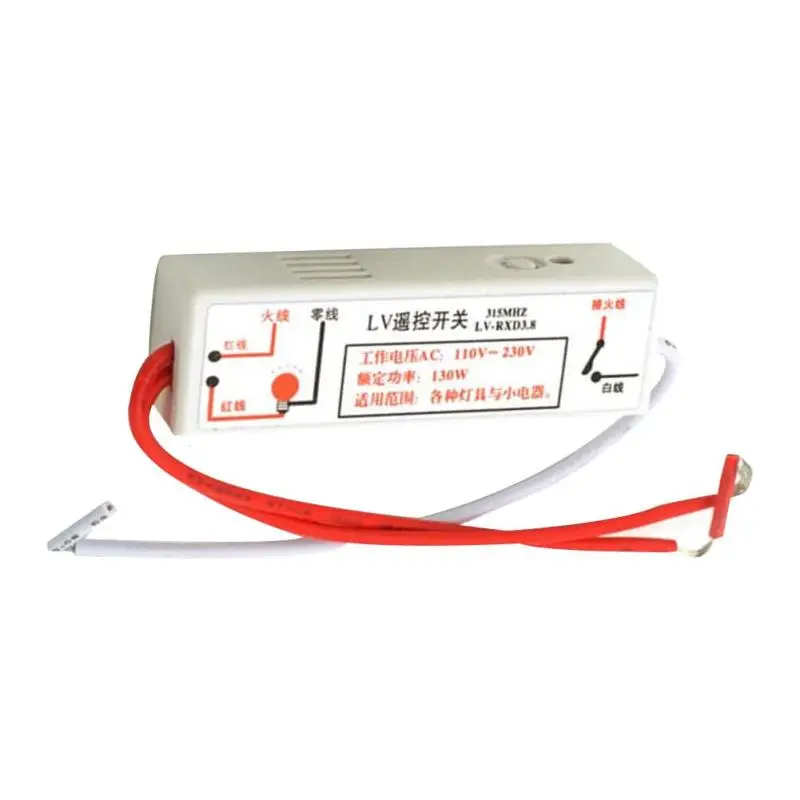

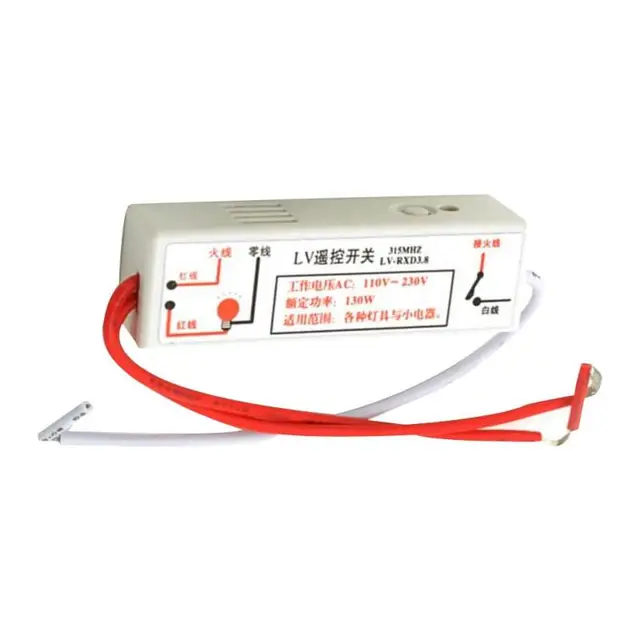

Type: Wireless remote control switch

Working voltage: 220V

Operating frequency: 315

Total load power: 200W

Remote distance: 100m

Working temperature: 0-50 (℃)

Scope: energy saving lamp / incandescent lamp

3C rated voltage range: 440V and below

Weight: 30g

Packing: 1pcs * OPP bag
