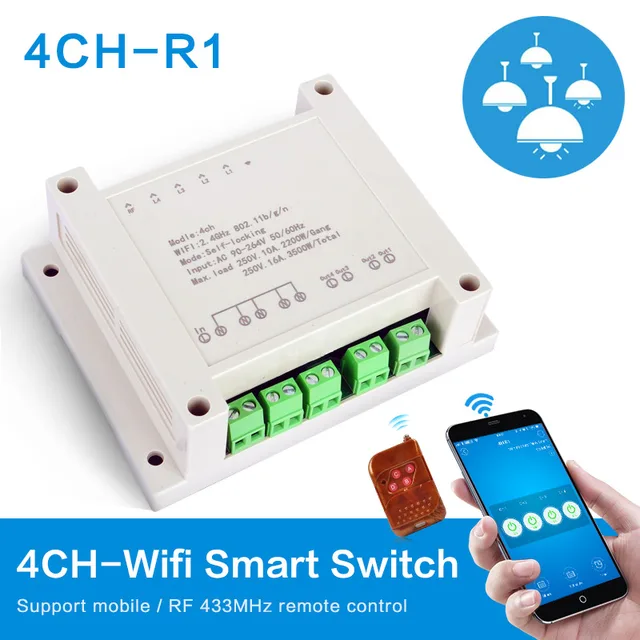

WIFI Switch 90-220V 4-way Relay rf receive Jog Inching Self-locking wireless remote control for smart home Automation Modules

WIFI Switch 90-220V 4-way Relay rf receive Jog Inching Self-locking wireless remote control for smart home Automation Modules

Product ID : 32874813939

Price : $27.50

Discount Price : $22.00

Item specifics

•
  Camera Equipped:
  No



•
  State of Assembly:
  Ready-to-Go



•
  Model Number:
  4ch r1



•
  Compatibility:
  All Compatible



•
  Brand Name:
  FREEJOIN


Product Description

APP download

Adnroid APP: E-WeLink-2.1.13.apk

Support IOS cellphone also, you can search "e-welink" in App store to setup it;

Support IOS cellphone also, you can search "e-welink" in App store to setup it for English version;

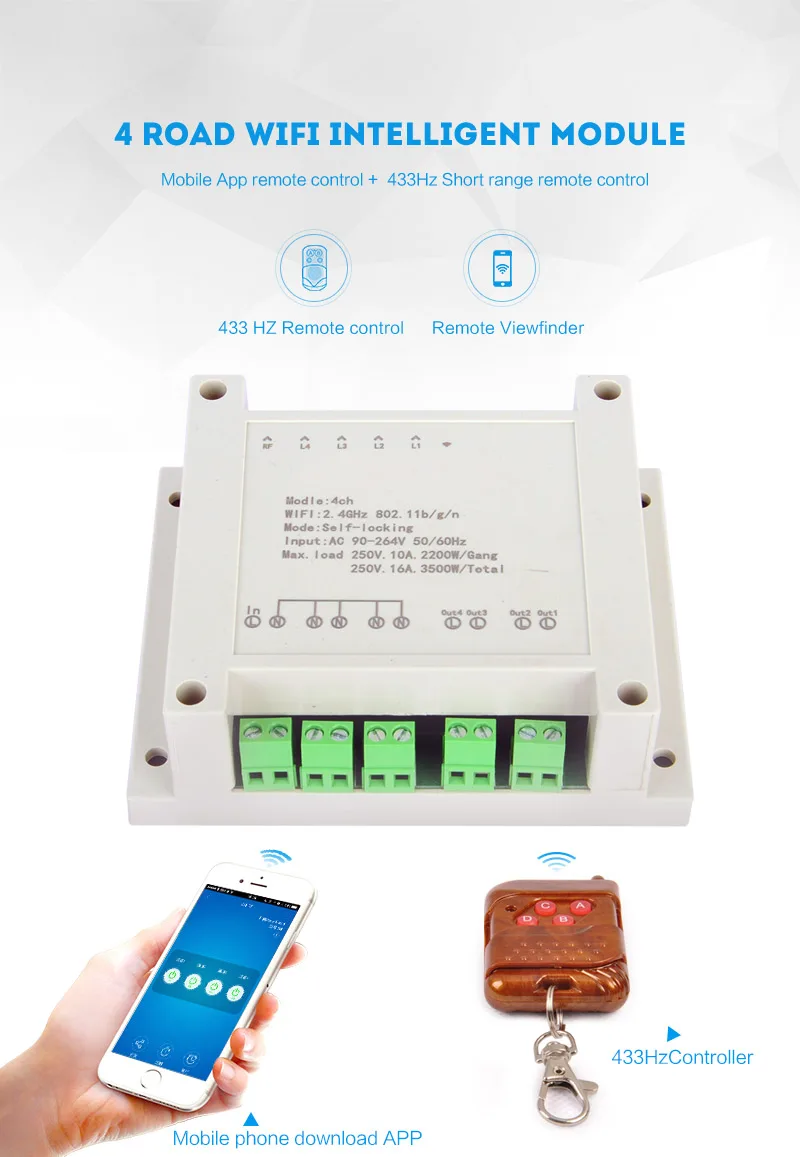

WIFI control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.

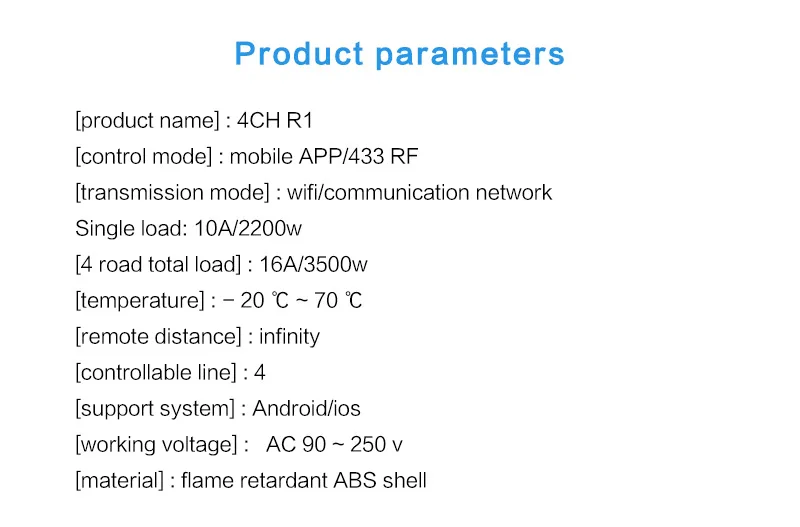

Features:

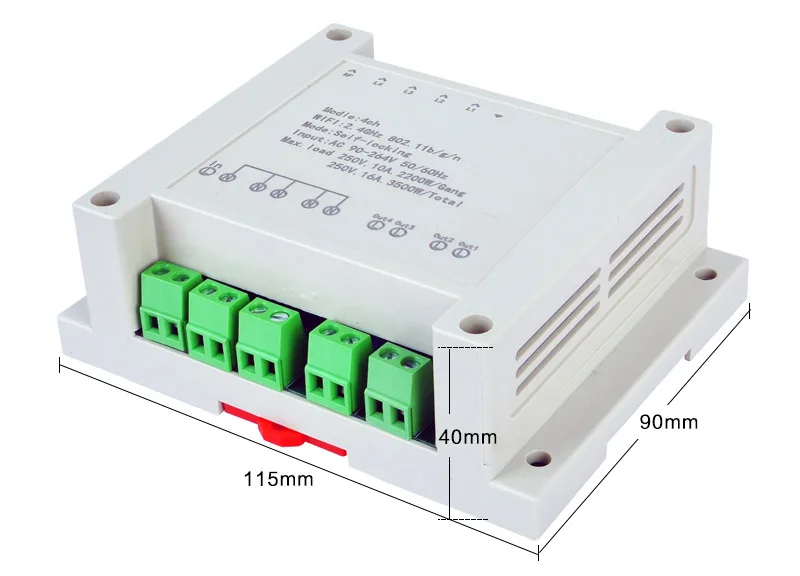

Size:115*90*40mm

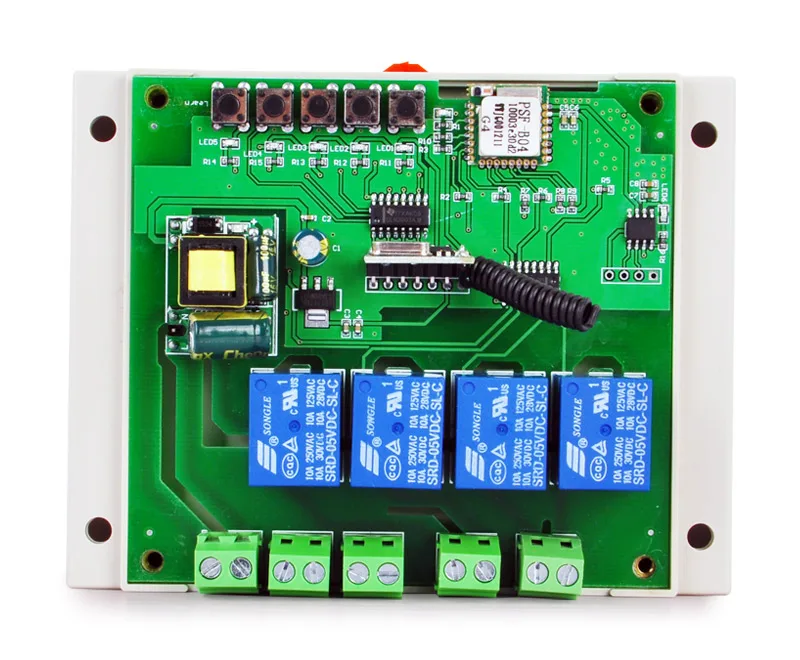

 Main chip: wifi module/433RF module

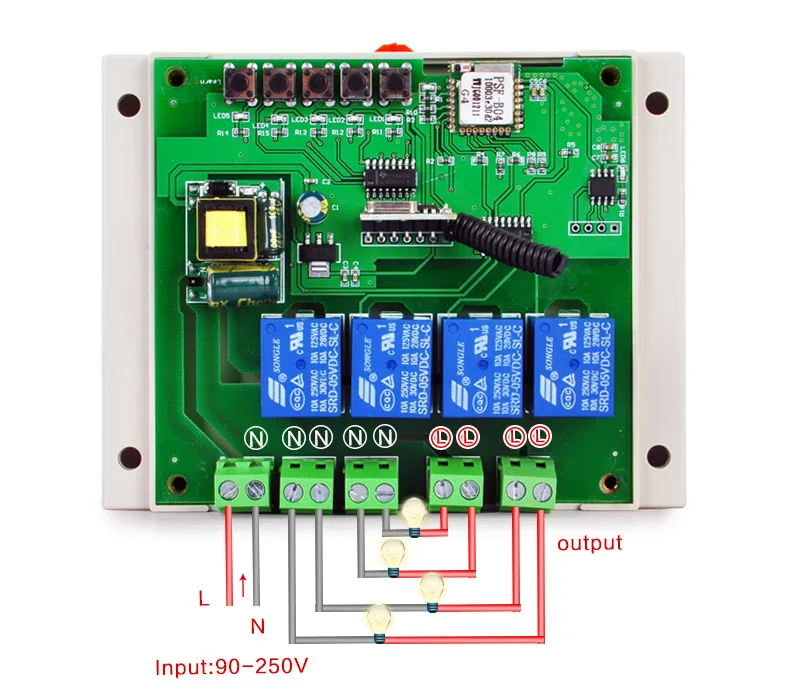

 Working voltage:

 90- 220V

 Characteristics:

Fool type wifi control module, no programming, only need to download an APP,    link WIFI can control the own cloud. As long as the module links WIFI, the phone can be controlled anywhere in the country.



1,  With a signal indicator, relay pull the light.

2, The board power consumption of static current 80MA relay all open is about 380MA peak

3, 1 relay rated switching current of less than 10A, switching voltage within 250V

4,  10A relays

5, Relay life of more than 1000000 times.

6, Electrical insulation resistance 100M

7, Electric shock voltage 1000V

8, The relay maximum suction time 15mS milliseconds

9, Tthe relay maximum release time 5mS milliseconds

10, The operating temperature of -40 degrees to +70 degrees

11, Working humidity 40% ~ 80% RH

Applicable occasions: smart home. Wifi control / RF control



Package included:
1 x 4ch module

1 x remote(
No battery)



Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.21kg (0.46lb.)



•
  Package Size:
  5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)
