Sonoff Wireless Wifi Switch, Smart Home Automation Relay Module Diy Timer WiFi Switch 220V Support IOS Android Remote Controller
State of Assembly:
Ready-to-Go
Brand Name:
SONOFF
Max Speed:
Sonoff wifi Switch
Features:
Flashing
Scale:
1:5
Model Number:
Sonoff 1ch smart switch
Control Channels:
2 Channels
Voltage range:
90-250v AC(50/60Hz)
Power::
10A/220V
App name:
eWelink
Max Wattage::
2200W

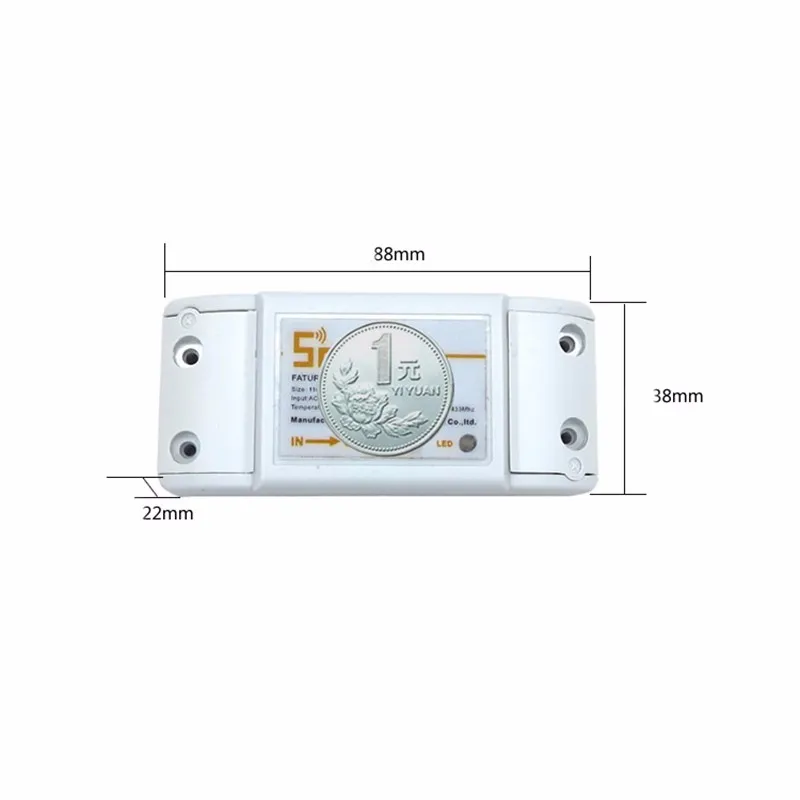

Dimensions::
88x38x23mm
Humidity::
5-95 percent
Wireless Frequency::
2.4Ghz
Working Temp: :
-20 -75 degree
Style:
Sonoff smart home wifi
Features:
Remote Control,Flashing

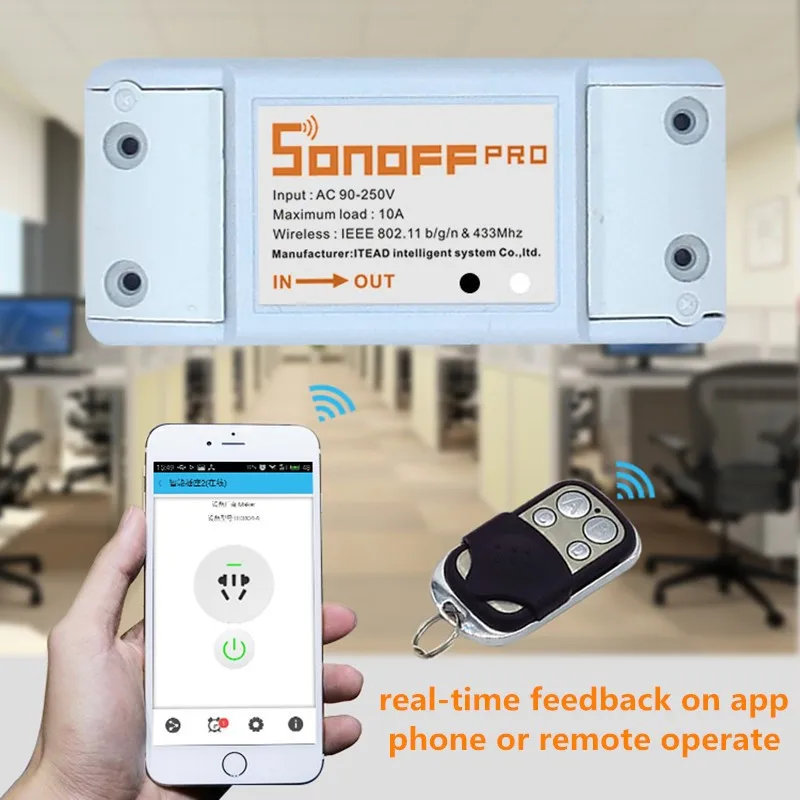

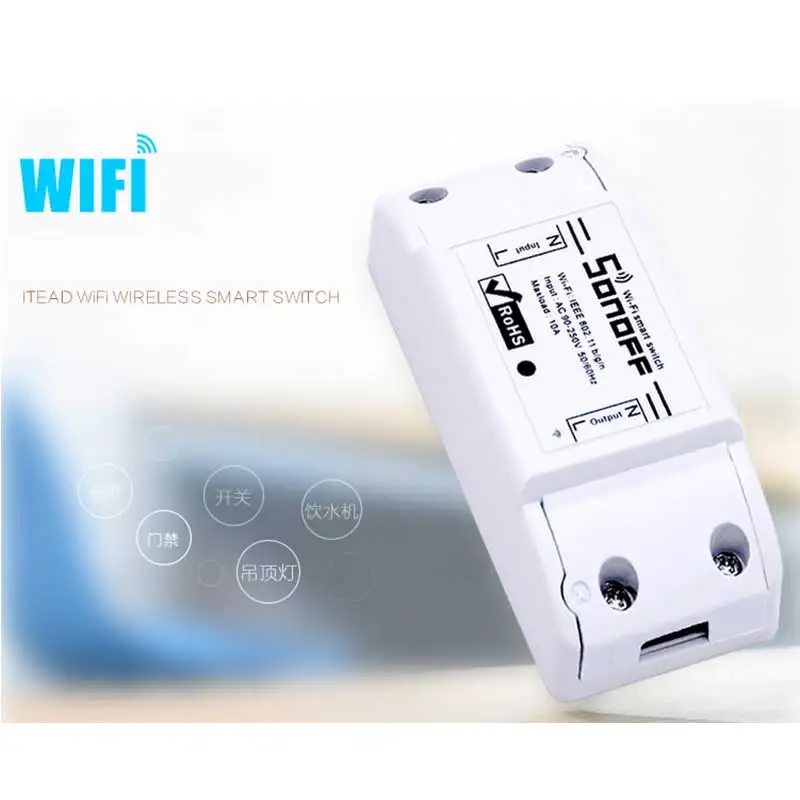

Itead Sonoff Smart Home Wifi Switch is "The Internet of Things". The way that all of our devices and appliances will be networked together to provide us with a seamless control over all aspects of our home and more.

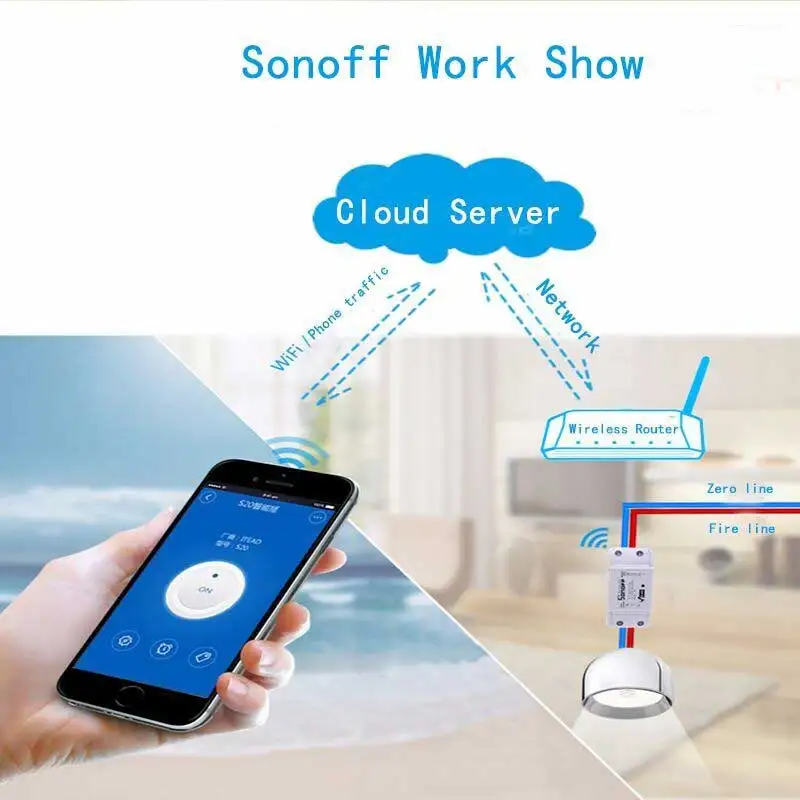

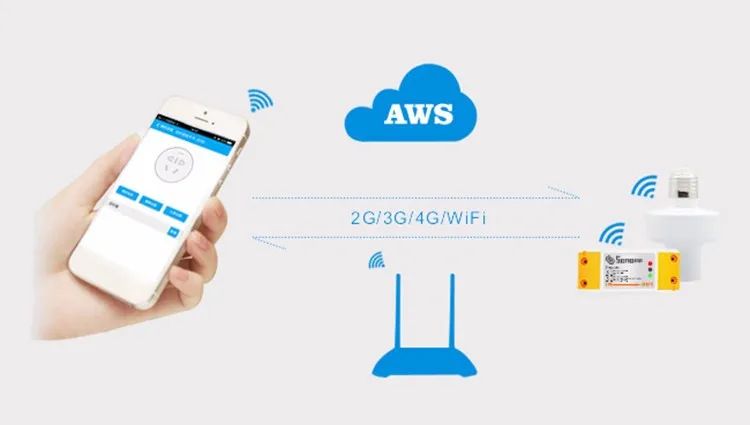

Sonoff is a low-cost, affordable device that help you to step into the amazing smart home.It is a WiFi wireless switch that can connect to appliance of different types and brands. Sonoff sends data to cloud platform through the WiFi Router, which enables you to remotely control all appliances with the App eWeLink on your smart phone. The server of Sonoff is AWS global server.
Sonoff makes all your home appliances smart, as long as your phone has network you can remotely turn on or turn off your appliances from anywhere at any time. And by setting timing schedules for your appliances, you can maintain a carefree life.
The App eWeLink enables you to control your devices easily. You can download the iOS version in App Store and the Android version in Google Play.
Features
Support WiFi network.
Support status tracking, home appliances status timely feedback to your App.

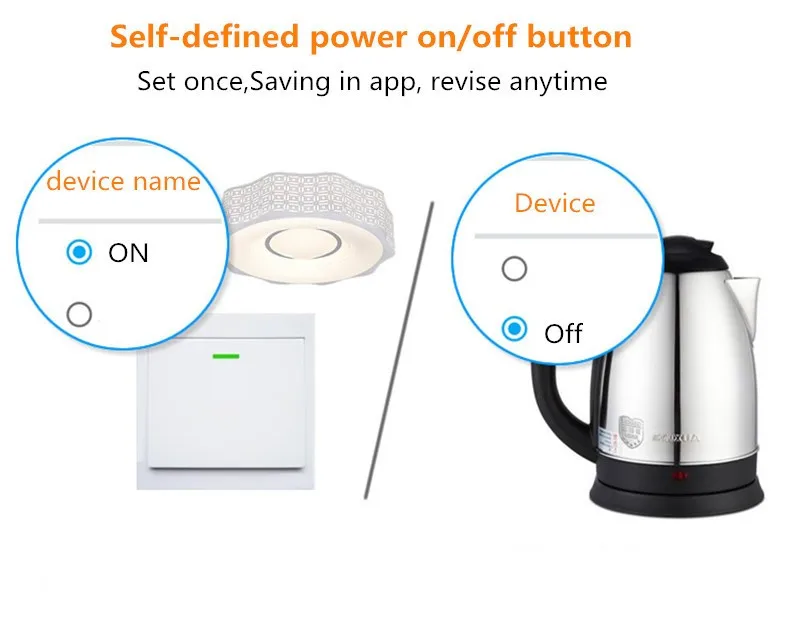

Support remotely turn on or off added devices.
Support Max 8 timing tasks for each added device.
Support numerous WiFi smart switches one smart phone.
Easy installation, easy handling and can be activated immediately and stably.

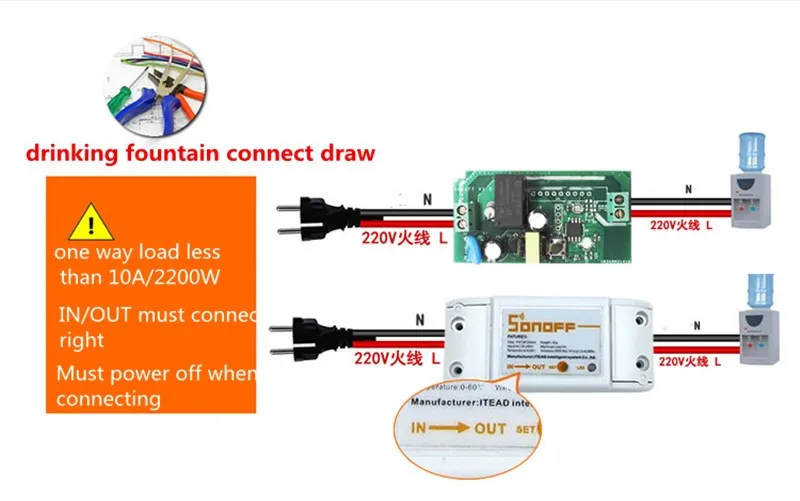

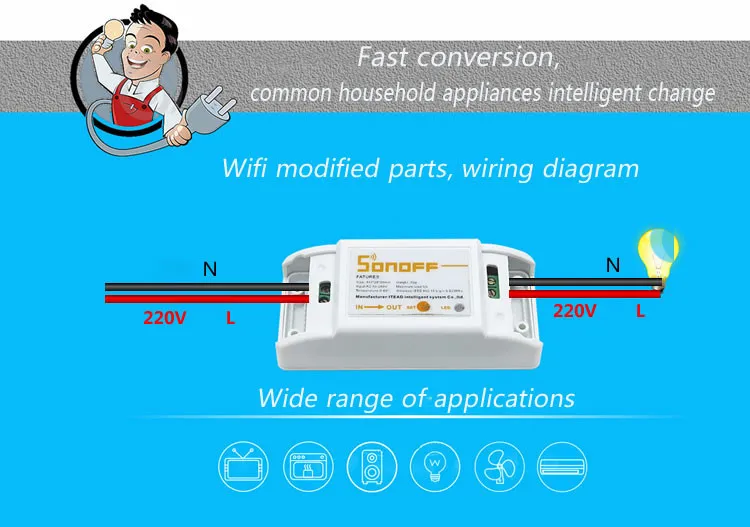

In-out Connect way must be strictly according to below draw, live wire and zero wire can be connect randomly
How to install the Sonoff WiFi wireless switch?
Preparation: Switch off all related electricity source first.
Attention: The power input L N cables must connect with the “INPUT” side. The electricity output L N cables must connect with "OUTPUT" side. Remember DON`T mistaken the directions!
When connect Sonoff to home appliance(within 2200W), actually the two terminal connector ports at "INPUT" can connect to input cable L and N randomly, and "OUTPUT" can connect to output cable L and N randomly. But in order to avoid from any safety problems, please strickly follow the wiring connection as follows:
Input Output
N ————N
L————-L
Problems and solutions
Read the detailed FAQ on Itead Smart Home Forum.
1. My device has added successfully, but stays “Offline”.
Answers: The new added device need 1-2 min to connect to your router and the Internet. If it stay offline for long time, please judge the problem by the green led status:
1.1. Green led quickly blinks one time and repeats, which means device failed to connect to router. The reason may be you have entered wrong WiFi password or your device is too far away from router,
which causes a weak WiFi signal. The device can not be added to the 5G-wifi-router,only the 2.4G-wifi is OK. At last, make sure that your router is MAC-open.
1.2. Green led slowly blinks one time and repeats, which means device has connected to router and server, but failed to be added to device list. Then power on the device again, if it still not working, just add the device again.
1.3. Green led quickly blinks twice and repeats, this means the device has connected to router but failed to connect to server. Then please confirm your WiFi router works normally.
2. Why the APP can not find the device in paring status?
Answers: That’s because of your phone’s cache. Please close the Wlan of your phone then open it after a minute. At the same time,please power off the device if you can,then power up to try again.
3. My WiFi is expired, can I connect the devices to LAN? Can my phone be directly connected to device hotspot?
Answers: Currently eWeLink do not support LAN or directly connect to deceive hotspot. All devices must be connected to router, thus they can communicate with the Internet cloud server.
4. The green led keeps off, even if the device is powered on. Press the button but the device does not work.
Answers: The circuit may be broken, please send it back for testing. Return shipping postage and packaging will be at buyer’s expense, if the device is damaged by the buyer, and the buyer should bear extra repair cost.
Unit Type:
piece
Package Weight:
0.2kg (0.44lb.)
Package Size:
10cm x 5cm x 3cm (3.94in x 1.97in x 1.18in)
