Sonoff Wireless Wifi Smart Switch APP Control Universal DIY Smart Home Automation Module Timer Smart Switch 10A/2200W
Brand Name:
SONOFF
Max Speed:
None
Model Number:
DZ1000-00B
Gyro:
None
State of Assembly:
Ready-to-Go
Scale:
1:1
Sonoff Wireless Wifi Smart Switch APP Control Universal DIY Smart Home Automation Module Timer Smart Switch 10A/2200W
Overview
Home automation is "The Internet of Things".
It simply means the way all devices or appliances are networked together to provide users with a seamless control over their home equipment.

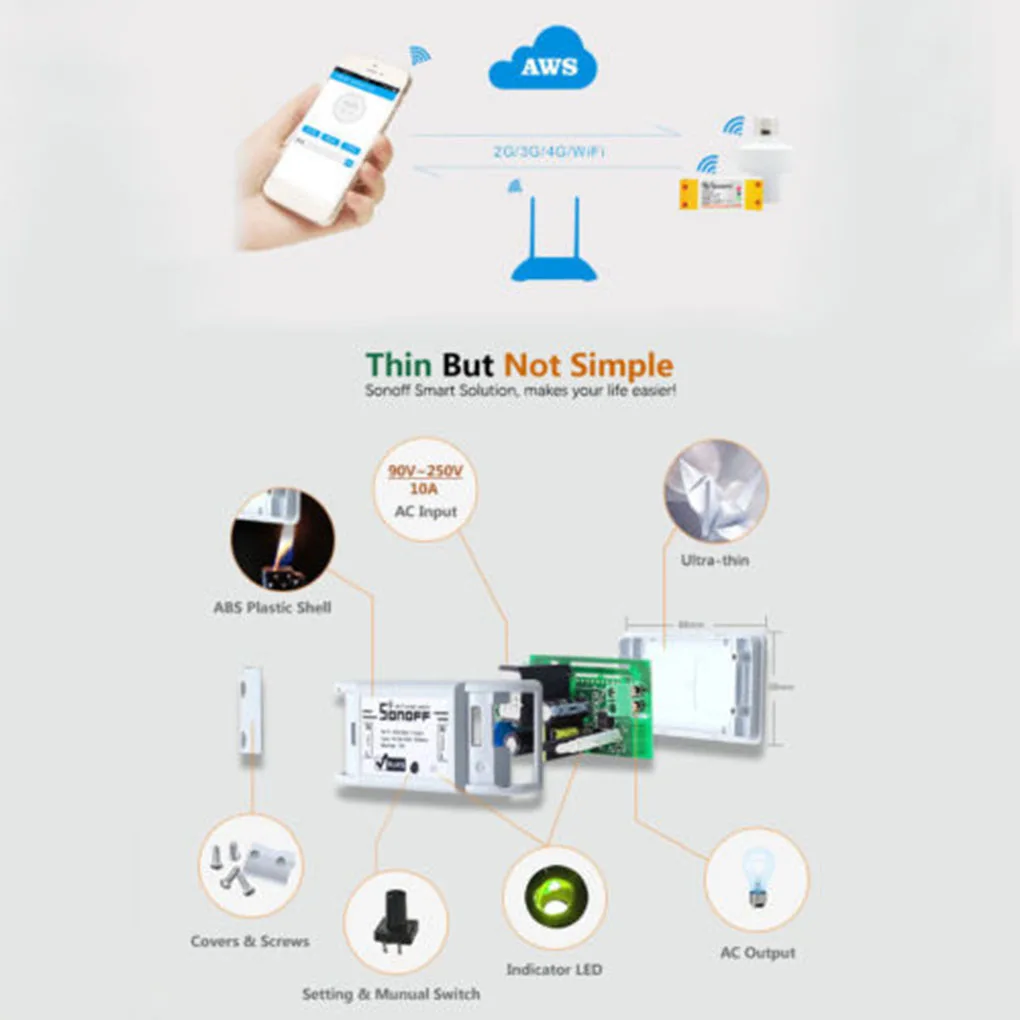

1.Sonoff is a low-cost, affordable device that help you to step into the amazing smart home.It is a WiFi wireless switch that can connect to appliance of different types and brands. Sonoff sends data to cloud platform through the WiFi Router, which enables you to remotely control all appliances with the App eWeLink on your smart phone.
2.Sonoff makes all your home appliances smart, as long as your phone has network you can remotely turn on or turn off your appliances from anywhere at any time. And by setting timing schedules for your appliances, you can maintain a carefree life.
3.The App eWeLink enables you to control your devices easily. You can download the iOS version in App Store and the Android version in Google Play.There is a key to share the function and you can control one switch with your family members or friends at the same time by sonoff switch.

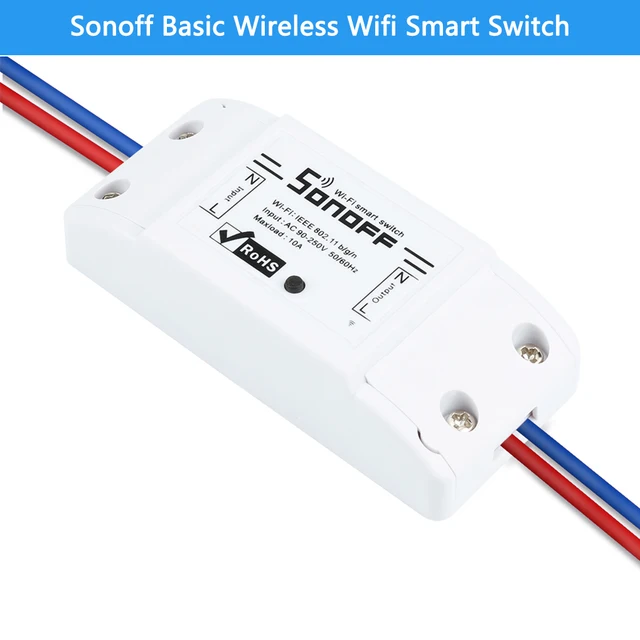

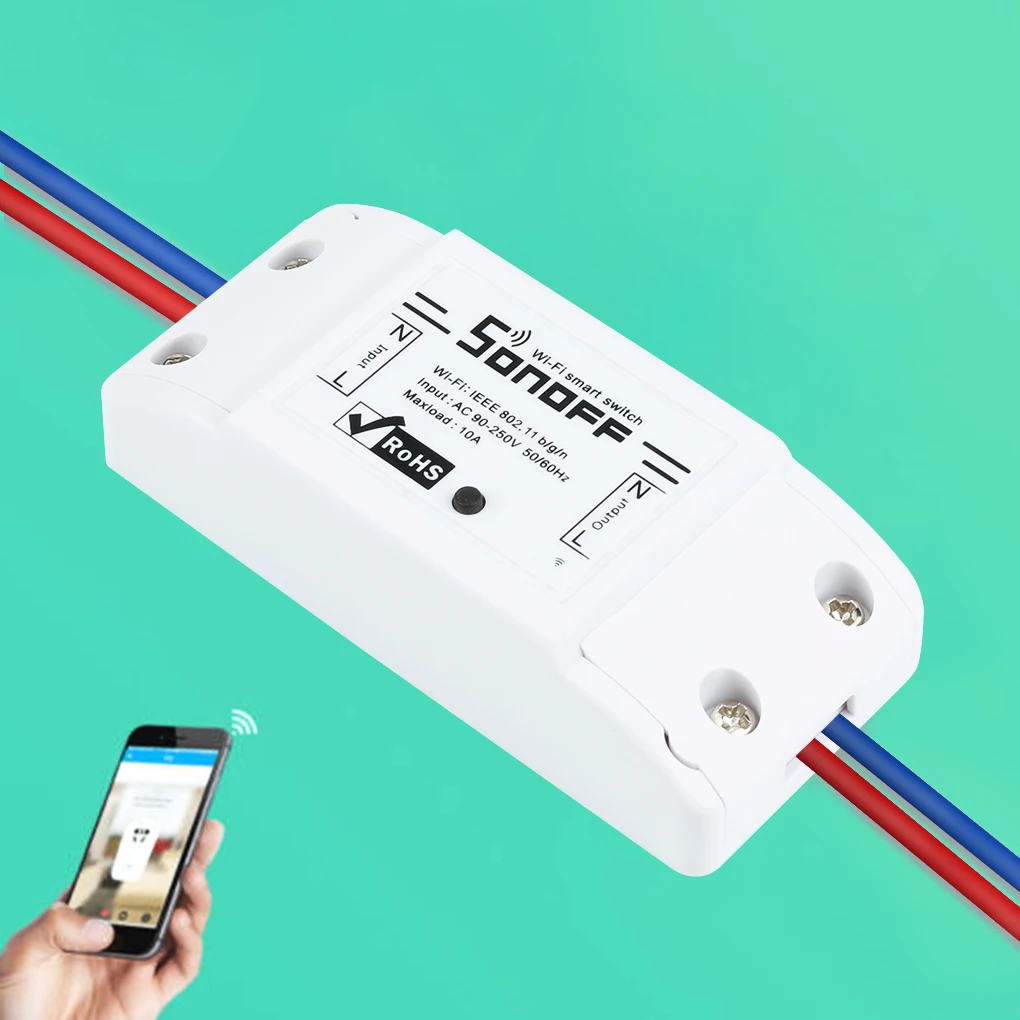

To install Sonoff, pay attention to the IN and Out mark on Sonoff.
1. Switch off electricity source

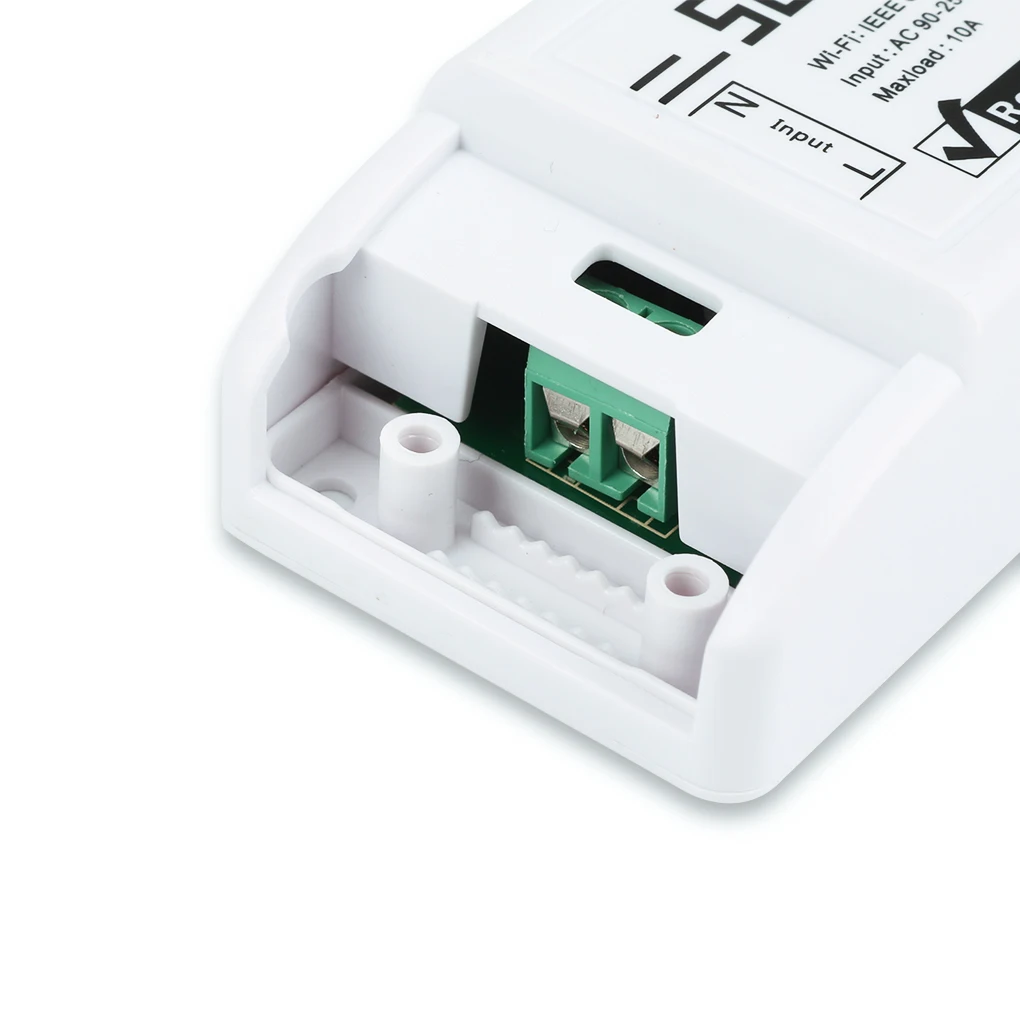

2. Open the two yellow shells at both ends
3. Connect the two electricity source cables(Live and Neutral) to the 2 ports with “IN” mark, one cable for one port, and there's no limitation for which port to connect
4. Connect the two appliance cables(Live and Neutral) to the 2 ports with “OUT” mark, one cable for one port, and there's no limitation for which port to connect
5. Cover the shells and screw firmly
Note: 1.If you can not install and set it,please download the user guide when you can not set it right.You can contact us anytime when you have a problem.
2.this Sonoff WiFi switch does NOT have 433Mhz RF remote capability. If you want RF function, please buy Sonoff RF.
Sonoff Product Series:
Product Name | Feature | Input Voltage | Wireless Frequency |
Shopping |
Sonoff TH10 | Monitor and set temp. | 90~250V AC | 2.4Ghz | Click |
Sonoff TH16 | Monitor and set temp. | 90~250V AC | 2.4Ghz | Click |
TH10/16 SET | Monitor and set temp. | 90~250V AC | 2.4Ghz | Click |
Sonoff Dual | Independently control 2 devices | 90~250V AC | 2.4Ghz | Click |
Sonoff Pow | Smart remote control switch | 90~250V AC | 2.4Ghz | Click |
Sonoff 4CH | 4ch Channel Remote Control WiFI Switch | 90~250V AC | 2.4Ghz | Click |
Sonoff 4CH Pro | 4-channel WiFi switch & RF 3 working mode switch | 90~250V AC | 2.4Ghz | Click |
Sonoff 4CH R2 | 4 Channels Remote Control Wifi Advanced Switch | 90~250V AC | 2.4Ghz | Click |
Sonoff 4CH Pro R2 | 4 Channels 433MHz Wifi Advanced Smart Switch | 90~250V AC | 2.4Ghz | Click |
Sonoff Touch | Wifi touch switch panel | 90~250V AC | 2.4Ghz | Click |
S20 Smart Socket | Wifi smart socket | 90~250V AC | 2.4Ghz | Click |
Sonoff RF | 433Mhz RF WiFi Wireless Smart Switch | 90~250V AC | 2.4Ghz | Click |
Sonoff T1 EU/UK | Smart WiFi RF APP Touch Switch | 90~250V AC | 2.4Ghz | Click |
Sonoff Mini RF | 433 wireless remote control switch | 90~250V AC | 2.4Ghz | Click |

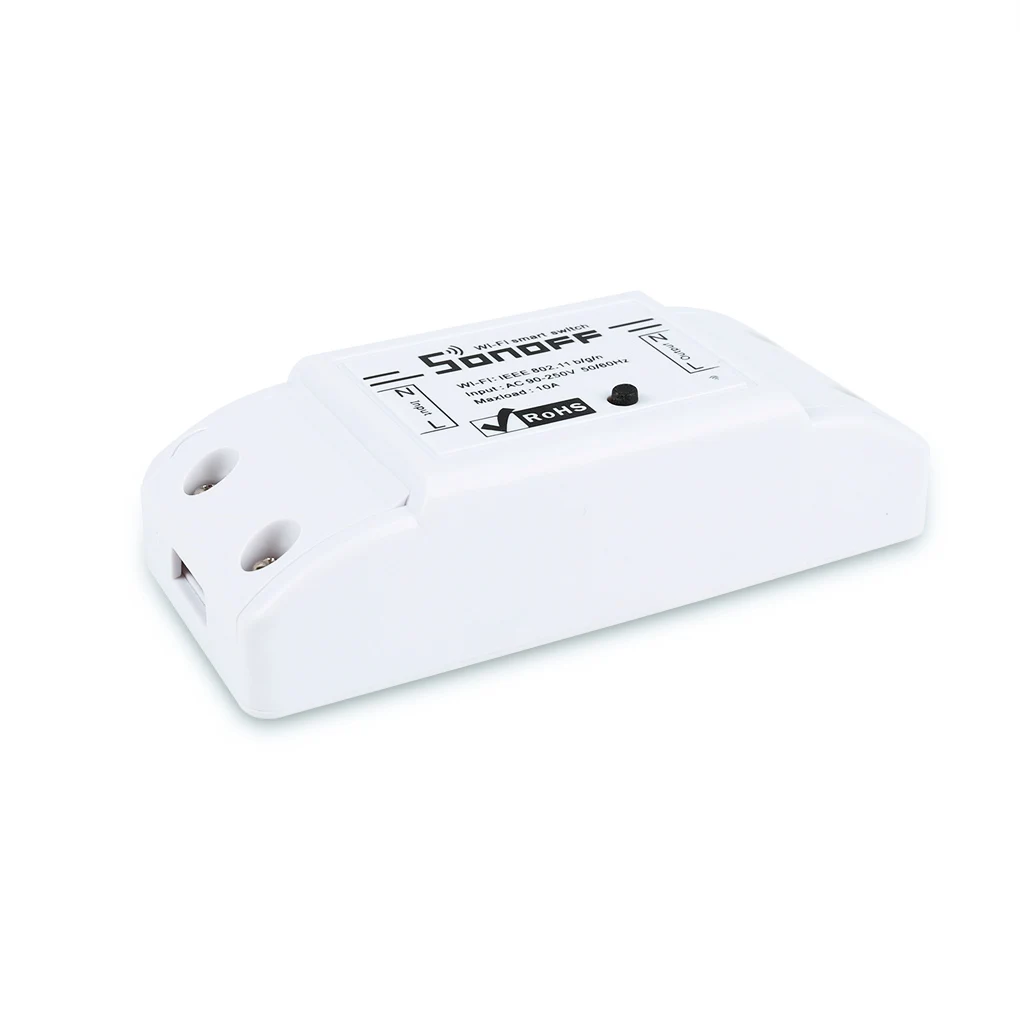

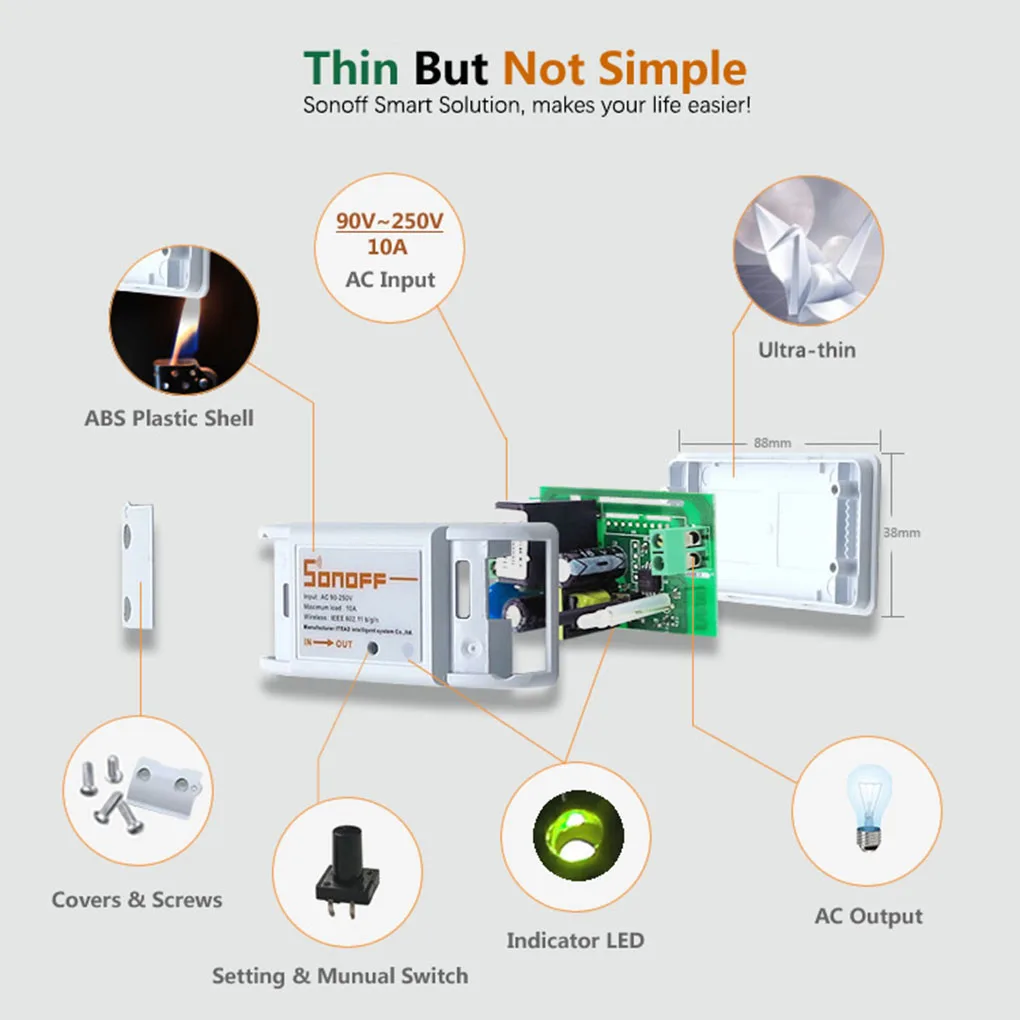

Specifications
- Color: white.
- Size: 88*38*23mm.
- Material: plastic.
- Rate Voltage: AC90-250V, 50/60HZ.
- power dissipation: <=0.5W.
- Transmission mode: Wifi 2.4G.
- Wifi frequency: IEEE 802.11 b/g/n.
- Control distance: infinity.
- Controlled lines: 1 line.
- Max Current/Wattage: 10A/2200W.
- Platform: Android/iOS/WeChat.
- Working temperature: 0-55 degree.
- Pls Note: this module does not support 433mhz remote control.

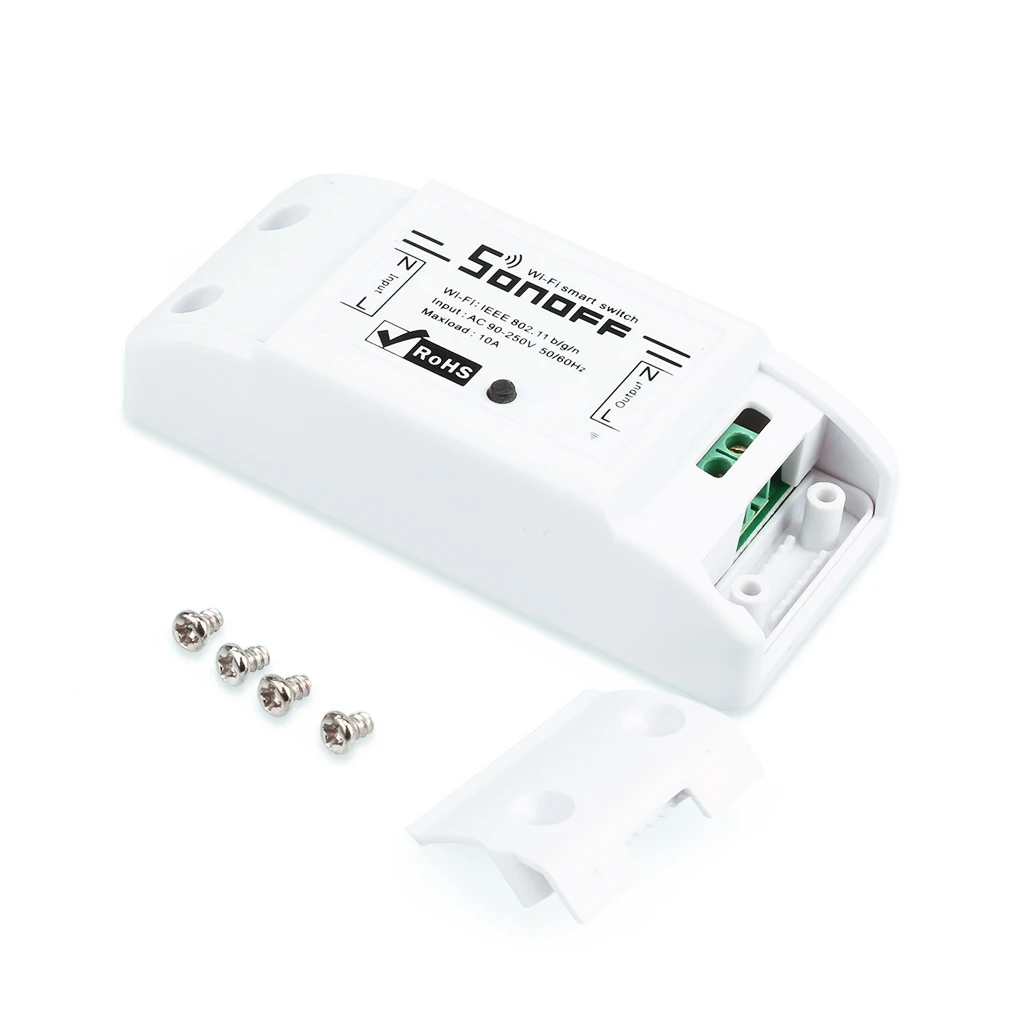

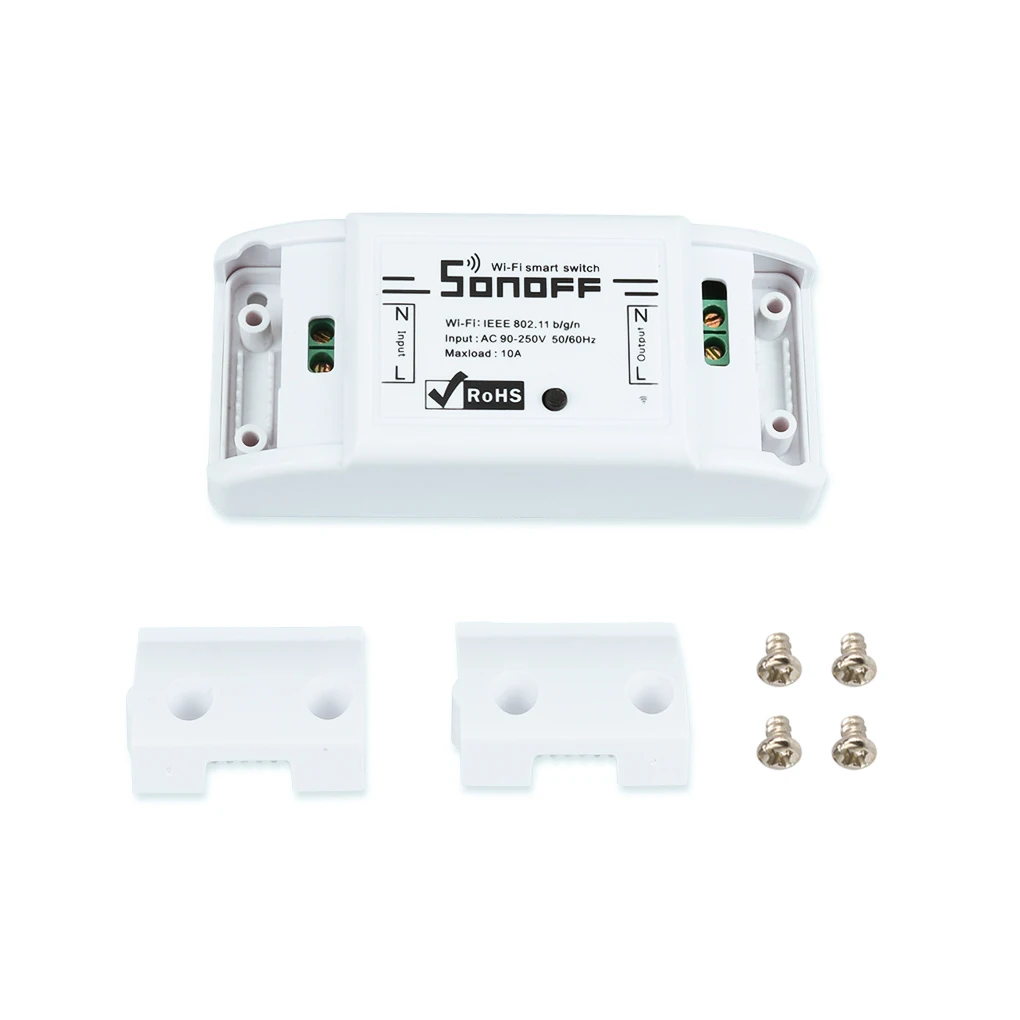

Package included:
1 * Wifi smart switch.
4 * screws.
Product Advantage:
- Supports WiFi network.
- Supports status tracking: device status timely provided to the EWeLink.
- Supports remotely turn on or off connected appliance/light.
- Supports max 8 enabled scheduled/countdown/loop timers for each device.
- Supports numerous WiFi smart switches on one smart phone.
- Works with Amazon Echo, Echo Dot, Amazon Tap
- Works with Google Home
- Works with Google Nest
- Suitable for Android/iOS/WeChat.
FAQ......
Read the detailed FAQ on SONOFF Smart Home Forum. If below answers can't solve your problem, please contact us directly.
1. My device has added successfully but stays “Offline”.
Answers: The newly added device need 1-2 min to connect to your router and the Internet. If it stays offline for a long time, please judge the problem by the green led status:
1.1. Green led quickly blinks one time and repeats, which means device failed to connect to the router. The reason may be you have entered wrong WiFi password or your device is too far away from the router, which causes a weak WiFi signal. The device can not be added to the 5G-wifi-router, only the 2.4G-wifi is OK. At last, make sure that your router is MAC-open.
1.2. Green led slowly blinks one time and repeats, which means the device has connected to router and server but failed to be added to the device list. Then power on the device again, if it still not working, just add the device again.
1.3. Green led quickly blinks twice and repeats, this means the device has connected to the router but failed to connect to the server. Then please confirm your WiFi router works normally.
2. Why the APP can't find the device in pairing status?
Answers: That's because of your phone's cache. Please close the WLAN of your phone then open it after a minute. At the same time, please power off the device if you can, then power up to try again.
3. My WiFi is expired, can I connect the devices to LAN? Can my phone be directly connected to device hotspot?
Answers: the Sonoff Basic and Sonoff RF support to be controlled by LAN.
4. The green led keeps off, even if the device is powered on. Press the button but the device does not work.
Answers: The circuit may be broken, please send it back for testing. Return shipping postage and packaging will be at buyer's expense, if the device is damaged by the buyer, and the buyer should bear extra repair cost.
Unit Type:
piece
Package Weight:
0.061kg (0.13lb.)
Package Size:
1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
