Sonoff Wifi Switch Wireless Relay Module Smart Home Automation For Computer Access Dc5v /12v 24v 32v Inching /Self -Locking Ios

Sonoff Wifi Switch Wireless Relay Module Smart Home Automation For Computer Access Dc5v /12v 24v 32v Inching /Self -Locking Ios

Product ID : 32951304630

Price : $10.75 - 12.69

Discount Price : $8.82 - 10.41

Item specifics

•
  Brand Name:
  SONOFF



•
  Compatibility:
  All Compatible



•
  Model Number:
  wifi switch Module



•
  State of Assembly:
  Almost Ready



•
  Camera Equipped:
  No



•
  features 9:
  Smart Home Automation Switch



•
  features 8:
  Sonoff Smart Home



•
  features 7:
  Smart Home Switch



•
  features 6:
  Computer remote switch



•
  features 5:
  Wireless Smart Home Switch



•
  features 4:
  Sonoff Wifi Switch Wireless



•
  features 3:
  Smart Home Module



•
  features 2:
  Sonoff WIFI Switch



•
  features 1:
  Sonoff Switch



•
  features 10:
  remote control Switch


Product Description

Sonoff Wifi Switch Wireless Relay Module Smart Home Automation for Computer Access Dc5V/12v 24v 32v  Inching/Self-Locking IOS

Features :

Overview
This product is a wireless switch that supports inching/self-locking modes. Users can add the device to the APP eWeLink in order to remotely control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately. When in inching mode, customers can have two wiring ways to select:
• Turn on 1s and then auto-off
• Turn off 1s and then auto-on
The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS. Supported functions include:
• Remote turn on/off
• Timing schedules
• Device sharing
• Group management
The self-lock/inching mode wireless switch has two input voltage supply specifications: 5 V and 5/12 V. Functions remain the same regardless of the selected specification.
5V, self-lock/inching, mode, wireless, switch

Reminder: Operating voltage at 90 - 250 V, please operate according to regulations,



Parameter selection:

Option 1: 5 V self-lock/inching mode wireless switch
Option 2: 5/12 V self-lock/inching mode wireless switch



Specifications:

• Dimensions:70.5 x 27.4 x 23 mm
• Operating current: 5 V DC or 5/7 – 32 V DC
• LEDs: 3 LEDs which indicate working mode, WiFi status, relay on/off status respectively
• Two input interfaces
• Board consumption: <1 W
• Standby current: 80 mA
• Max input current: 10A
• Support to control different voltage ranges
• Relay lifespan: Over 1,000,000 times
• 100M electrical insulation resistance
• Electric shock voltage: 1000 V
• Relay maximum pull time: 15 ms
• Relay maximum release time: 5 ms
• Operating temperature: -40 to 70&deg;C (-40 to 158&deg;F)
• Operating humidity 40 to 80% RH

Applications:

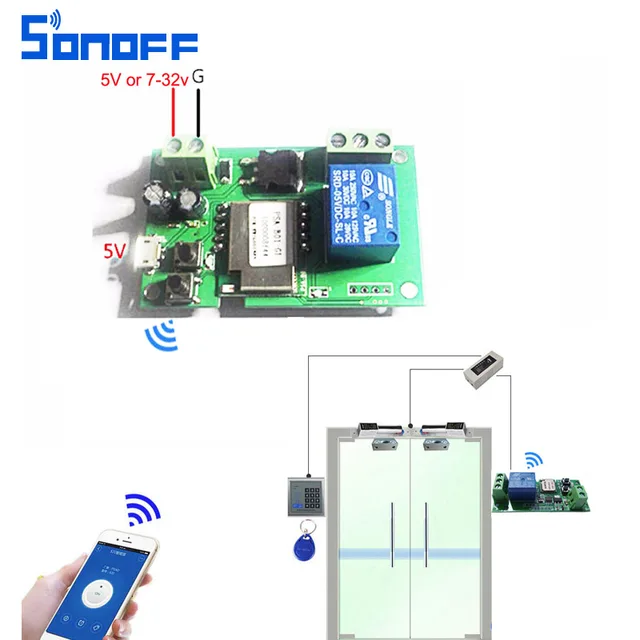

• The switch can be applied to access control, turn on PC, garage door, etc.
• Computer application
• Remote control computer boot
• USB port power supply conveniently
• Fully in line with the principle of mobile phone boot



Showcase:

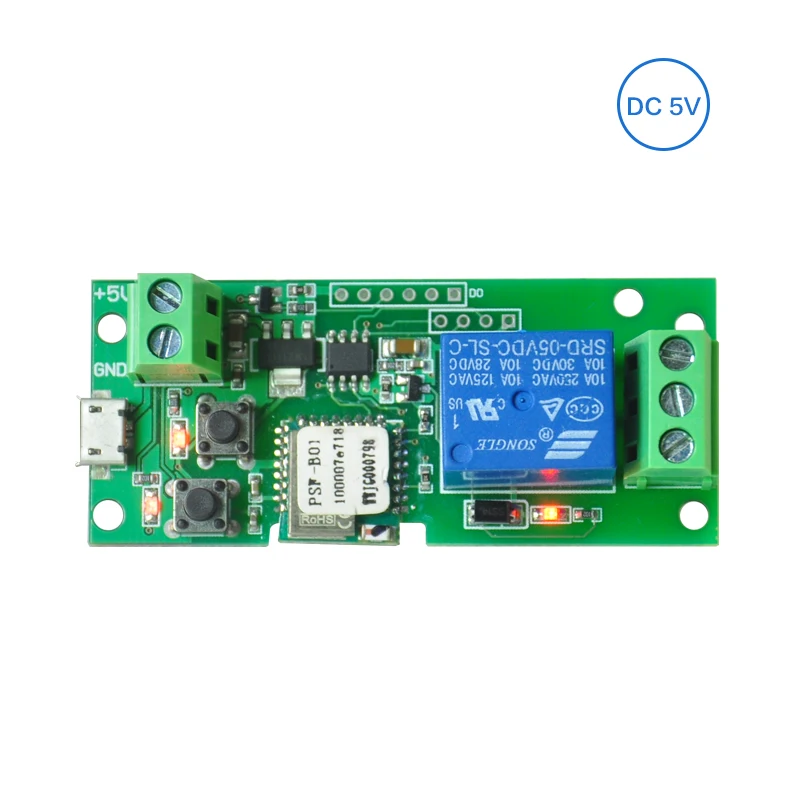

5 V self-lock/inching mode wireless switch





5 V self-lock/inching mode wireless

5/12 V self-lock/inching mode wireless switch











There are two working modes for the product: Inching mode and self-locking mode. Users can press the self-lock/inching mode button to switch between these two modes.

When the module is switched to self-locking mode, users can turn on/off the connected appliance immediately. There are 2 wiring ways.

Self-lockIing-Inching-Mode-Wireless-Switch-5V-self-locking-1

self-locking-inching-wireless-switch-5V-self-locking-2

In inching mode, users can have two wiring ways to select:
• Turn on 1s and then auto-off
• Turn off 1s and then auto-on
When the module is switched to inching mode, users can press on/off toggle button to turn on or off connected device. There are 2 wiring ways.

self-locking-inching-wireless-switch-5V-inching1
1) The first wiring way is to connect COM and NO with an appliance. In this way, when users press the setting button or use the APP to turn on, the connected appliance will be turned on for 1s and then auto turn off.

self-locking-inching-wireless-switch-5V-inching2
2) The second wiring way is to connect NC and COM with an appliance. In this way, when users press the setting button or use the APP to turn off, the connected appliance will be turned off for 1s and then auto turn on.





Step 1. Download “eWeLink” app

Step 2. Add device


Step 3. Power up the device with 5 V DC or 12 V DC.

Step 4. Press the above button for 7 seconds until the red LED fast blinks

• For Android users, please select the first pairing method icon, then click next.
• For iOS users, if they are using the new version, please select the corresponding icon, then click next.
• If they are using the old version, select the pairing icon accordingly, then go to Phone Setting>WiFi>connect the WiFi begins with ITEAD-******, enter default password 12345678. Go back to eWeLink, then click next.
Step 5. It will auto-search and connect smart home device around you
Step 6. Input your home SSID & password
Step 7. If no password, keep it blank
Step 8. Now eWeLink only supports 2.4G WiFi communication protocol, 5G-WiFi is not supported
Step 9. Next, eWelink will search the device and add it to your account. It will take 1 - 3 minutes. When this is complete, you can give your device a name.
Step 10. Name the device to complete

• The device may be “Offline” on eWeLink, for the device needs 1 minute to connect with your router and server. When the green LED on, the device is “Online”, if eWeLink shows still “Offline”, please close eWeLink and re-open.



Options



DC 5 V/5 V



DC 5 V/7-32 V











Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.09kg (0.20lb.)



•
  Package Size:
  11cm x 12cm x 21cm (4.33in x 4.72in x 8.27in)
