SONOFF TH10,10A/16A Smart Automation Modules Wifi Wireless Switch Remote Control for Smart Home with Temperature and Humidity

SONOFF TH10,10A/16A Smart Automation Modules Wifi Wireless Switch Remote Control for Smart Home with Temperature and Humidity

Product ID : 32900938489

Price : $14.99 - 28.89

Discount Price : $13.04 - 25.13

Item specifics

•
  Model Number:
  Wifi Switch Controller



•
  Brand Name:
  SONOFF



•
  Camera Equipped:
  No



•
  State of Assembly:
  Ready-to-Go



•
  Compatibility:
  All Compatible



•
  function:
  Monitor real-time temperature and humidity



•
  power:
  2200W(10A) /3500W(16A)



•
  support max:
  10A /16A input



•
  support 5:
  single/repeat timing



•
  support:
  real-time temperature and humidity displaying



•
  support 2:
  tracking device status and timely remote control through APP



•
  support 3:
  preset temperature and humidity to turn on/off



•
  control from any where:
  as long as you phone has network(2G/3G/4G/WIFI)



•
  support 4:
  countdown time



•
  support app:
  eWeLink


Product Description



SONOFF TH10,10A/16A Smart Automation Modules Wifi Wireless Switch Remote Control for Smart Home with Temperature and Humidity



Overview

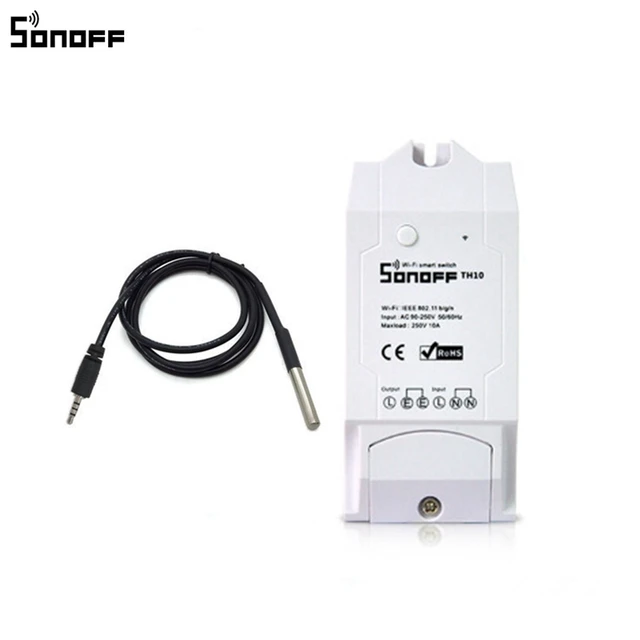

Sonoff TH10/TH16 is a Sonoff version smart switch that can monitor and set temperature and humidity through the APP eWeLink. Just as the name indicated, the new version Sonoff TH device supports two power supply specifications: 10A or 16A. It supports preset a temperature and humidity range, when the temperature and humidity of the environment fall into the range, it will automatically turn on or turn off connected devices.

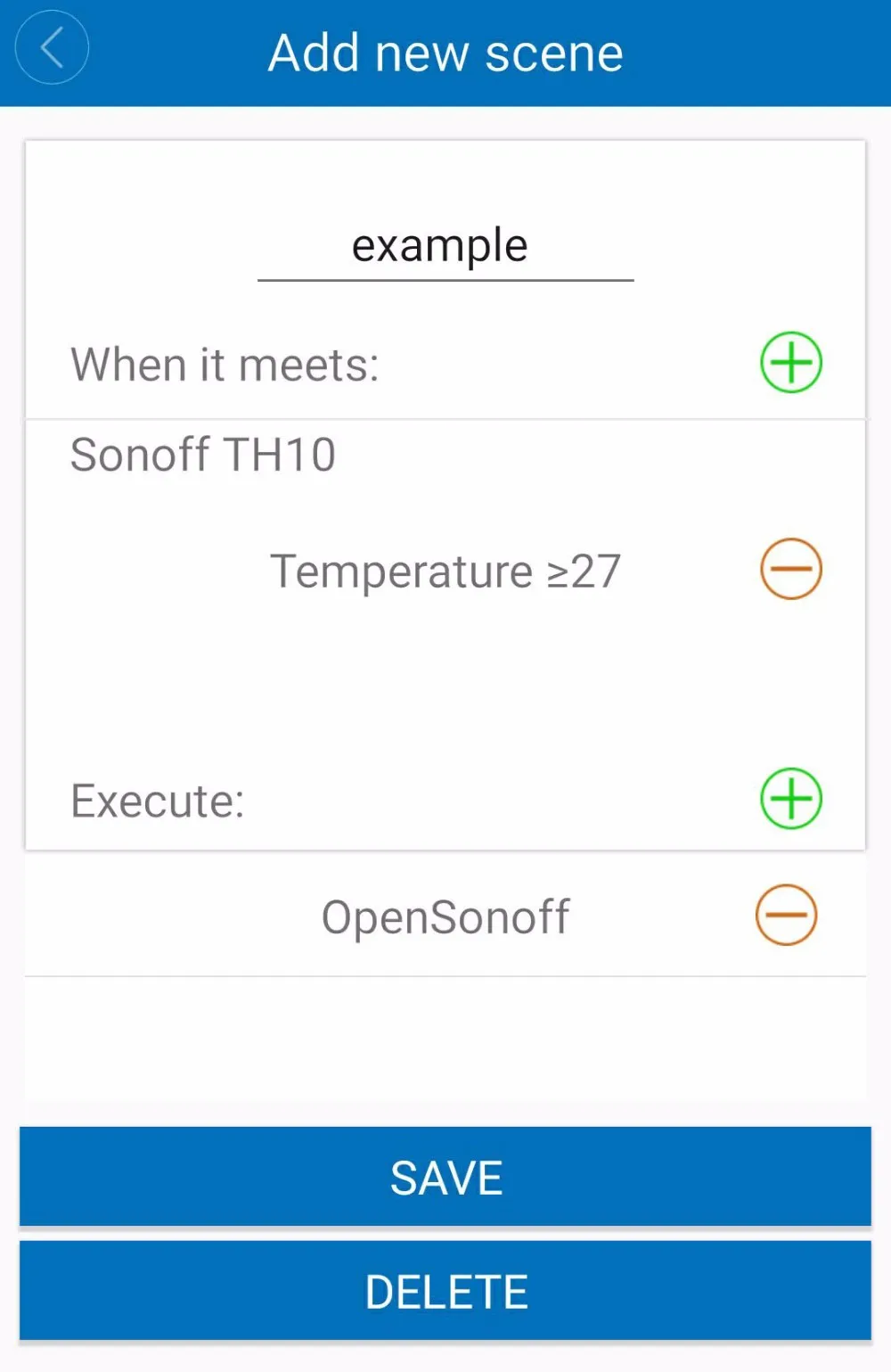

The device supports connecting to three kinds of temperature and humidity sensors (AM2301, DS18B20, DHT11). Actually, Sonoff TH 10/16 can work as a Sonoff when without connecting to sensors. But compared to Sonoff, Sonoff TH10/TH16 is more safer, less radiation and in bigger size, easy operation. Most importantly, with the support of latest ewelink app, you can create chains of simple conditional statements(Smart Scene).  This means you can use Sonoff TH10 or Sonoff TH16 with temperature and humidity sensors (AM2301, DS18B20, DHT11) to collect temperature data, while the temperature data can be shared to some ITEAD smart home devices(Sonoff, Sonoff RF, Sonoff SV, smart socket) under your account, thus other devices set up a temperature condition to turn on/off connected appliances, this is called Smart Scene(see below pic). This device is perfect to work with electric fan, air conditioner, humidifier, smart fish tank, watering system.



Features:

• Supports 90~ 250V AC input




• Support max 10A /16A input




• Power: 2200W(10A) /3500W(16A)




• Support fast configure SSID and password connection through APP




• Support automatic connect to server, register and update status info.

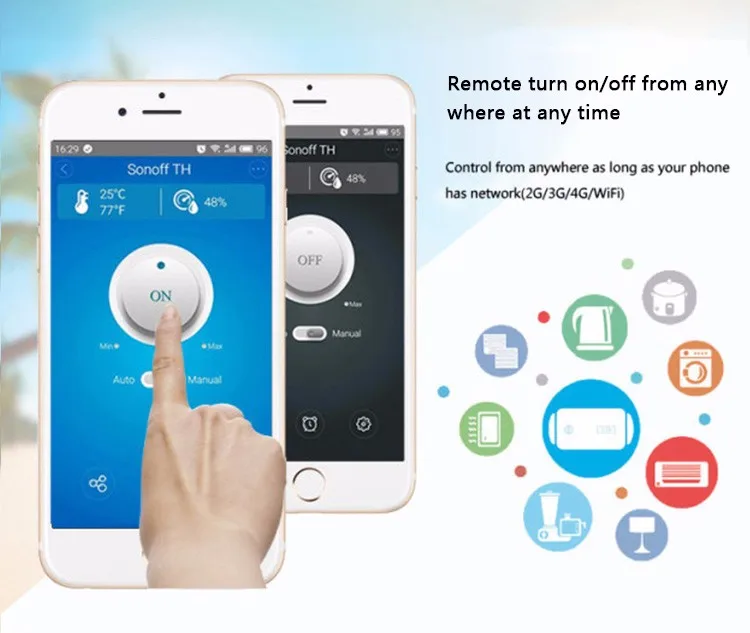

• Support tracking device status and timely remote control through APP




• Support setting countdown, single and repeat  timing tasks




• Support real-time temperature and humidity displaying




• Support 3 temperature and humidity sensors (AM2301, DS18B20, DHT11)




• Support preset temperature and humidity to turn on/off




• Support group management, scene, smart scene




•



WiFi Charateristics:

802.11 b/g/n
Built-in Tensilica L106 ultra-low power consumption 32-bit micro-MCU, dominant frequency support 80 MHz and 160 MHz, support RTOS
Built-in TCP/IP protocol stack
Built-in TR switch, balun, LNA, power amplifier and matching network
Built-in PLL, voltage regulator and power supply management components, 802.11b mode +20 dBm output power
A-MPDU& A-MSDU, aggregation, and, 0.4, s, guard, interval
WiFi @ 2.4 GHz, supports WPA / WPA2 safe mode
Support cloud OTA upgrade
Support STA / AP / STA + AP mode
Standby power consumption is less than 1.0 mW (DTIM3)
Operating, temperature, range:, -40, C - 125





.

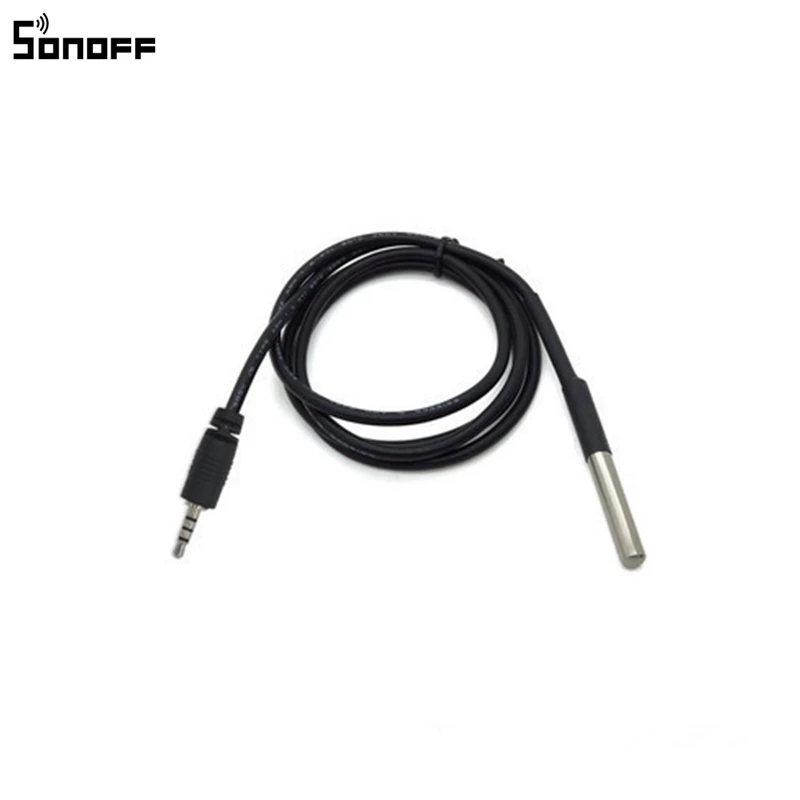

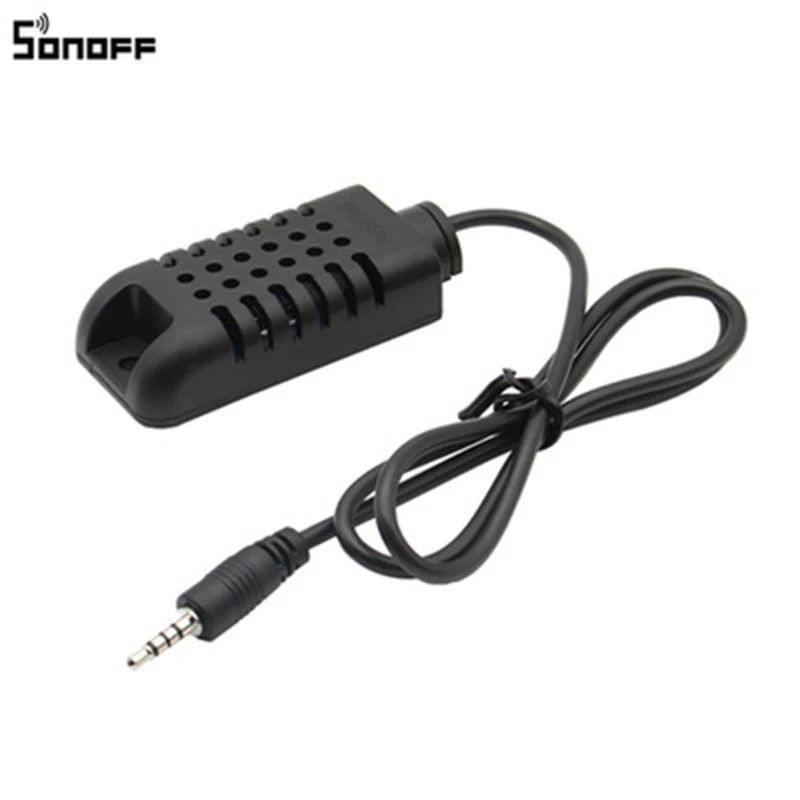

We are selling two kinds of sensors: AM2301 and DS18B20(measure temperature only). We\'ve customize an interface for Sonoff TH10/TH16 to easily connect with the sensor, just plug and play. Note that the sensor should be plug before power up, don\'t plug or unplug the sensor in power on state. AM2301 is non-waterproof, while DS18B20 can work in water.
Useful Links:



User Manual for Sonoff TH WiFi Wireless Switch



















Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.16kg (0.35lb.)



•
  Package Size:
  11cm x 12cm x 11cm (4.33in x 4.72in x 4.33in)
