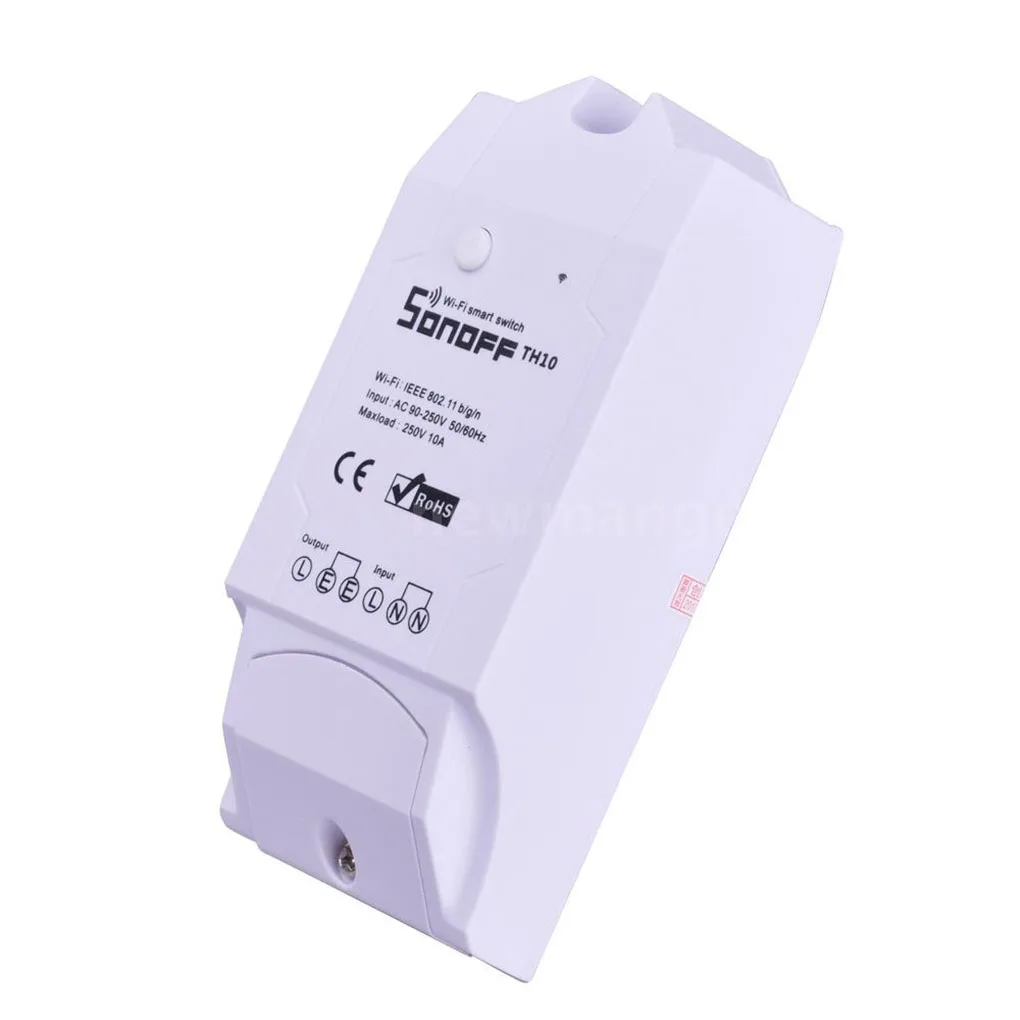

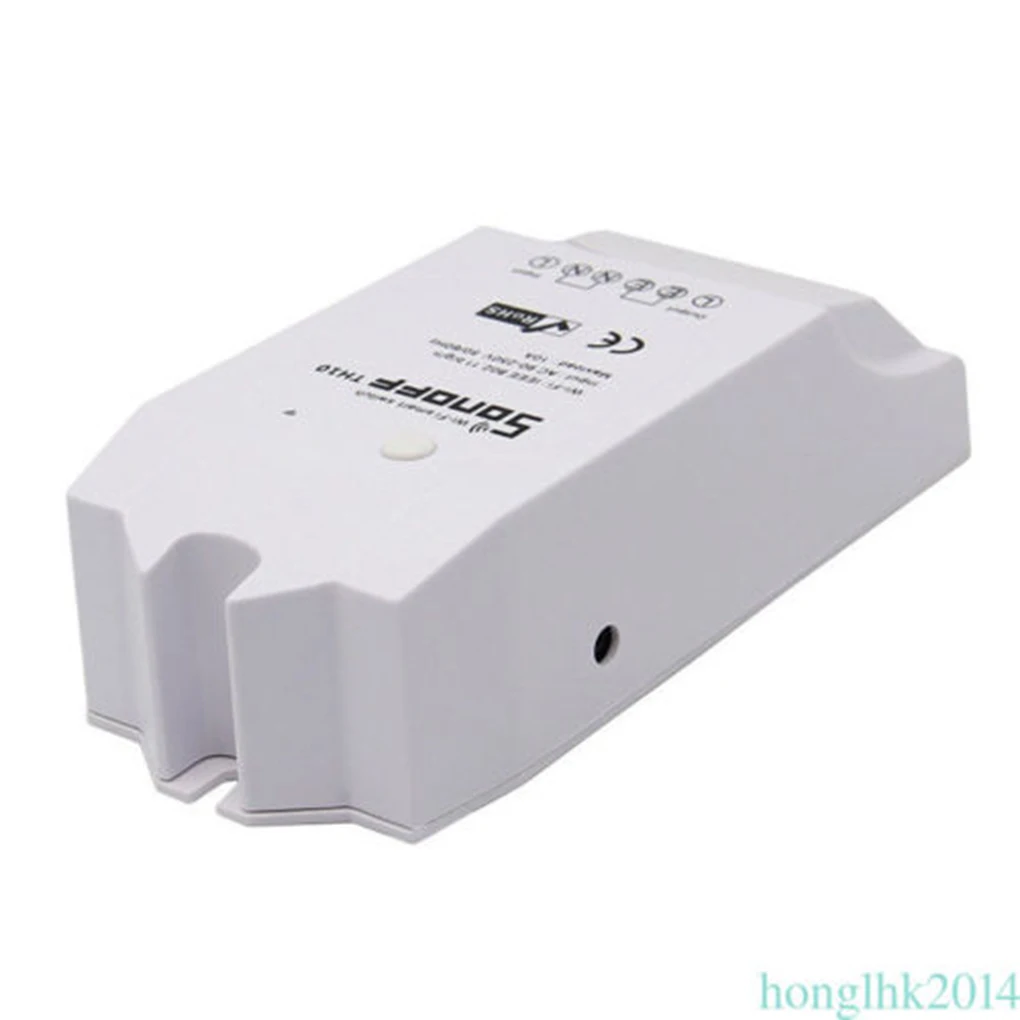

Sonoff TH10 Wireless Wi-Fi Smart Switch 10A Smart Switch Home Automation Modules With Temperature Sensor Humidity Monitor
Brand Name:
SONOFF
Compatibility:
All Compatible
Model Number:
Sonoff TH10
State of Assembly:
Ready-to-Go
Camera Equipped:
No
Input voltage:
90-250v AC
Max Power:
2200W(10A)
Operating Humidity:
0%-99%RH, Non-condensing
Sonoff is a universal swich for your smart home system to remotely and automately turn on/off any appliances. Work with the Sonoff , you can make it more smart. Learn more about Sonoff HERE.
Sonoff Product Series:
Product Name | Feature | Input Voltage | Wireless Frequency |
Shopping |
Sonoff TH10 | Monitor and set temp. | 90~250V AC | 2.4Ghz | Click |
Sonoff TH16 | Monitor and set temp. | 90~250V AC | 2.4Ghz | Click |
TH10/16 SET | Monitor and set temp. | 90~250V AC | 2.4Ghz | Click |
Sonoff Dual | Independently control 2 devices | 90~250V AC | 2.4Ghz | Click |

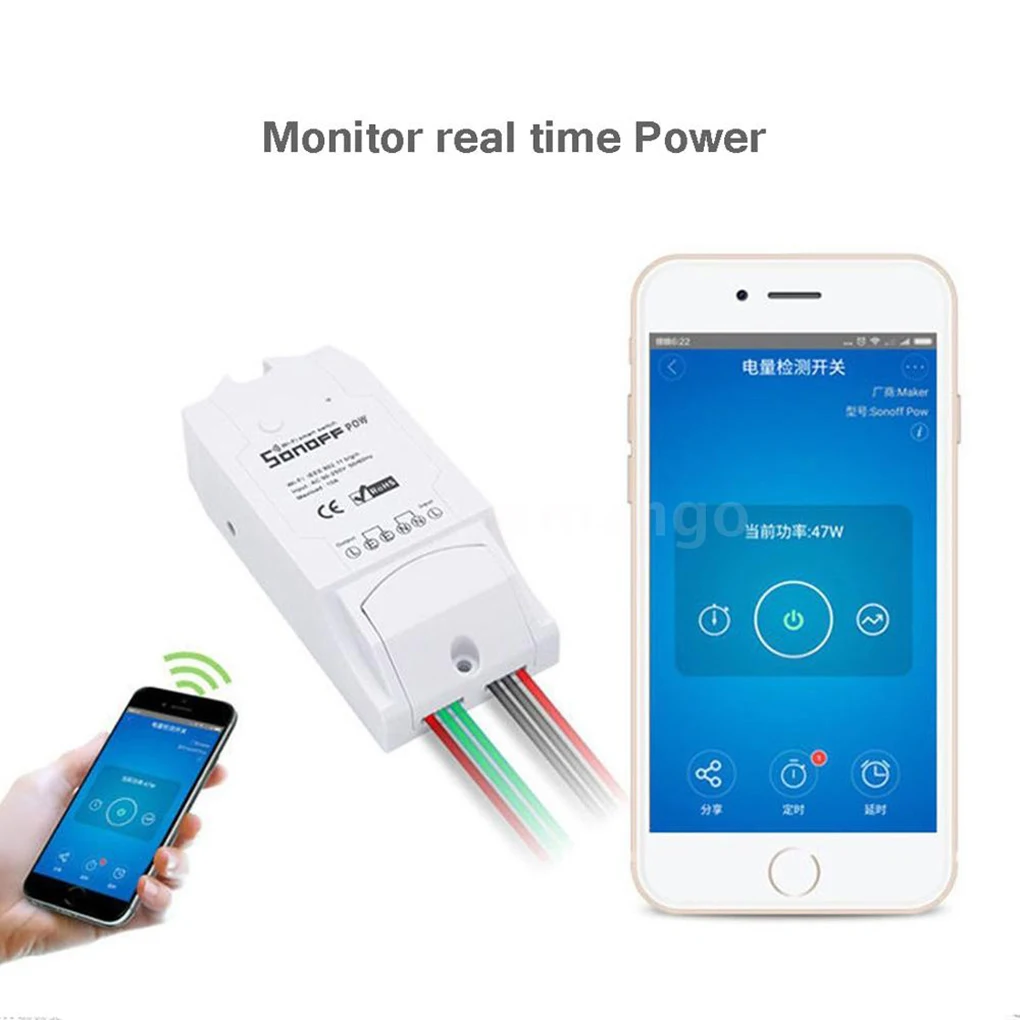

Sonoff Pow | Smart remote control switch | 90~250V AC | 2.4Ghz | Click |
Sonoff 4CH | 4ch Channel Remote Control WiFI Switch | 90~250V AC | 2.4Ghz | Click |
Sonoff 4CH Pro | 4-channel WiFi switch & RF 3 working mode switch | 90~250V AC | 2.4Ghz | Click |
Sonoff 4CH R2 | 4 Channels Remote Control Wifi Advanced Switch | 90~250V AC | 2.4Ghz | Click |
Sonoff 4CH Pro R2 | 4 Channels 433MHz Wifi Advanced Smart Switch | 90~250V AC | 2.4Ghz | Click |
Sonoff Touch | Wifi touch switch panel | 90~250V AC | 2.4Ghz | Click |
S20 Smart Socket | Wifi smart socket | 90~250V AC | 2.4Ghz | Click |
Sonoff RF | 433Mhz RF WiFi Wireless Smart Switch | 90~250V AC | 2.4Ghz | Click |
Sonoff T1 EU/UK | Smart WiFi RF APP Touch Switch | 90~250V AC | 2.4Ghz | Click |
Sonoff Mini RF | 433 wireless remote control switch | 90~250V AC | 2.4Ghz | Click |
Sonoff TH10 Wireless Wi-Fi Smart Switch 10A Smart Switch Home Automation Modules With Temperature Sensor Humidity Monitor
Package Includes(According to your choice)
#1:Only 1pcs Sonoff TH 10A
#2:1pcs Temperature and humidity minitoring
#3:1pcs Waterproof temperature probe
#4:1pcs Sonoff TH 10A +1pcs Temperature and humidity minitoring
#5:1pcs Sonoff TH 10A +1pcs Waterproof temperature probe

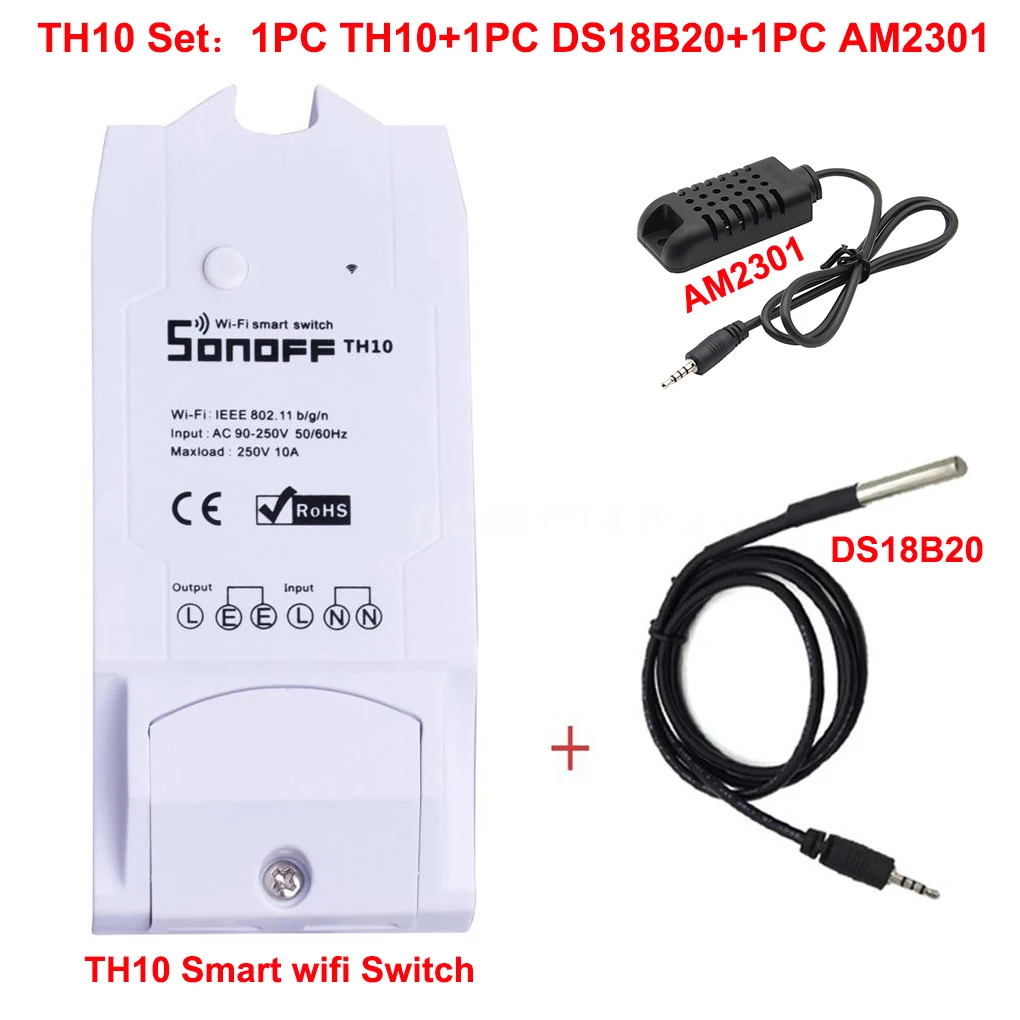

#6:1pcs Sonoff TH 10A +1pcs Temperature and humidity minitoring +1pcs Waterproof temperature probe
Note:
1.The sensors are not in the package of #1, you have to buy it separately.
2.Sensor-AM2301 is the Temperature and Humidity Sensor , No Waterproof.
3.Sensor-DS18B20 is the Temperature Sensor , Waterproof .
4.Only the device and the sensor work toghter can obtain temperature humidity data!
Description
Sonoff is a universal swich for your smart home system to remotely and automately turn on/off any appliances. Work with the Sonoff SC, you can make it more smart. Learn more about Sonoff SC HERE.

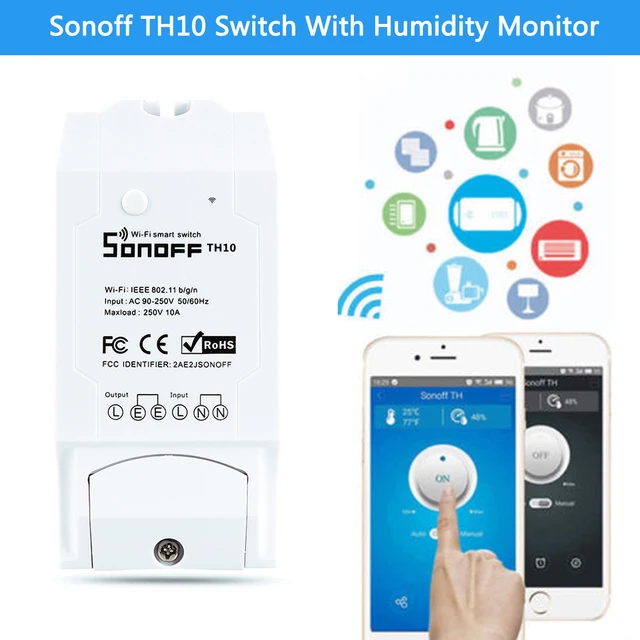

Sonoff TH10 is a wireless temperature and humidity monitoring switch which can remote monitor and set temperature and humidity range to turn on/off connected appliances through the iOS/Android APP eWeLink.
Just as the name indicates, the Sonoff TH temperature and humidity monitor device supports two maximum current supply specifications: 10A or 16A.
Sonoff TH10 remote temperature monitor and wireless humidity monitor WiFi switch supports presetting the range for temperature or humidity.
When the temperature or humidity of the environment falls within the range, it will automatically turn on or off the connected devices.
Sonoff TH10 supports three kinds of temperature monitor and humidity monitor sensors, mentioned below:
AM2301, DS18B20, DHT11

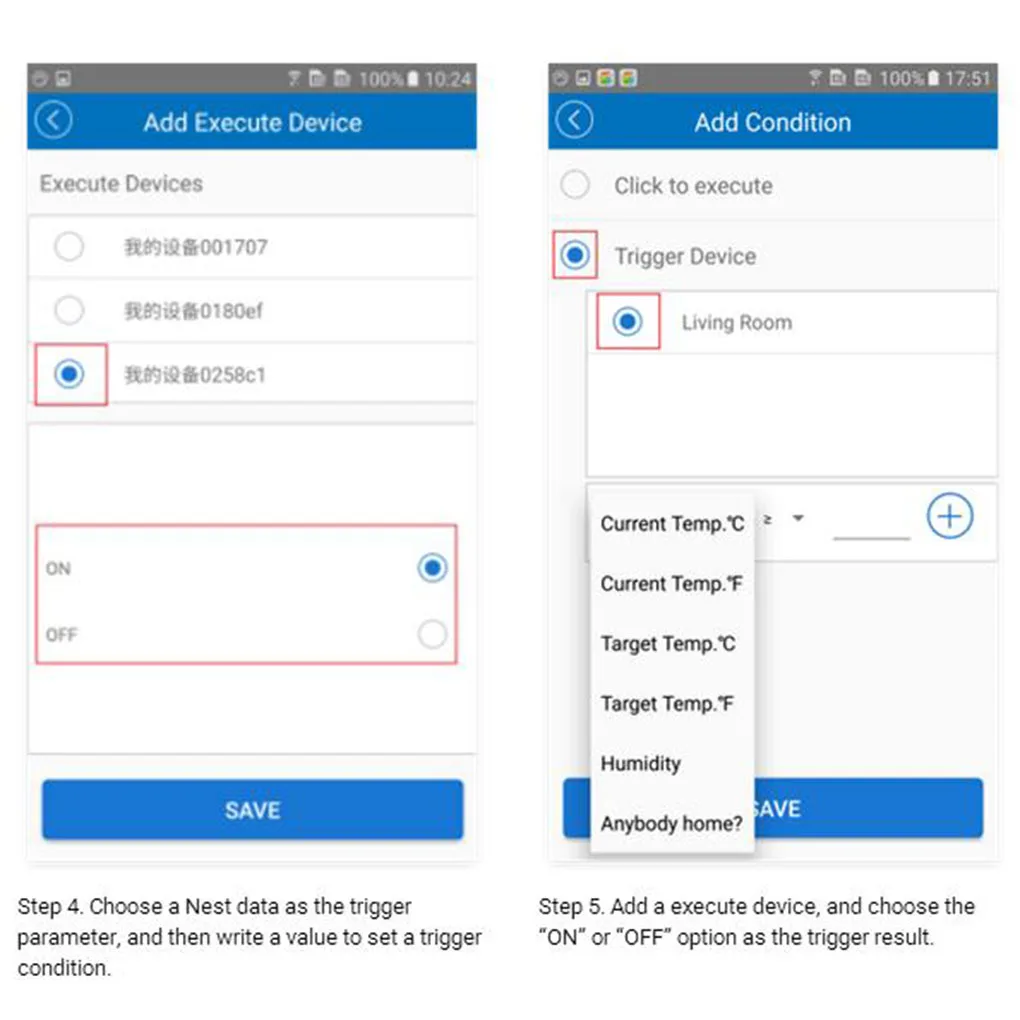

With the latest eWeLink app, users can create a series of simple conditional statement (Smart Scene) to trigger on/off other smart devices.
This means users can use Sonoff TH10 or Sonoff TH16 with AM2301, DS18B20 or DHT11 sensor to collect temperature/humidity data, which can be used to as a condition to trigger on/off other devices, such as Sonoff, Sonoff RF, Sonoff SV, S20 smart socket .
This device works perfectly with electric fan, air conditioner, humidifier, smart fish tank, watering system, etc.
For Sonoff TH16 / TH10:

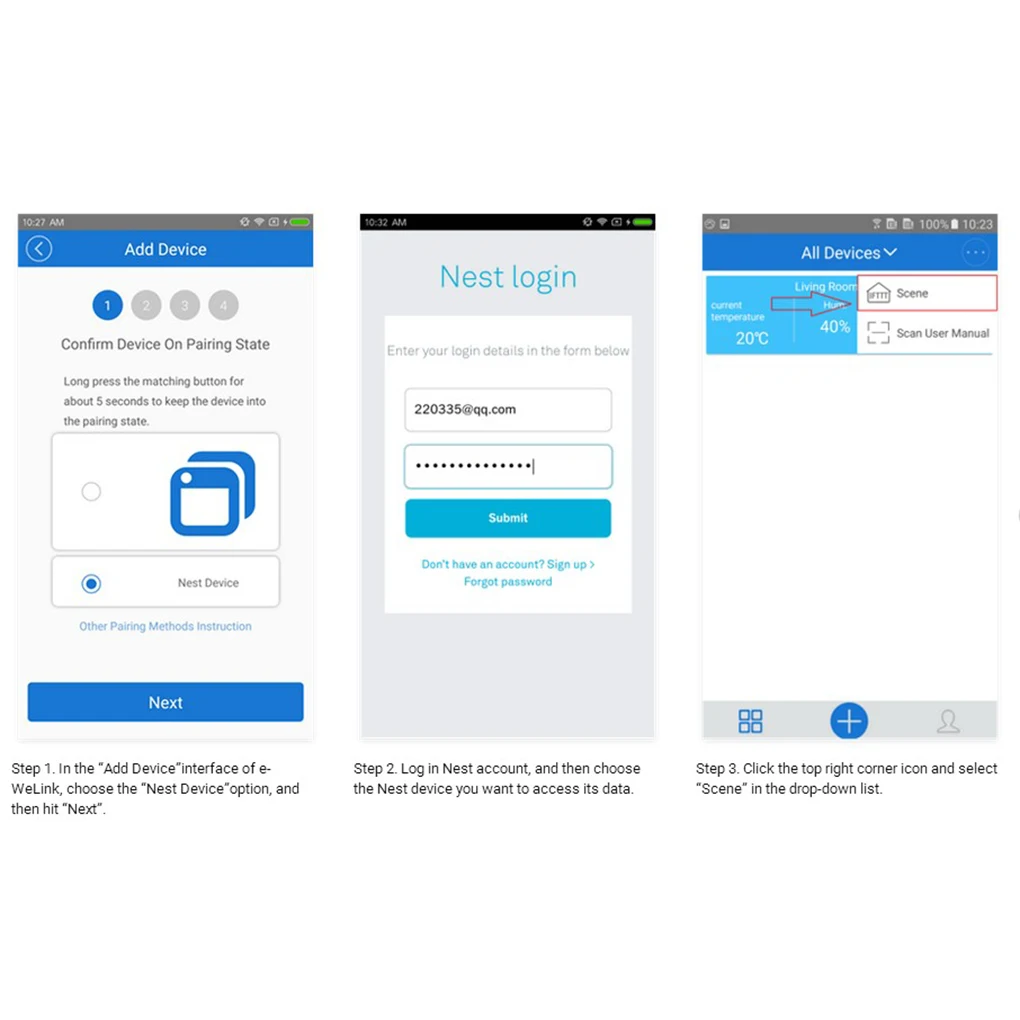

This devices can work with Google Nest.
Sonoff TH16 Smart Wifi Switch
Features
Supports 90~ 250V AC input
Support max 10A /16A input
Power: 2200W(10A) /3500W(16A)
Support fast configure SSID and password connection through APP
Support automatic connect to server, register and update status info.
Support tracking device status and timely remote control through APP

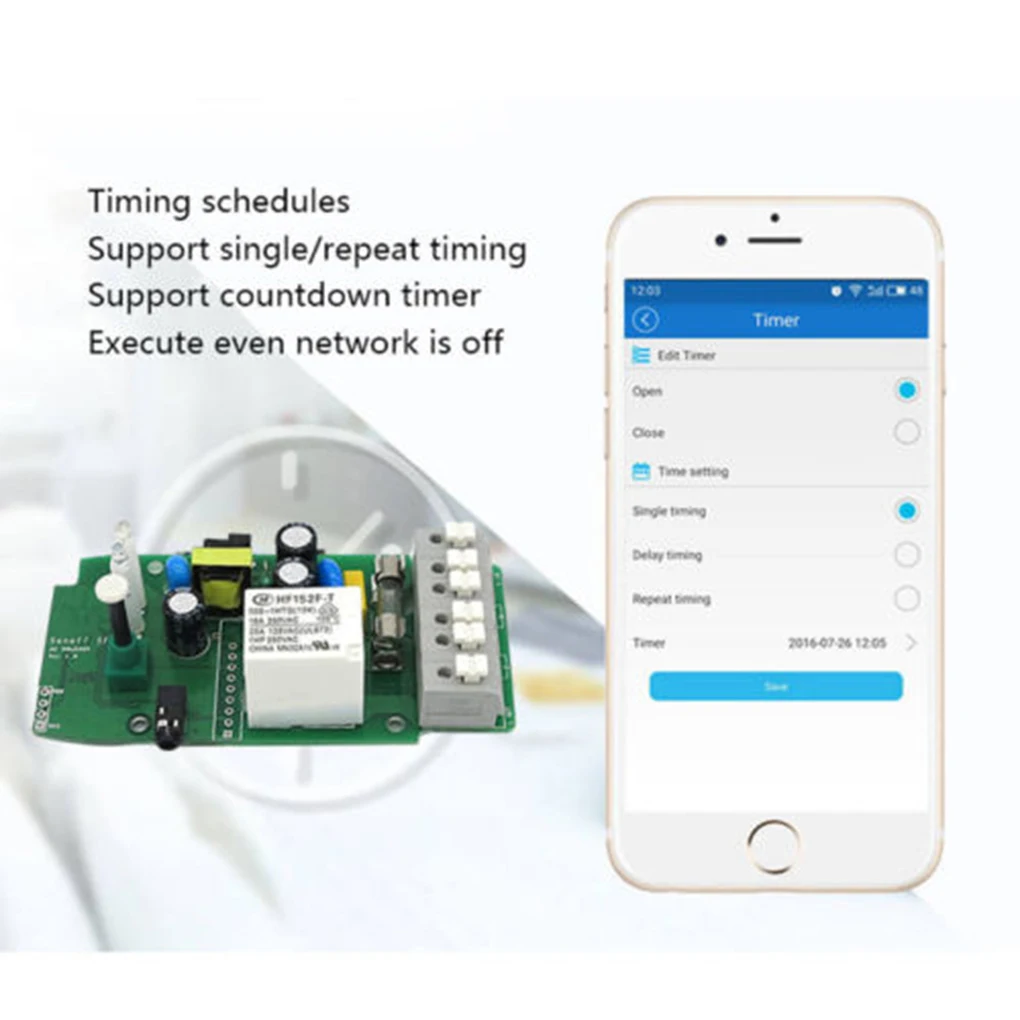

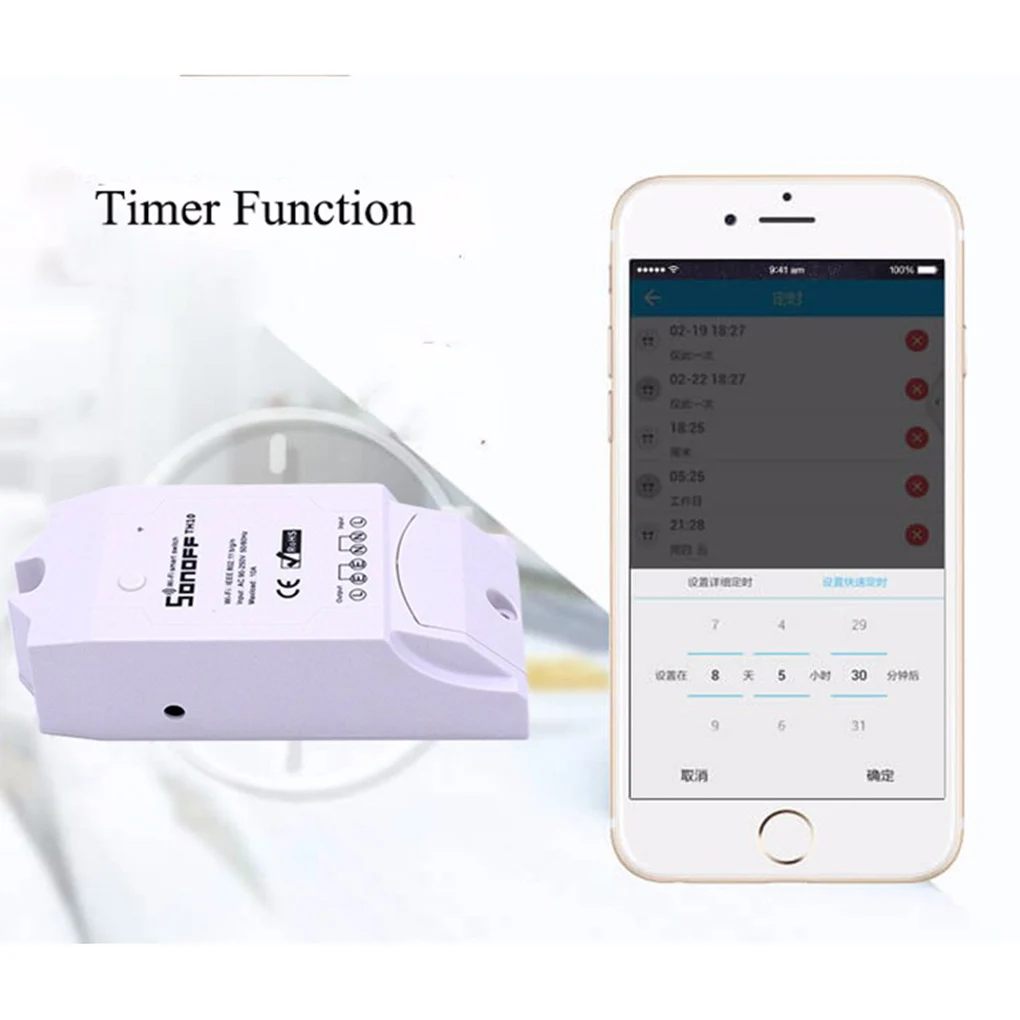

Support setting countdown, single and repeat timing tasks

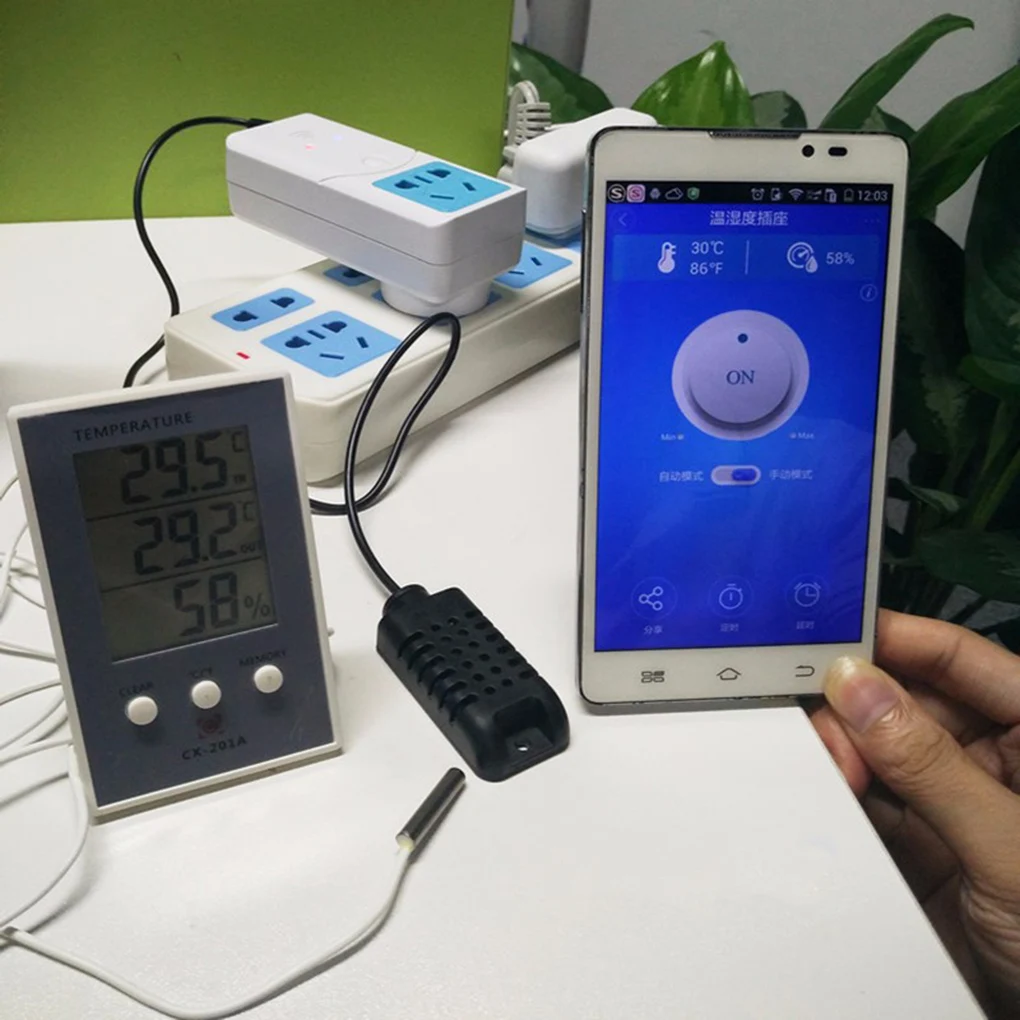

Support real-time temperature and humidity displaying
Support NOT Waterproof temperature and humidity sensor/Waterproof temperature sensor(AM2301, DS18B20)
Support preset temperature and humidity to turn on/off
Support group management, scene, smart scene

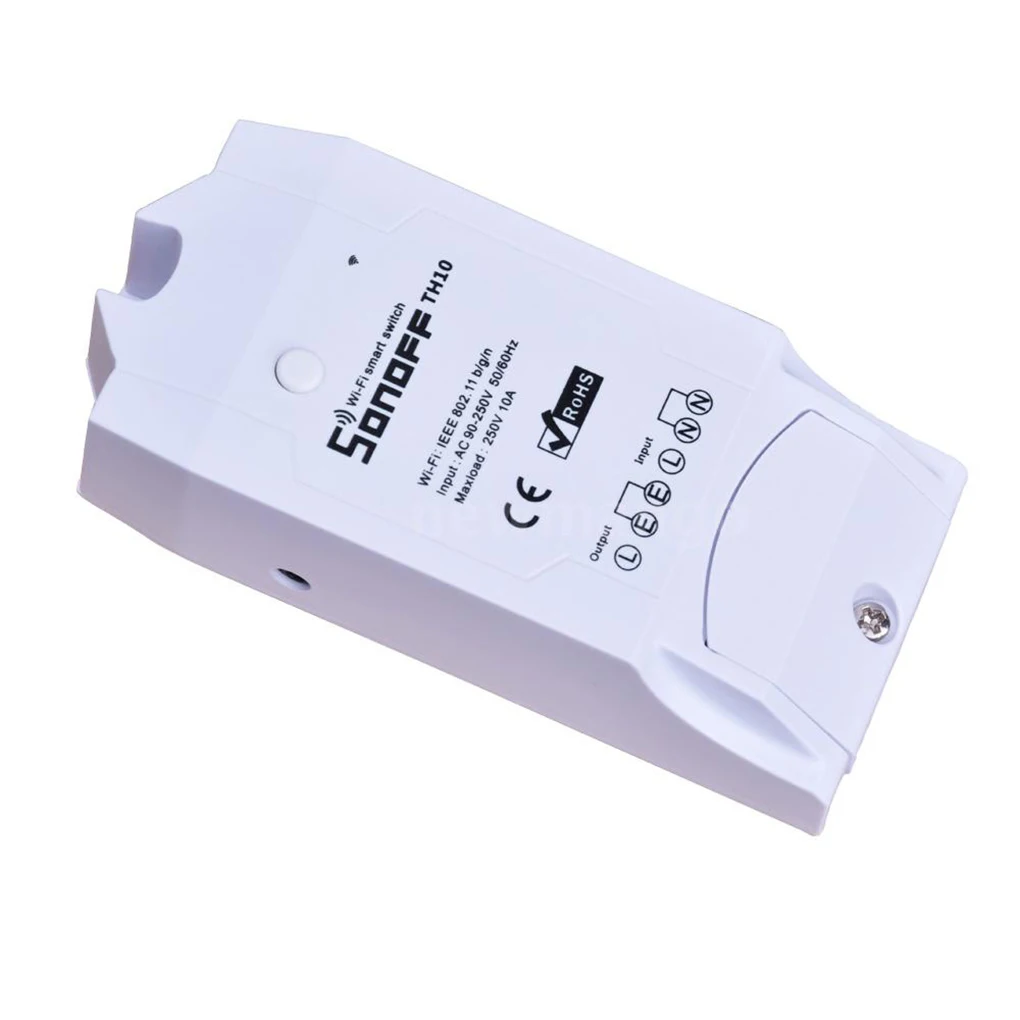

Specifications
Color: white.
Size: 26.7*58.8*13.6mm.
Material: ABS plastic.
Rate Voltage: AC90-250V, 50/60HZ.
Transmission mode: Wifi 2.4G.
Platform: For Android/For iOS/For eWelink.
Working temperature: -40-+80 degree.

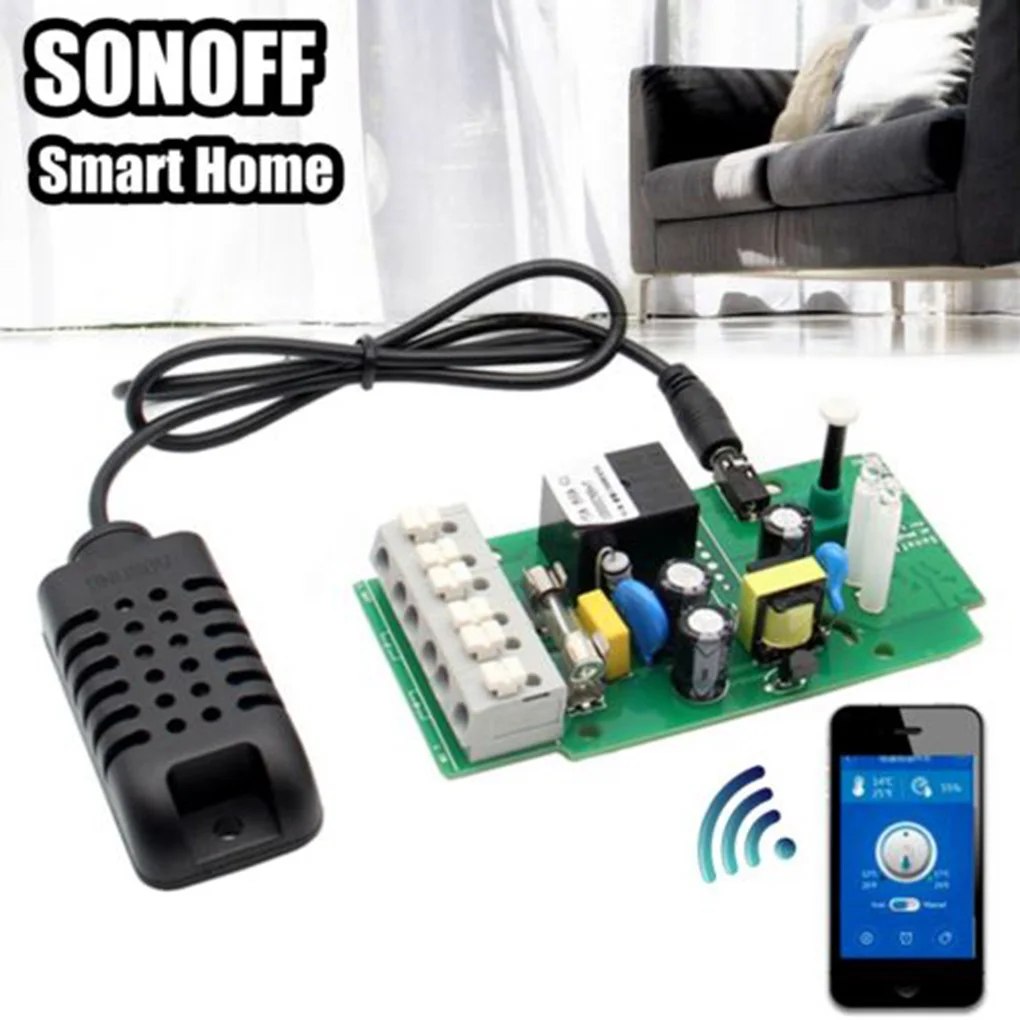

FOR AM2301
Designed to monitor and set temperature and humidity, simple and useful.
Work with temperature & humidity monitoring switch, can detect the real-time temperature & humidity of the environment.
High-quality stainless steel pipe encapsulated moisture-proof anti-rust.
Perfect and cost-effective monitoring sensor for your DIY smart home.
High accuracy temperature measurement devices.
Specifications
Color: black.
Size: 50cm.
Material: stainless steel, plastic.
Power: DC3.1-5.5V.
Working temperature: -40-+80 degree.
Operating Temperature Range: -55°C- +125°C.

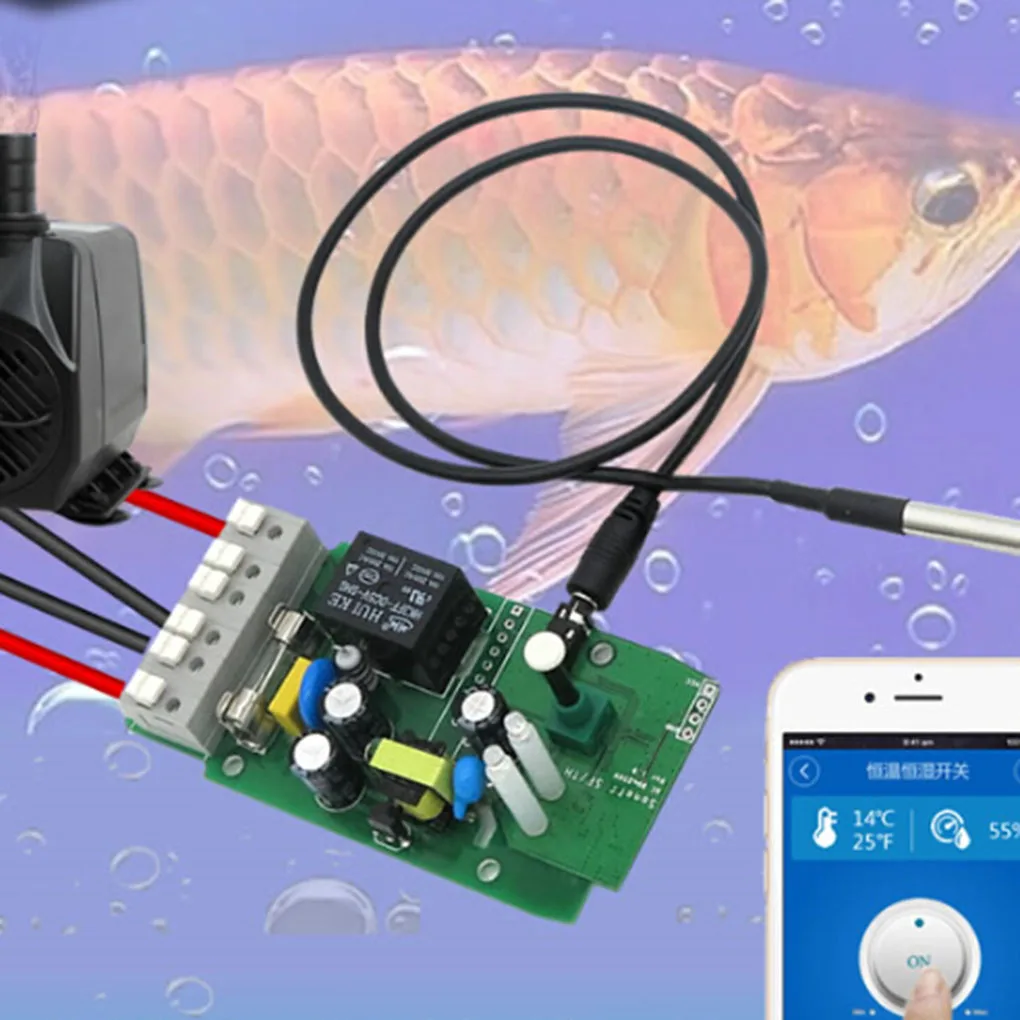

FOR DS18B20
Can work with temperature & humidity monitoring switch, can detect the real-time temperature & humidity of the environment.
With waterproof, moisture-proof and anti-rust with the high-quality stainless steel tube encapsulated.
No other components, unique single bus interface.
Specifications
Color: black.
Size: 100cm.
Material: stainless steel, plastic.
Power: DC3.3-5.2V.
Working temperature: -40-+80 degree.
Operating Temperature Range: -55°C- +125°C.
PLS NOTE: this waterproof probe can only measure the temperature, but not measure humidity.
FAQ:
Read the detailed FAQ on Itead Smart Home Forum. If below answers can't solve your problem, please submit a feedback on eWeLink.
1. My device has added successfully but stays “Offline”.
Answers: The newly added device need 1-2 min to connect to your router and the Internet. If it stays offline for a long time, please judge the problem by the green led status:
1.1. Green led quickly blinks one time and repeats, which means device failed to connect to the router. The reason may be you have entered wrong WiFi password or your device is too far away from the router, which causes a weak WiFi signal. The device can not be added to the 5G-wifi-router, only the 2.4G-wifi is OK. At last, make sure that your router is open.
1.2. Green led slowly blinks one time and repeats, which means the device has connected to router and server but failed to be added to the device list. Then power on the device again, if it still not working, just add the device again.
1.3. Green led quickly blinks twice and repeats, this means the device has connected to the router but failed to connect to the server. Then please confirm your WiFi router works normally.
2. Why the APP can't find the device in pairing status?
Answers: That's because of your phone's cache. Please close the WLAN of your phone then open it after a minute. At the same time, please power off the device if you can, then power up to try again.
3. My WiFi is expired, can I connect the devices to LAN? Can my phone be directly connected to device hotspot?
Answers: the Sonoff Basic and Sonoff RF support to be controlled by LAN.
Unit Type:
piece
Package Weight:
0.13kg (0.29lb.)
Package Size:
1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
