Sonoff TH10 Wi-Fi Smart Switch 10A 2200W Wireless Switch Smart Home Automation Modules With Temperature Sensor Humidity Monitor
Brand Name:
SONOFF
Features:
Slot
Max Speed:
no
Model Number:
Sonoff TH10
Gyro:
no
State of Assembly:
Ready-to-Go
Overview:
Sonoff TH10/16 is a Sonoff version that can monitor and set temperature and humidity through the eWeLink. Just as the name indicated, the new version Sonoff TH device supports two power supply specifications- 10A or 16A. It supports preset a temperature and humidity range, when the temperature and humidity of the environment falls into the range, it will automatically turn on or turn off connected devices.

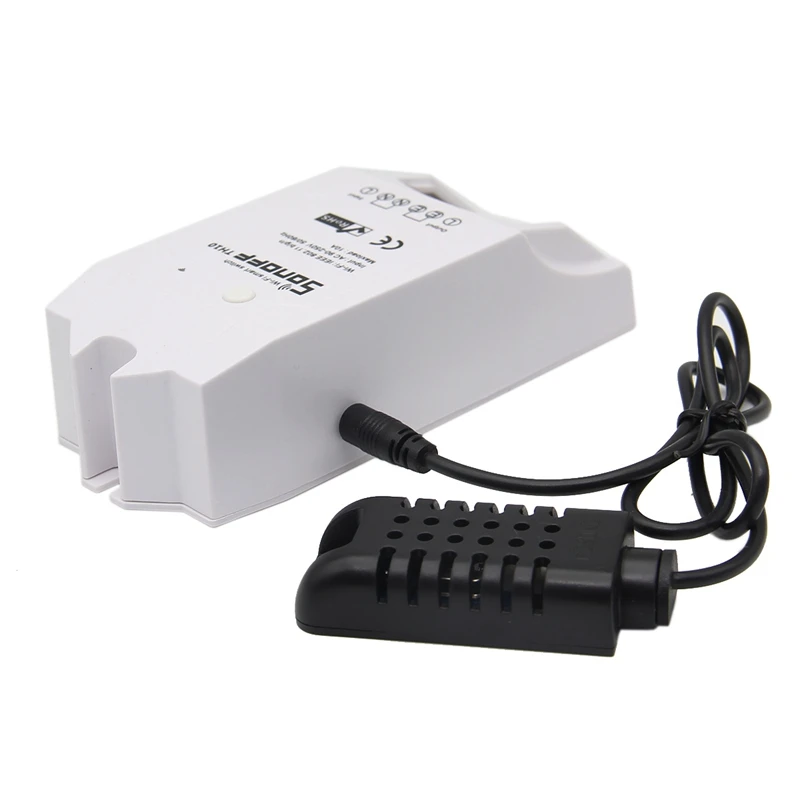

The device supports connecting to three kinds of temperature and humidity sensors (AM2301, DS18B20, DHT11). Actually, Sonoff TH 10A/16A Sonoff TH 10A/16A can work as a Sonoff when without connecting to sensors. But compared to Sonoff, Sonoff 10/16 is more safer, less radiation and in bigger size, easy operation. Most importantly, with the support of latest ewelink , you can create chains of simple conditional statements(Smart Scene). This means you can use the them with temperature and humidity sensors (AM2301, DS18B20, DHT11) to collect data, while these data can be shared to other ITEAD smart home devices(Sonoff, Sonoff RF, Sonoff SV, Slampher, smart socket, etc.) under your account, thus other devices can use the data to control connected This device is perfect to work with electric fan, air conditioner, humidifier. Please note that this version does not have 433 RF function.
Features:
- Supports 90~ 250V AC input
- Support max 10A input
- Power: 2200W(10A)
- Support fast configure SSID and password connection.
- Support automatic connect to server, register and update status info.
- Support tracking device status and timely remote control
- Support setting countdown, single and repeat timing tasks
- Support real-time temperature and humidity displaying
- Support 3 temperature and humidity sensors (AM2301, DS18B20, DHT11)
- Support preset temperature and humidity to turn on/off
- Support group management, scene, smart scene
WIFI Characteristics:
- 802.11 b/g/n
- Built-in Tensilica L106 ultra-low power consumption 32-bit micro-MCU, dominant frequency support 80 MHz and 160 MHz, support RTOS
- Built-in TCP/IP protocol stack
- Built-in TR switch, balun, LNA, power amplifier and matching network
- Built-in PLL, voltage regulator and power supply management components, 802.11b mode +20 dBm output power
- A-MPDU&A-MSDU aggregation and 0.4μs guard interval
- WiFi @ 2.4 GHz, supports WPA / WPA2 safe mode
- Support cloud OTA upgrade
- Support STA/A&P/STA + A&P mode
- Standby power consumption is less than 1.0 mW (DTIM3)
- Operating temperature range: -40℃~125℃
Package included:
1 x Thermostat Module(AM2301 sensor not included)
Unit Type:
piece
Package Weight:
0.06kg (0.13lb.)
Package Size:
10cm x 7cm x 3cm (3.94in x 2.76in x 1.18in)
