Sonoff SV Safe Voltage Wifi Wireless Switch Smart Home Automation Module DC 5-24V Support Secondary Development for IOS Android

Sonoff SV Safe Voltage Wifi Wireless Switch Smart Home Automation Module DC 5-24V Support Secondary Development for IOS Android

Product ID : 32866327619

Price : $10.67

Discount Price : $9.39

Item specifics

•
  Brand Name:
  SONOFF



•
  Camera Equipped:
  No



•
  Model Number:
  FZ2025



•
  Compatibility:
  Others



•
  State of Assembly:
  Almost Ready



•
  Product Name:
  Sonoff SV



•
  Application:
  For Smart Home



•
  Control Method:
  Phone APP



•
  Support System:
  For IOS Android



•
  Power Supply:
  DC 5-24V



•
  Phone APP:
  eWeLink



•
  Custom Label:
  FZ2025


Product Description

Sonoff SV Safe Voltage Wifi Wireless Switch Smart Home Automation Module DC 5-24V Support Secondary Development for IOS Android APP Control





Description:

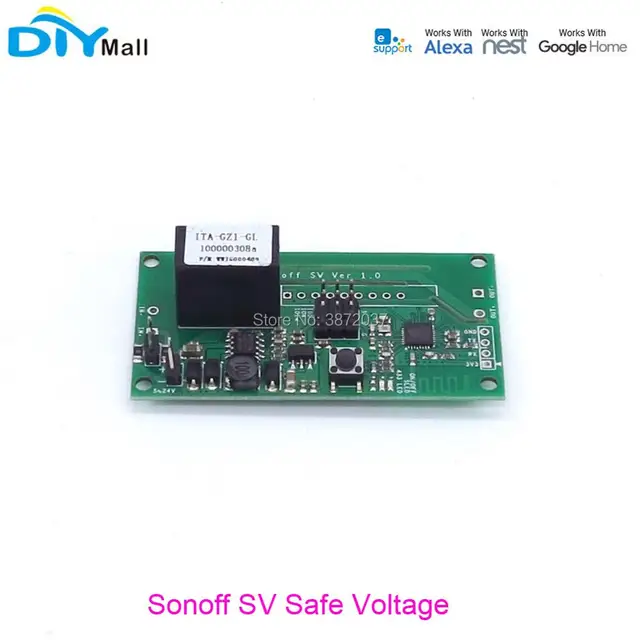

Sonoff SV(safe voltage) is a low power supply Sonoff version,which supports 5-24V power supply. The power separation circuit enables it to control AC or DC power for the connected device, but you need to do some welding to realize this function. Sonoff SV has GIPO reserved to support secondary development. This version does not have 433 RF function and without shell.



Sonoff is a low-cost, affordable device that help you to step into the amazing smart home.It is a WiFi wireless switch that can connect to appliance of different types and brands. Sonoff sends data to cloud platform through the WiFi Router, which enables you to remotely control all appliances with the App eWeLink on your smart phone. The server of Sonoff is Amazon AWS global server.Sonoff makes all your home appliances smart, as long as your phone has network you can remotely turn on or turn off your appliances from anywhere at any time. And by setting timing schedules for your appliances, you can maintain a carefree life.



The App eWeLink enables you to control your devices easily. You can download the iOS version in App Store and the Android version in Google Play.







Features



    Support 5~24V power supply

    Support fast configure SSID and password through APP.

    Support automatic connect to server, register and update status info.

    Support tracking device status and timely remote control through APP.

    Support setting max 8 single or repeat timing tasks each device

    Reserve GIPO to support secondary development.

    Support numerous WiFi smart switches one smart phone.





WiFi Characteristics



    802.11 b / g / n

    Built-in Tensilica L106 ultra-low power consumption 32-bit micro-MCU, dominant frequency support 80 MHz and 160 MHz, support RTOS

    Built-in TCP / IP protocol stack

    Built-in TR switch, balun, LNA, power amplifier and matching network

    Built-in PLL, voltage regulator and power supply management components, 802.11b mode +20 dBm output power

    A-MPDU&A-MSDU aggregation and 0.4μs guard interval

    WiFi @ 2.4 GHz, supports WPA / WPA2 safe mode

    Support cloud OTA upgration

    Support STA / AP / STA + AP mode

    UART, I2C, PWM, GPIO

    Deep sleep maintain current is 10 uA, shutdown current is less than 5 uA

    Wake-up, connect and transfer data packets in 2 ms

    Standby power consumption is less than 1.0 mW (DTIM3)

    Operating temperature range: -40 ℃ - 125 ℃

    Other parameters as follows



Package Included:

1 X Sonoff SV
