sonoff Smart home TH10/TH16 Switch test Temperature Humidity Sensor Intelligent automation module
Brand Name:
SONOFF
Camera Equipped:
No
State of Assembly:
Ready-to-Go
Compatibility:
All Compatible

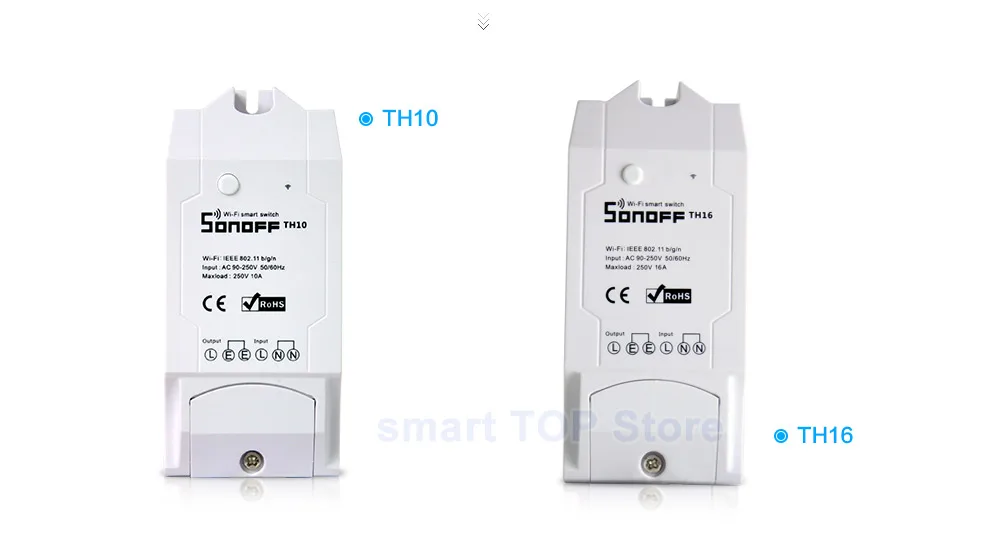

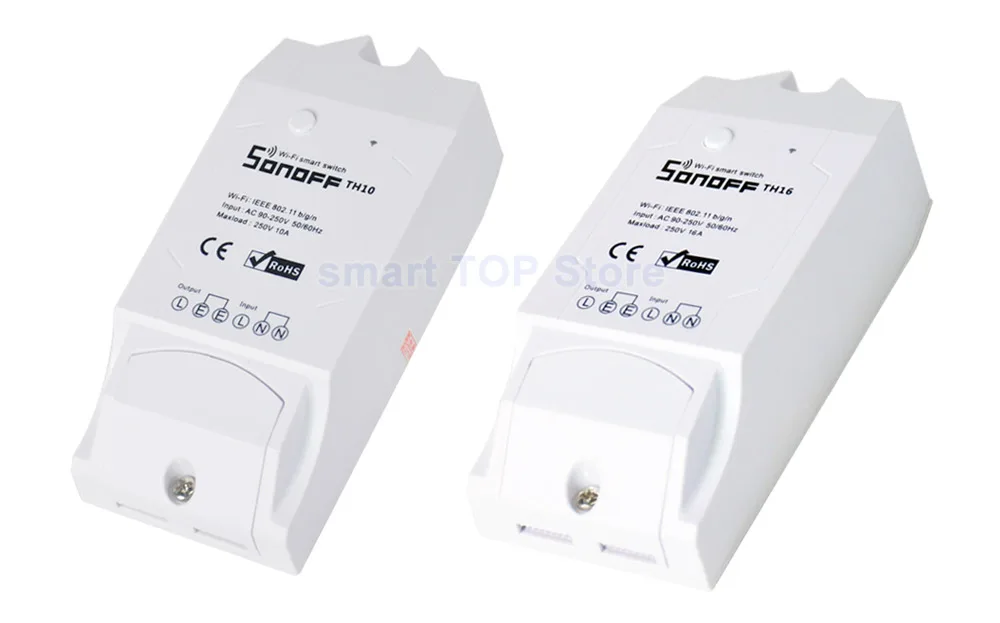

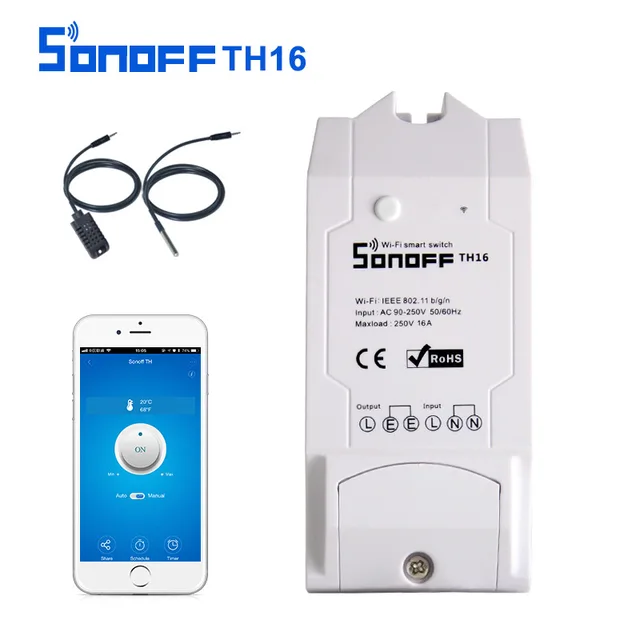

Sonoff TH10/TH16 is a Sonoff version smart switch that can monitor and set temperature and humidity through the APP eWeLink. Just as the name indicated, the new version Sonoff TH device supports two power supply specifications: 10A or 16A. It supports preset a temperature and humidity range, when the temperature and humidity of the environment fall into the range, it will automatically turn on or turn off connected devices.

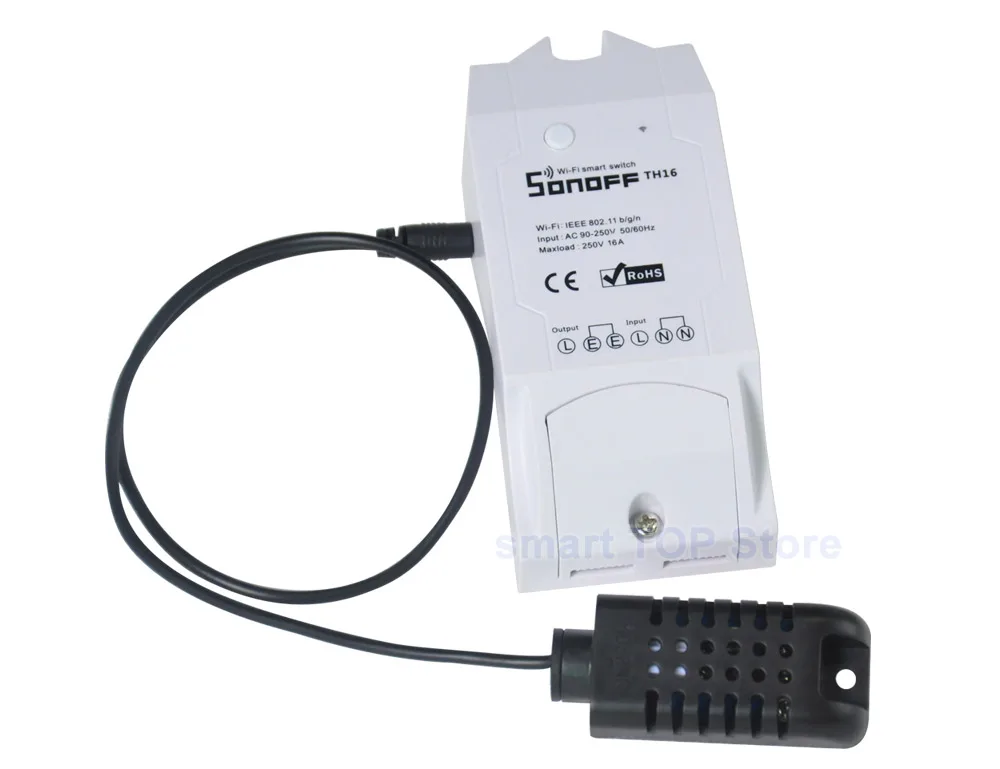

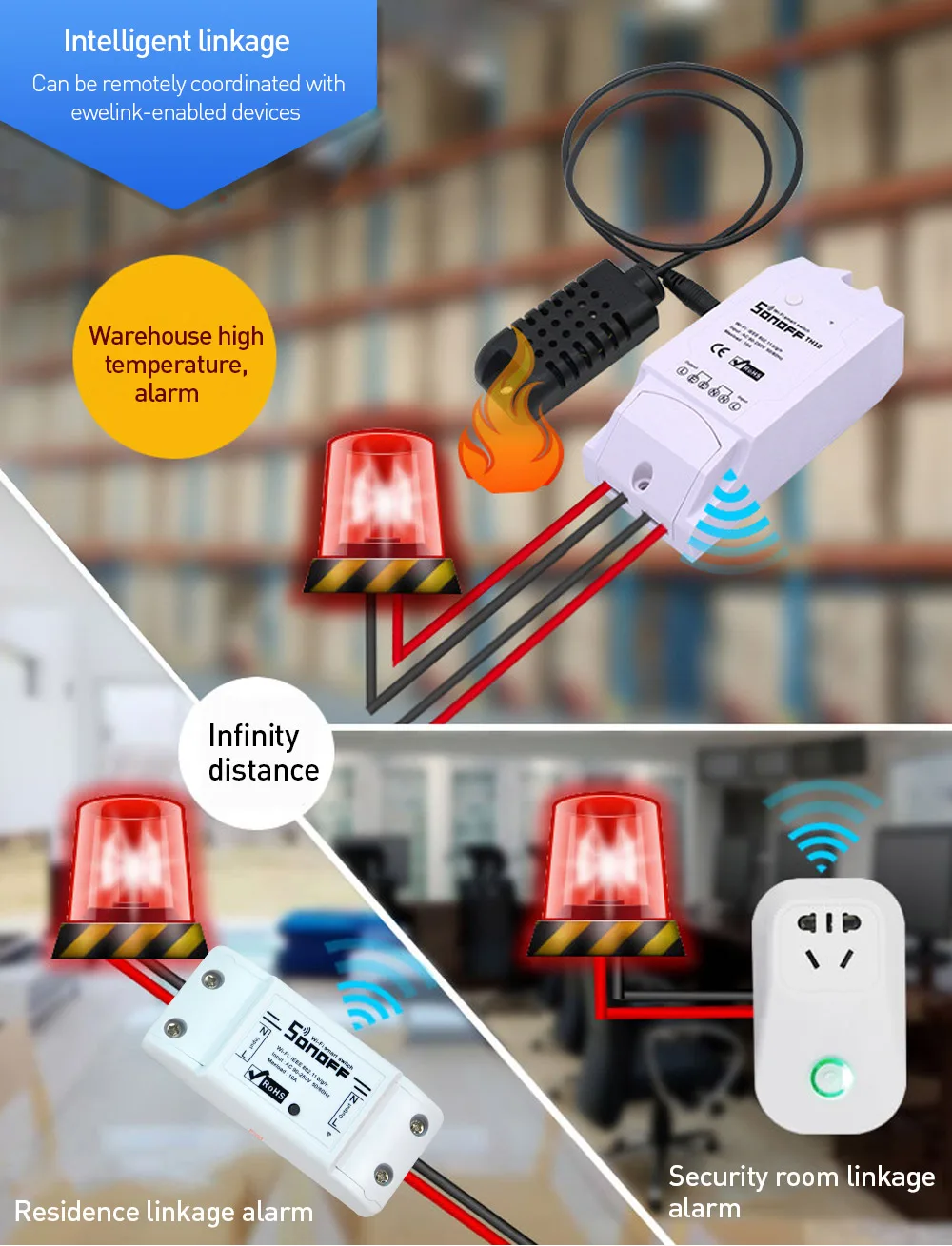

The device supports connecting to three kinds of temperature and humidity sensors (AM2301, DS18B20, DHT11). Actually, Sonoff TH 10/16 can work as a Sonoff when without connecting to sensors. But compared to Sonoff, Sonoff TH10/TH16 is more safer, less radiation and in bigger size, easy operation. Most importantly, with the support of latest ewelink app, you can create chains of simple conditional statements(Smart Scene). This means you can use Sonoff TH10 or Sonoff TH16 with temperature and humidity sensors (AM2301, DS18B20, DHT11) to collect temperature data, while the temperature data can be shared to some ITEAD smart home devices(Sonoff, Sonoff RF, Sonoff SV, smart socket) under your account, thus other devices set up a temperature condition to turn on/off connected appliances, this is called Smart Scene(see below pic). This device is perfect to work with electric fan, air conditioner, humidifier, smart fish tank, watering system.
Features:
Supports 90~ 250V AC input
Support max 10A /16A input
Power: 2200W(10A) /3500W(16A)
Support fast configure SSID and password connection through APP
Support automatic connect to server, register and update status info.
Support tracking device status and timely remote control through APP
Support setting countdown, single and repeat timing tasks
Support real-time temperature and humidity displaying

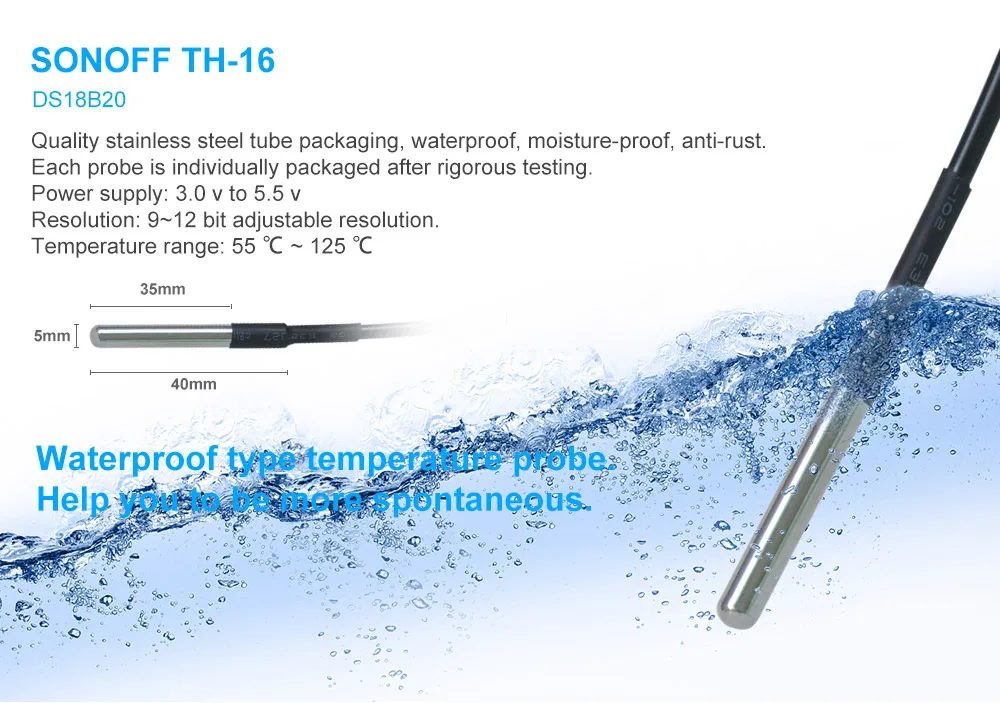

Support 3 temperature and humidity sensors (AM2301, DS18B20, DHT11)
Support preset temperature and humidity to turn on/off
Support group management, scene, smart scene
WiFi Charateristics
802.11 b/g/n
Built-in Tensilica L106 ultra-low power consumption 32-bit micro-MCU, dominant frequency support 80 MHz and 160 MHz, support RTOS
Built-in TCP/IP protocol stack
Built-in TR switch, balun, LNA, power amplifier and matching network
Built-in PLL, voltage regulator and power supply management components, 802.11b mode +20 dBm output power
A-MPDU&A-MSDU aggregation and 0.4s guard interval
WiFi @ 2.4 GHz, supports WPA / WPA2 safe mode
Support cloud OTA upgrade
Support STA / AP / STA + AP mode
Standby power consumption is less than 1.0 mW (DTIM3)
Operating temperature range: -40 - 125

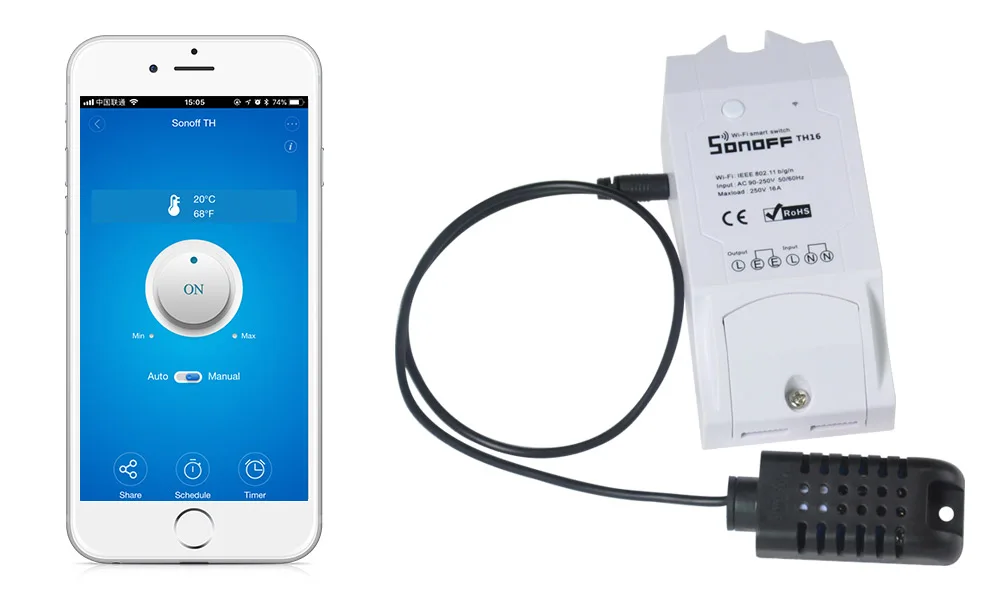

Mobile phone remote control switch process
The reloading parts do not support LAN and routers need to be surf the internet
Constant temperautre automatic control
Remote setting of humidity conditions automatically switch Open the automatic mode ,even if the device suddenly broken network,
set the humidity conditons can still be carried out as usual.
[measurement range] :
Temperature: - 40 ~ 80
Humidity: 0 ~ 99.9% RH
Precision (25 environment) :
Temperature: + / - 0.5
Humidity: + / - 3% rh (10...90% rh)
[sensor type] :
Temperature: resistive sensor.
Humidity: capacitive sensor.
Power supply: DC 3.1~5.5V.
Output signal: single bus.
Shell material: ABS plastic.
Weight: 14g
Unit Type:
piece
Package Weight:
0.15kg (0.33lb.)
Package Size:
5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)
