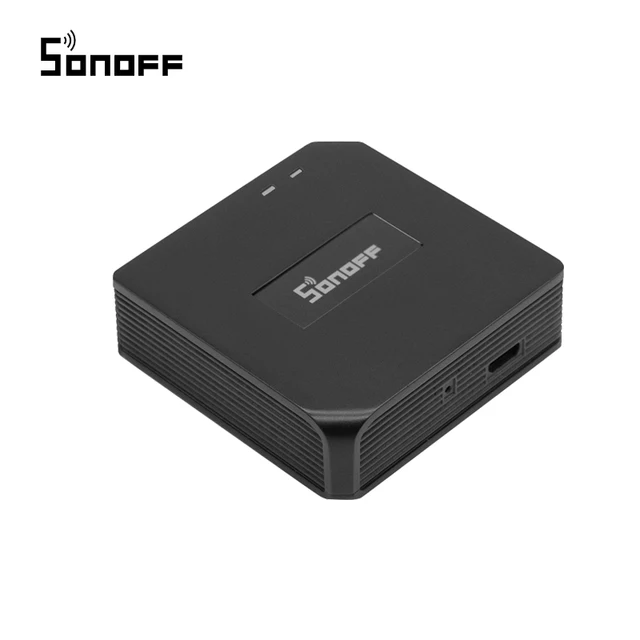

Sonoff RF Bridge WiFi 433 MHz Smart Home Automation Module Wifi Switch Universal Timer DIY Remote Wifi Remote RF Controller

Sonoff RF Bridge WiFi 433 MHz Smart Home Automation Module Wifi Switch Universal Timer DIY Remote Wifi Remote RF Controller

Product ID : 1000004900217

Price : $13.95 - 17.15

Discount Price : $10.46 - 12.86

Item specifics

•
  Model Number:
  Sonoff RF Bridge



•
  State of Assembly:
  Ready-to-Go



•
  Brand Name:
  SONOFF



•
  Features:
  Flashing



•
  Control Channels:
  4 Channels



•
  Max Speed:
  Sonoff RF Bridge 433 MHz



•
  Scale:
  1:3



•
  Gyro:
  None



•
  Power Supply:
  USB 5V



•
  Operating Current:
  30~200mA



•
  Frequency:
  433MHz



•
  Operating Voltage:
  3.0 ~ 3.6V



•
  Wireless Stardard:
  Wi-Fi 2.4GHz



•
  Dimensions::
  62*62*20mm(L*W*H)



•
  Alpplication:
  Home, Office, Sonoff RF Bridge 433 MHz



•
  Supports APP:
  IOS Android System, Works with Alexa



•
  Features:
  Remote Control


Product Description

Sonoff RF Bridge WiFi 433 MHz Smart Home Automation Module Wifi Switch Universal Timer DIY Remote Wifi Remote RF Controller

Product Selling:

1.Make your 433MHz RF controlled appliances smarter

2.After adding the RF bridge to iOS/Android App, you can learn 433MHz RF remote to the Sonoff RF bridge device on App instantly. you can add up to your 433MHz RF remotes to one Sonoff RF bridge in just one minute

3.To control the 433MHz RF devices with 433MHz RF Remote, you have to stay indoors. sonoff RF Bridge helps to swithc the signal, allowing you to control the 433MHz RF devices from anywhere at any time.

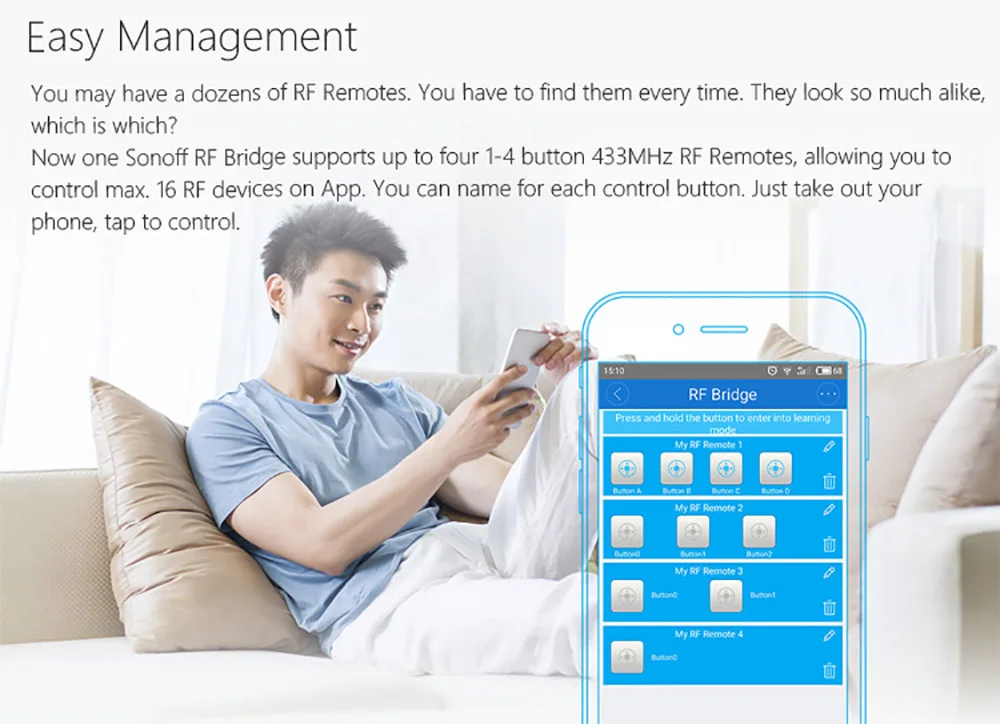

4.You may have a dozens of RF Remotes.You have to find them every time. They look so much alike, which is which? Now one Sonoff RF Bridge supports to four 1-4 button 433MHz RF Remotes, allowing you to control max, 16 RF Devices on App. You can name for each control button. just take out your phone tap top to control.

5.Anti-theft Alarm Push, Once any inflared changes detected, RF Bridge will push the alarm message to your smartphone. Check real-time alarm messages, anywhere at anytime.

Product Overview:

1.This RF Bridge can convert most of the 433MHz RF Remotes into WiFi wireless.

2.By adding the RF wireless Bridge to iOS/Android App eWeLink WiFi wirelessly,

you can add up to four 1-4 buttons 433MHz Wireless RF Remotes to the RF Bridge device.

3.After pairing the RF Remote buttons with RF controlled devices,

you can directly control maximum 16 RF controlled devices on the App through WiFi/2/3/4G network.

 4.It can be used for most of the 433MHz RF Remote controlled products,

like RF controlled switch, RF controlled socket, RF controlled bulb, RF controlled door opener, etc.

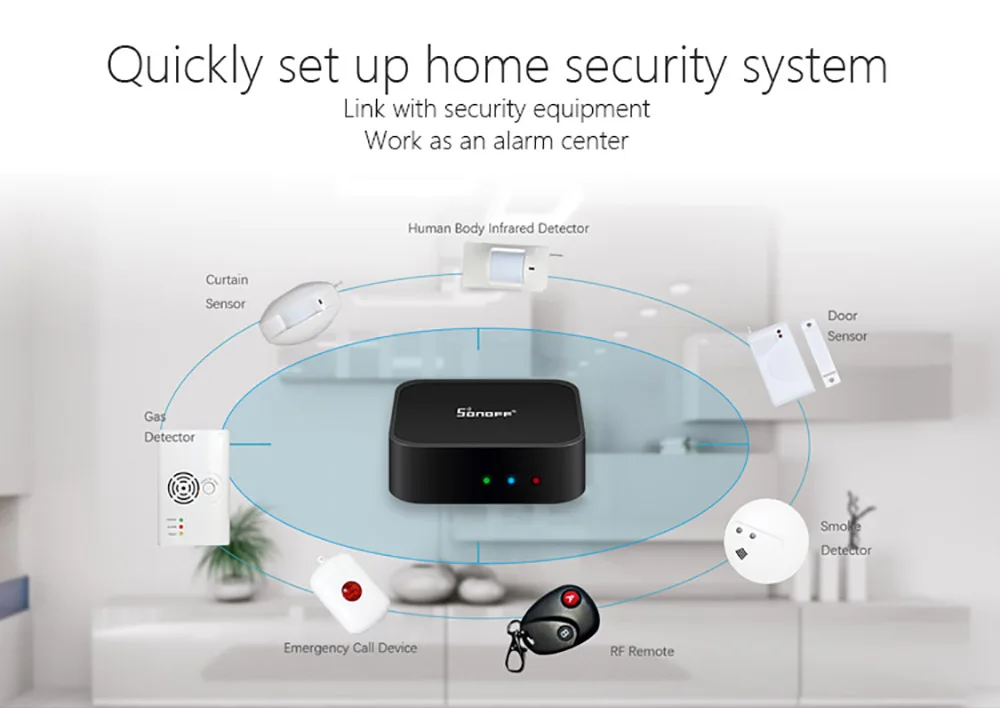

 5.Even more exciting is that it will work with door magnetic sensor, human body IR sensor and more other sensors to realize security alarm, and allowing you to DIY smart scenes.

Note 1:

The receiving supports fixed code 433 frequency, like PT2260, PT2262, PT2264, EV1527, etc.

Not support to learn rolling code and dynamic code.



Note 2:

Timer is not supported in current App versions, but soon we'll support it.

iOS App doesn't support to add this product, but it will be supported in App V2.5.0.

You can't see device status changes in the App.

​

Recommend: Sonoff 433MHz wireless RF Remote

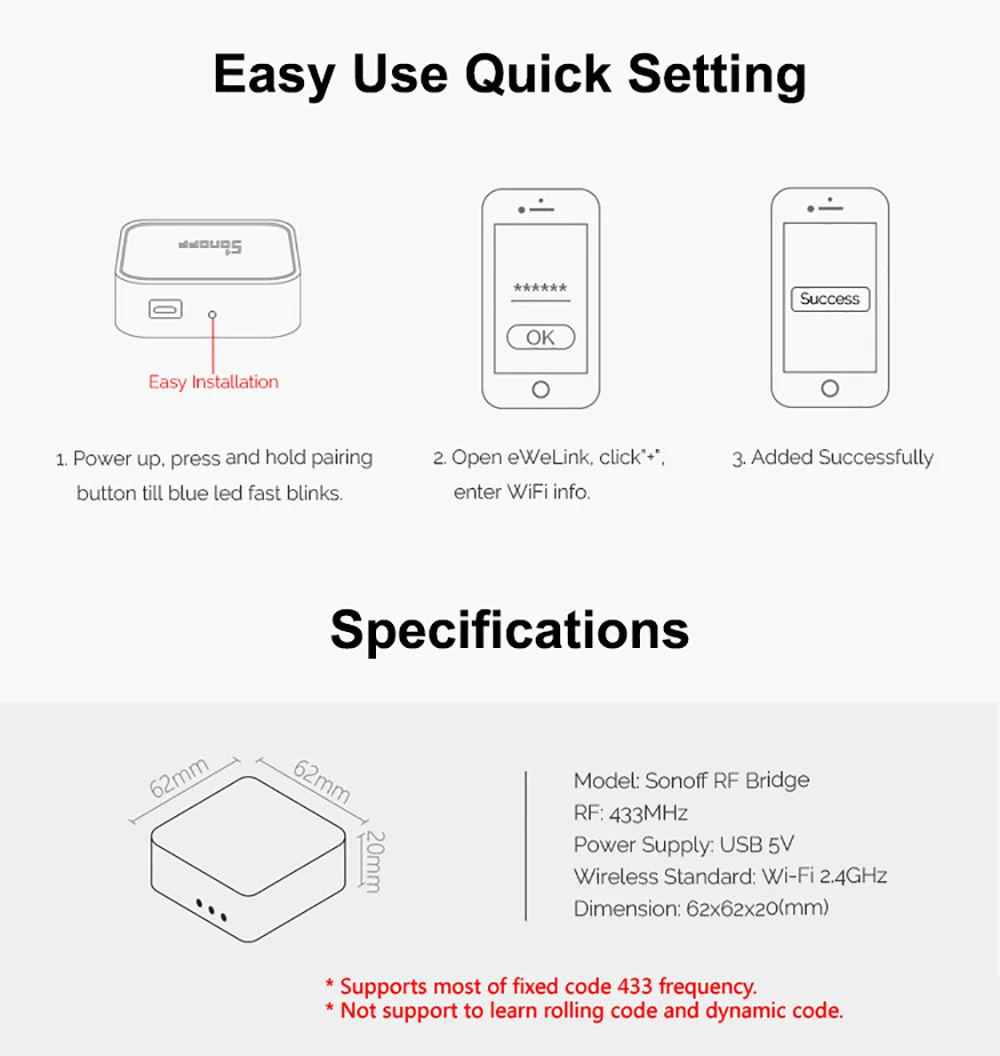

Product Description:

Moblie APP download

1.Search “ eWeLink "

2.Android System download in google play.

3.IOS System download in App Store.



Product Name	Features	Input Voltage	Max Current	Max Power	Frequency	Shopping
Sonoff AM2301	Temperature Humidity Sensor	3.3~5.2V DC	/	/	/	Click
Sonoff Basic	1 Channel Wireless Switch	90~250V AC	10A	2200W	2.4Ghz	Click
Sonoff RF	1 Channel 433 RF Wireless Switch	90~250V AC	10A	2200W	2.4Ghz, 433MHz RF	Click
Sonoff TH10	Monitor and Set Temperature & Humidity	90~250V AC	10A	2200W(10A)	2.4Ghz	Click
Sonoff TH16	Monitor and Set Temperature & Humidity	90~250V AC	16A	3500W(16A)	2.4Ghz	Click
Sonoff Dual	Remote Control 2 Devices	90~250V AC	16A	3500W	2.4Ghz	Click
Sonoff Pow	Report Power & Power Usage	90~250V AC	16A	3500W	2.4Ghz	Click
Sonoff 4CH	4 Gang WiFi Wireless Switch	90~250V AC	10A	2200W	2.4Ghz	Click
Sonoff 4CH Pro	4 Gang WiFi & RF / 3 Working Model	90~250V AC/5~24V DC	10A/Gang	2200W/Gang	2.4Ghz, 433MHz RF	Click
Sonoff Touch	WiFi Wall Touch Switch	90~250V AC	2A	400W	2.4Ghz	Click
Slampher	Wireless Control Light Holder	90~260V AC	2A	200W	2.4Ghz, 433MHz RF	Click
Sonoff B1	Dimmable White & Color Bulb	90~250V AC	2A	6W	2.4Ghz	Click
S20 Smart Socket	EU/US/UK/CN Wifi Smart Socket	90~250V AC	10A	2000W	2.4Ghz	Click



Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.1kg (0.22lb.)



•
  Package Size:
  7cm x 7cm x 3cm (2.76in x 2.76in x 1.18in)
