Sonoff PIR2 Motion Alarm Sensor Smart Home Automation Module Work with 433 RF Bridge For Smart House Security Via IOS Android
Brand Name:
SONOFF
Camera Equipped:
No
State of Assembly:
Ready-to-Go
Model Number:
Sonoff door window PIR2 sensor
Compatibility:
All Compatible
Sonoff PIR2 Motion Alarm Sensor Smart Home Automation Module Work with 433 RF Bridge For Smart House Security Via IOS Android
Convert 433MHz RF Remote to App via WiFi
Make 433MHz RF devices App remote controllable
Support to add max. four 433MHz RF Remote/Curtain Switch/Alarm
Support to control up to sixteen 433MHz RF devices
Receive alarm push message from 433MHz PIR sensor, door &window alarm sensor
Control 433MHz RF devices over Wi-Fi or mobile network
Free iOS and Android mobile app eWeLink
Works perfectly with Amazon Alexa, Google Home
This RF Bridge can convert most of the 433MHz RF Remotes into WiFi wireless. By adding the RF wireless Bridge to iOS/Android App eWeLink WiFi wirelessly, you can add up to four 1-4 buttons 433MHz Wireless RF Remotes to the RF Bridge device. After pairing the RF Remote buttons with RF controlled devices, you can directly control maximum 16 RF controlled devices on the App through WiFi/2/3/4G network.
It can be used for most of the 433MHz RF Remote controlled products, like RF controlled switch, RF controlled socket, RF controlled bulb, RF controlled door opener, etc.
Even more exciting is that it will work with door magnetic sensor, human body IR sensor, and more other sensors to realize security alarm, and allowing you to DIY smart scenes. This model supports Amazon Alexa and Google Home voice control.

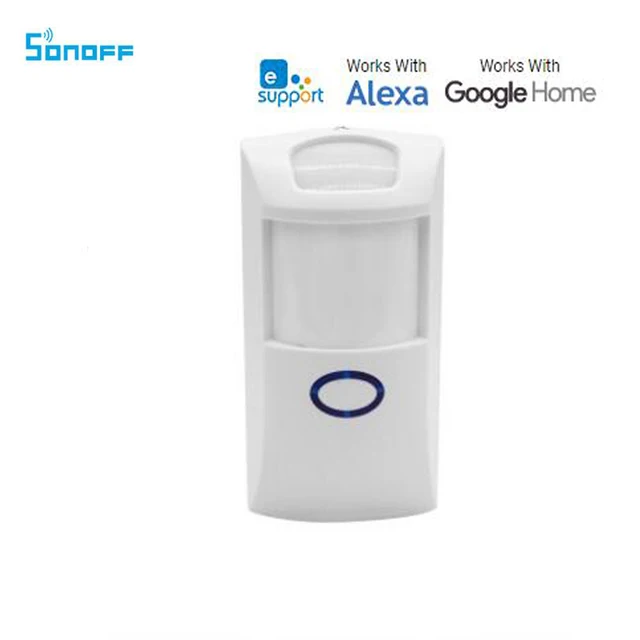

PIR2 is a 433MHz RF PIR motion sensor that for human detection. The motion detector can work with the Sonoff RF Bridge 433, providing human detected alarm message push to your phone.
DW1 is a door and window alarm sensor. The door alarms can work with Sonoff RF Bridge 433. DW1 door alarm sensor detects the opening status and immediately sends alarm notification message to the app.
Note 1:
The receiving supports fixed code 433 frequency, like PT2260, PT2262, PT2264, EV1527, etc.
Not support to learn rolling code and dynamic code
You can't see device status changes in the App.
Note 2:
What's new in Android & iOS 2.5.0?
Scheduled/countdown timers are supported.
iOS App supports to add this product.
RF curtain switch and RF alarm are supported.
Note3:
This Sonoff RIP2 Sensor Must work with Sonoff 433 RF Bridge
Works With Amazon Alexa
To control Sonoff RF Bridge, you'll need to say RF Remote name and button name together.
Standard voice control commands phrases (if you just say the RF Remote name, Alexa will turn on/off all buttons of that RF Remote immediately):
Alexa, turn on {RF Remote Name}
Alexa, turn off {RF Remote Name}
Alexa, turn on {RF Remote Name} {ButtonName}
Alexa, turn off {RF Remote Name} {ButtonName}
Specifications
Power Supply: USB 5V
Wireless Standard: WiFi 802.11b/g/n, 433MHz
Security Mechanism: WPA-PSK/WPA2-PSK
Product Dimensions: 62*62*20 (mm)
Features for Sonoff DW1 Sensor
Ultra-low power magnetic dedicated microprocessor
Supports wireless frequency of 433.92MHz
200m wireless transmit distance
Built-in antenna provided
Less than 1μA quiescent current
Specifications for Sonoff DW1 Sensor
Support Battery: 12V 23A
Wireless frequency: 433.92MHz
Protocol: EV1527
Quiescent current: ≤5μA
Emission current: ≤10mA
Operating environment: -10℃-50℃ (14℉-122℉)
Product Size: 77*49.5*18.8mm
Battery: length 27mm, diameter 10mm, this model doesn’t come with battery
Weight: 45g
Features for Sonoff PIR2 sensor
Dual infrared
Ultra-low power microprocessors
Double temperature compensation technology
Robust and durable, suitable for homes, offices, sheds, garages etc.
Easy installation and set-up, wall-mounted
Specification for Sonoff PIR2 sensor
Transmit distance: 150m (open)
Voltage: 3V (2*AA)
Standby current: ≤9μA
Alarm current: ≤10mA
Wireless frequency: 433.92MHz
Wireless Transmit Code: 1527Mhz (default)
Detection distance: 12m@ 25℃
Detection angle: 110 degrees
Maximum coverage area: 12m*12m
Alarm indicator light: on for 3 seconds
Working environment: indoor
Tamper switch: normally closed
Anti-white light intensity: 10000Lux
Packing size: 165*65*50mm
Product Size: 120*62*46mm
Battery type: 2*AA (Note: this model doesn’t come with battery)
Weight: 120g
Unit Type:
piece
Package Weight:
0.185kg (0.41lb.)
Package Size:
15cm x 15cm x 10cm (5.91in x 5.91in x 3.94in)
