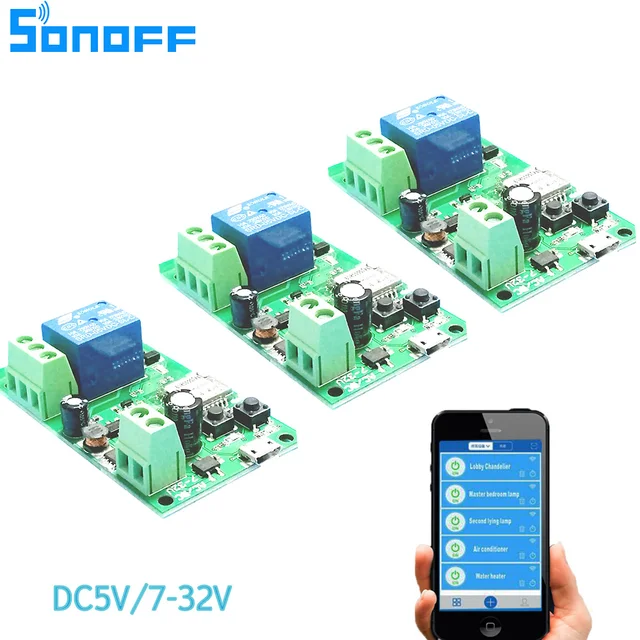

Sonoff DC5V/12Vwifi switch wireless Relay module Smart home Automation for Computer access 24v 32v Inching/Self-Locking IOS

Sonoff DC5V/12Vwifi switch wireless Relay module Smart home Automation for Computer access 24v 32v Inching/Self-Locking IOS

Product ID : 32865878703

Price : $25.00 - 32.90

Discount Price : $21.25 - 27.97

Item specifics

•
  Brand Name:
  SONOFF



•
  Model Number:
  SONOFF DC5V



•
  Camera Equipped:
  No



•
  State of Assembly:
  Ready-to-Go



•
  Compatibility:
  All Compatible


Product Description

Specifications

• Dimensions:70.5 x 27.4 x 23 mm
• Operating current: 5 V DC or 5/7 – 32 V DC
• LEDs: 3 LEDs which indicate working mode, WiFi status, relay on/off status respectively
• Two input interfaces
• Board consumption: <1 W
• Standby current: 80 mA
• Max input current: 10A
• Support to control different voltage ranges
• Relay lifespan: Over 1,000,000 times
• 100M electrical insulation resistance
• Electric shock voltage: 1000 V
• Relay maximum pull time: 15 ms
• Relay maximum release time: 5 ms
• Operating temperature: -40 to 70°C (-40 to 158°F)
• Operating humidity 40 to 80% RH

Applications:
• The switch can be applied to access control, turn on PC, garage door, etc.

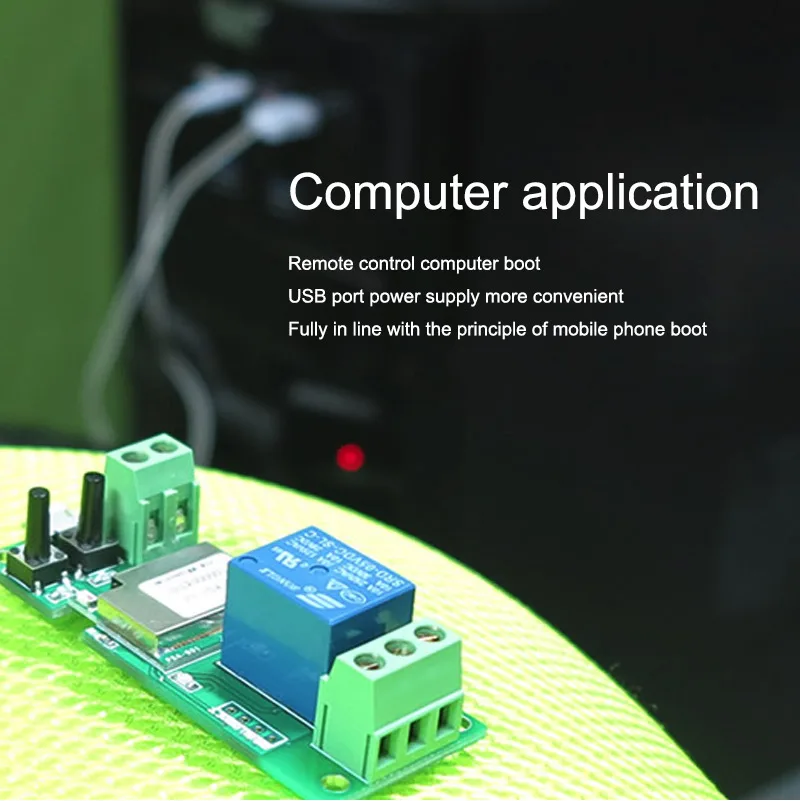

• Computer application
• Remote control computer boot
• USB port power supply conveniently
• Fully in line with the principle of mobile phone boot

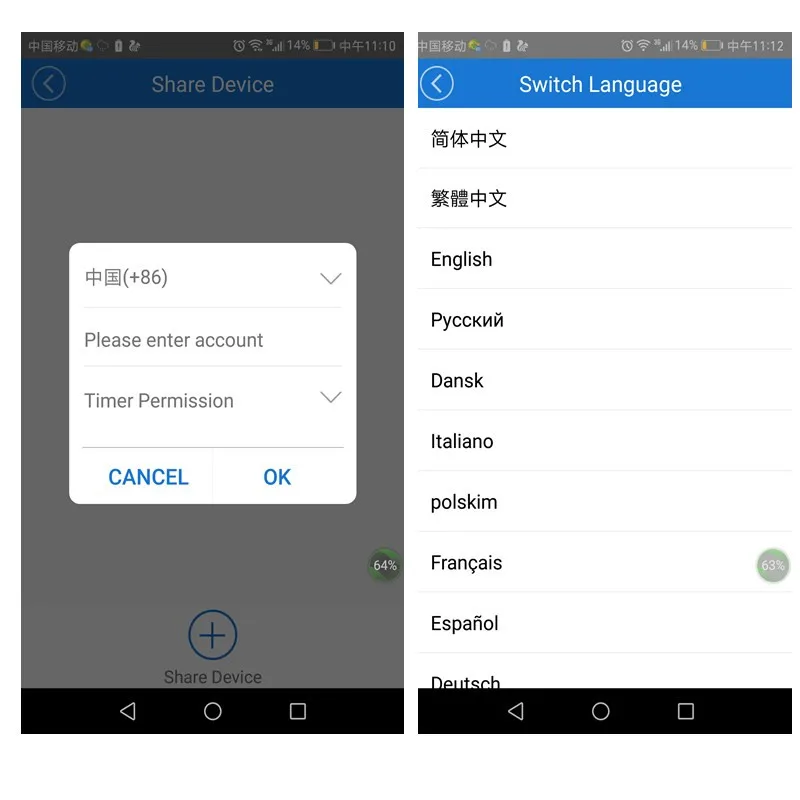

Adnroid APP: E-WeLink-2.1.13.apk
Support IOS cellphone also, you can search "e-welink" in App store to setup it;
Support IOS cellphone also, you can search "e-welink" in App store to setup it for English version;

WIFI control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.

Feature:

Working voltage: USB 5V/7-32v
With signal instruction light and relay pull-on instruction light
Power < 1W, and quiescent current: 80mA
Cutover current< 10A , Cutover voltage< 250V
10A Relay Model
The life of Relay Model is more than 1,000,000
Insulation resistance: 100M
Maximum pull-on time: 15mS
Maximum release time: 5mS
Working Temperature: -40 to 70degree
Working Humidity: 40% to 80% RH


Function:

Default inching Function: Press the open relay by mobile phone, then cut off the pull-on imediately(default one second), it has the timing-share function at the same time.

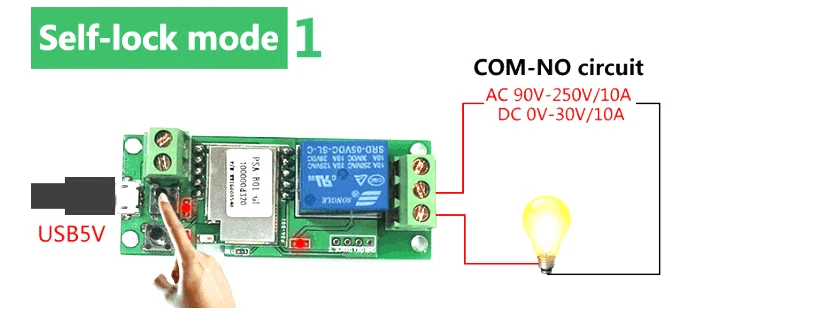

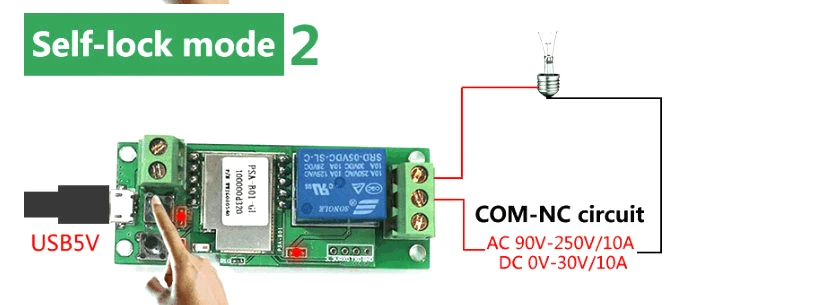

Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.

Package included:

 Package 1

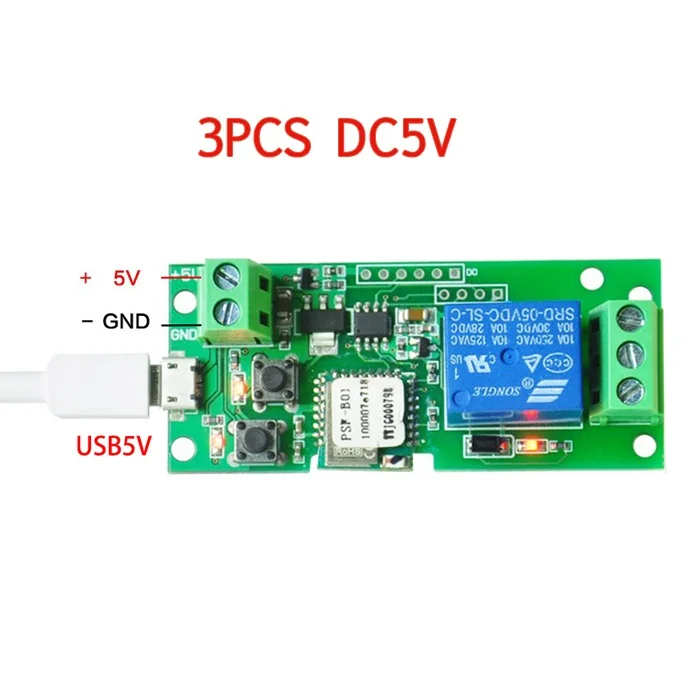

Jog Inching Self-locking WiFi Wireless Smart Home Switch  5v  (3pcs)

Package 2

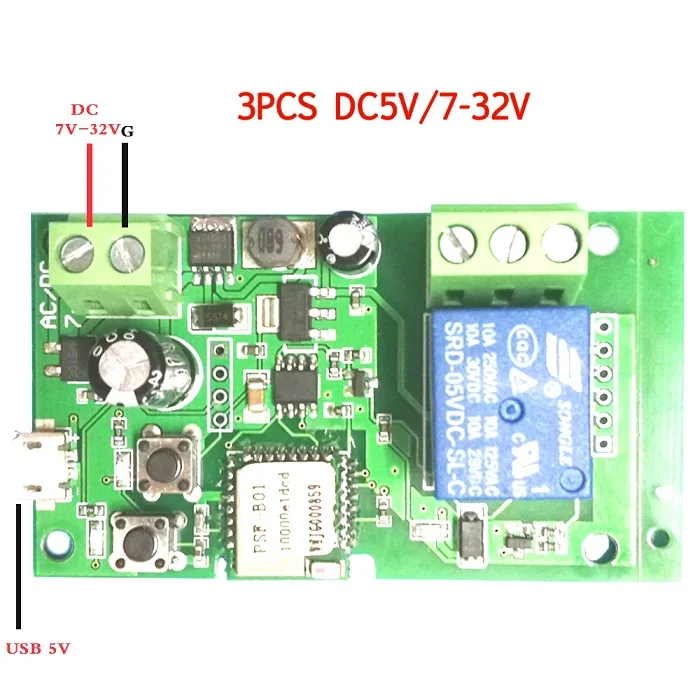

Jog Inching Self-locking WiFi Wireless Smart Home Switch  5v/7-32v(3pcs)

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.15kg (0.33lb.)



•
  Package Size:
  15cm x 8cm x 8cm (5.91in x 3.15in x 3.15in)
