sonoff DC5V 7v-32v wifi switch wireless Relay module Smart home Automation access control Inching/Self-Locking usb interface

sonoff DC5V 7v-32v wifi switch wireless Relay module Smart home Automation access control Inching/Self-Locking usb interface

Product ID : 32835391684

Price : $13.12

Discount Price : $9.45

Item specifics

•
  Brand Name:
  SONOFF



•
  Camera Equipped:
  No



•
  State of Assembly:
  Ready-to-Go



•
  Compatibility:
  All Compatible



•
  working temperature:
  -40 degrees to +70 degrees



•
  Features:
  Remote turn on/off



•
  Features 1:
  Timing Schedules



•
  Features 2:
  Self-locking mode: Normally open or normally closed.



•
  Features 3:
  Jog mode: automatic recovery of the original state after 1 second.



•
  APP language (multi-language) switch:
  Chinese English Russian Italian Danish Polish



•
  Relay operating voltage:
  DC7v-32v



•
  USB supply voltage:
  5V



•
  power:
  10A


Product Description

USB 5V DIY One Channel Jog Inching Self-locking WIFI Wireless Smart Home Switch

Adnroid APP: E-WeLink-2.1.13.apk
Support IOS cellphone also, you can search "e-welink" in App store to setup it;
Support IOS cellphone also, you can search "e-welink" in App store to setup it for English version;

WIFI control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.

Feature:

Working voltage: USB 5V

Relay operating voltage :DC7v-32v

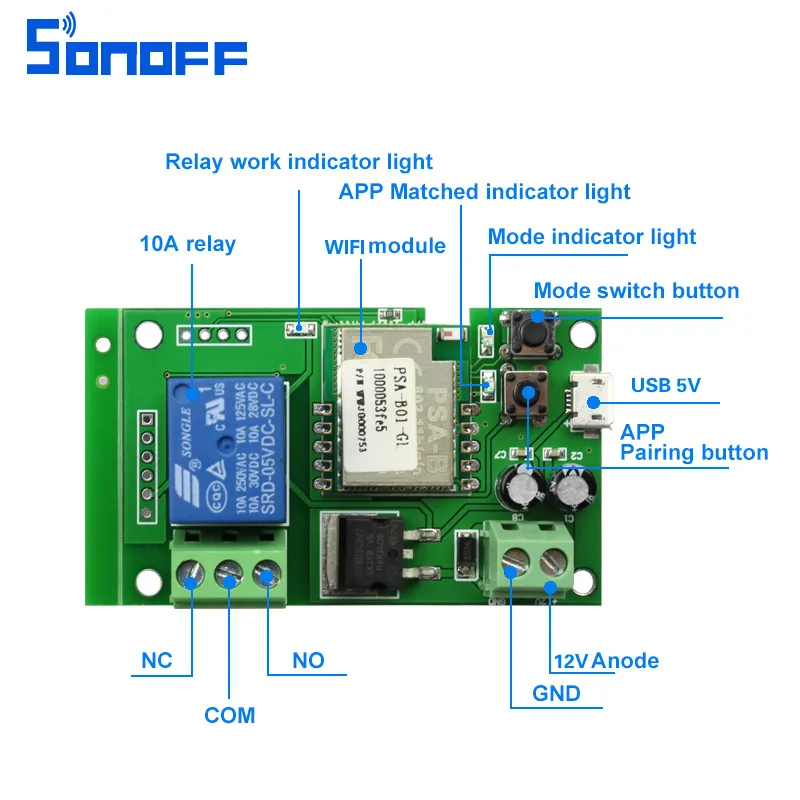

With signal instruction light and relay pull-on instruction light
Power < 1W, and quiescent current: 80mA
Cutover current< 10A ,
10A Relay Model
The life of Relay Model is more than 1,000,000
Insulation resistance: 100M
Maximum pull-on time: 15mS
Maximum release time: 5mS
Working Temperature: -40 to 70degree
Working Humidity: 40% to 80% RH

Know more about this product, please click: http://www.raspberrypiwiki.com/index.php/5V-1_Jog_Switch

Function:

Default inching Function: Press the open relay by mobile phone, then cut off the pull-on imediately(default one second), it has the timing-share function at the same time.
Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.

Package included:

1 x Jog Inching Self-locking WiFi Wireless Smart Home Switch



Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.035kg (0.08lb.)



•
  Package Size:
  5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)
