sonoff DC5V 12v 24v 32v wifi switch wireless Relay module Smart home Automation for access control systemr Inching/Self-Locking

sonoff DC5V 12v 24v 32v wifi switch wireless Relay module Smart home Automation for access control systemr Inching/Self-Locking

Product ID : 32846419184

Price : $9.20 - 11.40

Discount Price : $7.45 - 9.23

Item specifics

•
  Camera Equipped:
  No



•
  Compatibility:
  All Compatible



•
  Brand Name:
  SONOFF



•
  Model Number:
  sonoff DC5-32



•
  State of Assembly:
  Ready-to-Go



•
  Input voltage:
  DC 5V /7V-32V



•
  Operating Humidity:
  40% ~ 80% RH



•
  working temperature:
  -20 degrees to +70 degrees



•
  Main chip:
  WIFI module



•
  Features1:
  remote control and 1 second delay



•
  Features2:
  State feedbacl and timing


Product Description

Overview

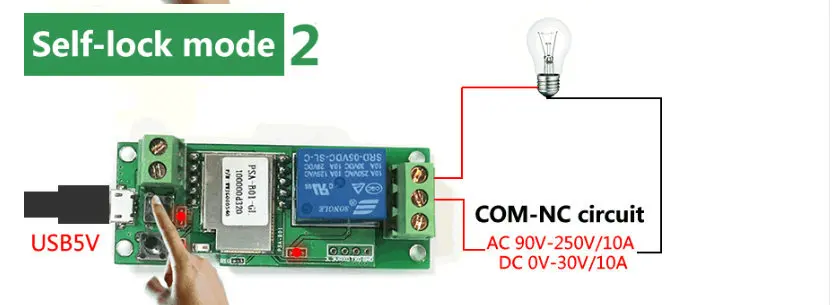

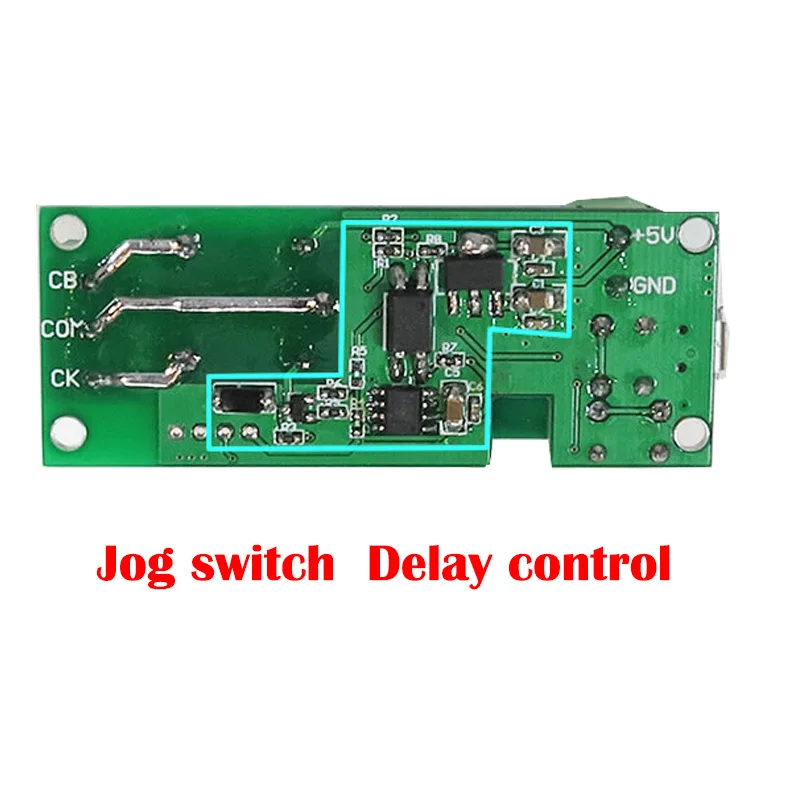

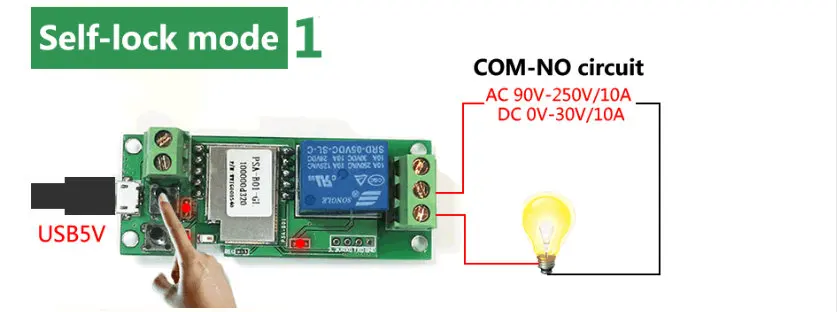

This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP eWeLink in order to remotely control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately. When in inching mode, customers can have two wiring ways to select:
Turn on 1s and then auto-off
Turn off 1s and then auto-on.
The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS. Supported functions include:

• Supports WiFi network.


• Supports status tracking: device status timely provided to the EWeLink.


• Supports remotely turn on or off connected appliance/light.


• Supports max 8 enabled scheduled/countdown/loop timers for each device.


• Supports numerous WiFi smart switches on one smart phone.


• Works with Amazon Echo, Echo Dot, Amazon Tap


• Works with Google Home


• Works with Google Nest

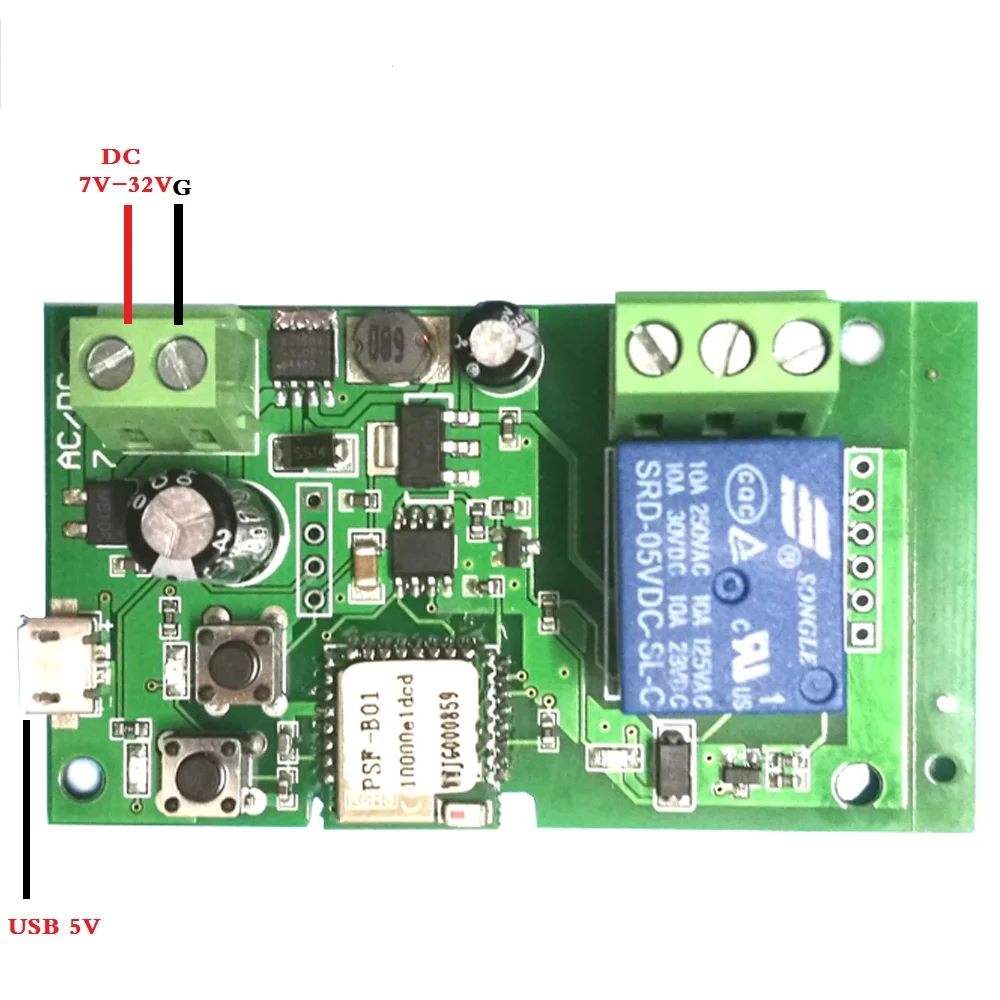

The self-lock/inching mode wireless switch has two input voltage supply specifications: 5V and 5V/7-32V. No matter which specification is selected, the functions remain the same.

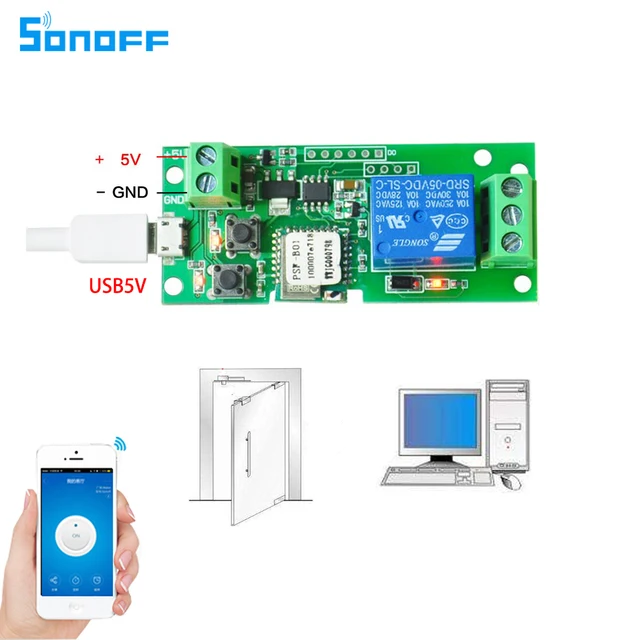

This is the APP, mobile scanning after installation, paired device, after the success of the match, can control equipment5V self-lock/inching mode wireless switch：

Specification

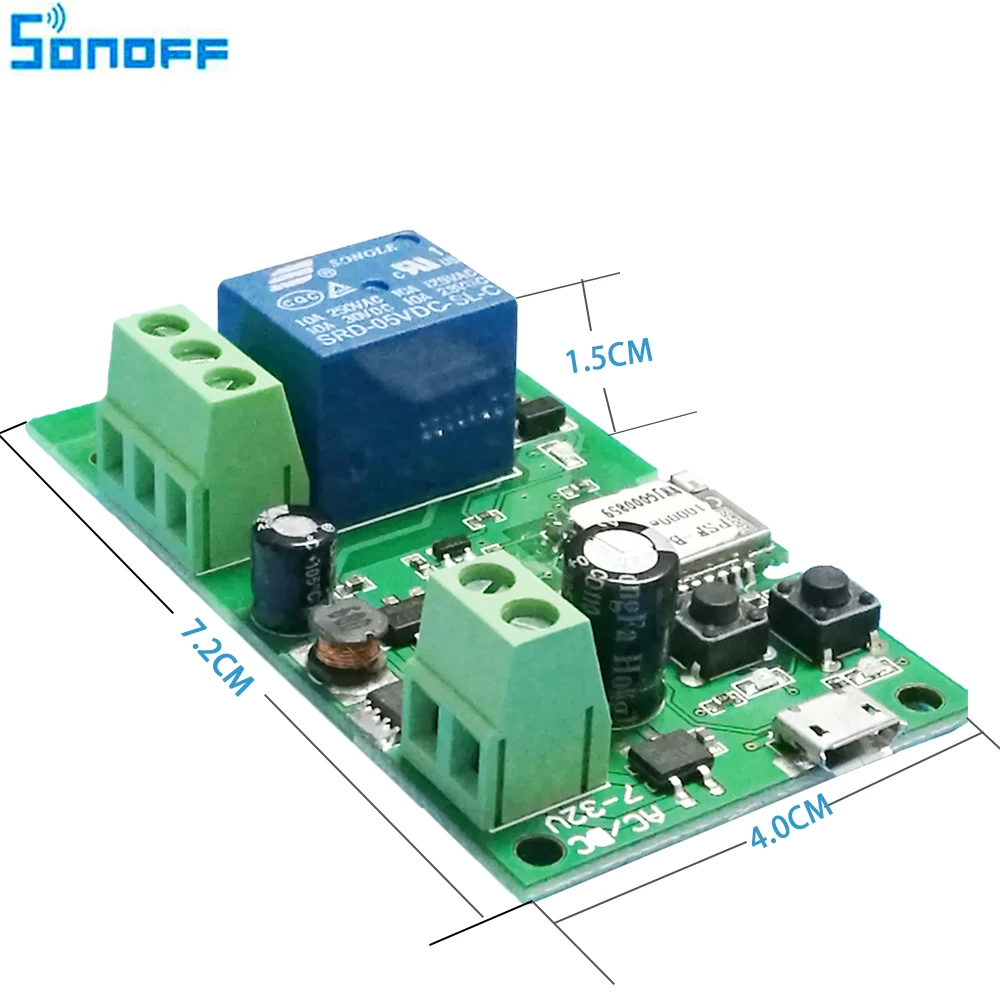

Dimensions:70.5mm*27.4mm*23mm

Operating current: 5V DC or 5V/7-32V DC

LEDs: 3 LEDs which indicate working mode, wifi status, relay on/off status respectively.
Two input interfaces
Board consumption: <1W
Standby current: 80mA
Max input current: 10A

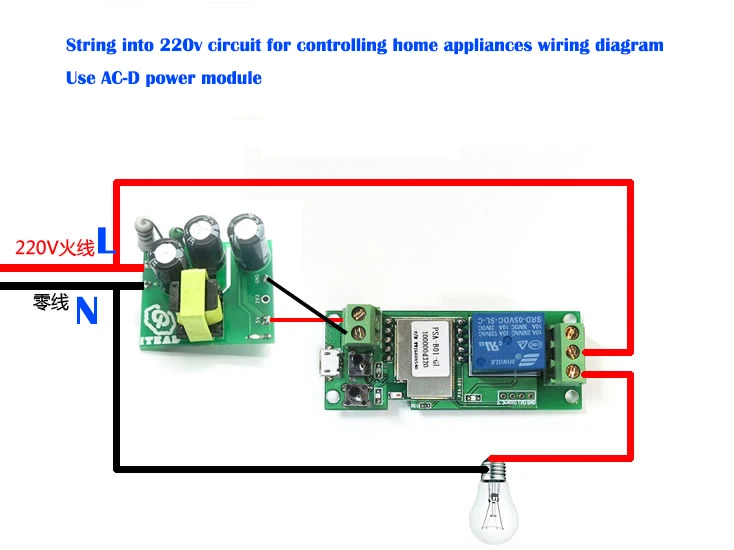

Supports to control different voltage ranges
Relay lifespan: more than one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH
Application

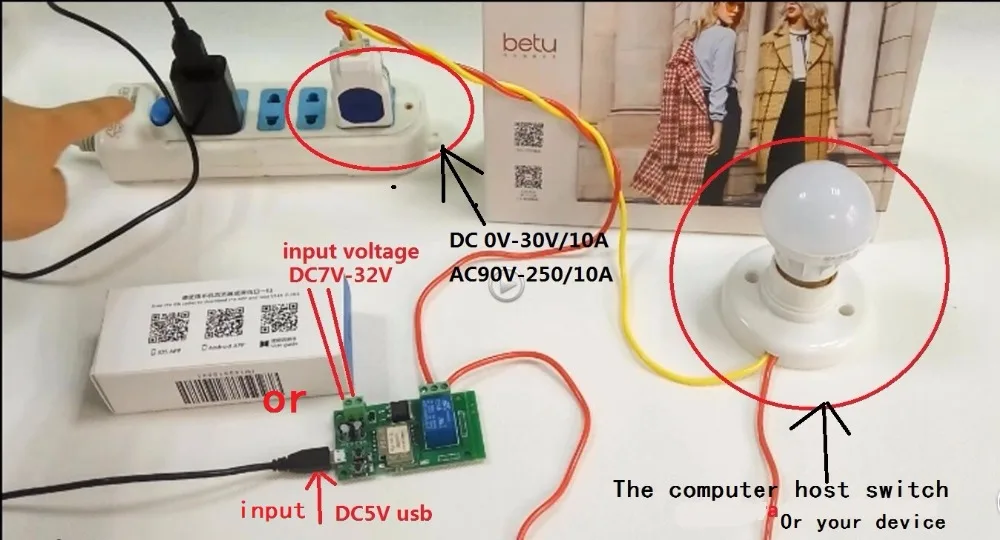

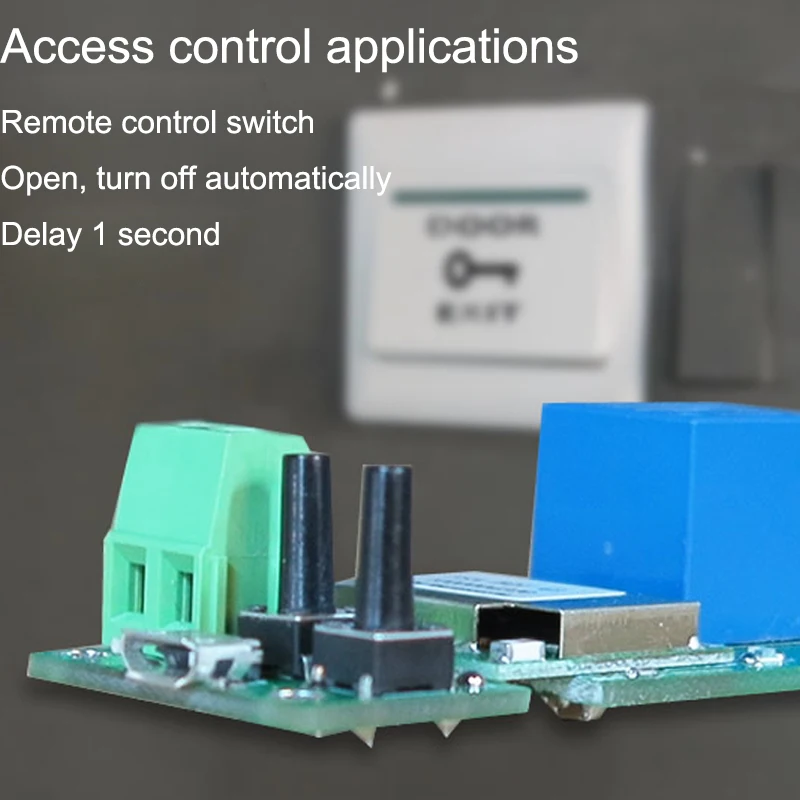

The switch can be applied to access control, turn on PC, garage door, etc.

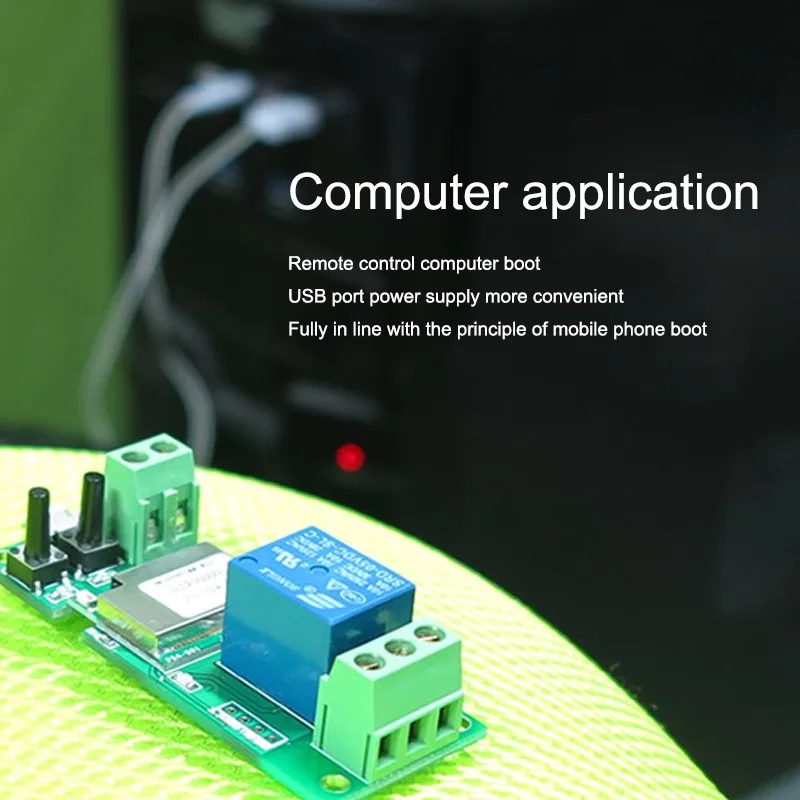

Computer application

Remote control computer boot
USB port power supply more convenient
Fully in line with the principle of mobile phone boot

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.05kg (0.11lb.)



•
  Package Size:
  8cm x 6cm x 3cm (3.15in x 2.36in x 1.18in)
