Smart wifi switch wireless Relay module Smart home Automation for Computer access DC7V/12v 24v 32v Inching/Self-Locking IOS

Smart wifi switch wireless Relay module Smart home Automation for Computer access DC7V/12v 24v 32v Inching/Self-Locking IOS

Product ID : 32882409107

Price : $14.27 - 21.20

Discount Price : $11.99 - 17.81

Item specifics

•
  Camera Equipped:
  No



•
  Model Number:
  ld2ch



•
  State of Assembly:
  Ready-to-Go



•
  Brand Name:
  LINKDIY



•
  Compatibility:
  All Compatible


Product Description



Fool type wifi control module, no programming, only need to download an APP,    link WIFI can control the own cloud. As long as the module links WIFI, the phone can be controlled anywhere in the country.

1,  With a signal indicator, relay pull the light.
2, The board power consumption of static current 80MA relay all open is about 380MA peak
3, 1 relay rated switching current of less than 10A, switching voltage within 250V
4, Total is  10A relays
5, Relay life of more than 1000000 times.
6, Electrical insulation resistance 100M
7, Electric shock voltage 1000V
8, The relay maximum suction time 15mS milliseconds
9, Tthe relay maximum release time 5mS milliseconds
10, The operating temperature of -40 degrees to +70 degrees
11, Working humidity 40% ~ 80% RH

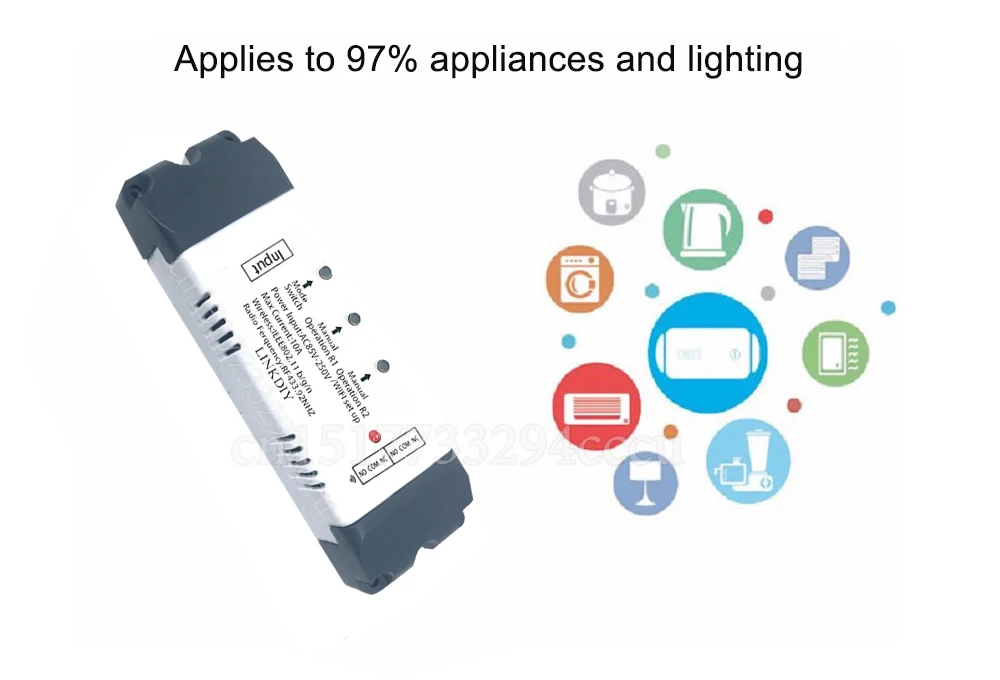

Applicable occasions: smart home. Wifi control

There are four specifications

a. DC 7 -32V not 433 remote control

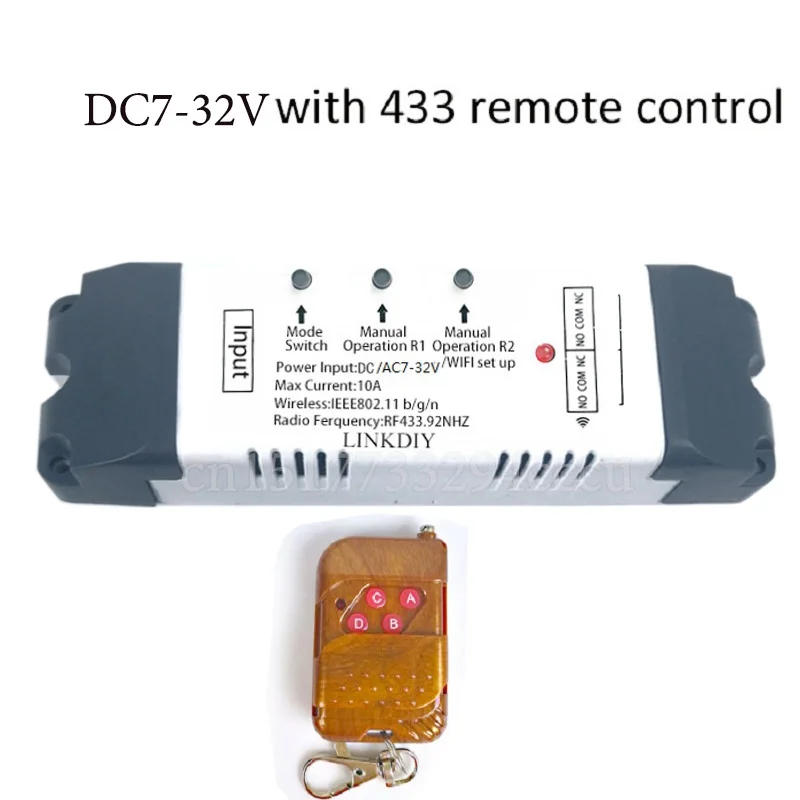

b.DC 7 -32V  with 433 remote control

c.AC85-250V  not 433 remote control

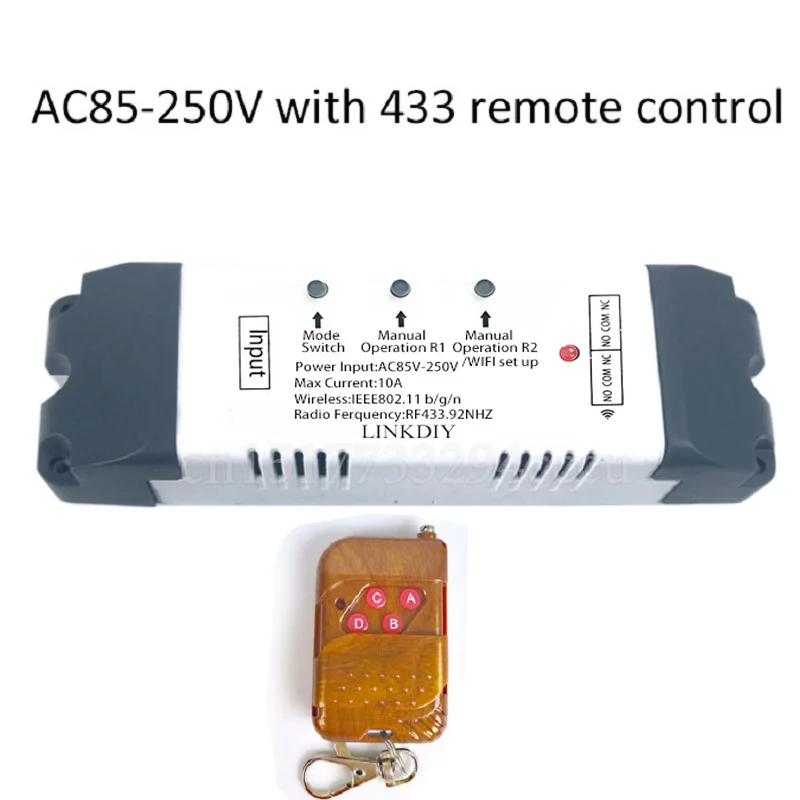

d,AC85-250V    with 433 remote control

The difference between them is that the power supply to this switch is different.

  a and b  is DC7 - 32V

  c and d  is  AC85-250V

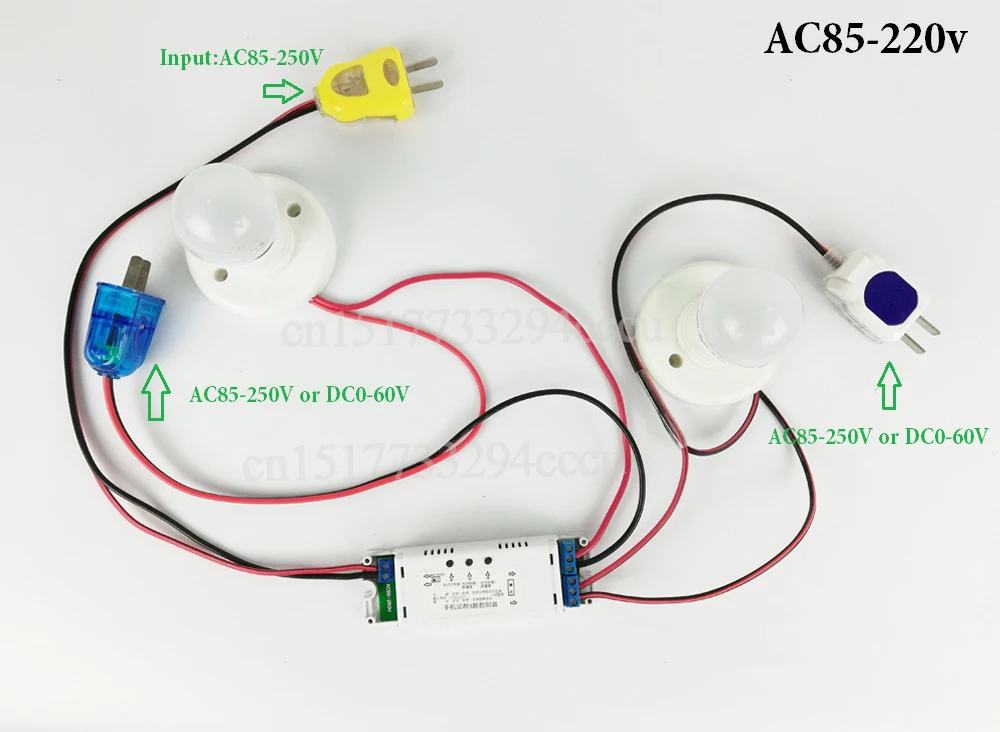

 However, the devices controlled by the four specifications are the same, which can be

 DC0 - 60v or AC85 - 250v

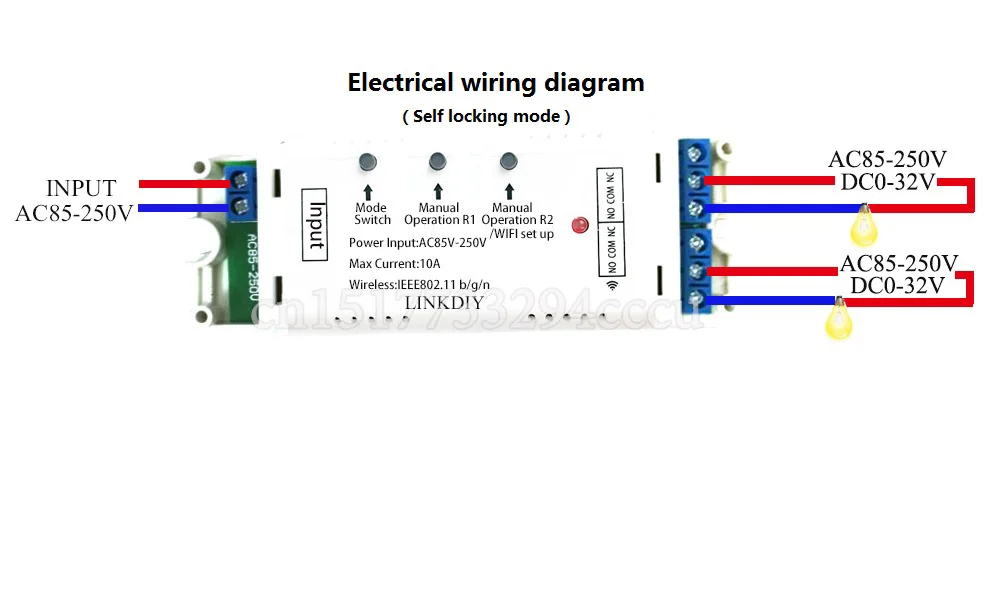

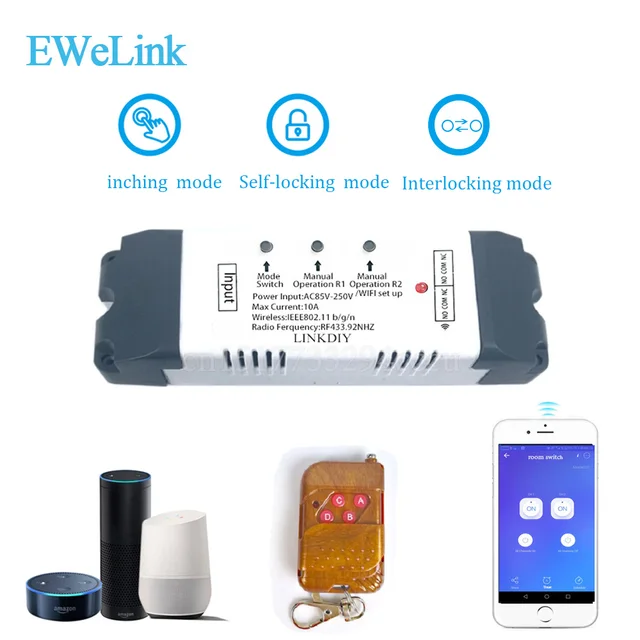

Mode Switch

Mode switch: press the mode switch button to switch to

Inching丨Interlock丨Self-locking  3 modes.

• Inching：The first line of the mobile phone is open, and the 1 relay is closed by 0.7s automatically, and the 2  is the same.

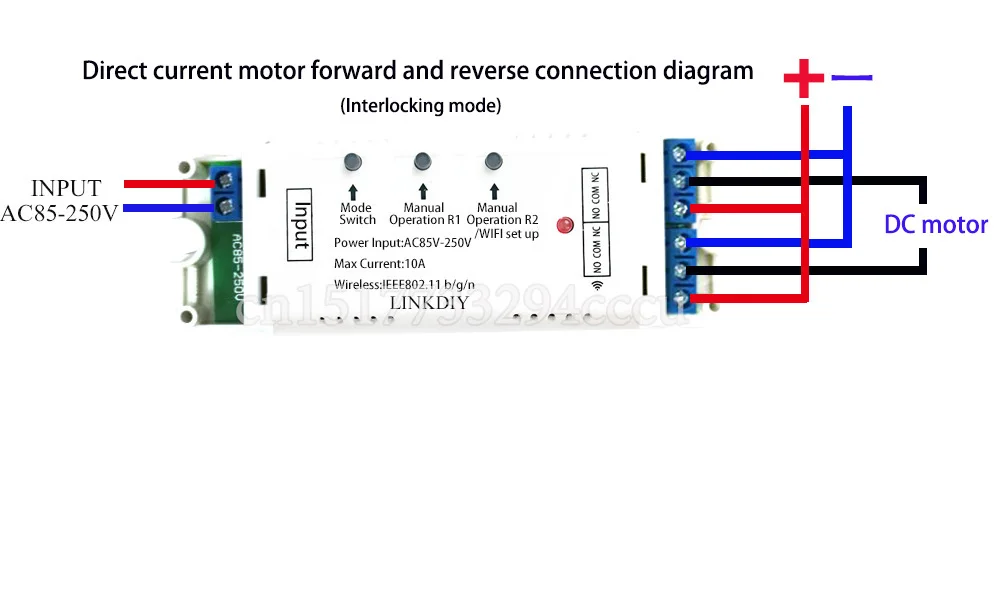

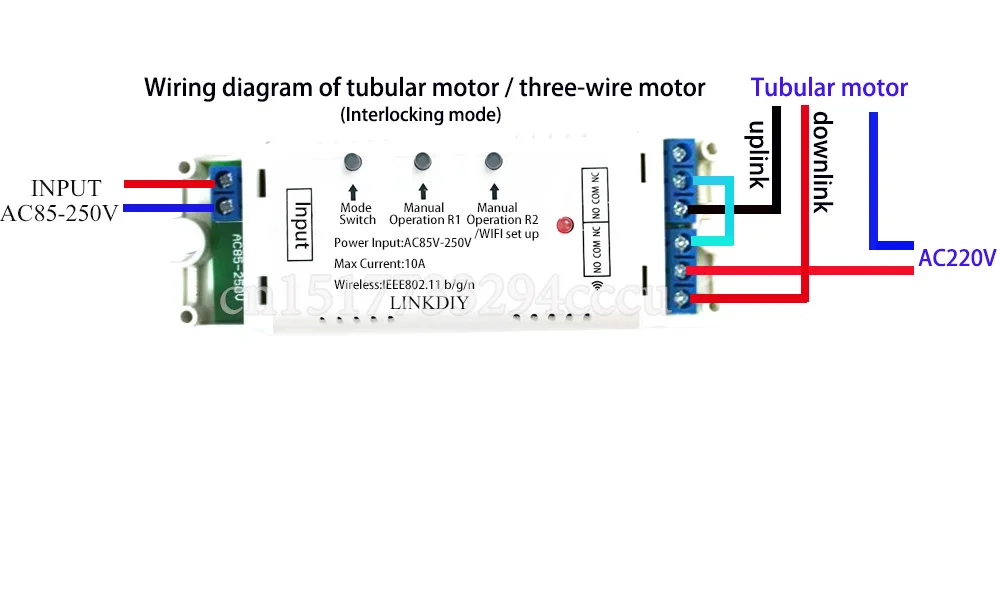

• Interlock: the mobile phone point is open any way, and the other three roads are always disconnected, which means that only one relay can open on the fourth circuit.


• Self-locking: the mobile phone points no. 1, 1 relays, cell phone point 1, 1 relay disconnection. 2,and so on.


•

State description

Inching mode:mobile point road 1 open ,1 continued electrical appliances

automatically closed after 0.7 seconds ,2.3.4 road,the same situation

Self-locking:mobile point 1 road ,1relay open,cellphone again point 1road’1 relay disconn

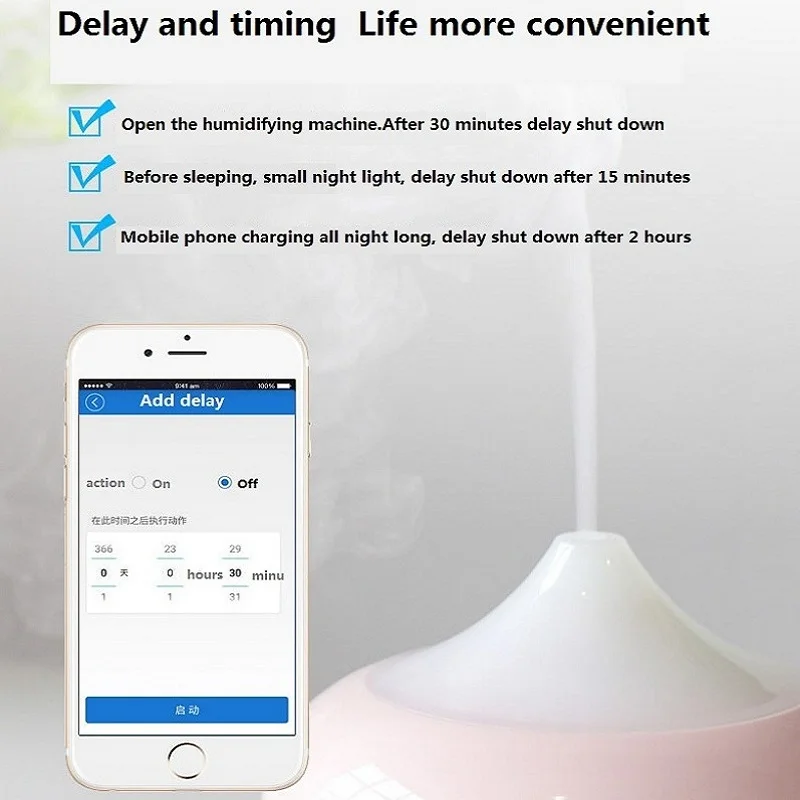

This is the APP,using a mobile phone to download and install

 after the success of the equipment configuration, we can use the mobile wireless remote control

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.13kg (0.29lb.)



•
  Package Size:
  15cm x 10cm x 5cm (5.91in x 3.94in x 1.97in)
