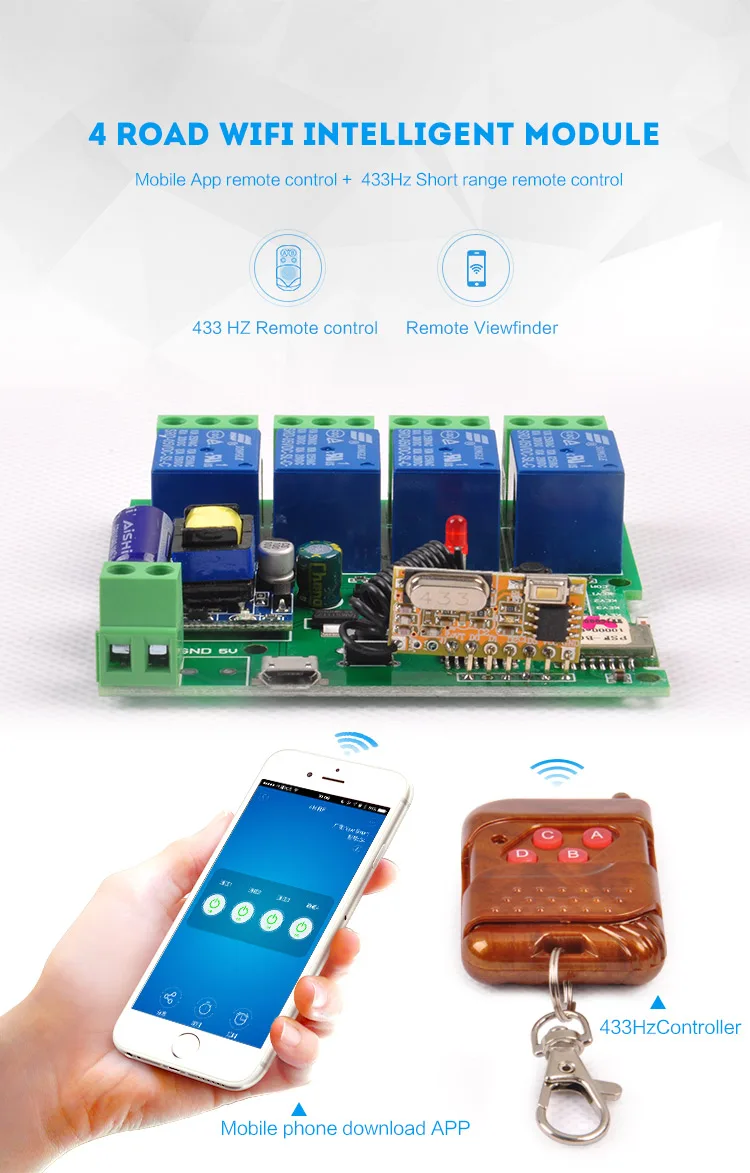

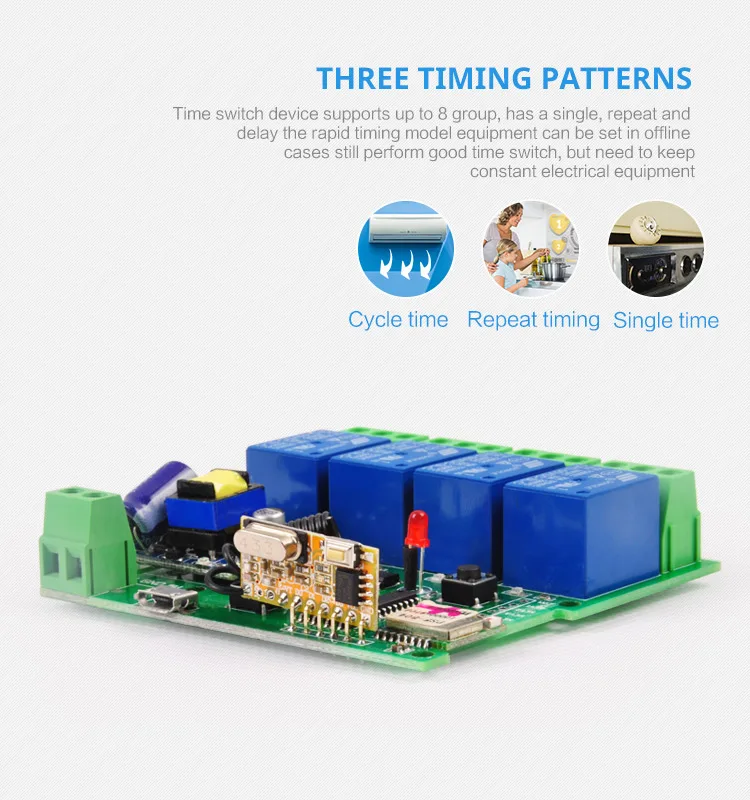

Smart home Automation Modules DIY Wireless Switch Remote Contro 4ch dc5V/7-32v/90-250V and 433mhz Wifi Switch with Timer
Camera Equipped:
No
State of Assembly:
Ready-to-Go
Compatibility:
All Compatible
Brand Name:
FREEJOIN

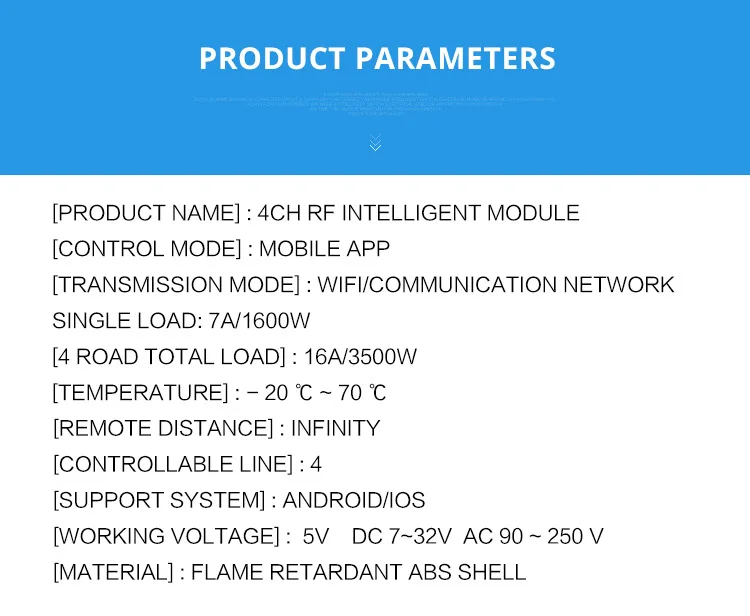

Main chip: wifi module

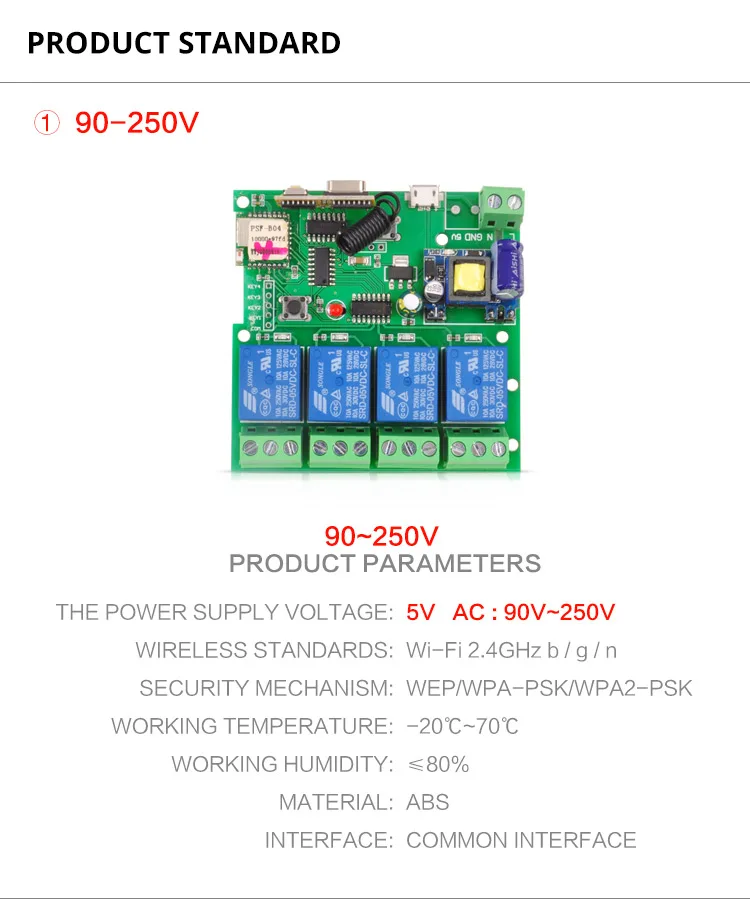

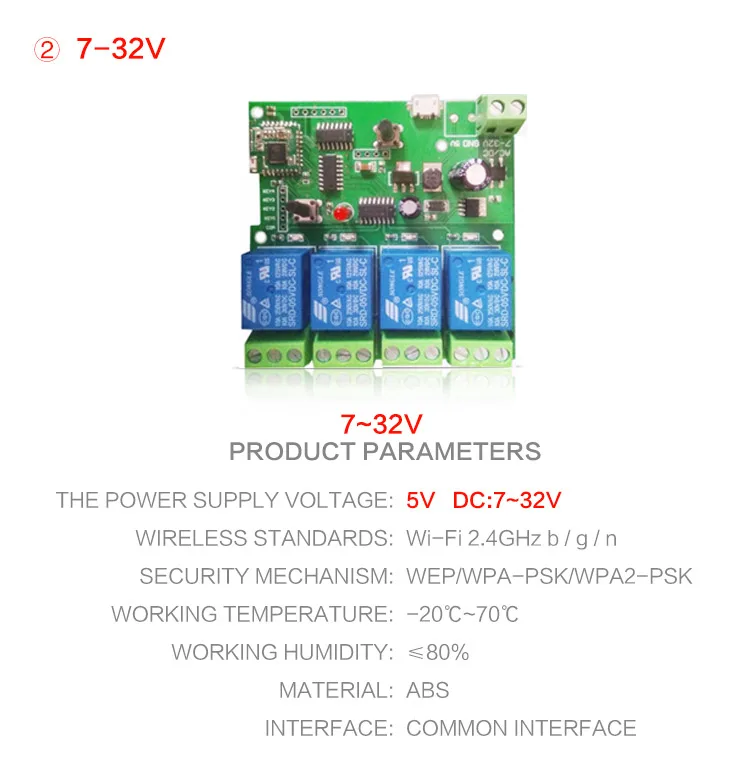

Working voltage: usb 5V/ dc7-32v
Characteristics:

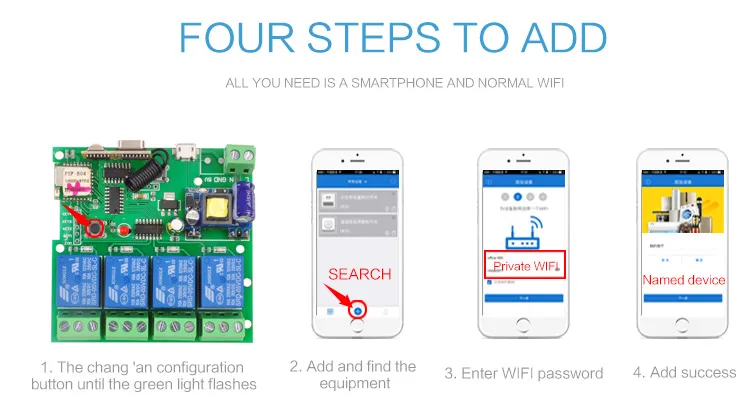

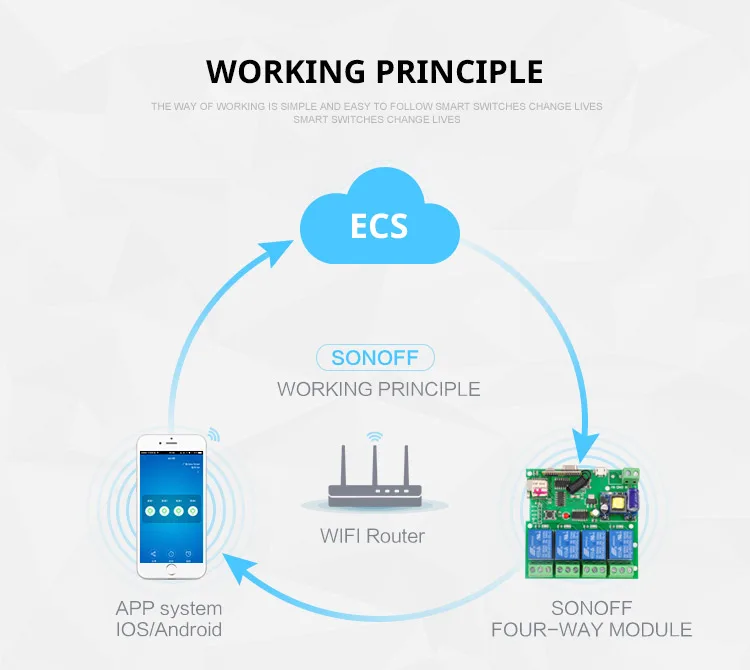

Fool type wifi control module, no programming, only need to download an APP, link WIFI can control the own cloud. As long as the module links WIFI, the phone can be controlled anywhere in the country.
1, With a signal indicator, relay pull the light.
2, The board power consumption of static current 80MA relay all open is about 380MA peak
3, 1 relay rated switching current of less than 10A, switching voltage within 250V
4, 10A relays
5, Relay life of more than 1000000 times.
6, Electrical insulation resistance 100M
7, Electric shock voltage 1000V
8, The relay maximum suction time 15mS milliseconds
9, Tthe relay maximum release time 5mS milliseconds
10, The operating temperature of -40 degrees to +70 degrees
11, Working humidity 40% ~ 80% RH
Applicable occasions: smart home. Wifi control

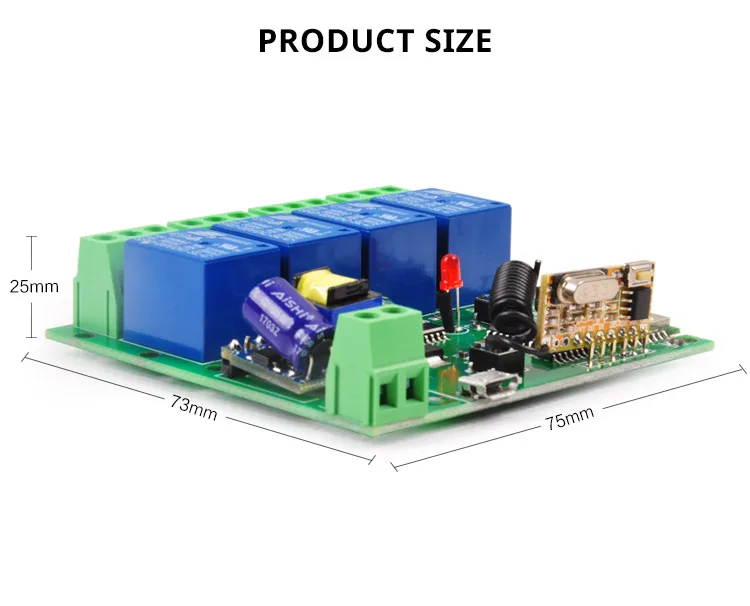

Size: length 74.3mmX wide 72.7mmX high 24mm
Packaging content:

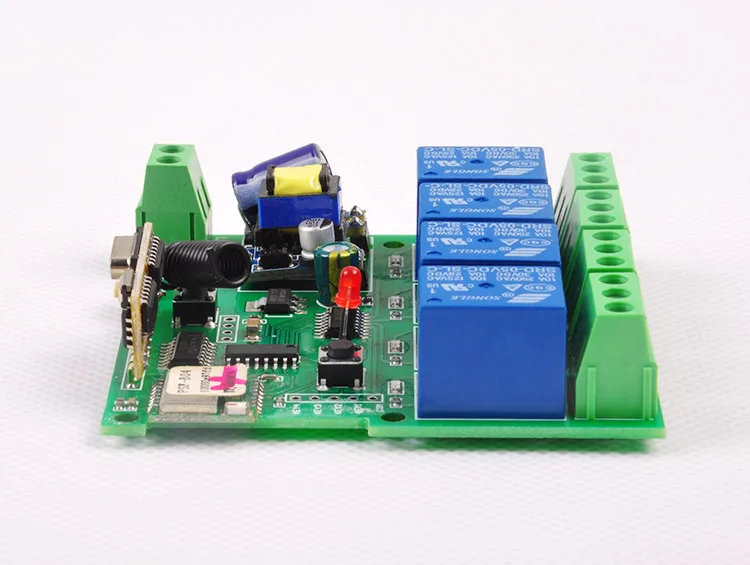

1pcs 4CH module (excluding shell)
1 pcs remote control（433MHZ）（Battery not included）
Unit Type:
piece
Package Weight:
0.15kg (0.33lb.)
Package Size:
5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)
