Smart access switch wifi 12v 24V 32V Access Smart Home Automation Relay Module DC5V jog /self-locking Switch phone app
Brand Name:
SONOFF
Camera Equipped:
No
State of Assembly:
Ready-to-Go
Compatibility:
All Compatible
Model Number:
5V jog switch
Operating voltage:
DC 5V-12V
Max input current:
10A
Operating current:
5V DC or 5V/12V DC
Board consumption:
<1W
Electric shock voltage:
1000V
Relay maximum pull time:
15ms
Relay maximum release time:
5ms
Operating Humidity:
40% ~ 80% RH
Supported functions include:
Remote turn on/off Timing Schedules
functions:
Device Sharing Group Management
5V/12v jog / self-locking Switch phone app Remote Control Timing Wifi Smart Remote Access Refit Smart Home Automation Module
This module features:
1 Default Jog function: pressing the phone open relay fast (default interval is 1S) disconnected, with regular sharing
2. Press the Select button to move the lock status light, this time for self-locking, press the phone open relay, the relay off press Off.
First, dimensions: height 23mm long 70.5mmX wide 27.4mmX
Second, the main chip: WIFI module
Third, the working voltage: DC 5V
Four, features:
Fool wifi control module without programming, only you need to download an APP, you can control the link WIFI built cloud. Just module links WIFI, mobile phones anywhere in the country can be controlled.
1, with signal lights, relay indicator.
2, the board consumes less than 1W of quiescent current 80MA
3, rated switching current of less than 10A, switching voltage less than 250V
4,10A relay
5, relay life one million times.
6, electrical insulation resistance 100M
7, electric shock voltage 1000V
8, relay maximum pull-millisecond time 15mS
9, the maximum release time relay milliseconds 5mS
10, the working temperature of -40 degrees to +70 degrees
11, Operating Humidity 40% ~ 80% RH
Supported, languages: Chinese, Polish, Danish, English, Italian Russian
Specification
Dimensions:70.5mm*27.4mm*23mm
Operating current: 5V DC or 5V/7-32V DC

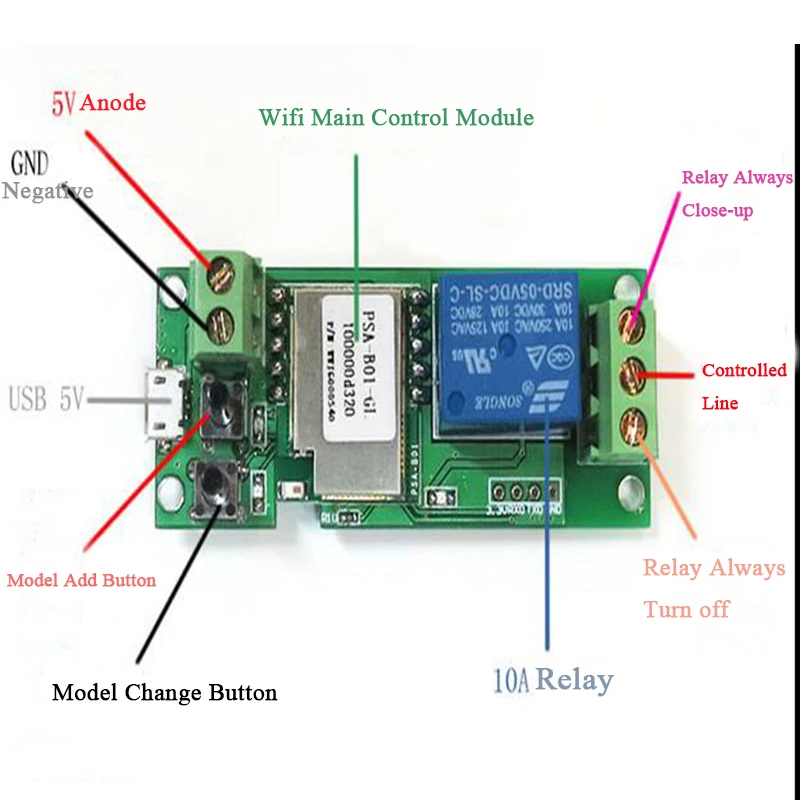

LEDs: 3 LEDs which indicate working mode, wifi status, relay on/off status respectively.
Two input interfaces
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Supports to control different voltage ranges
Relay lifespan: more than one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH
Application

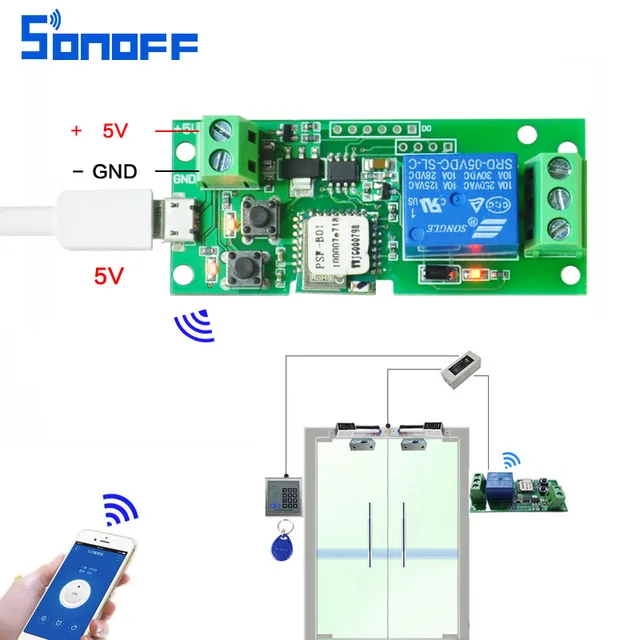

The switch can be applied to access control, turn on PC, garage door, etc.

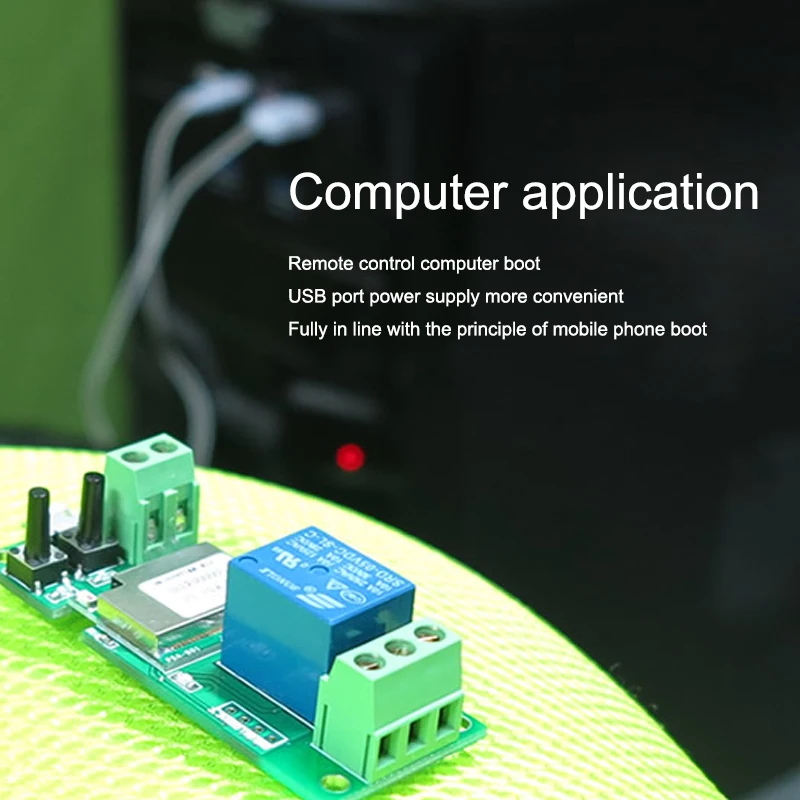

Computer application
Remote control computer boot
USB port power supply more convenient
Fully in line with the principle of mobile phone boot

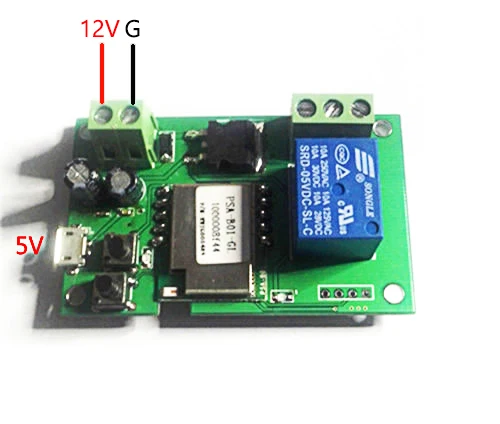

5V/12V, self-lock/inching, mode, wireless, switch:
5V, self-lock/inching, mode, wireless, switch:
There are two working modes for the product: inching mode and self-locking mode. Users can press the self-lock/inching mode button to switch between these two modes.
When the module is switched to self-locking mode, users can turn on/off the connected appliance instantly. There are two wiring way.
When the module is switched to inching mode, users can press on/off toggle button to turn on or off connected device. There are two kinds of wiring way.
The first wiring way is to connect COM and NO with an appliance. In this way, when users press the setting button or use the APP to turn on, connected appliance will be turned on for 1s and then auto turned off.
The second wiring way is to connect NC and COM with an appliance. In this way, when users press the setting button or use the APP to turn off, connected appliance will be turned off for 1s and then auto turned on.

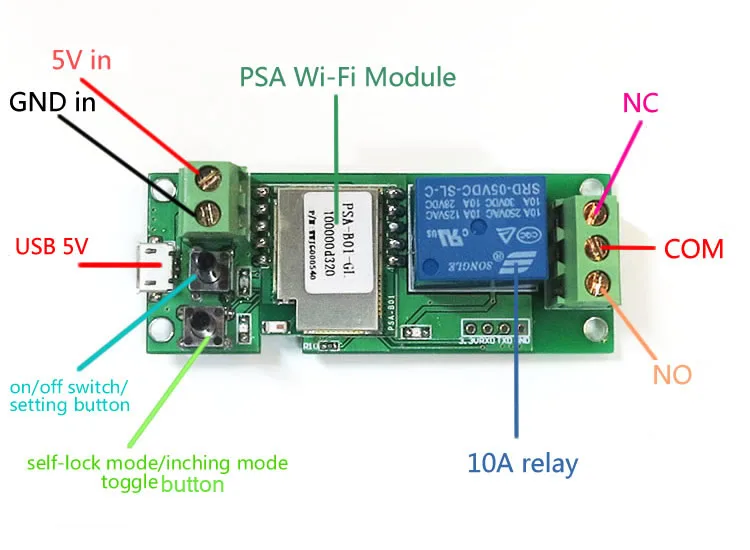

LED Indicator:
There are 3 LEDs, the LED beside self-lock/inching mode button indicates the working mode(on: self-locking mode, off: inching mode).
The LED beside on/off setting button indicates WIFI status(enter pairing status: long press the setting button until LED blinks fast).
And the one below the relay indicates relay on or off status(on: turn on connected device, off: turn off connected device).
Add device to eWeLink:
Long press the setting button until the LED beside on/off setting button begins fast blinking.
Android: Add Device->select pairing method ->enter WiFi name and password->pairing and register->name device
iOS: go to phone setting->WiFi-> select the WiFi starts with ITEAD-********, enter default password to connect:12345678-> go to eWeLink->Add device->select pairing method->enter WiFi name and password->pairing and register->name device
