linkdiy wifi smart switch 1 Channel Self-locking Wireless Relay Module for smart home Automation dc 7v 12v 24v 32v 10A
Model Number:
XFX1CH
Camera Equipped:
No
State of Assembly:
Ready-to-Go
Brand Name:
LINKDIY
Compatibility:
All Compatible

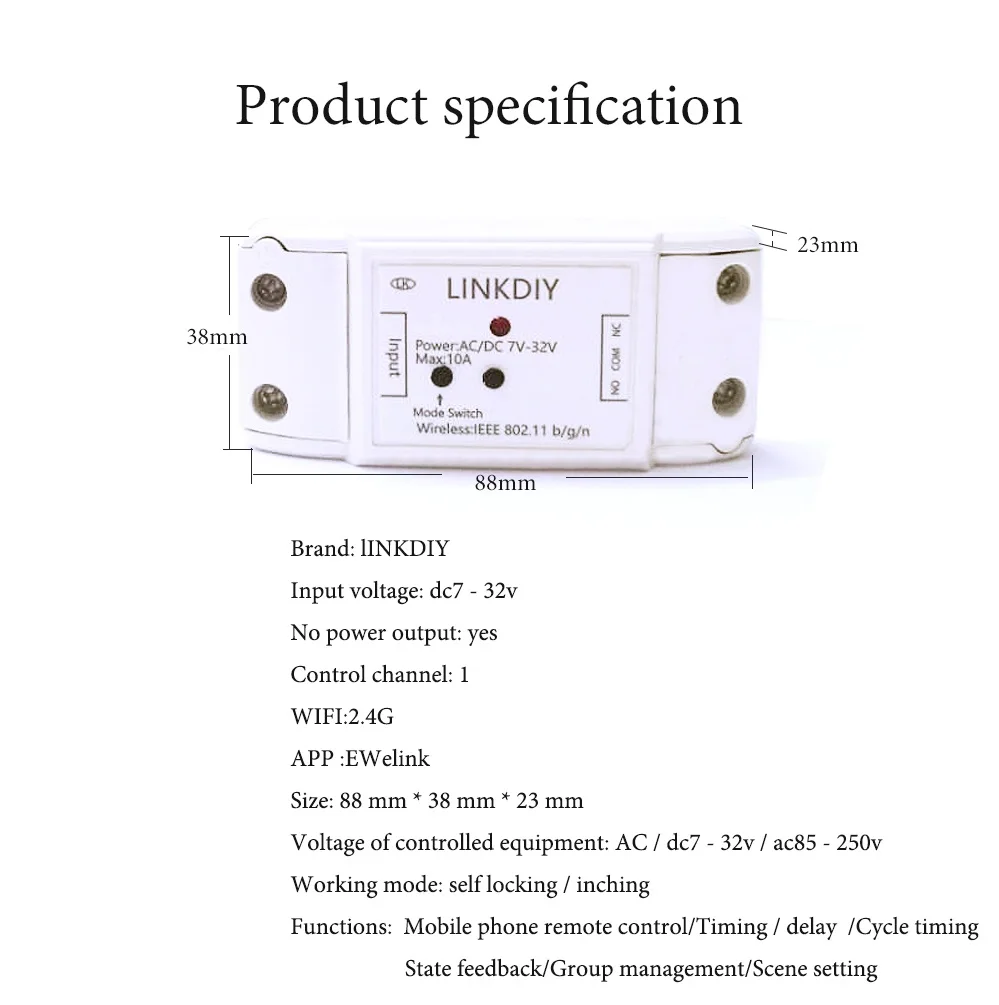

Specification
Dimensions:88mm*38mm*23mm
Operating current: DC7-32V
LEDs: 3 LEDs which indicate working mode, wifi status, relay on/off status respectively.
Two input interfaces
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH
Application
The switch can be applied to access control, turn on PC, garage door, etc.
Computer application
Remote control computer boot
USB port power supply more convenient
Fully in line with the principle of mobile phone boot

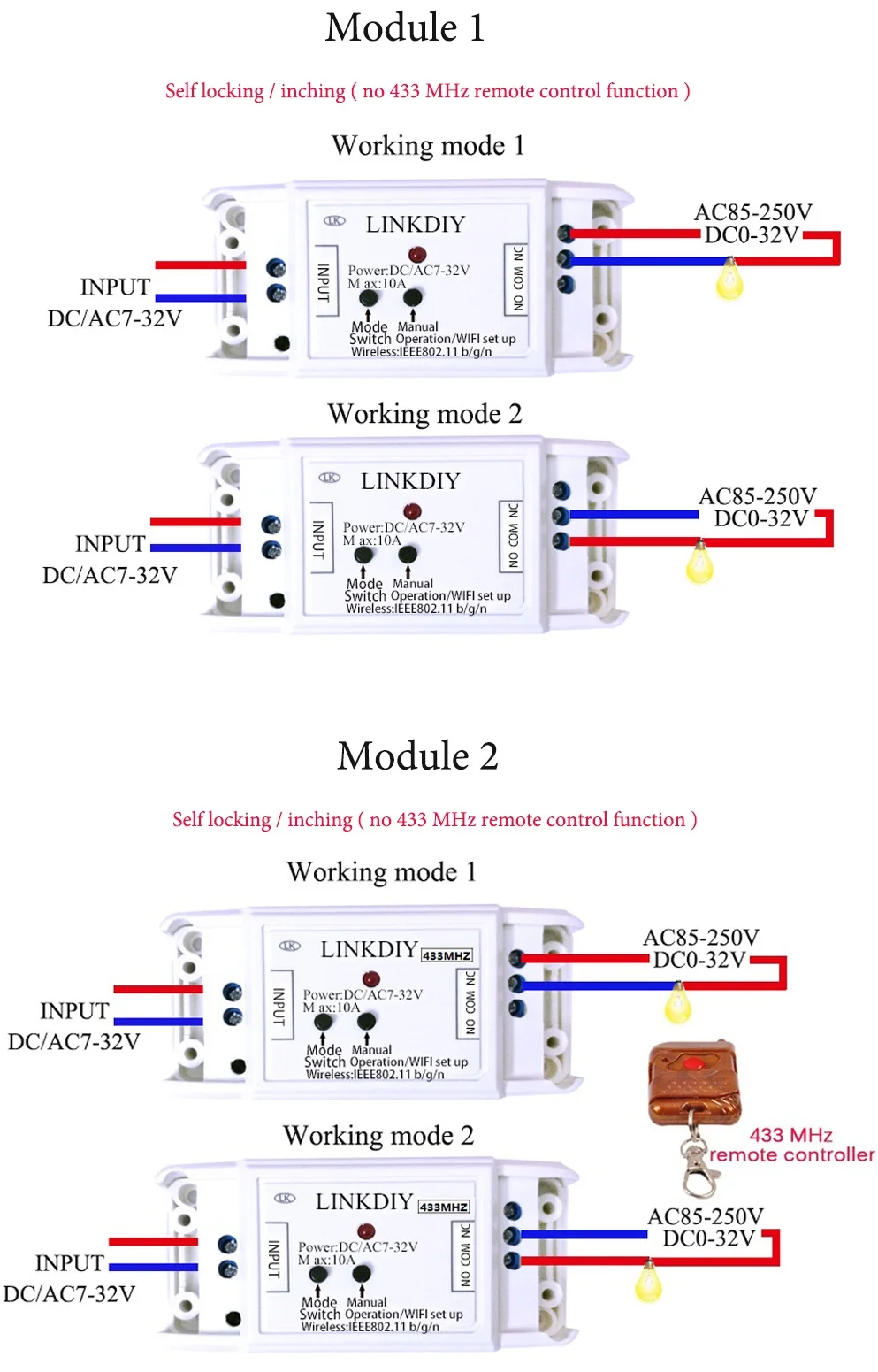

There are two models
Model 1：DC7-32V without 433MHZ RF Remote control function

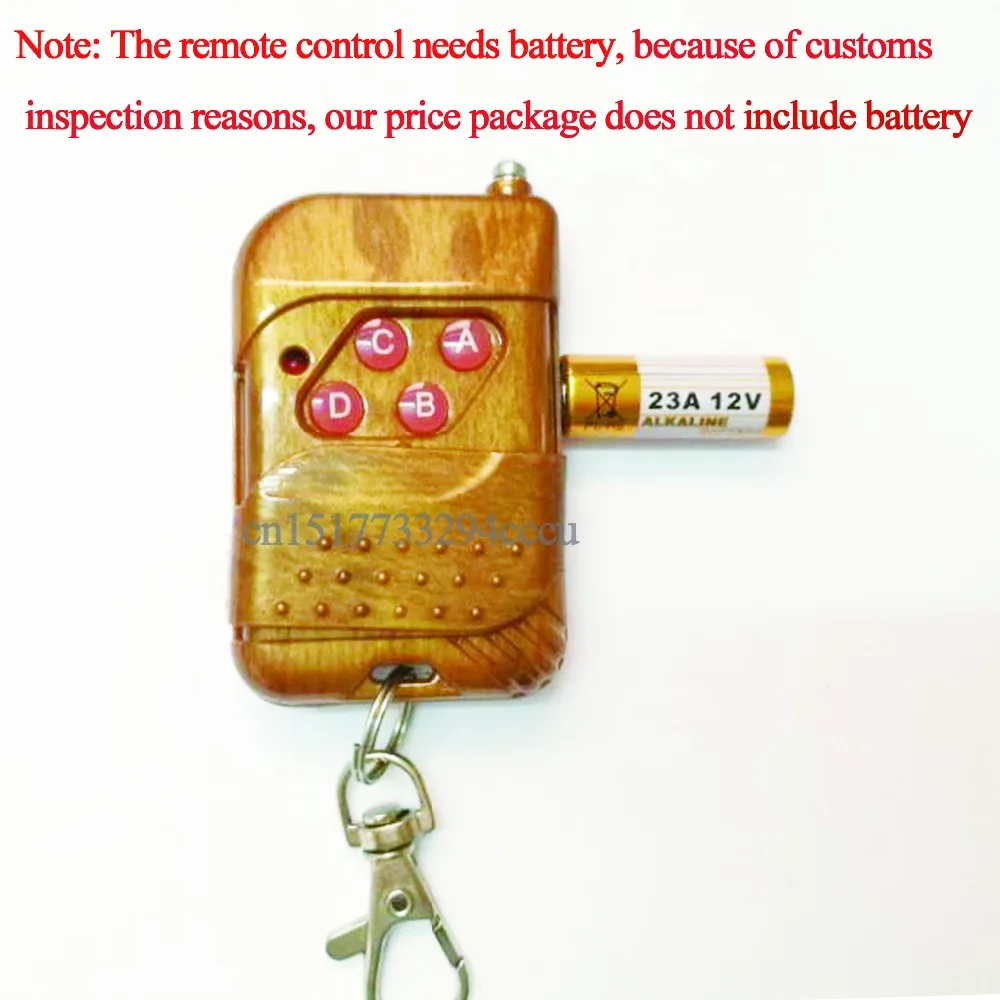

Model 2：DC7-32V with 433MHZ RF Remote control function ｛Excluding batteries｝

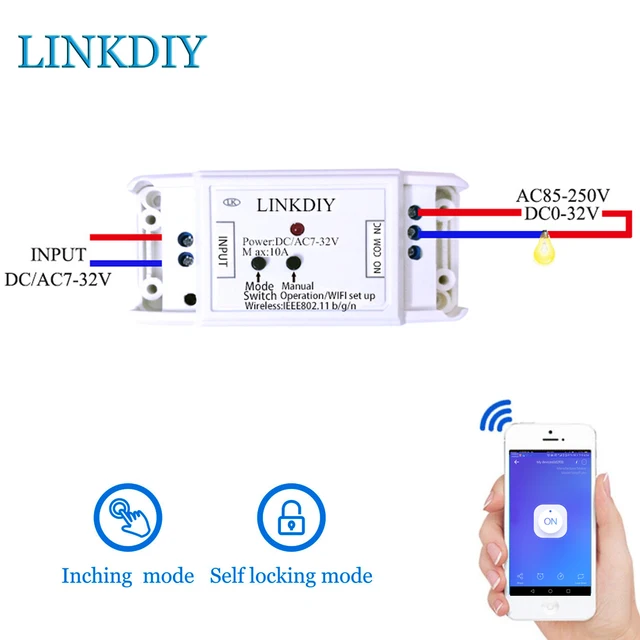

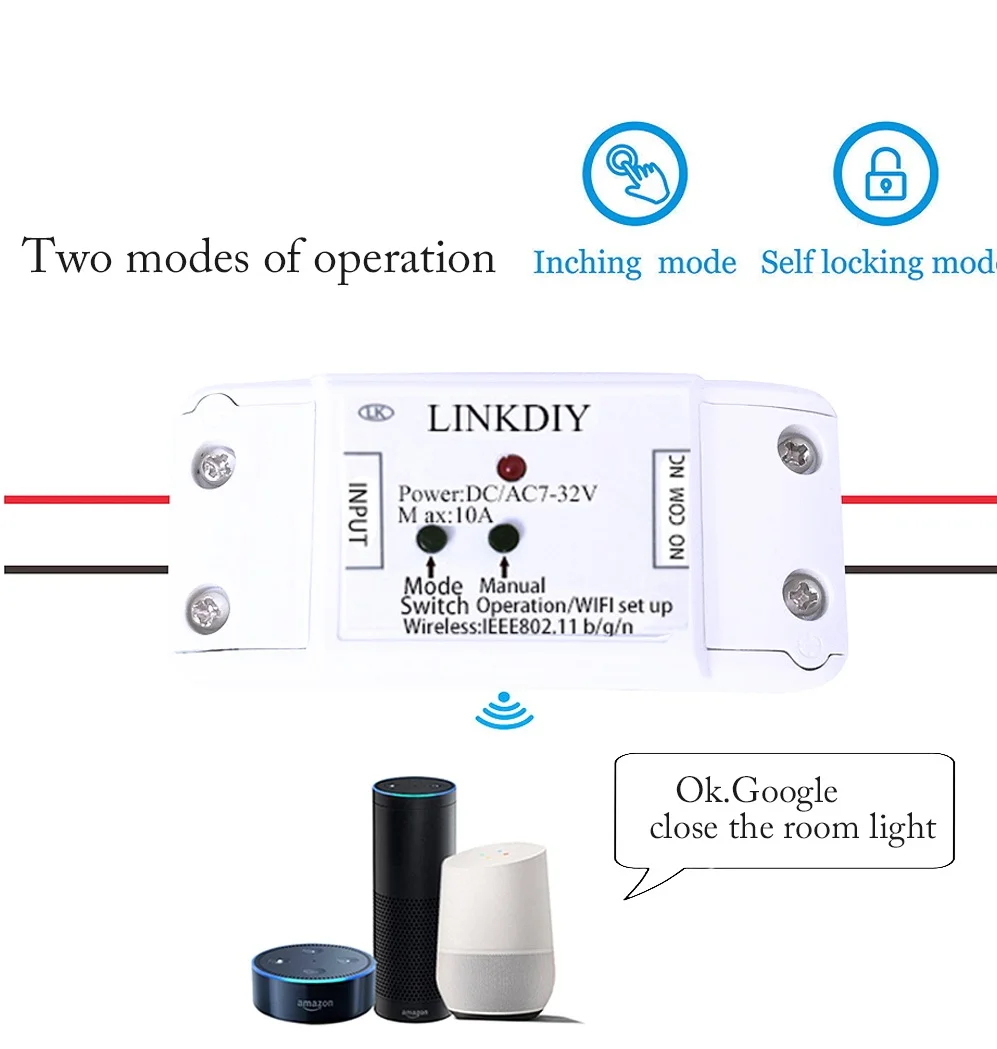

This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP eWeLink in order to remotely control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately. When in inching mode, customers can have two wiring ways to select:
-
Turn on 1s and then auto-off
Turn off 1s and then auto-on.

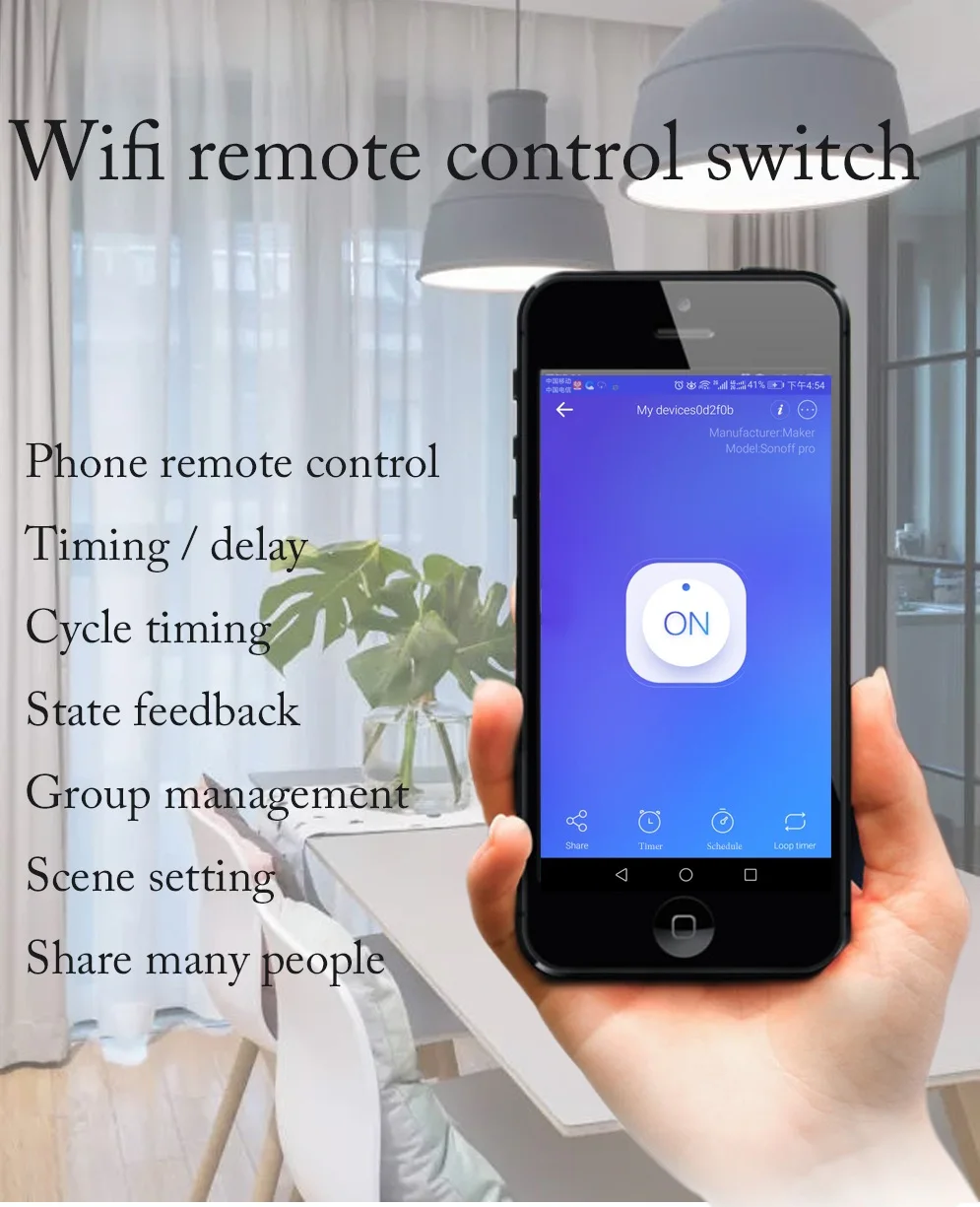

The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS. SupportedFeatures
- Support WiFi network.
- Support status tracking, home appliances status timely feedback to your App.
- Support remotely turn on or off added devices.

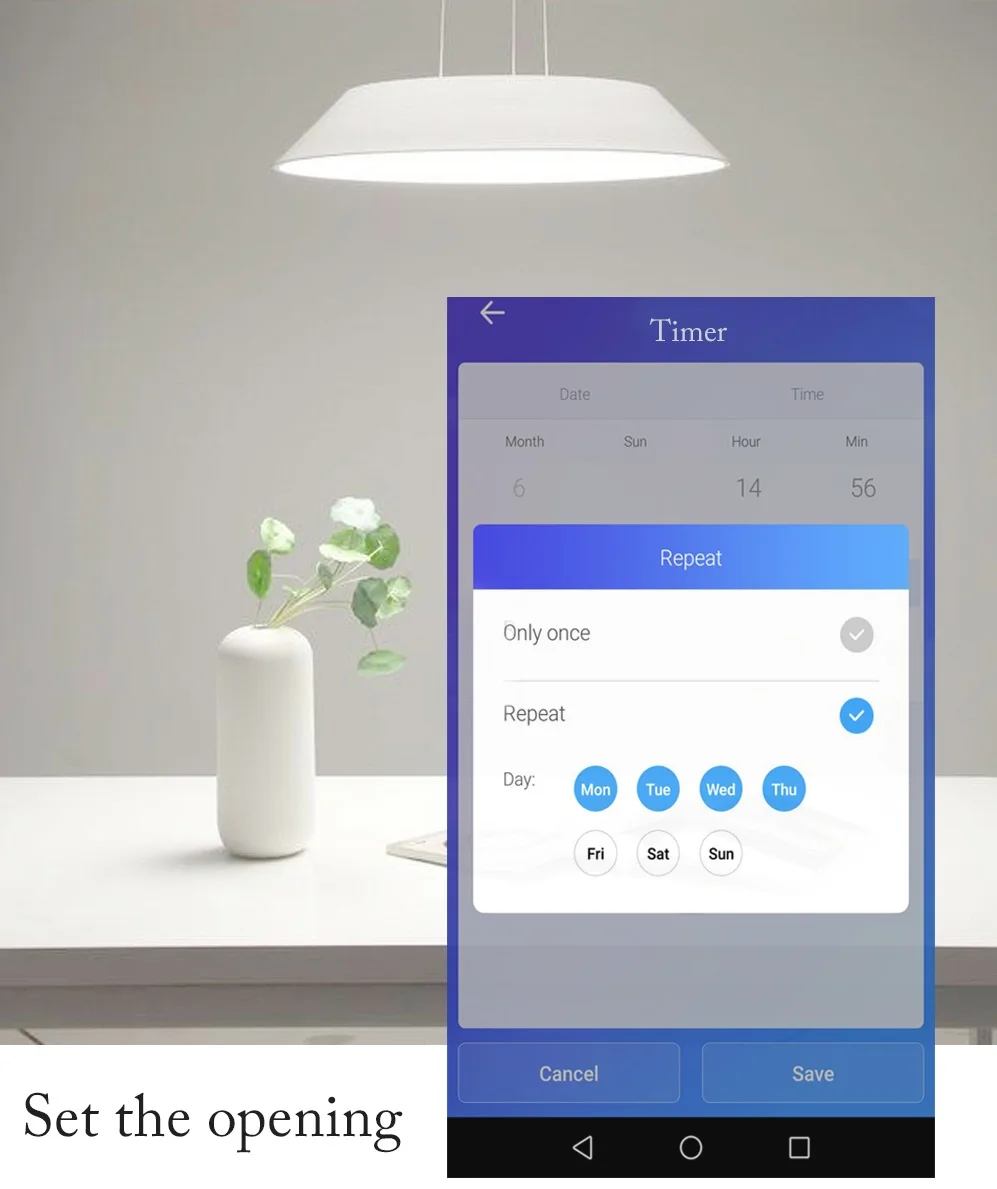

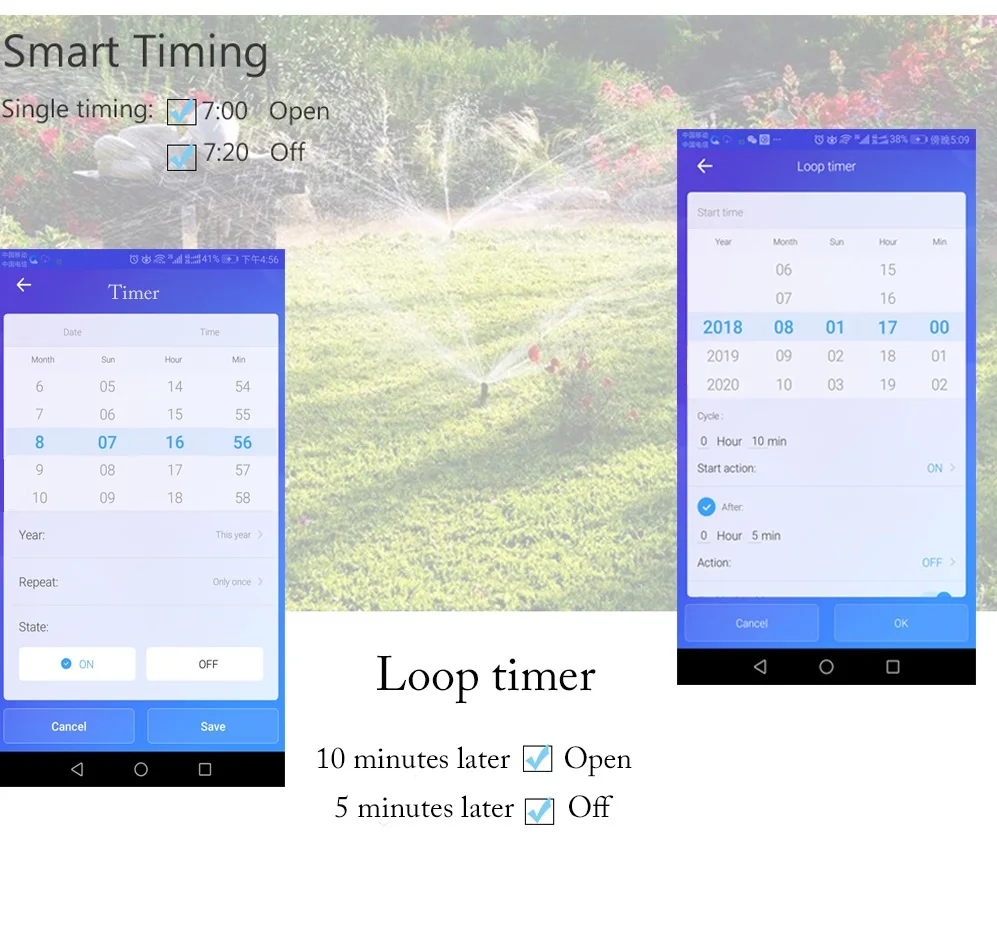

- Support Max 8 timing tasks for each added device.
- Support numerous WiFi smart switches one smart phone.
- Easy installation, easy handling and can be activated immediately and stably.
Unit Type:
piece
Package Weight:
0.11kg (0.24lb.)
Package Size:
15cm x 10cm x 6cm (5.91in x 3.94in x 2.36in)
