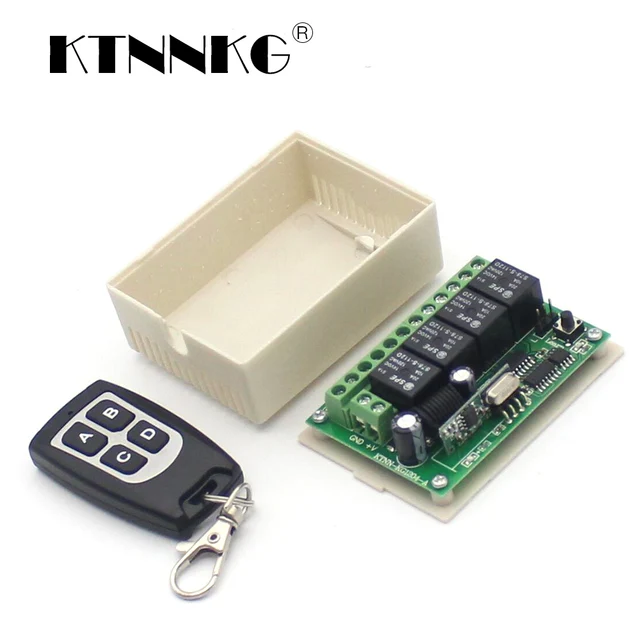

KTNNKG DC 12V Home Automation Wireless Receiver 4CH Remote Switch Relay Modules Smart device with 1pcs 433MHz Remote controller

KTNNKG DC 12V Home Automation Wireless Receiver 4CH Remote Switch Relay Modules Smart device with 1pcs 433MHz Remote controller

Product ID : 32885504683

Price : $9.89

Discount Price : $10.12

Item specifics

Camera Equipped:
No

Model Number:
KG1204-A

State of Assembly:
Ready-to-Go

Compatibility:
All Compatible

Brand Name:
KTNNKG

Working Voltage:
DC12V

Receiver Channel:
4 CH

Frequency :
433MHz

working mode:
Jog, self-locking, interlocking

Conductive material:
Pure copper

load power:
Each channel 1000W

Receiving sensitivity:
-105 dBm

Battery Inside (Remote Control) :
yes (lithium)

Receiver control distance:
100m(wild)

Controller Model:
Learning model (work with Receiver)

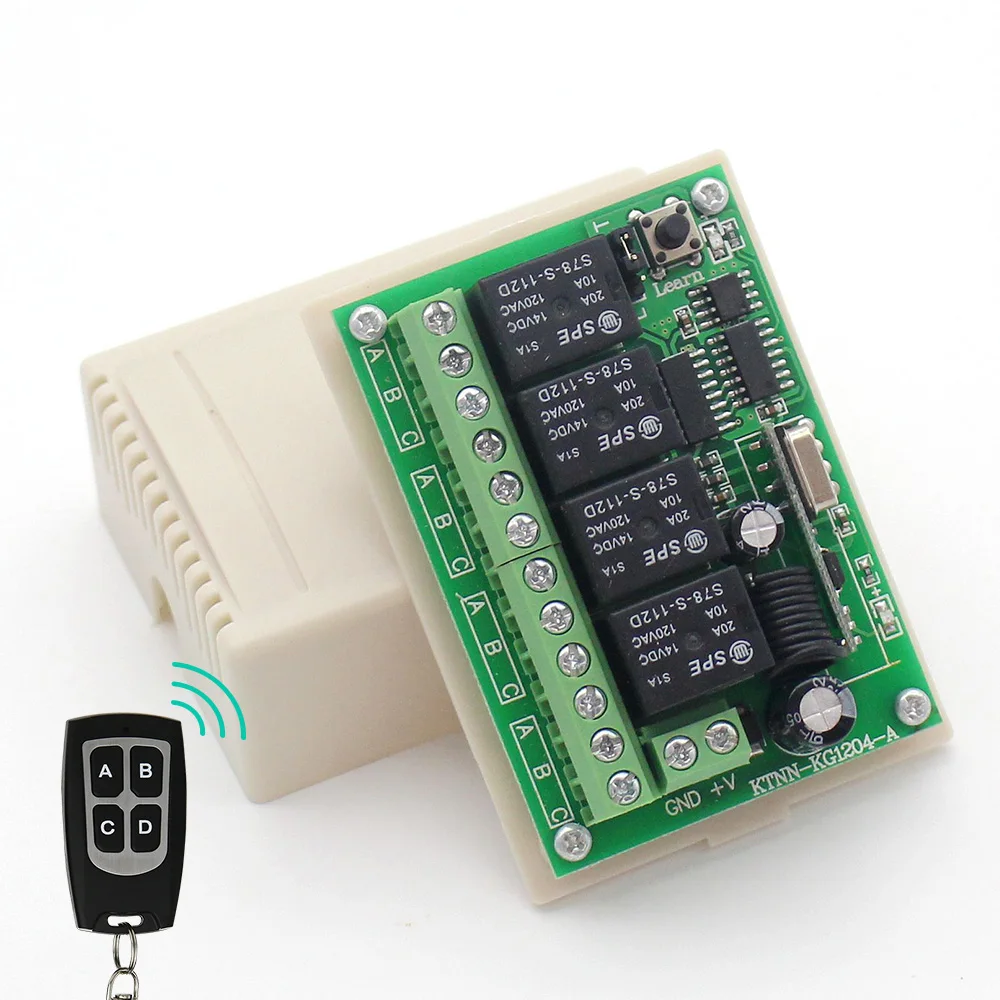

Product Description

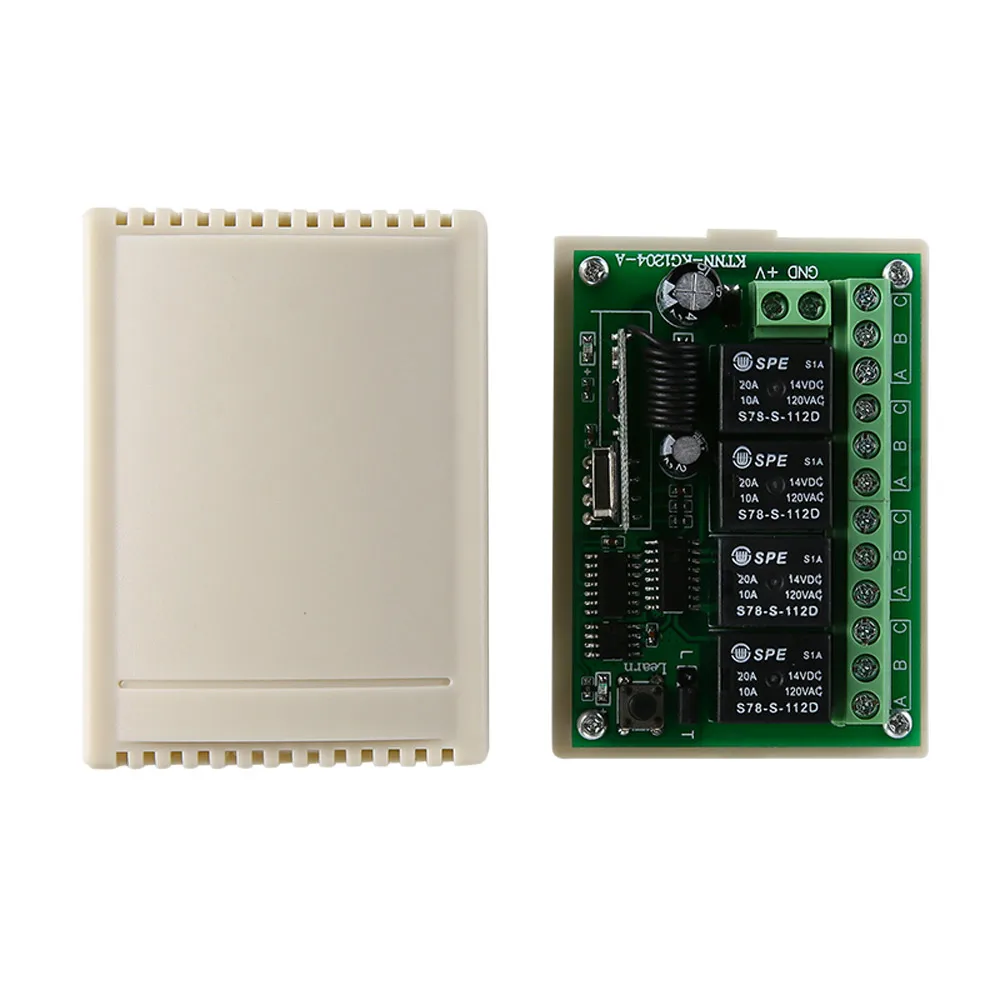

Receiver Description:

1, the working voltage: DC12V

2, quiescent current: 8mA

3, operating frequency: 433MHz , other frequencies can be customized

4, load power: Each channel 1000W

5, receiving sensitivity: -105dbm

6, frequency deviation: ± 0.2MHz

7, coding method: learning type

8, working mode: jog, self-locking, interlocking

9, modulation method: ASK

10, remote control distance: 100M (wild)

11, PCBA size: 48mm*68mm*18mm

12, shell size: 76mm*56mm*30mm

13,Working environment; -10 degrees~ + 60 degrees

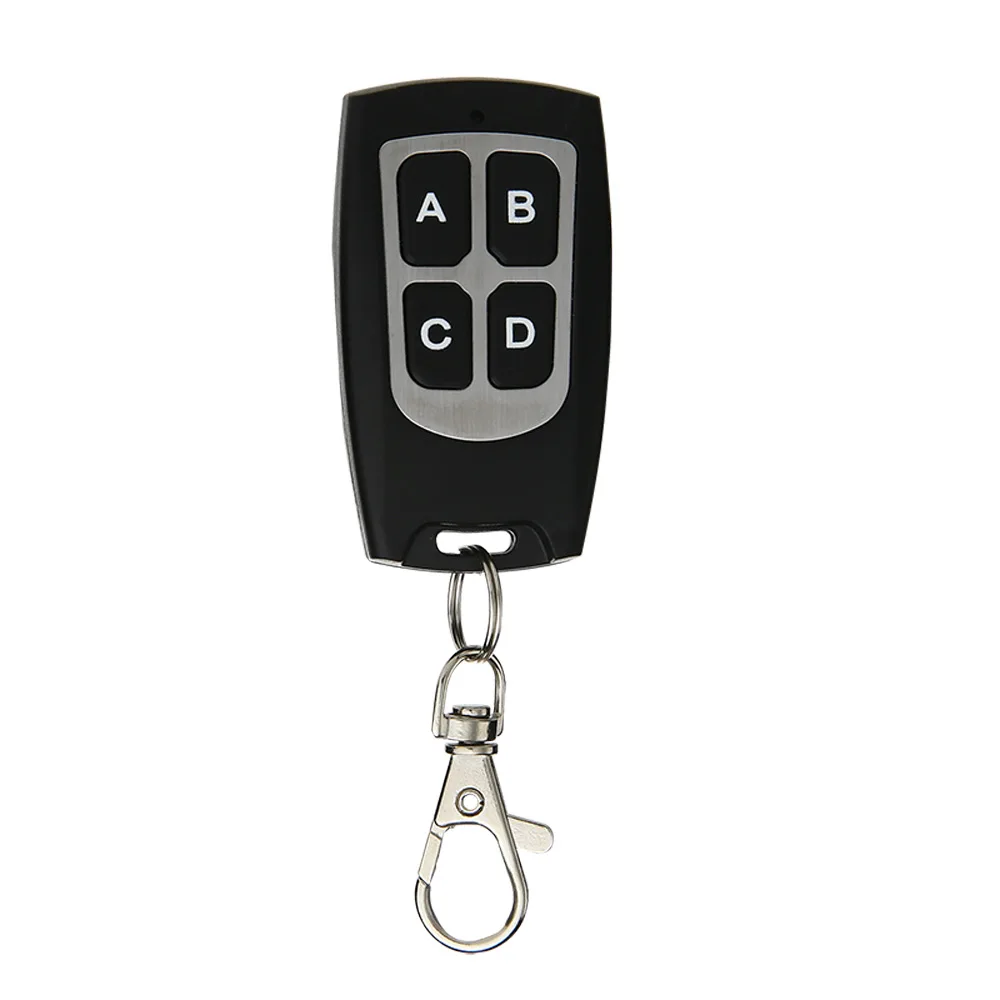

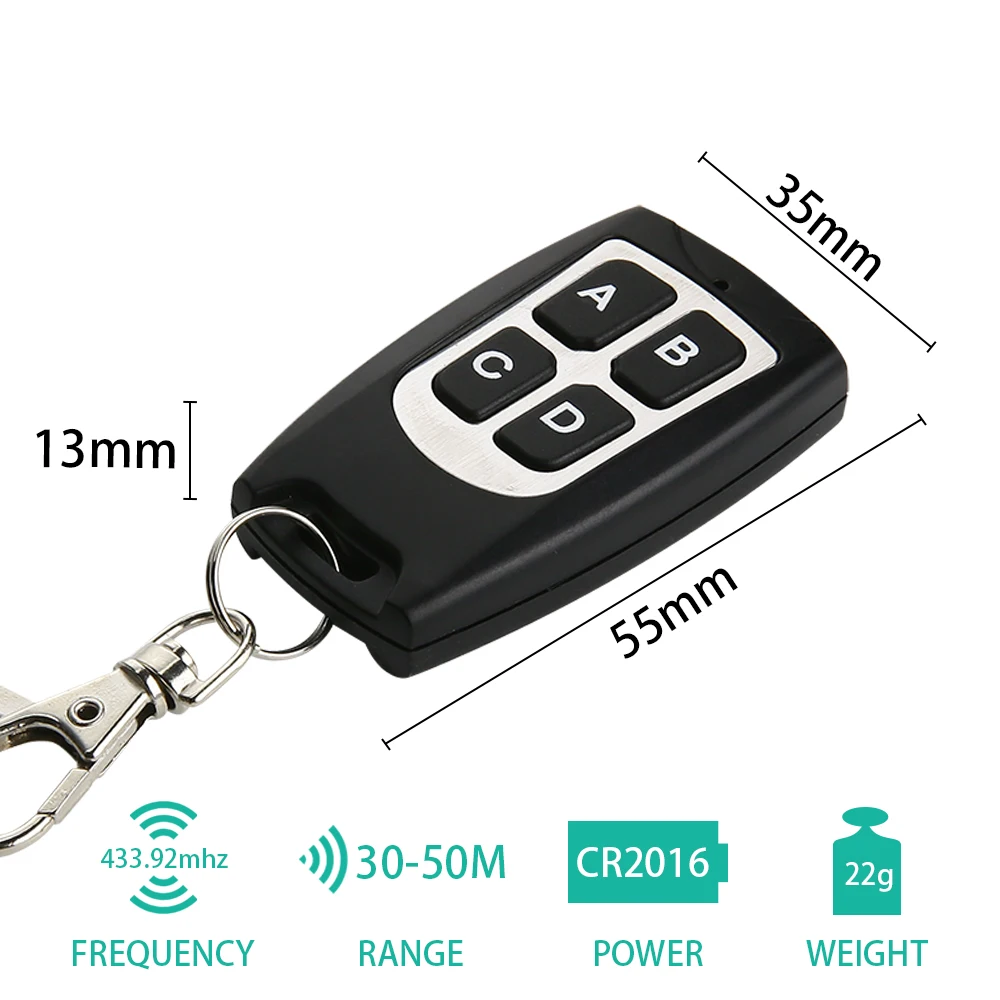

Transmitter Description:

1,working voltage: DC6V ,CR2016 ,2PCS,Battery Inside:yes

2,working current:less than or equal to 10mA

3,operating frequency: 433MHz

4,transmit power: greater than or equal to 10mW

5,launch distance: 30-50m(open space)

6,frequency deviation: -0.2MHz ~ +0.2MHz

7,transmission rate: 50--60KHZ

8,modulation method: ASK

9,Oscillation resistance: 330K

10,working chip: EV1527 (learning code remote control)

11,working temperature: -20 degrees ~+70 degrees

12,storage temperature: -10 degrees ~ +50 degrees

13,weight:22g

14.SIZE:55*35*13mm

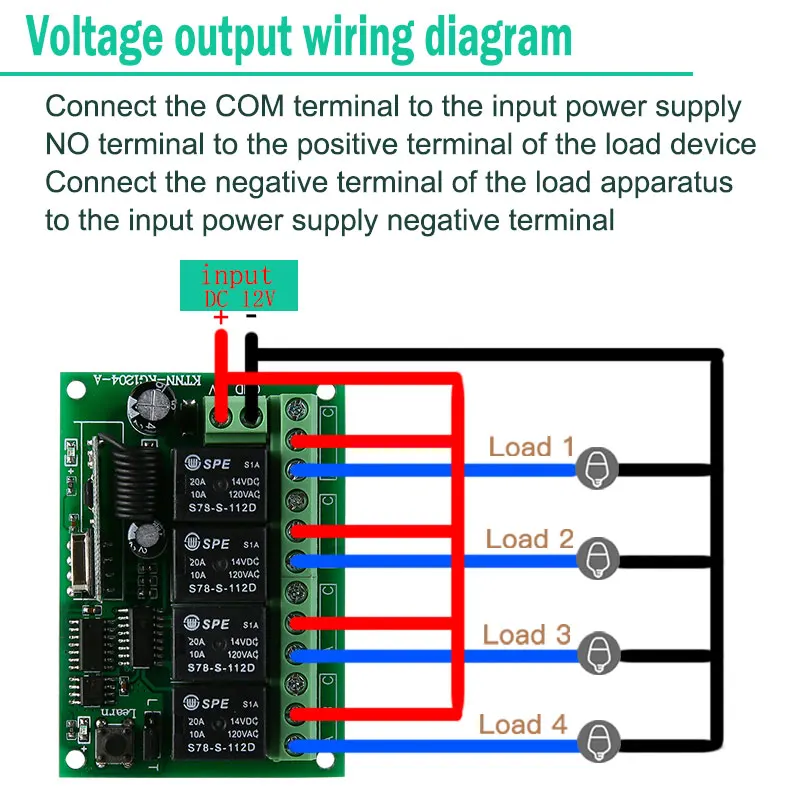

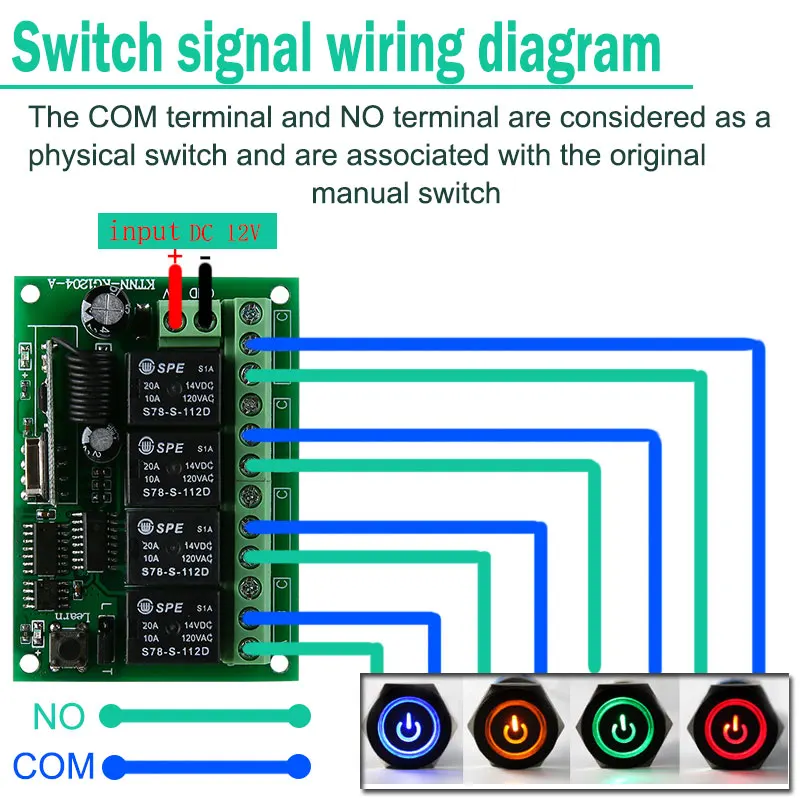

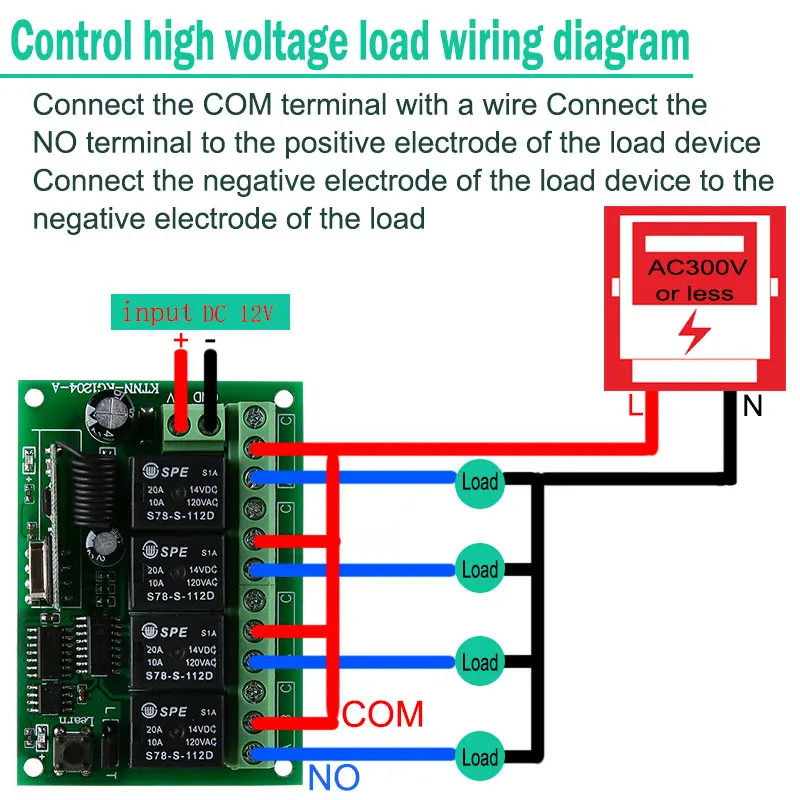

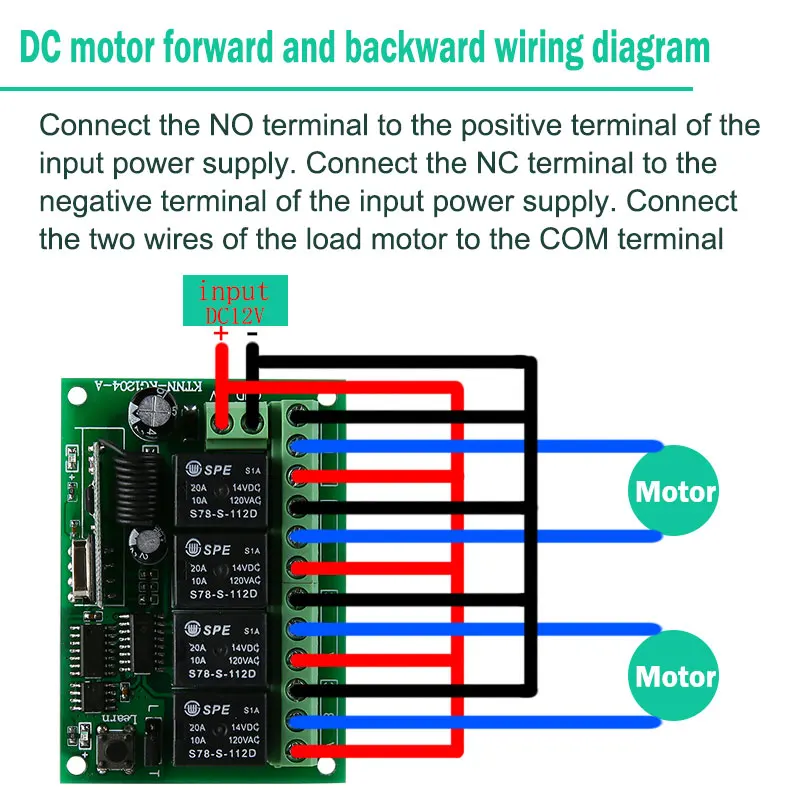

Wiring instructions:

1, + : Connect to the positive 12V power supply;

2. - : Connect to the negative electrode of 12V power supply;

3, A: output; normally open end of the relay;

4, B: output; relay common;

5, C: output; normally closed relay;

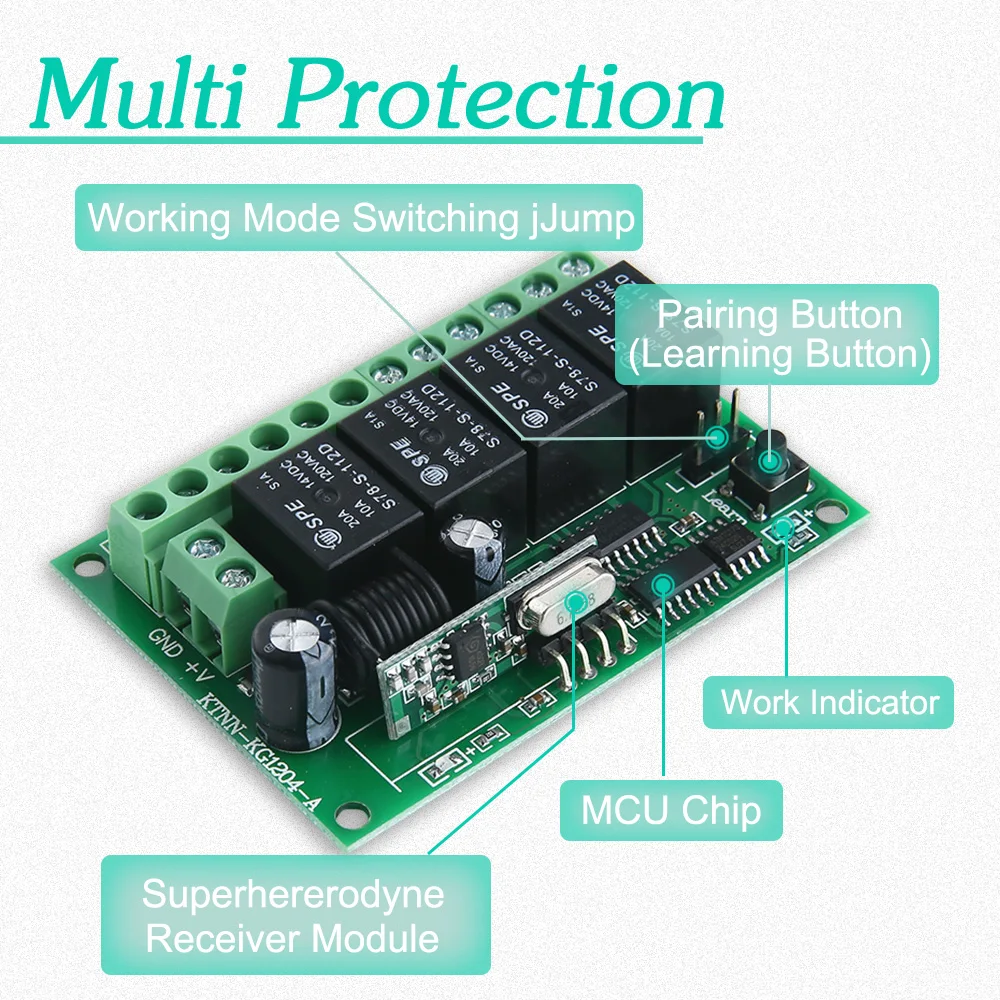

Function selection:

1. Set to
Jog
/Momentary
output: Remove the jumper cap on the board.

2. Set as
Self-locking
/Toggle
output: short the “T” and the middle pin with the jumper on the board.

3, set to
Interlock/
/Latched
output: use the jumper cap on the board to short "L" and the middle pin.

Learning/clearing methods and steps:

1. Press the pairing button, the indicator light goes off, let go, and press any button on the remote control, the indicator light will blink three times, and then it will be on.
Means learning success;

2, can learn more than 20 different address code 2262 chip, 1527 chip equivalent frequency wireless remote control;

3. Clear: Clear: press and hold the pairing button for about 8 seconds. The indicator will turn off and on, indicating that the stored information has been successfully cleared.

Precautions:

1. Do not operate with electricity. Turn off the power and operate it. Check the power supply after use.

2. When the voltage of the remote controller is insufficient, please change the battery in time (when the remote controller battery voltage is insufficient, the general remote control distance becomes close).

3. When using wireless electronic products, care should be taken to avoid metal masks, large electronic devices, electromagnetic fields, etc., which have a strong source of interference, to avoid the remote control and the receiving distance being short or unable to work properly.

4. Do not use this electronic product abnormally. Unusual use will reduce product performance and longevity. In severe cases, damage to the product will also bring hidden dangers to your safety.
