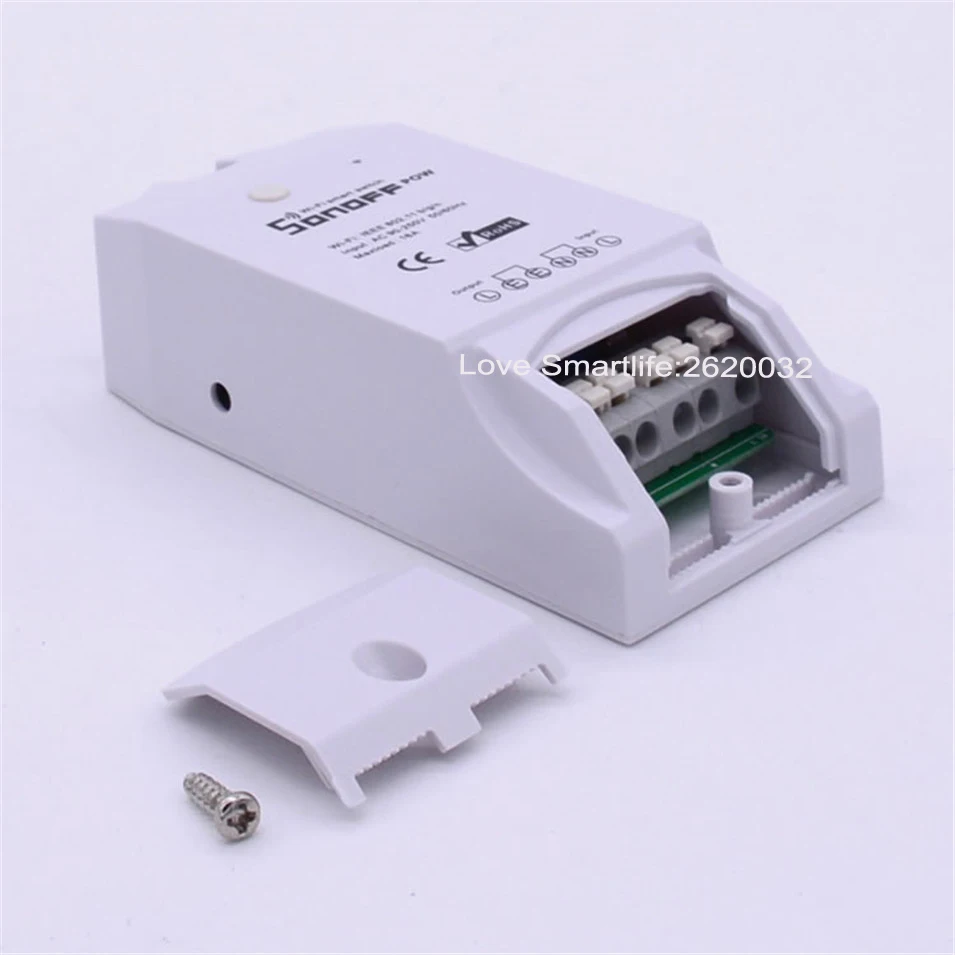

Itead Sonoff Pow Wireless Intelligent Automation Module Switch WiFi Smart Home Remote Power Consumption Measurement 16A 3500W

Itead Sonoff Pow Wireless Intelligent Automation Module Switch WiFi Smart Home Remote Power Consumption Measurement 16A 3500W

Product ID : 32794248960

Price : $17.07

Discount Price : $12.80

Item specifics

•
  Item Type:
  Switches



•

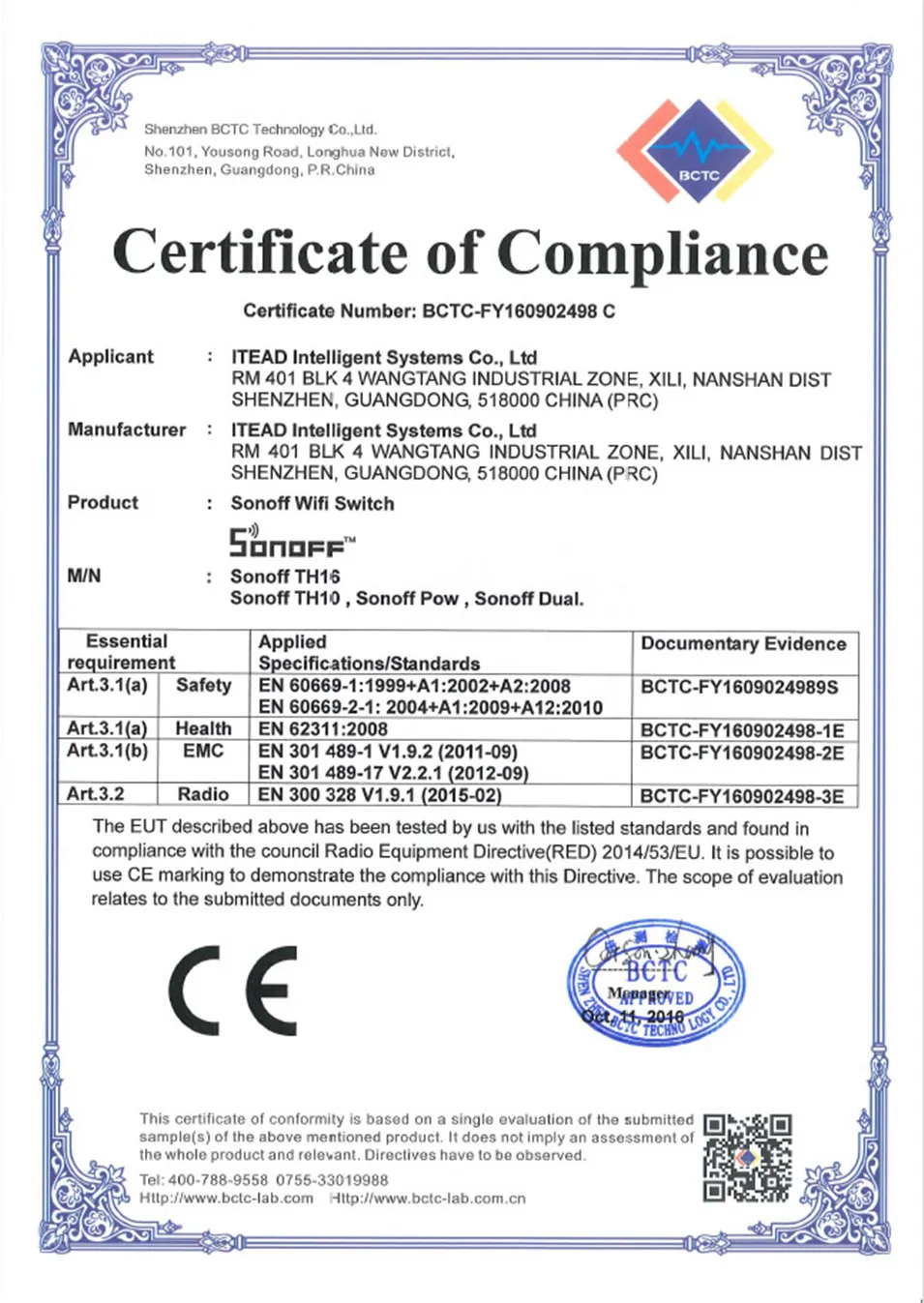

  Certification:

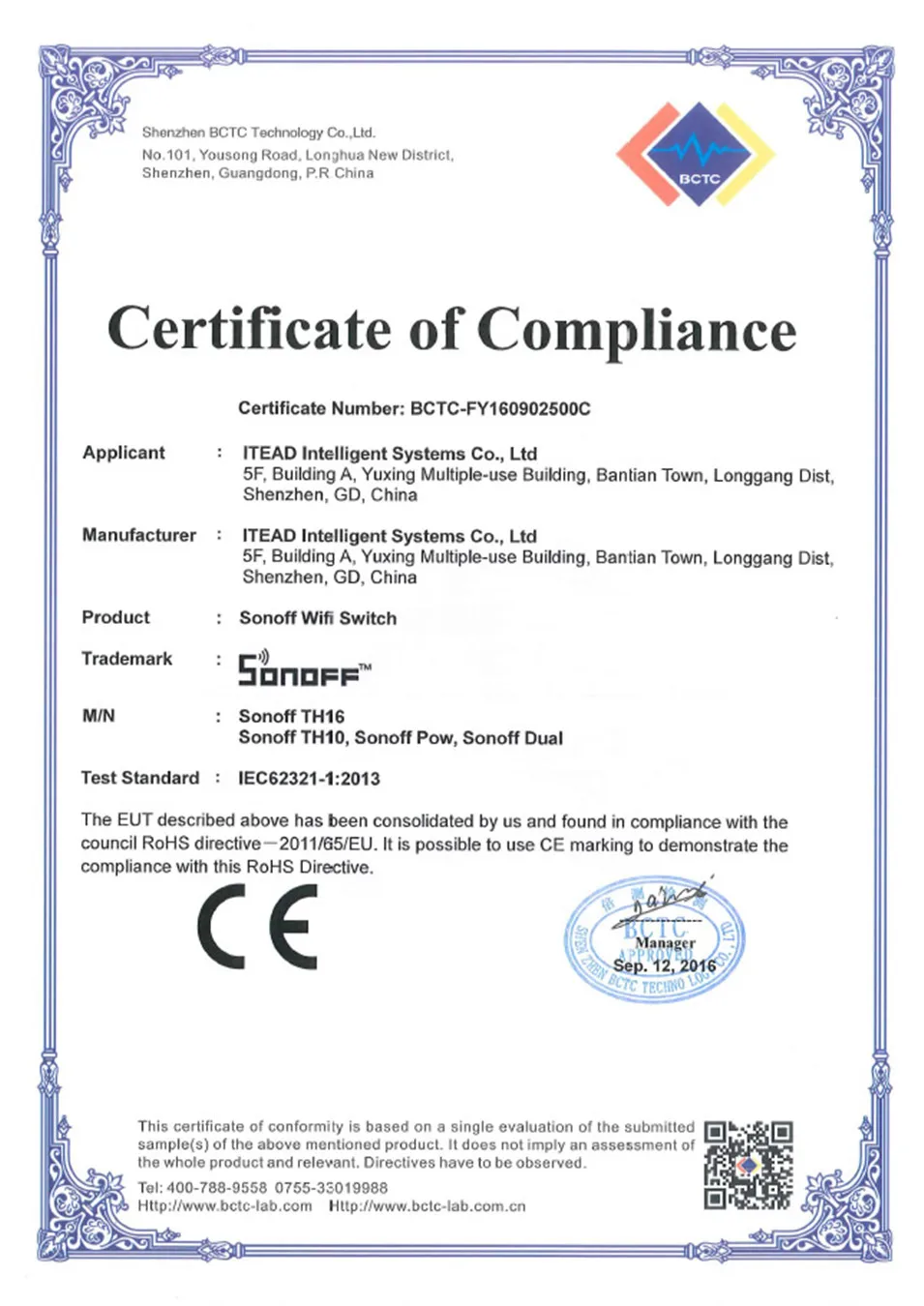

  CE,CCC,RoHS



•
  Remote Distance:
  App remote control anywhere



•
  Features:
  APP remote control/electricity detect, count and measure



•
  Switch Type:
  Remote Control



•
  Model Number:
  Itead Sonoff Pow wifi remote control power counting switch



•
  Current:
  16A



•
  Material:
  Plastic



•
  Brand Name:
  ITEAD



•
  Warranty:
  1 year warranty



•
  Product type:
  wifi remote control power consumption counting switch



•
  Power :
  16A/3500W



•
  working voltage:
  85-250V



•
  2G/3G/4G/wifi:
  support



•
  wifi agreement:
  IEEE802.11b/g/n



•
  wireless frequency:
  80MHZ-160MHZ



•
  Circuit overload protection:
  yes



•
  Realtime power measurement:
  support



•
  Day/Month power counting:
  support



•
  Remote control Switch and Timing on/off:
  support


Product Description































 Itead Sonoff Pow Wireless Intelligent Automation Module Switch WiFi Smart Home Remote Power Consumption Measurement 16A 3500W











Overview

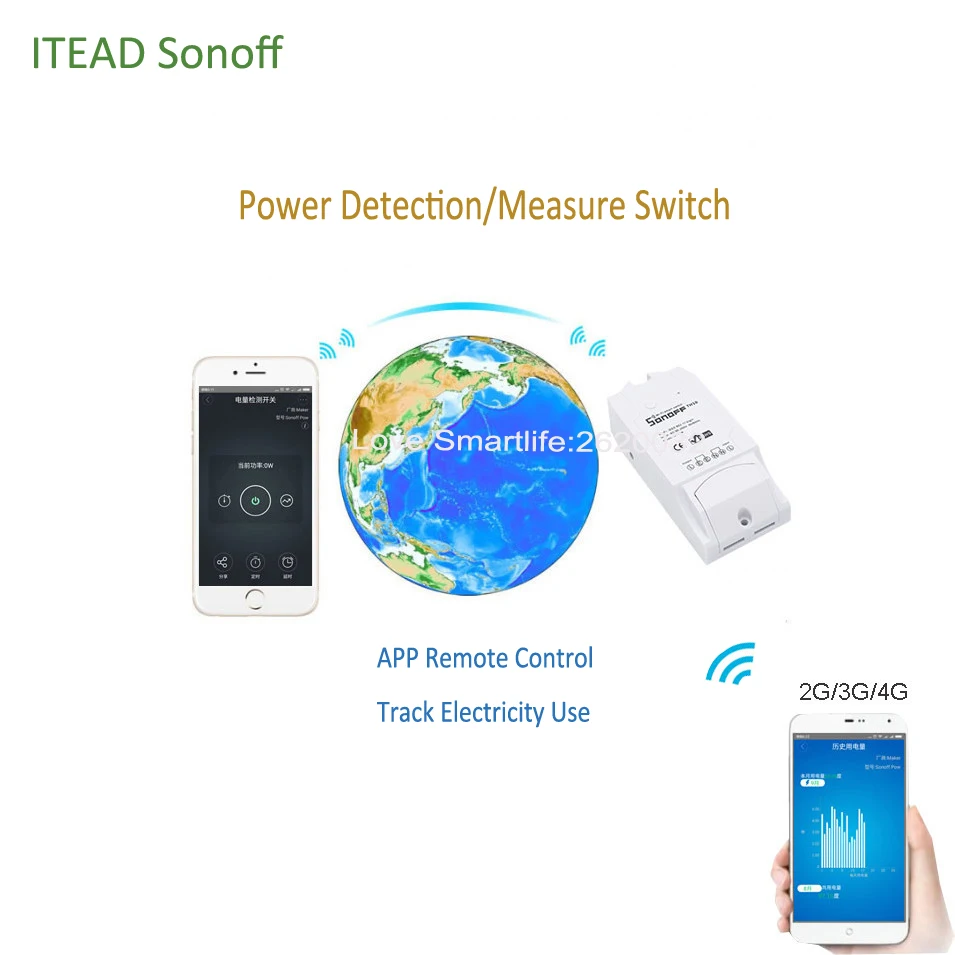

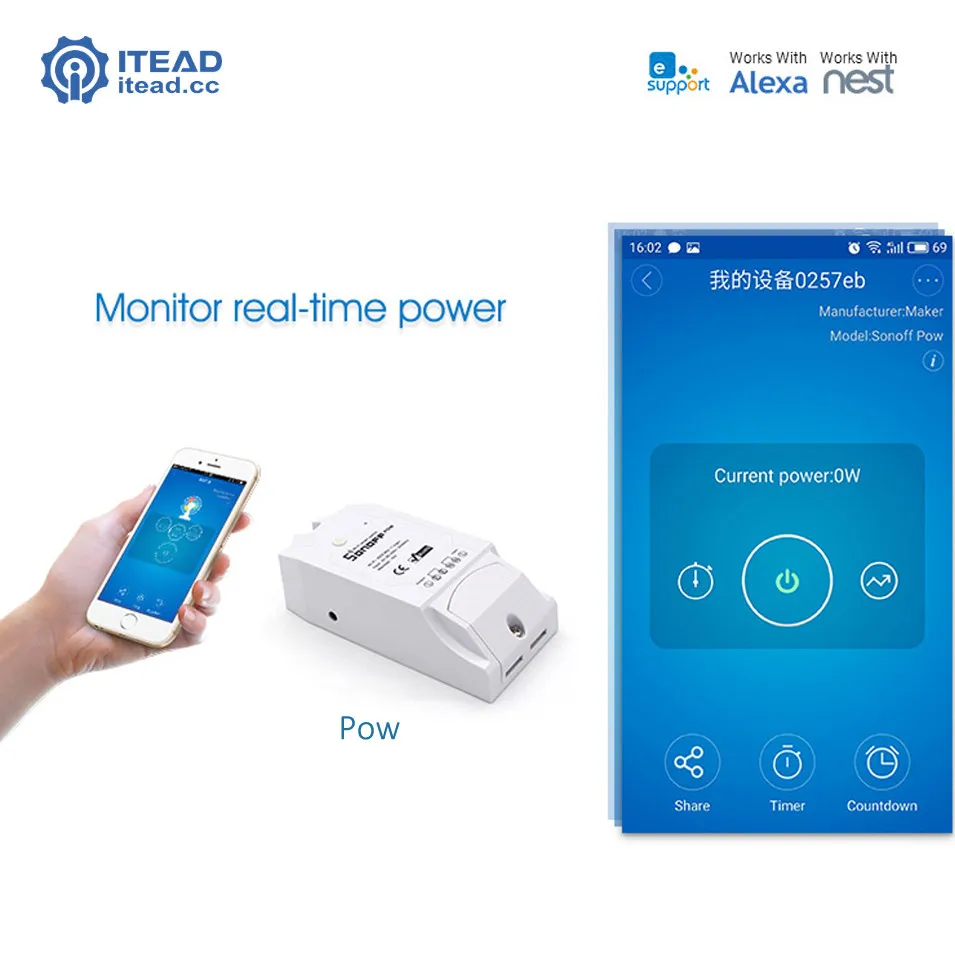

Sonoff Pow is a wireless smart power switch with electricity usage monitor feature. The Sonoff Pow remote power switch works like an electricity consumption calculator( kwh calculator), it allows users to calculate electricity usage and remote control the connected electrical devices by the App EWeLink.

Sonoff Pow energy usage calculator has the amazing capability to display the electrical devices' instant wattage consumption. It also has the option to report the energy consumption in kWh over a period of time, and can generate monthly energy usage reports. Sonoff Pow, therefore, allows users calculate electricity bill,  figure out which appliances consume the most power so they can easily cut down electricity bill.

Since Sonoff Pow energy consumption calculator belongs to the Sonoff family, it has all the functions of a basic Sonoff. Through the mobile application eWeLink, remote home control becomes a reality. Consumers can remotely control the operation of home appliances by turning them on, off instantly or according to a user specified schedule, such as repeat or countdown. Consumers can also share the remote access with others for a mutual control of the appliances.

Apart from traditional consumers, Sonoff Pow is a very exciting product for those into hacking, since four program ports have been reserved for burning external firmware







Works With Amazon Alexa



This product works with Amazon Alexa. You can ask Alexa to control the device with the following voice commands. Please note that only US/UK English and German voice commands are supported now.

Try out these phrases ( {deviceName} should be the name of your device):

Alexa, turn on {deviceName}

Alexa, turn off {deviceName}

Alexa, turn {deviceName} off

Alexa, turn {deviceName} on

Alexa, schalte Gerätename ein

Alexa, schalte Gerätename aus

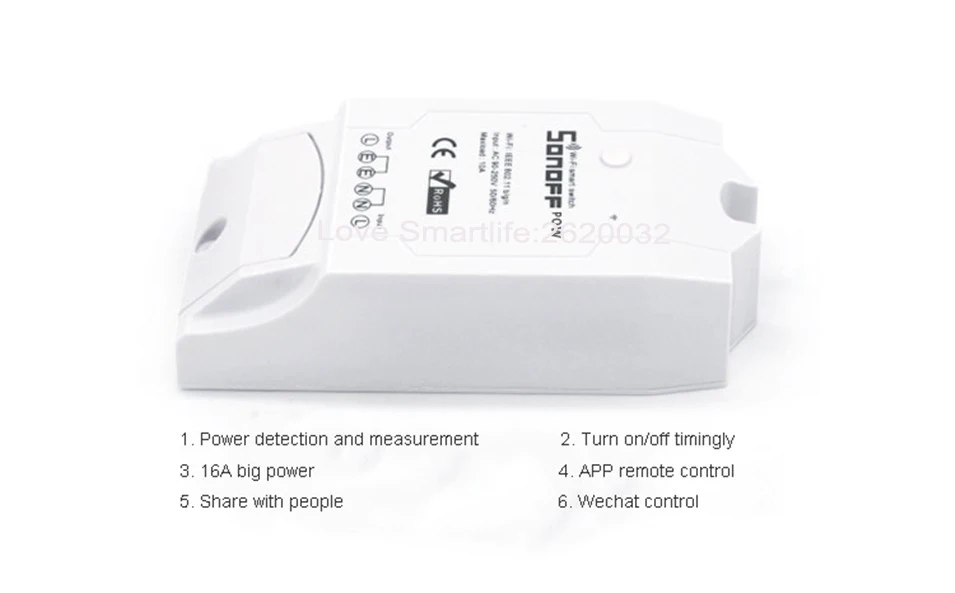

Remote turn on/off via APP EWeLink

Check power consumption over any time interval such as daily, monthly

Check energy consumption in real time (instantly)

Supports tracking device status on EWeLink

Supports single, countdown and repetitive tasks

Works with Alexa

Works with Nest





Voltage range: 90-250v AC

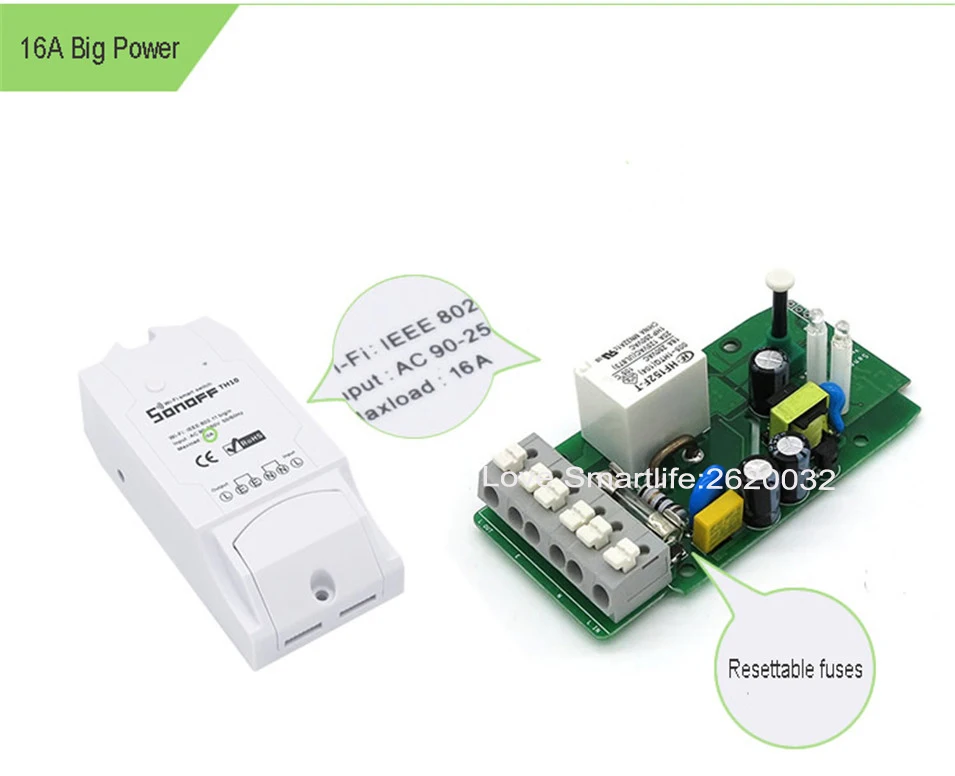

Max current: 16A

Max Power:  3500W

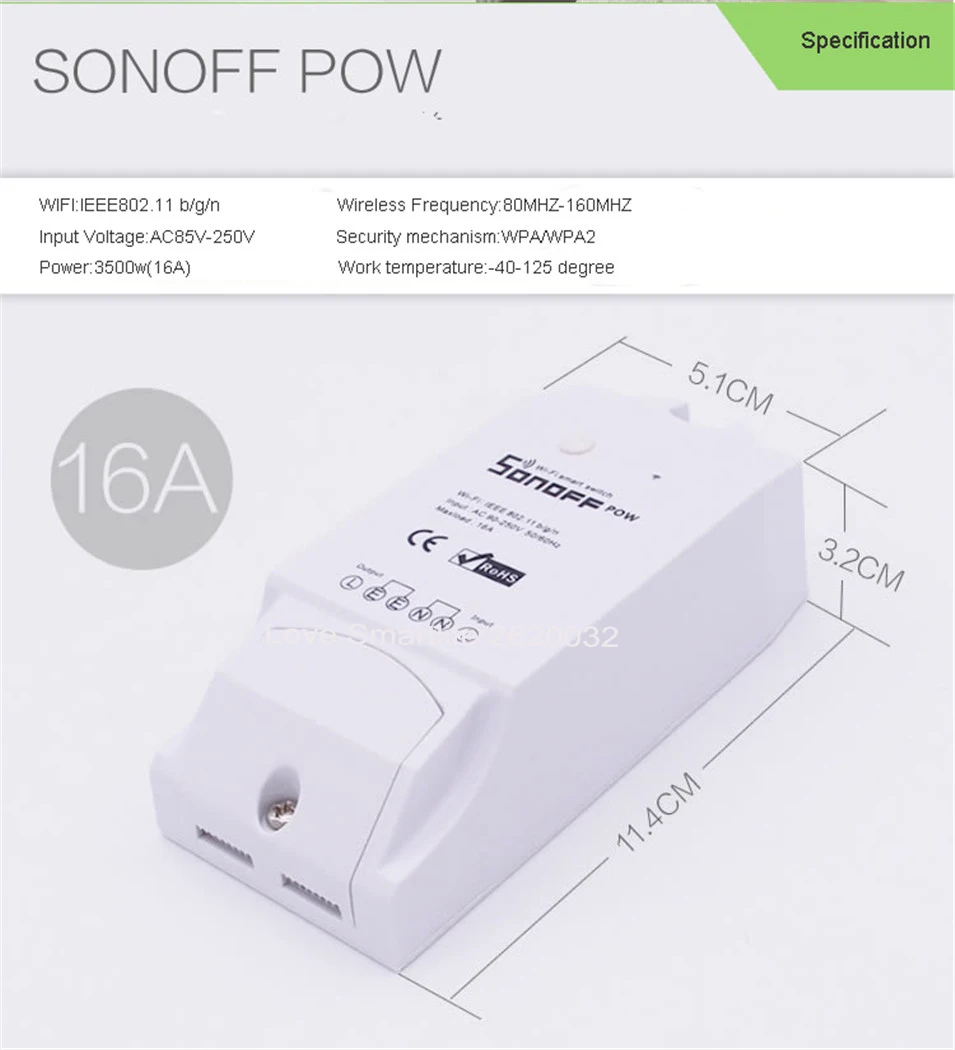

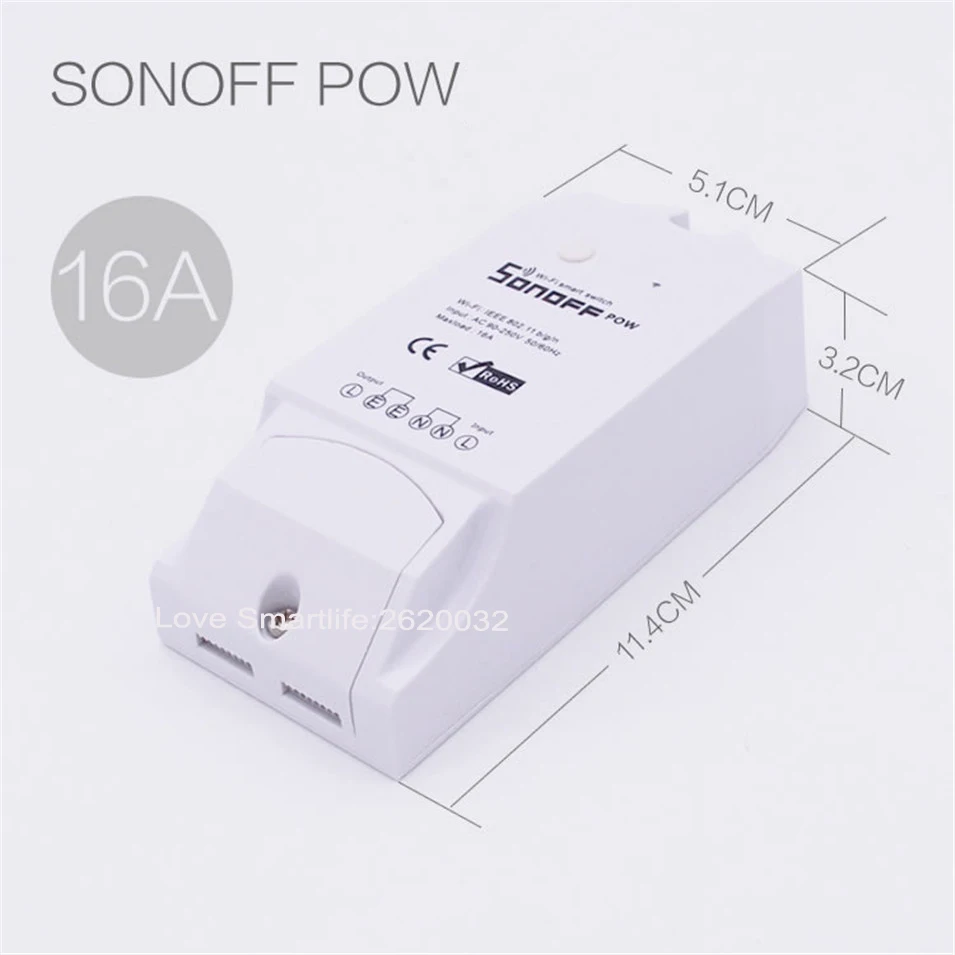

Enclosure Dimensions: 114*52*32mm

Color: White

Wireless Frequency: 2.4Ghz

Operating Temperature: 0ºC-40ºC(32°F-104°F)

Operating Humidity: 5%-90%RH, Non-condensing





1* Sonoff Pow













User Guide



Hi, welcome to use Sonoff Pow! Sonoff Pow supports to monitor connected device’s real time power, measure power usage for a specified period and check daily/monthly power usage.  It supports 90~ 250V AC input,  the max. current is 16A, the max. power is 3500W.

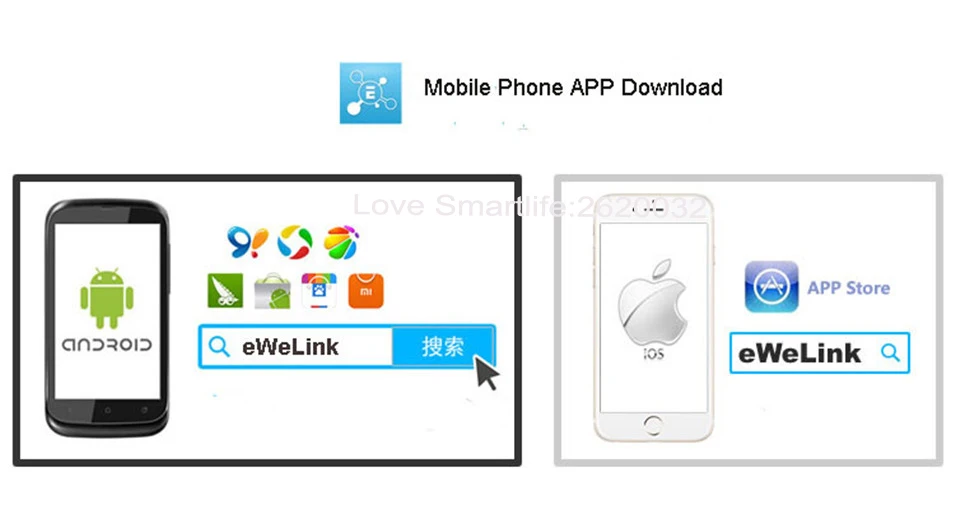

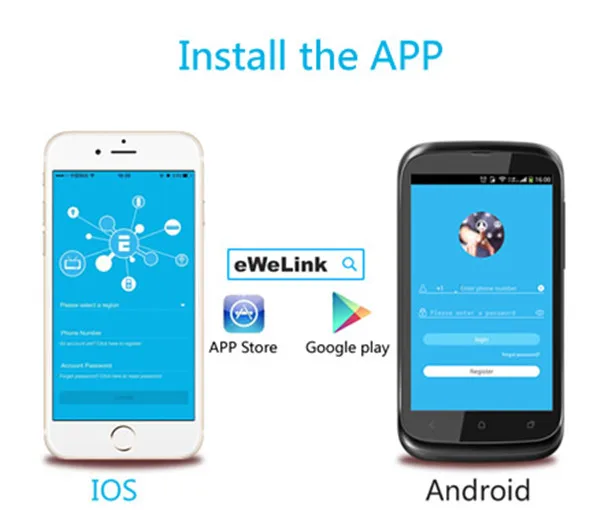

1.Download “eWeLink” app.

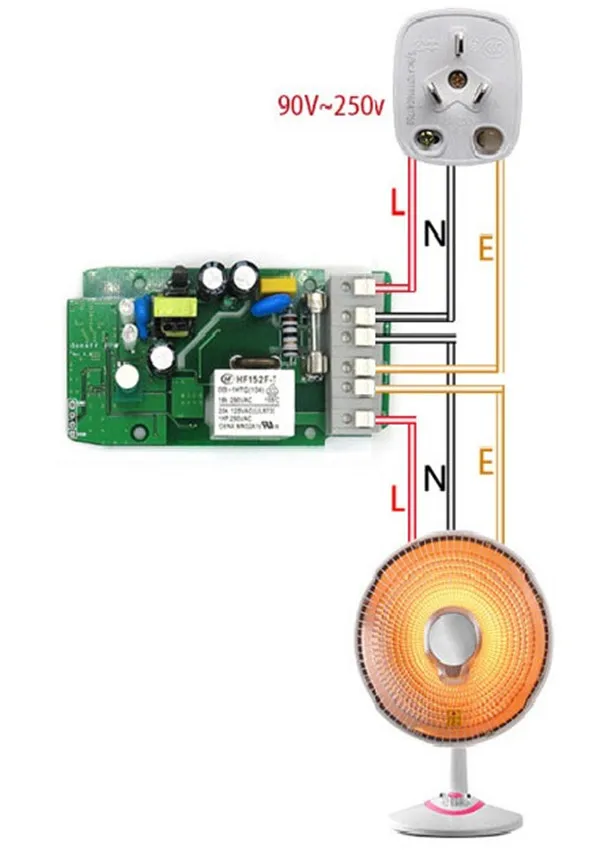

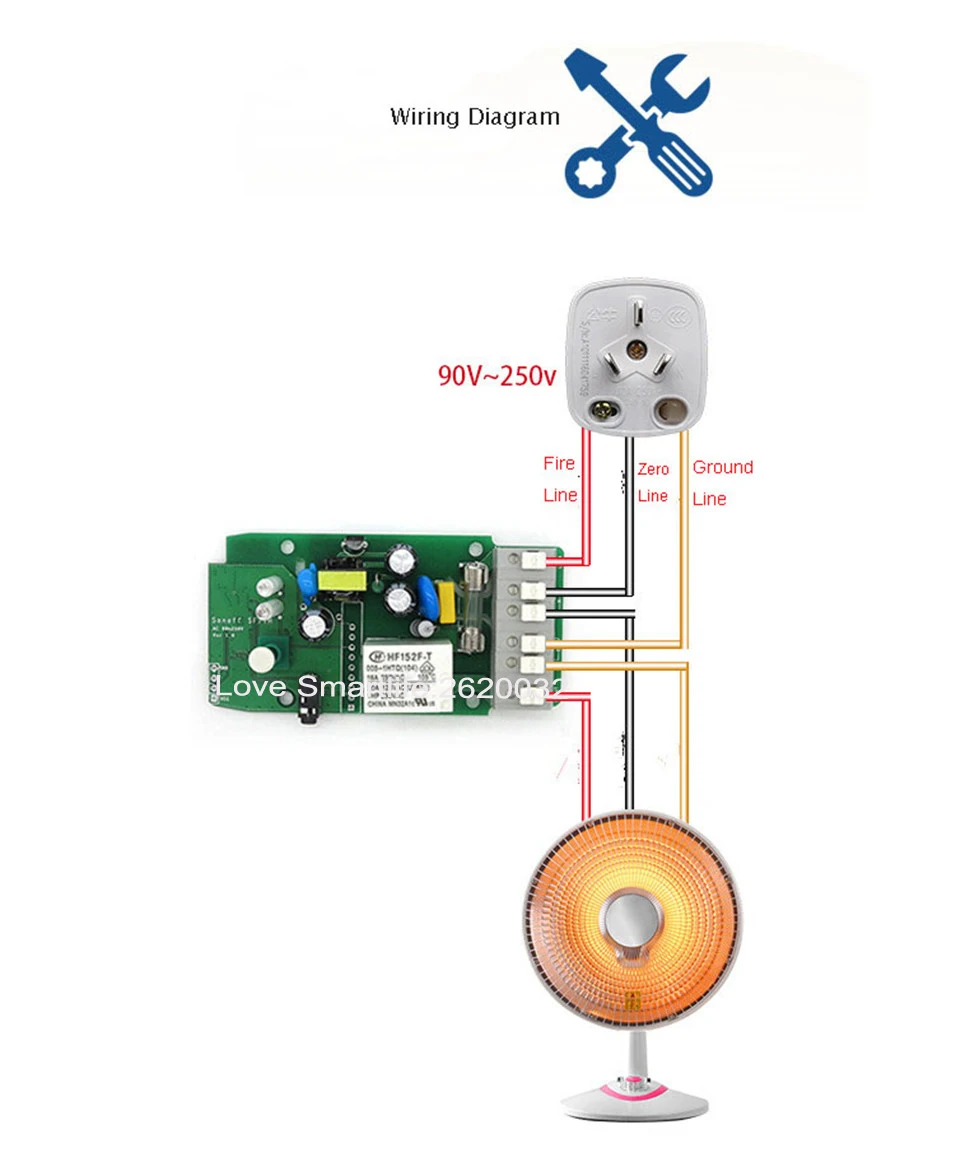

2.Wiring instruction

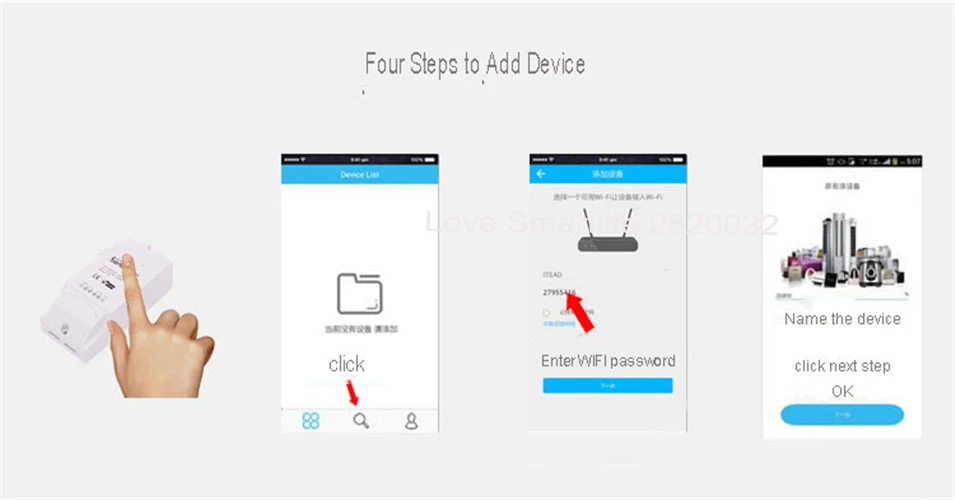

3.Add device



1.Power up your device.

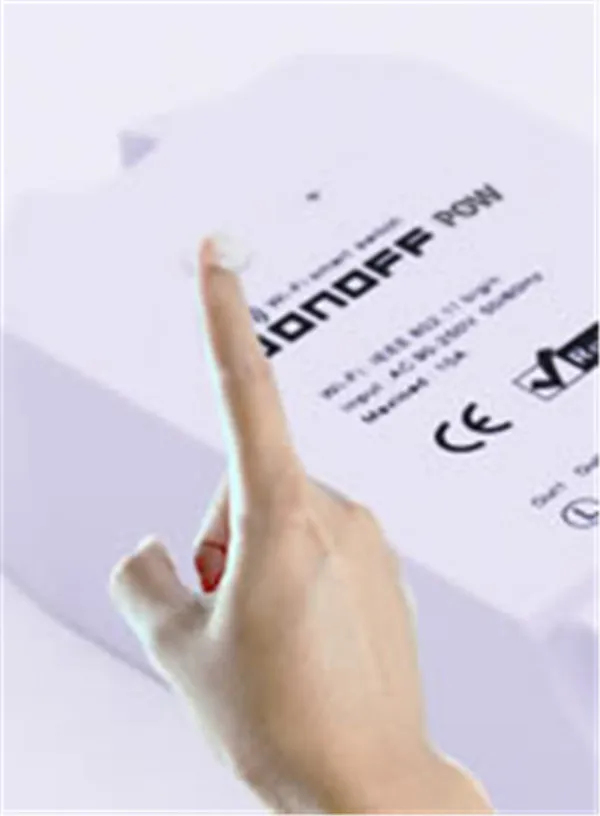

2.Press the button for 7 seconds until the green LED blinks like this: blinks 3 times and on repeatedly.





3.For Android, please directly click the “Add” icon on eWeLink to search device, click next.



For iOS, please go to  phone Setting>WiFi>connect the WiFi begins with ITEAD-******, enter default password 12345678. Go back to eWeLink, select the pairing method, click next.



The App will auto-search the device.







4.Input your home SSID & password:



4.1 Your SSID must be letters or numbers.



4.2 If no password, keep it blank.



4.3 Now eWeLink only support 2.4G wifi communication protocol, 5G-WiFi-router is not supported







5. Next, the device will beregistered by eWelink and add it to your account，it takes 1-3 minutes.



6. Name the device to complete.



7.Maybe the device is “Offline” on eWeLink, for the device needs 1 minute to connect with your router and server. When the green LED on, the device is “Online”, if eWeLink shows still “Offline”, please close eWeLink and re-open.



3.APP features

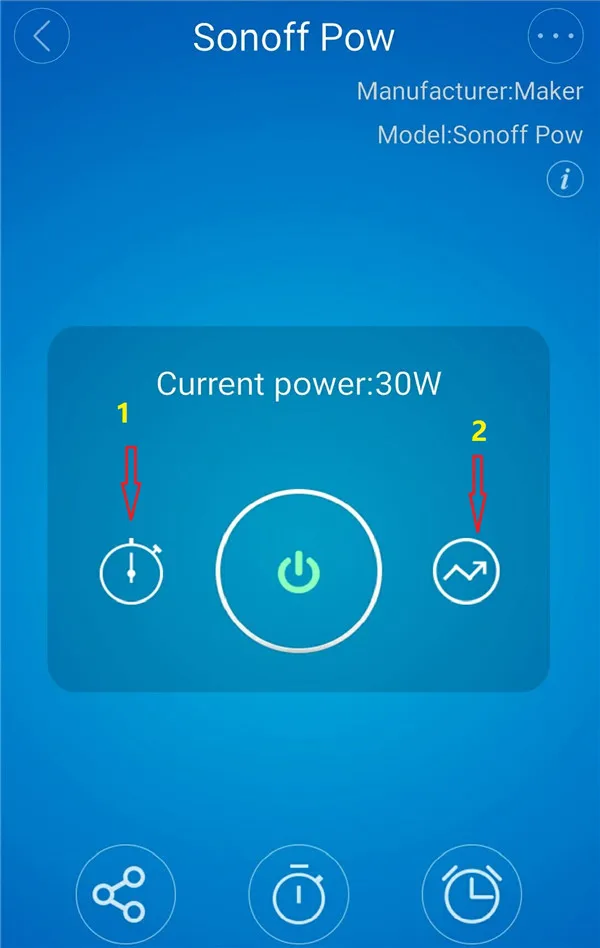

1.Remote ON/OFF



Turn on/off by tapping on device icon. Device state and real time power will simultaneously display on the interface.





2. Tap 1 to measure device’s power usage for a period of time. Tap “start” to count the power usage, and tap “stop” to stop counting.

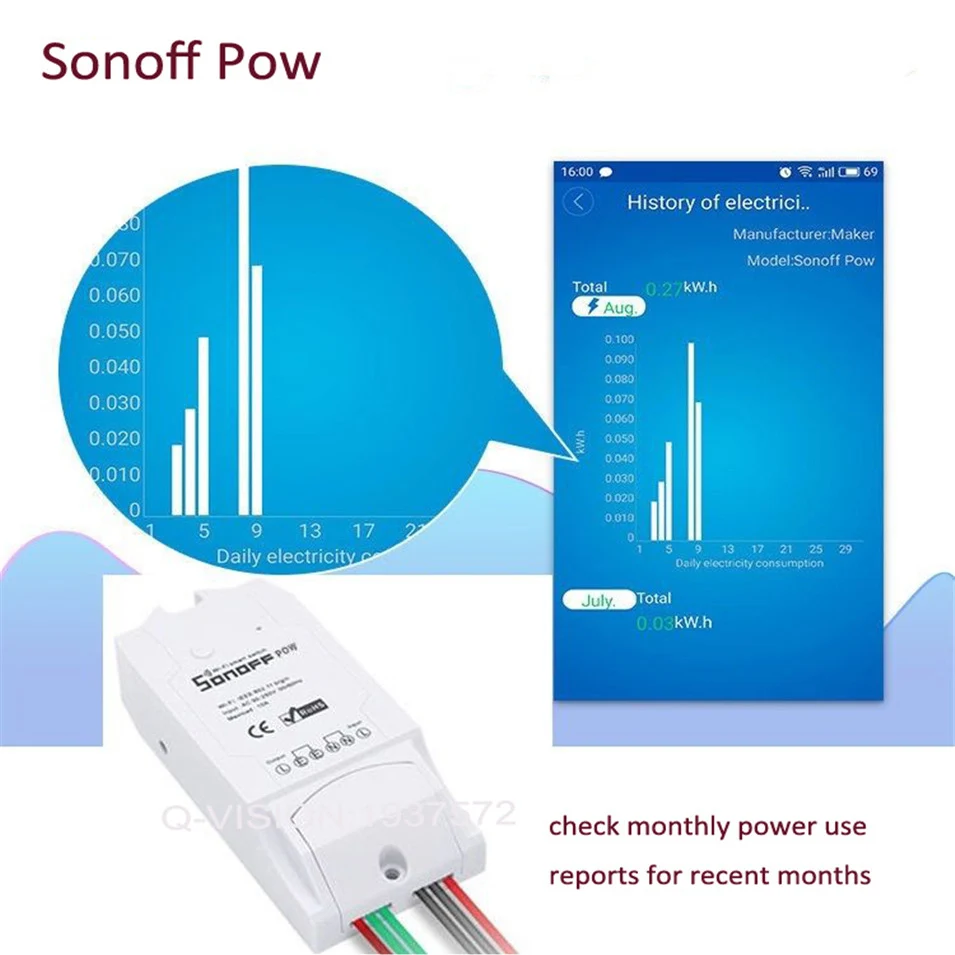

3. Tap 2 to check daily and monthly power usage.



4.Share device









Owner can share the devices to other accounts, but both of them must stay online at the same time.

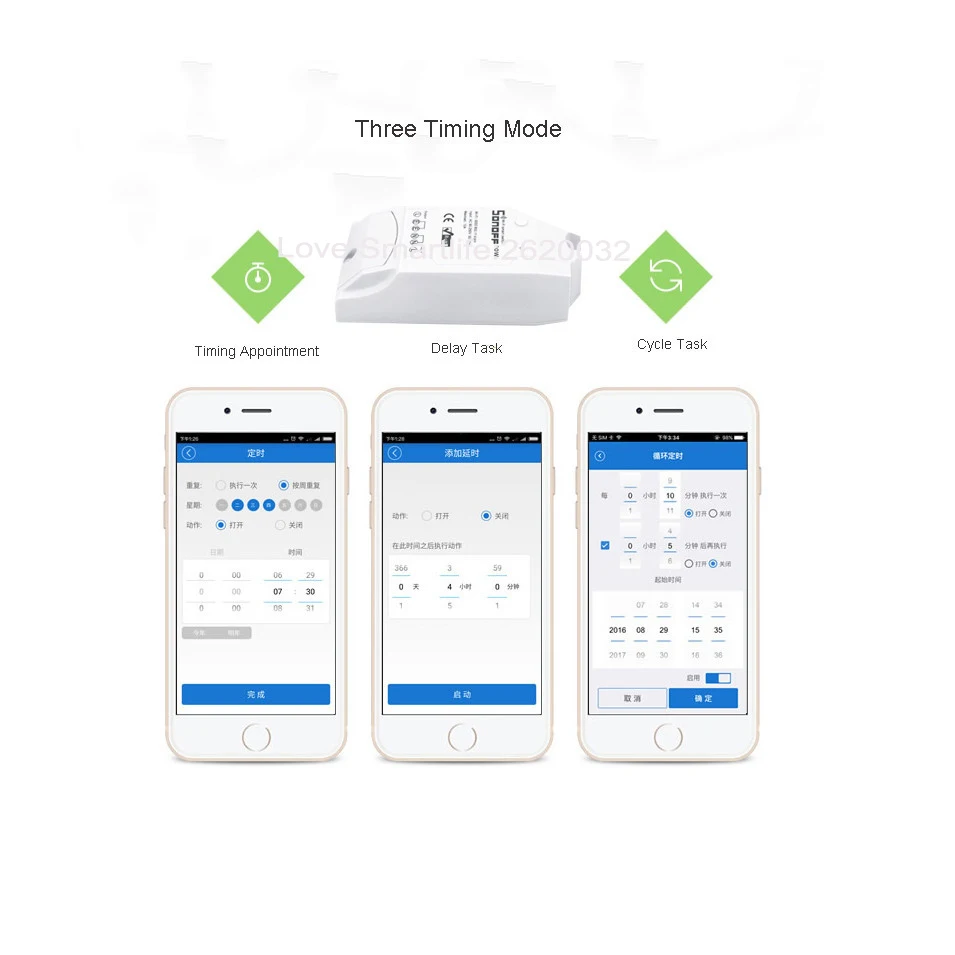

5.Timing schedules







Support max 8 single/repeat timing schedules each device. Preset timers can work even WiFi is unavailable, but the device must keep power on.



6.Security mechanism



One device one owner. Other people can not add the devices that have already been added.







7.Update



It will auto-remind you of new firmware or version. Please update as soon as you can.







4.Problems and solutions





Read the detailed FAQ  on Itead Smart Home Forum.



1. My device has added successfully, but stays “Offline”.



Answers: The new added device need 1-2 min to connect to your router and the Internet. If it stay offline for long time, please judge the problem by the green led status:



1.1. Green led quickly blinks one time and repeats, which means device failed to connect to router. The reason may be you have entered wrong WiFi password or your device is too far away from router, which causes a weak WiFi signal. The device can not be added to the 5G-wifi-router,only the 2.4G-wifi is OK. At last, make sure that your router is MAC-open.



1.2. Green led slowly blinks one time and repeats, which means device has connected to router and server, but failed to be added to device list. Then power on the device again, if it still not working, just add the device again.



1.3. Green led quickly blinks twice and repeats, this means the device has connected to router but failed to connect to server. Then please confirm your WiFi router works normally.



2. Why the APP can not find the device in paring status?



Answers: That’s because of your phone’s cache. Please close the Wlan of your phone then open it after a minute. At the same time,please power off the device if you can,then power up to try again.



3. My WiFi is expired, can I connect the devices to LAN? Can my phone be directly connected to device hotspot?



Answers: Currently eWeLink do not support LAN or directly connect to deceive hotspot. All devices must be connected to router, thus they can communicate with the Internet cloud server.



4. The green led keeps off, even if the device is powered on. Press the button but the device does not work.



















Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.2kg (0.44lb.)



•
  Package Size:
  15cm x 10cm x 5cm (5.91in x 3.94in x 1.97in)
