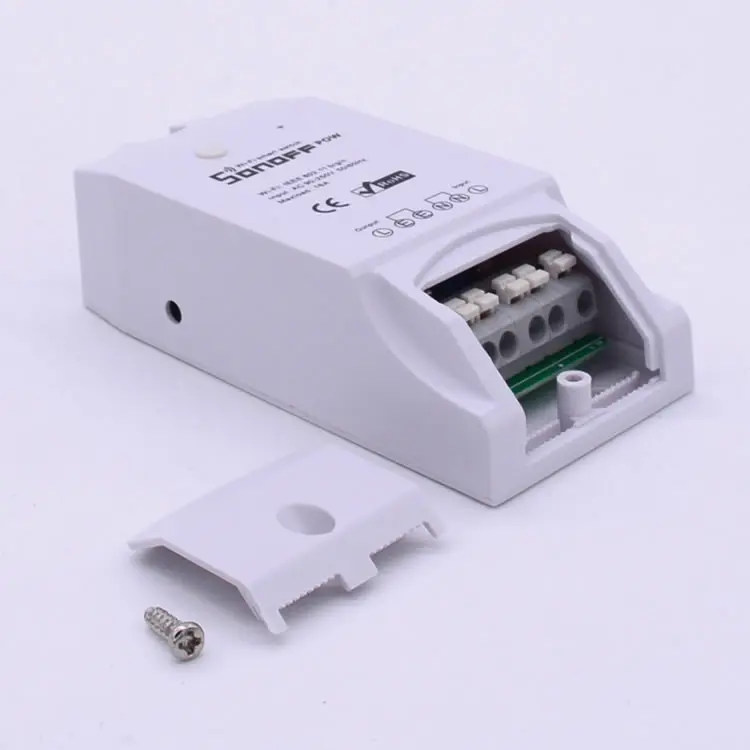

Itead Sonoff POW Wireless Intelligent automation module Switch WiFi Smart home automation Remote Power Consumption Measurement
Brand Name:
SONOFF
Model Number:
Sonoff POW
Max Speed:
3500w
Gyro:
360 degrees
Scale:
1:4
State of Assembly:
Almost Ready
Control Channels:
2 Channels
Security mechanisms:
WPA/WPA2
Wireless Frequency:
2.4Ghz/80MHZ-160MHZ
Max Power:
16A/3500W
Features:
Power detection/Timing switch/16A super power
WIFI protocol:
IEEE802.11 b/g/h
Voltage range:
AC90-250v
using APP:
EweLink
working temperature:
40Celsius-120Celsius

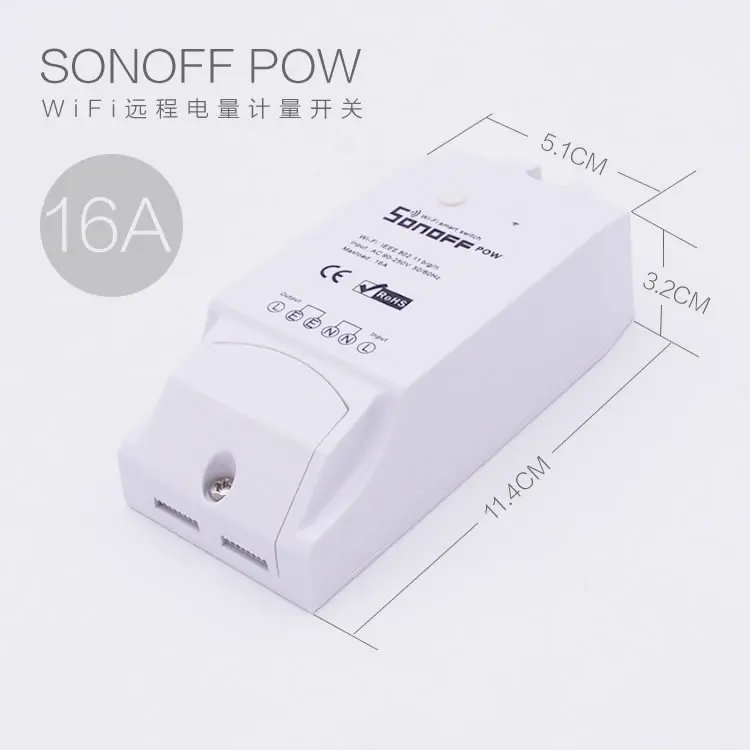

Enclosure Dimensions:
114*51*32mm
Color:
White
The cause of the exciting

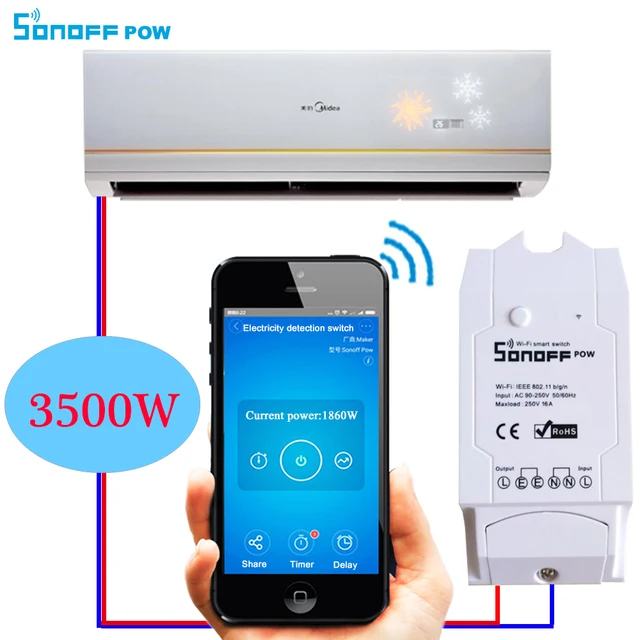

1.SONOFF POW is a wireless switch which connects to electronic devices such as home appliances via WIFI.
2.The electronic devices can be controlled by the mobi application eWelink which can be run using WIFI,2G,3G or 4G net work.
3.SONOFF POW has the amazing capability to display the electronic device’s instant wattage consumption. It also has the option to report the energy consumption in kWh over a period of time, and thus generate power consumption reports over a certain time interval, such as a month. Sonoff Pow, therefore, allows you to figure out which appliances in your home consume the mostpower so you can cut down your electricity bill.
4.Since SONOFF POW belongs to the Sonoff family, it has all the functions of a basic Sonoff. Through the mobile application eWeLink, remote home control becomes a reality. Consumers can remotely control the operation of home appliances by turning them on, off instantly or according to a user specified schedule, such as repeat or countdown.
5.Consumers can also share the remote access with others for a mutual,control of the appliances.
6.Apart from traditional consumers, Sonoff Pow is a very exciting product for those into hacking, since four program ports have been reserved for burning external firmware. Now, isn’t that thrilling?
Features
1.Remote turn on/off using APP EweLink
2.Check power consumption over any time interval such as daily, monthly
3.Check energy consumption in real time (instantly)
4.Supports configuring fast SSID changing and password connection through eWeLink
5.Supports auto-connection to server, register and updating device status
7.Supports tracking device status on eWeLink
8.Supports single, countdown and repetitive tasks

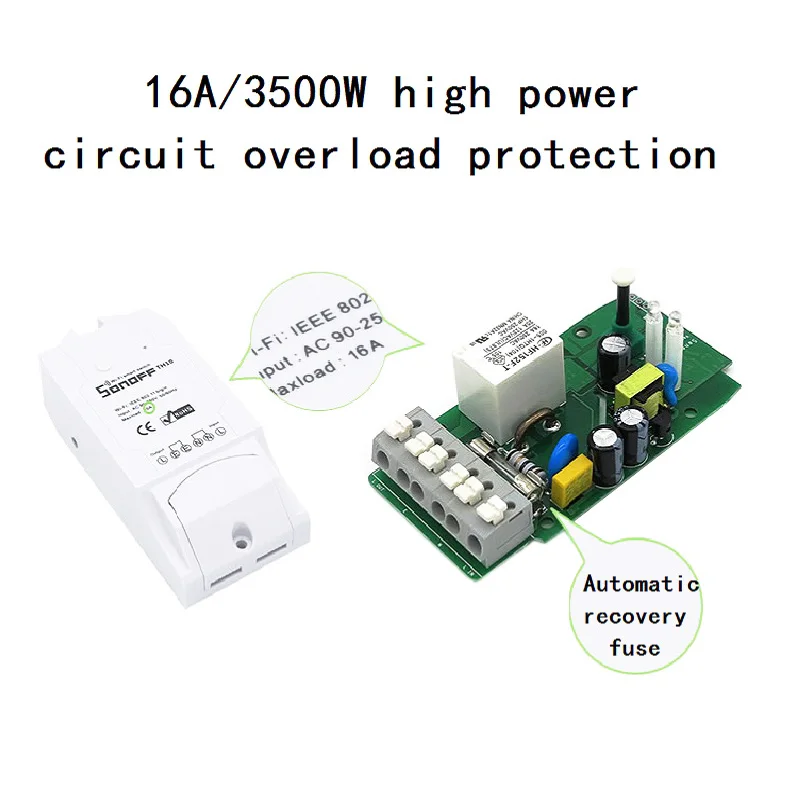

Sonoff Pow supports to monitor connected device’s real time power, measure power usage for a specified period and check daily/monthly power usage. It supports 90~ 250V AC input, the max. current is 16A, the max. power is 3500W.
1.Download “eWeLink” app.
Search “eWeLink” in APP Store for iOS version or Google play for Android version.

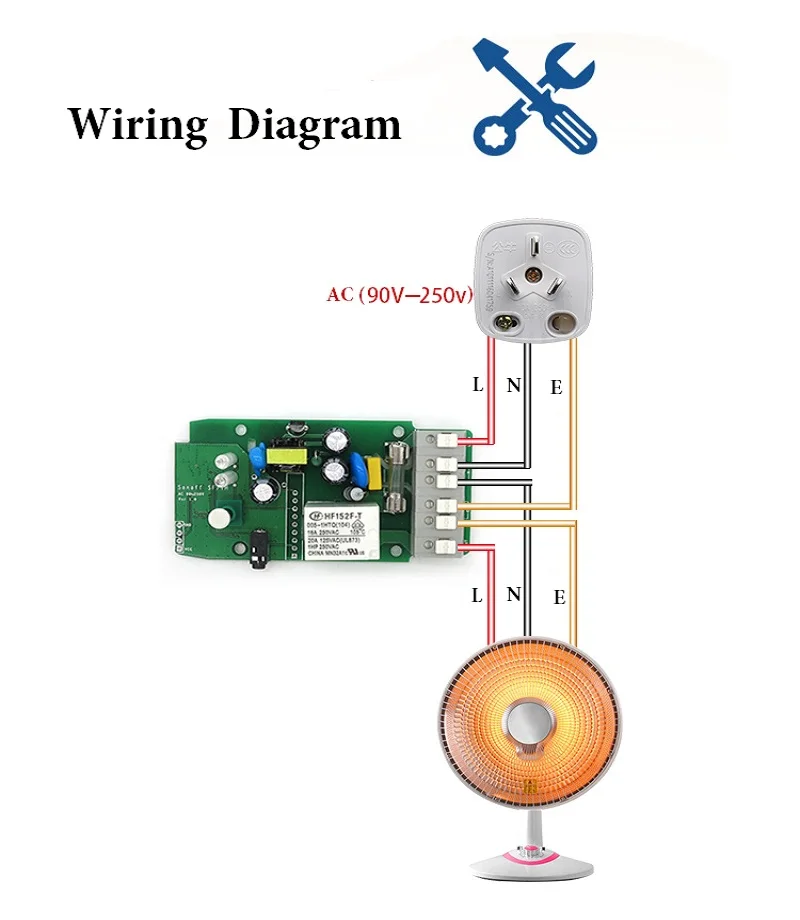

2.Wiring instruction

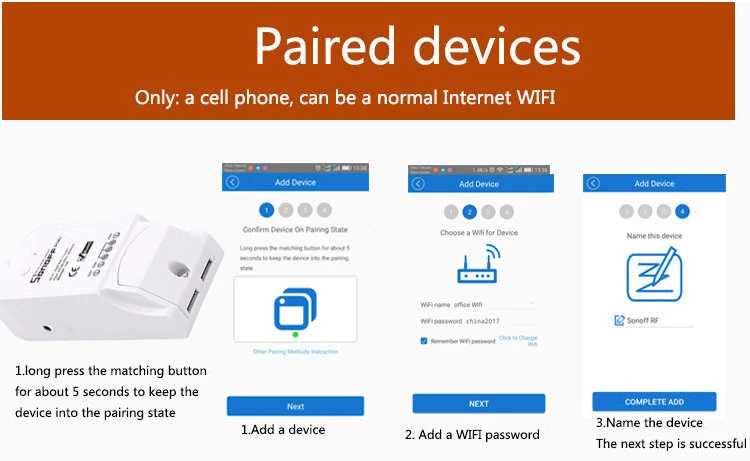

3.Add device
1.Power up your device.
2.Press the button for 7 seconds until the green LED blinks like this: blinks 3 times and on repeatedly.
3.For Android, please directly click the “Add” icon on eWeLink to search device, click next.
For iOS, please go to phone Setting>WiFi>connect the WiFi begins with ITEAD-******, enter default password 12345678. Go back to eWeLink, select the pairing method, click next.
The App will auto-search the device.
4.Input your home SSID & password:
4.1 Your SSID must be letters or numbers.
4.2 If no password, keep it blank.
4.3 Now eWeLink only support 2.4G wifi communication protocol, 5G-WiFi-router is not supported
5. Next, the device will beregistered by eWelink and add it to your account，it takes 1-3 minutes
6. Name the device to complete.
7.Maybe the device is “Offline” on eWeLink, for the device needs 1 minute to connect with your router and server. When the green LED on, the device is “Online”, if eWeLink shows still “Offline”, please close eWeLink and re-open.
3.APP features

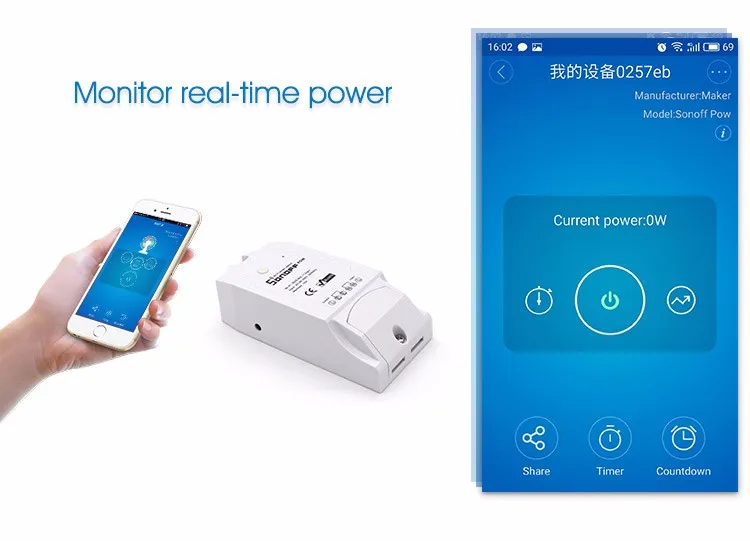

1.Remote ON/OFF
Turn on/off by tapping on device icon. Device state and real time power will simultaneously display on the interface.

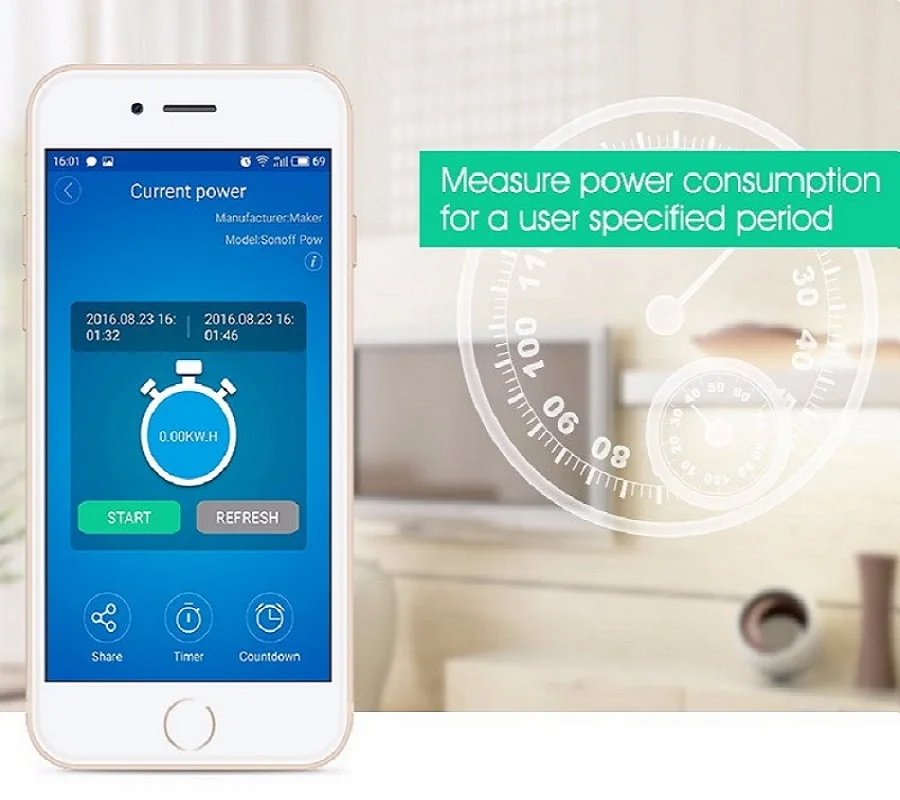

2. Tap 1 to measure device’s power usage for a period of time. Tap “start” to count the power usage, and tap “stop” to stop counting.

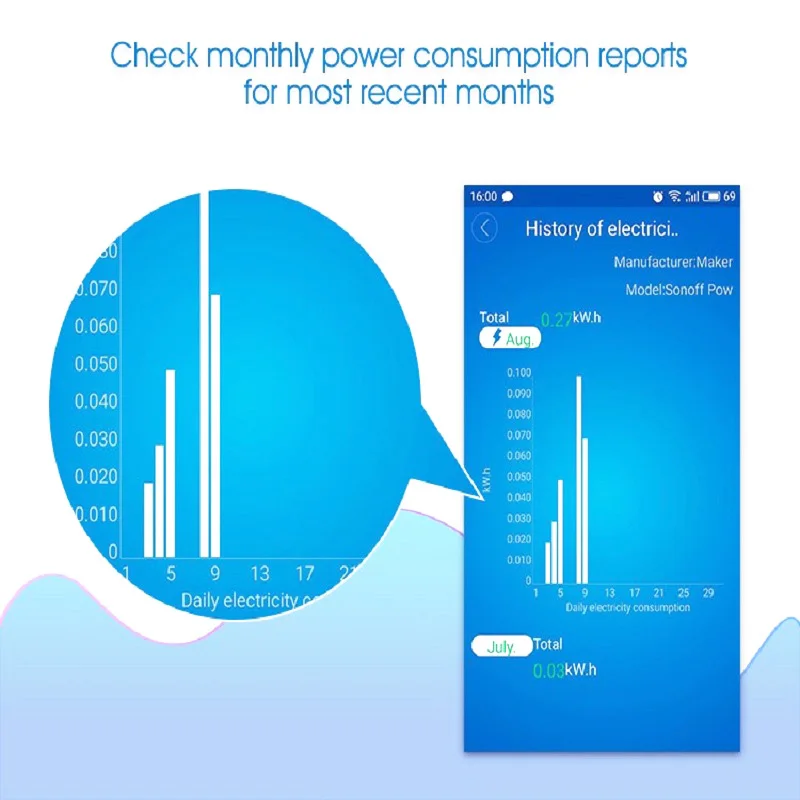

3. Tap 2 to check daily and monthly power usage.

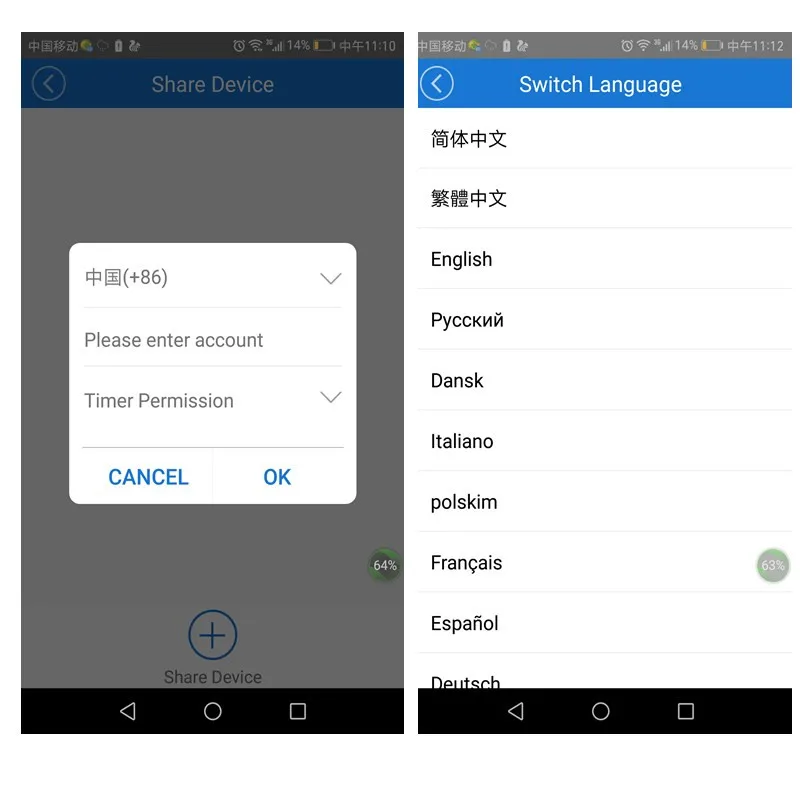

4.Share device
Owner can share the devices to other accounts, but both of them must stay online at the same time.

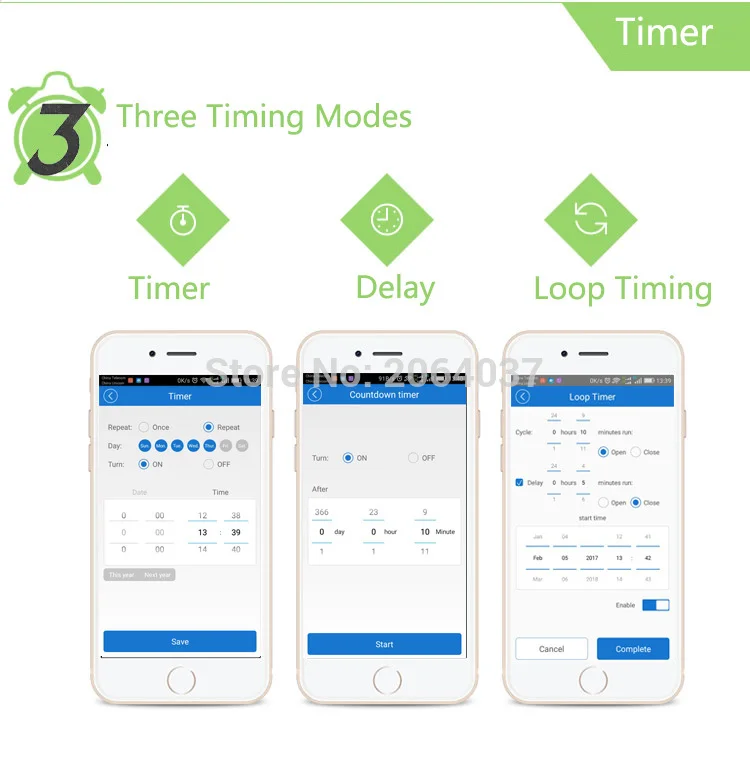

5.Timing schedules
Support max 8 single/repeat timing schedules each device. Preset timers can work even WiFi is unavailable, but the device must keep power on.
6.Security mechanism
One device one owner. Other people can not add the devices that have already been added.
Unit Type:
piece
Package Weight:
0.106kg (0.23lb.)
Package Size:
12cm x 5cm x 3cm (4.72in x 1.97in x 1.18in)
