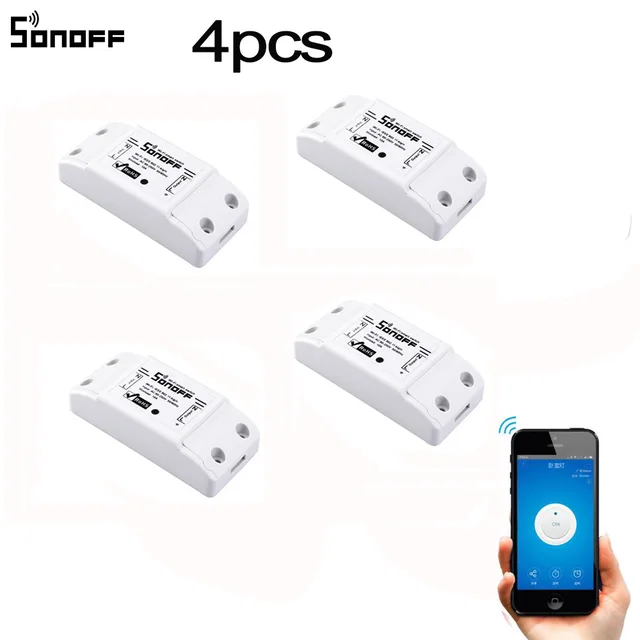

ITEAD Sonoff Basic Wireless Wifi Switch For Smart Home Automation WiFi Relay Module 10A 220V 2200W IOS Android Remote Controller

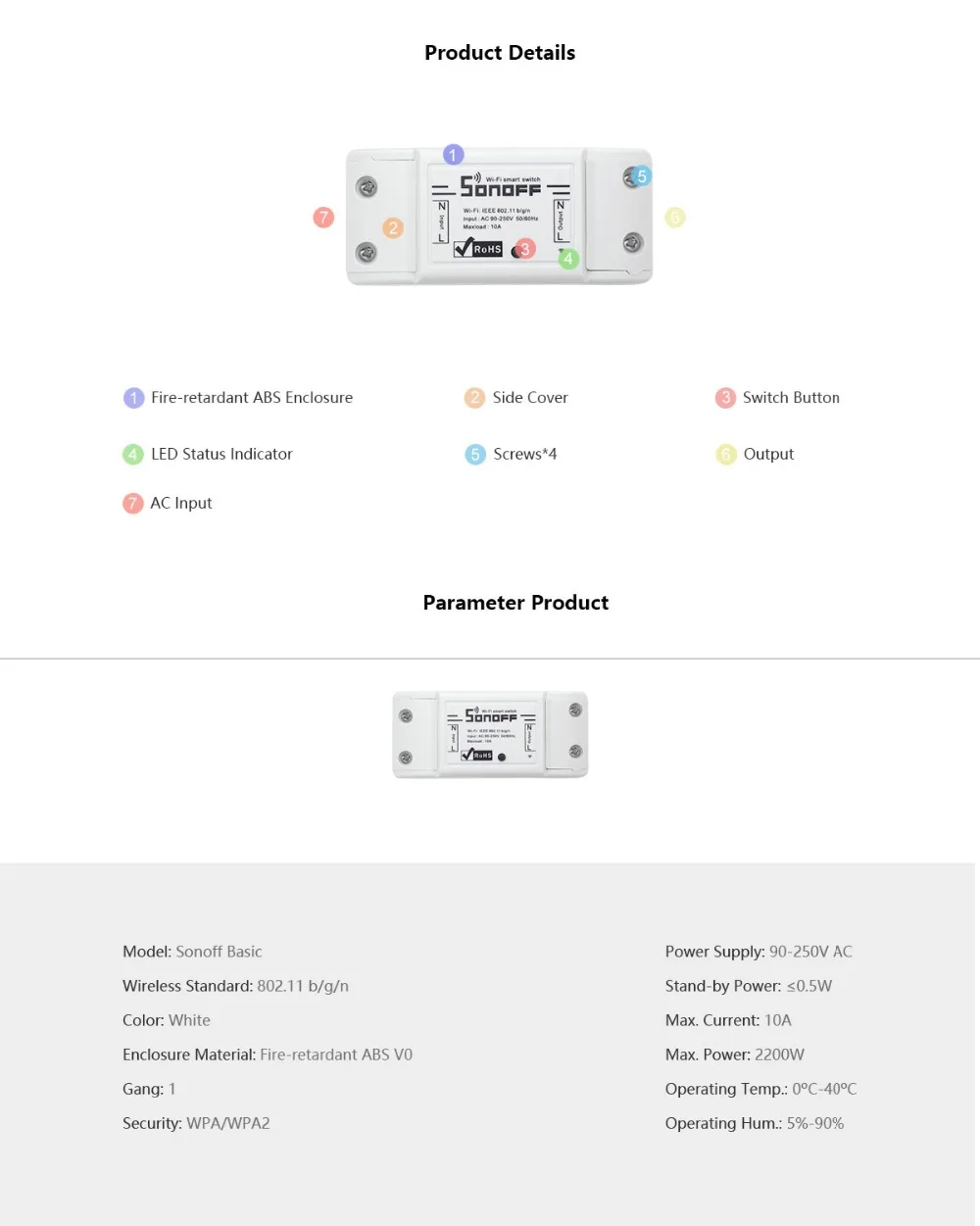

Camera Equipped:
No
Compatibility:
All Compatible
Brand Name:
SONOFF
Model Number:
Sonoff Wifi Switch
State of Assembly:
Ready-to-Go
Model Number:
Sonoff Wifi Smart Home Switch

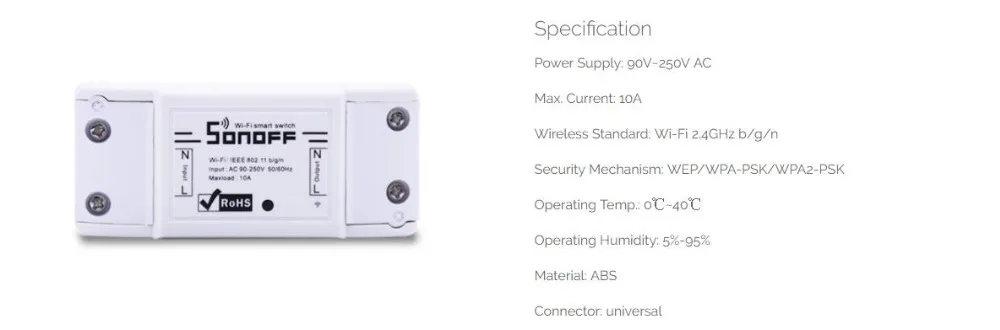

Voltage range:
90-250v AC(50/60Hz)
Power::
10A/2200W
App name:
eWelink
Funtion:
Wireless Wifi Remote Control Home Light
Wireless Standard: :
IEEE 802.11 b/g/n 2.4Ghz
Humidity::
5-95 percent
Sonoff S20 Smart Socket:
EU/UK/US/CN Standard
Working Temp: :
-20 -75 degree
Scope::
Ceiling lamps, lighting, fans, drinking fountains Sockets
Sonoff Smart Home automation is "The Internet of Things". The way that all of our devices and appliances will be networked together to provide us with a seamless control over all aspects of our home and more.

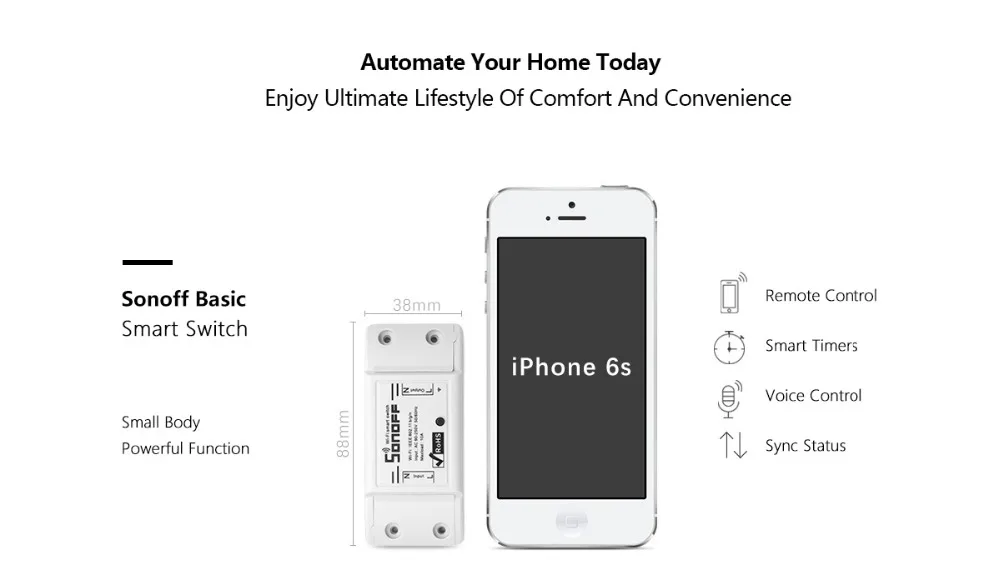

Sonoff WiFi Switch is a low-cost, affordable device that help you to step into the amazing smart home.It is a WiFi wireless switch that can connect to appliance of different types and brands. Sonoff sends data to cloud platform through the WiFi Router, which enables you to remotely control all appliances with the App eWeLink on your smart phone. The server of Sonoff is AWS global server.
Sonoff Basic makes all your home appliances smart, as long as your phone has network you can remotely turn on or turn off your appliances from anywhere at any time. And by setting timing schedules for your appliances, you can maintain a carefree life.
The App eWeLink enables you to control your devices easily. You can download the iOS version in App Store and the Android version in Google Play.
Features
Support WiFi network.
Support status tracking, home appliances status timely feedback to your App.
Support remotely turn on or off added devices.
Support Max 8 timing tasks for each added device.
Support numerous WiFi smart switches one smart phone.
Easy installation, easy handling and can be activated immediately and stably.
The App eWeLink enables you to control your devices easily. You can download the iOS version in App Store and the Android version in Google Play.There is a key to share the function and you can control one switch with your family members or friends at the same time by sonoff switch.
To install Sonoff, pay attention to the IN and Out mark on Sonoff.
1. Switch off electricity source
2. Open the two yellow shells at both ends
3. Connect the two electricity source cables(Live and Neutral) to the 2 ports with “IN” mark, one cable for one port, and there’s no limitation for which port to connect
4. Connect the two appliance cables(Live and Neutral) to the 2 ports with “OUT” mark, one cable for one port, and there’s no limitation for which port to connect
5. Cover the shells and screw firmly
if you don't know how to install the item and use,please contact us anytime.
In-out Connect way must be strictly according to below draw, live wire and zero wire can be connect randomly
Note: If you can not install and set it,please download the user guide when you can not set it right.You can contact us anytime when you have a problem.
How to install the Sonoff WiFi wireless switch?
Preparation: Switch off all related electricity source first.
Attention: The power input L N cables must connect with the “INPUT” side. The electricity output L N cables must connect with "OUTPUT" side. Remember DON`T mistaken the directions!
When connect Sonoff to home appliance(within 2200W), actually the two terminal connector ports at "INPUT" can connect to input cable L and N randomly, and "OUTPUT" can connect to output cable L and N randomly. But in order to avoid from any safety problems, please strickly follow the wiring connection as follows:
Input Output
N ————N
L————-
Unit Type:
lot (4 pieces/lot)
Package Weight:
0.2kg (0.44lb.)
Package Size:
10cm x 5cm x 3cm (3.94in x 1.97in x 1.18in)
