ITEAD Sonoff 4CH/4CH PRO 4 Gang 433MHZ Din Rail Mounting Wireless WIFI Smart Switch Home Automation Modules Light Remote 2000w
Brand Name:
SONOFF
Model Number:
sonoff 4gang/4ch pro
Camera Equipped:
No
State of Assembly:
Almost Ready
Compatibility:
All Compatible
Humidity:
5%-90%
Input:
AC 90V-250V ( 50/60Hz)/5-24vDC
Max Current:
10A
Channels:
4 Channels
Funtion:
Sonoff Smart Home Wifi Switch
App Name:
eWelink
Features:
Smart Home Module
ITEAD Sonoff 4CH/4CH PRO 4 Gang 433MHZ Din Rail Mounting Wireless WIFI Smart Switch Home Automation Light Remote Control 2000w
Overview

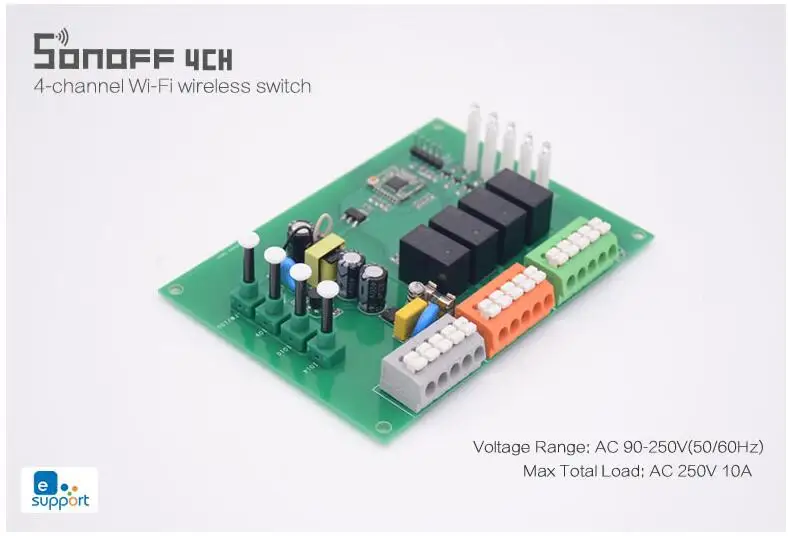

Sonoff 4CH is a 4-gang switch with din rail mounting. Sonoff 4CH 4 gang light switch supports to connect and control 4 electrical appliances, which can be turned on/off separately by the buttons or iOS/Android App EweLink. Besides, with the multi gang switch, you can check real-time devices status for each device on App. Owning a Sonoff 4CH multi gang switch means you have 4 Sonoff basic WiFi switches integrate together.

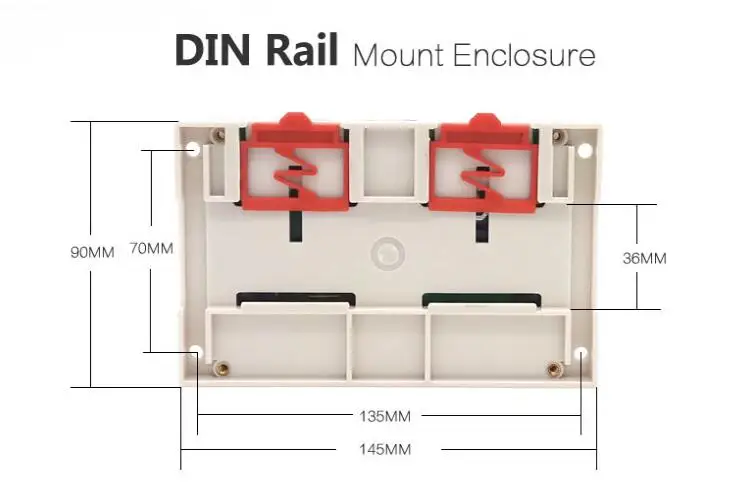

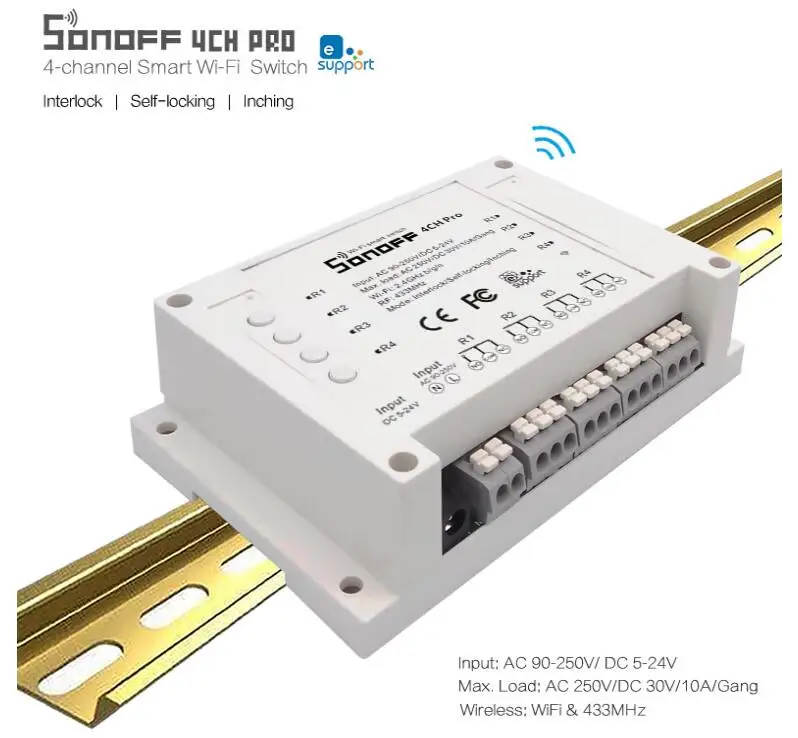

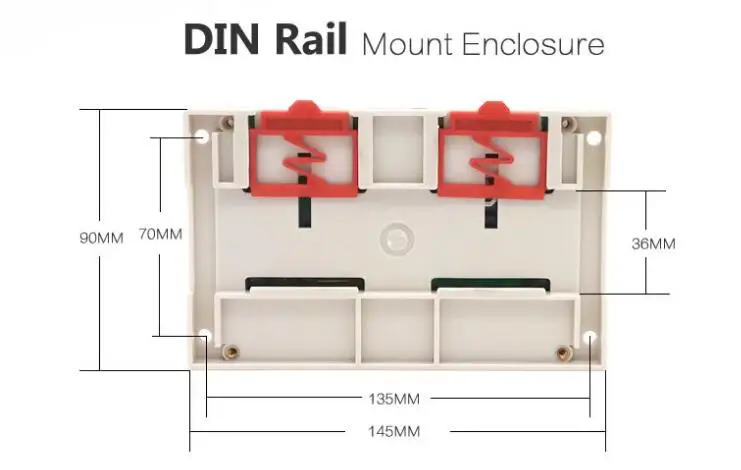

The enclosure is din rail mount supported! A DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated or chromated bright surface finish.

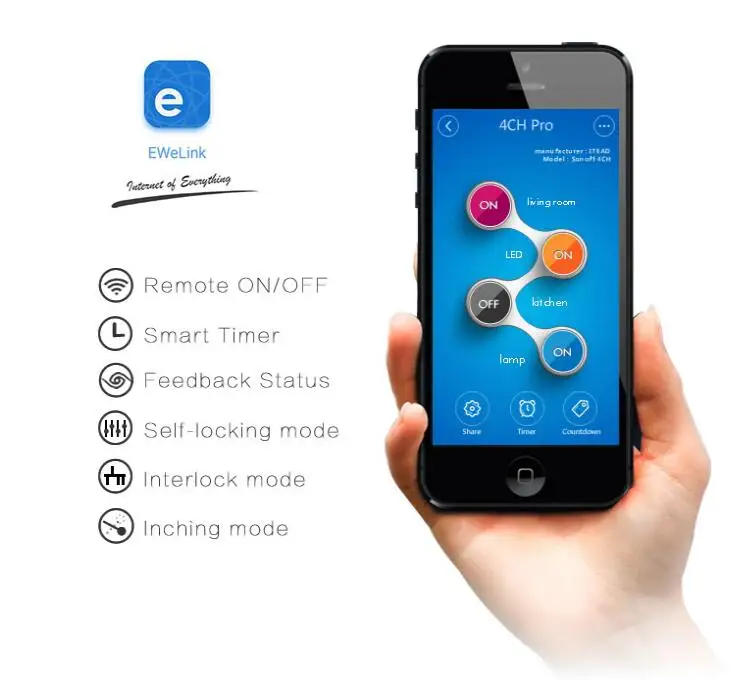

Sonoff 4CH 4 gang WiFi light switch belongs to Sonoff family, definitely, it bears all the functions basic Sonoff has. In EweLink, you can remote turn on/off from anywhere at any time, set single/repeat/countdown timing schedules to turn on/off at a specified time, share to others so that they can control together.
Sonoff 4CH is hacker-friendly that you can flash your firmware without difficulty.
Read ESP8285 datasheet.
Works With Amazon Alexa
You can ask Alexa to turn on/off Sonoff 4CH.
The default names for the 4 gangs are: outlet 1, outlet 2, outlet 3, outlet 4. You can change the name if you like.
Standard voice control commands phrases for Sonoff 4CH and Sonoff 4CH Pro:
Alexa, turn on {deviceName} {gangName}
Alexa, turn off {deviceName} {gangName}
Explanation: if the device name of your Sonoff 4CH is "My Switch", the gang name is "Outlet 1", then you can control with "Alexa, turn on My Switch Outlet 1".

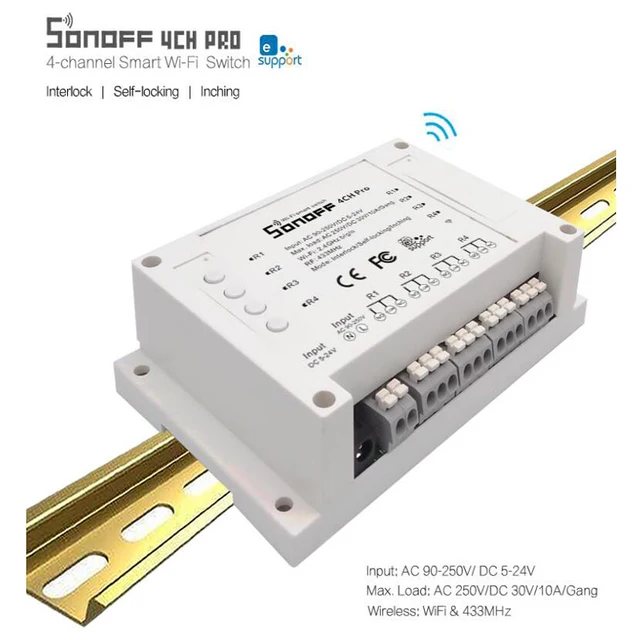

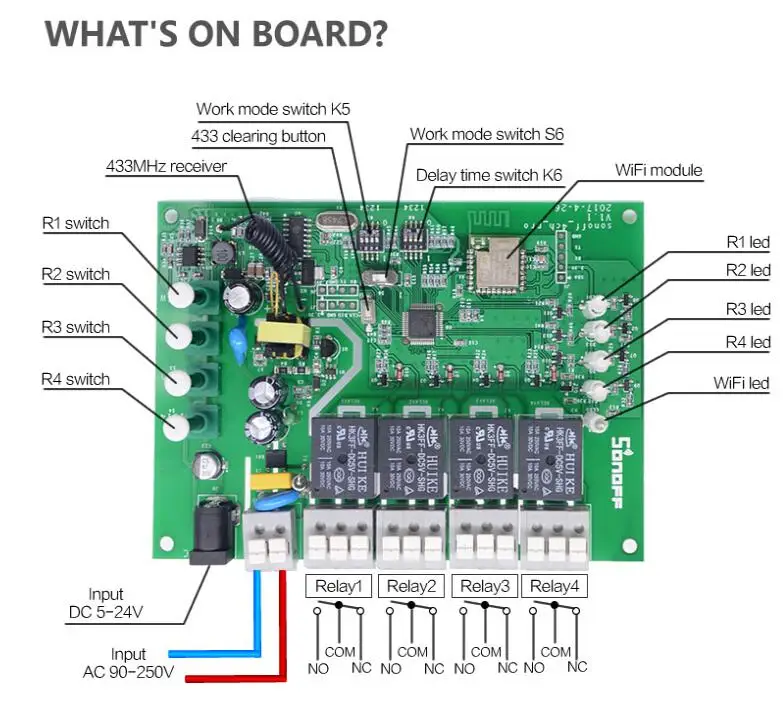

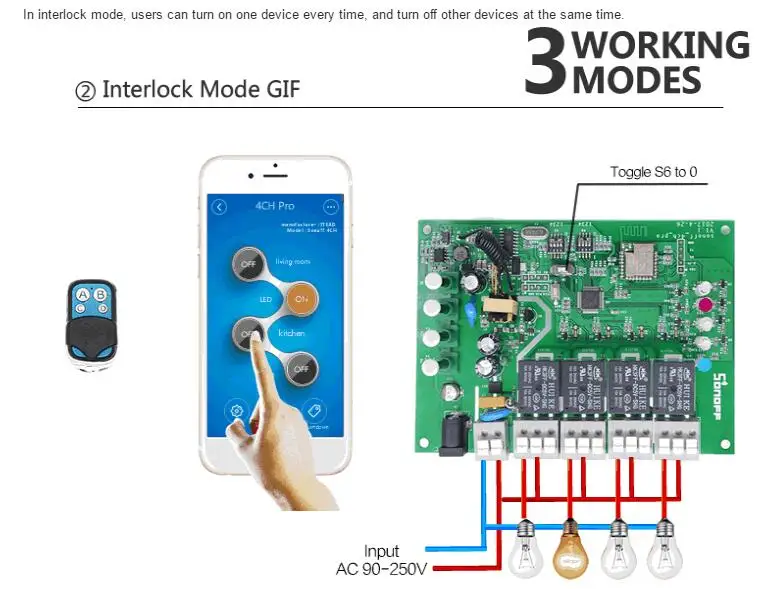

Sonoff 4CH Pro is a 4 gang WiFi switch. It supports switching among 3 working modes: interlock/self-locking/inching(0.25-4s adjustable) mode. It integrates with a 433MHz RF receiver module, making it possible for the switch to be controlled by RF Remote. The Sonoff 4CH Pro smart switch is DIN Rail mounted.
You can ask Alexa to turn on/off Sonoff 4CH Pro.
4CH PRO Features

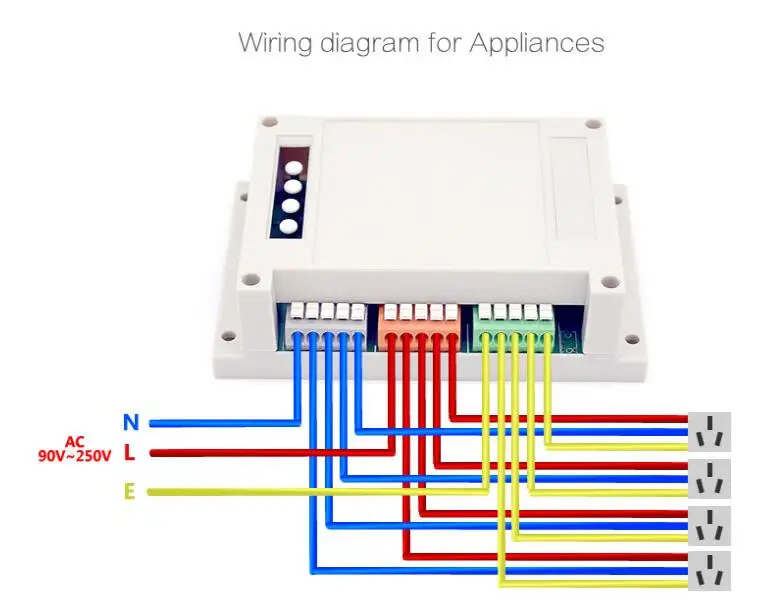

Turn on/off 4 home appliances remotely

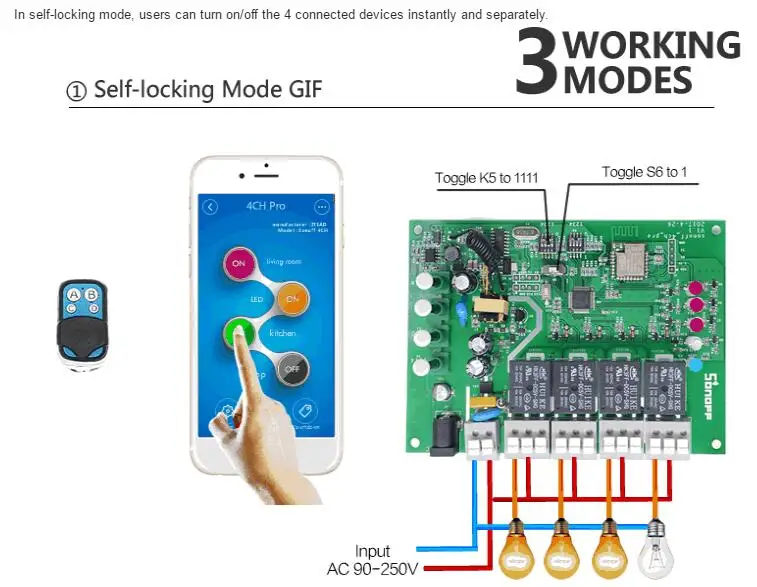

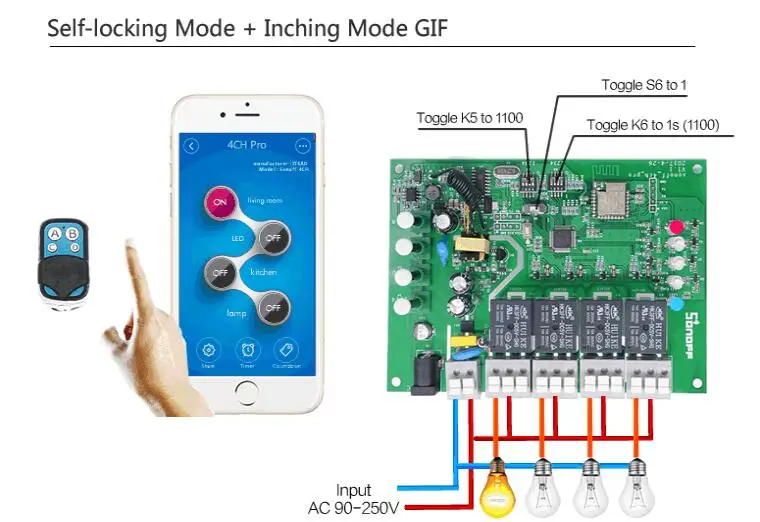

Supports switching among inching/interlock/self-locking modes
Device status's synchronously display

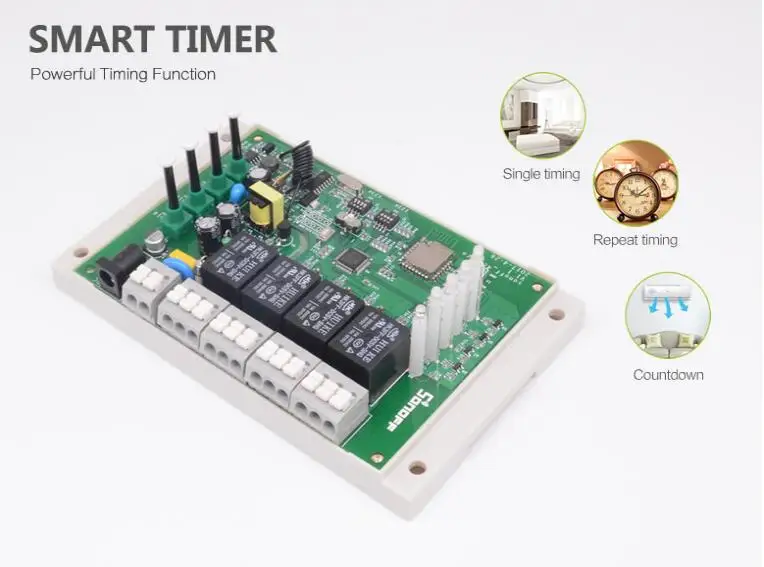

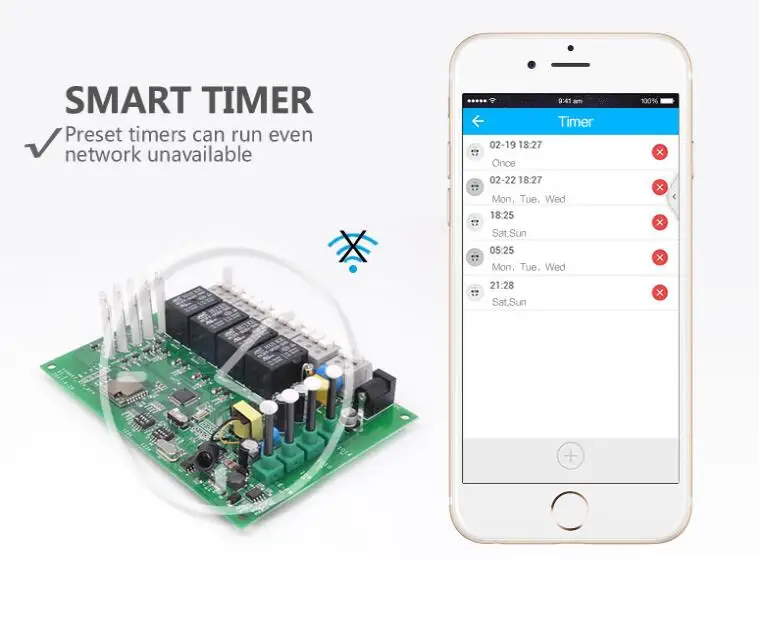

Single/Repeat/Countdown timers
Share control

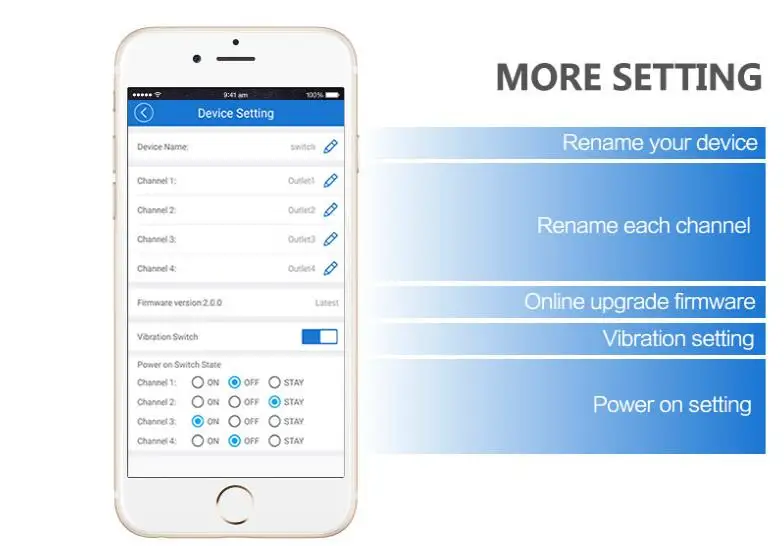

Supports setting power on state

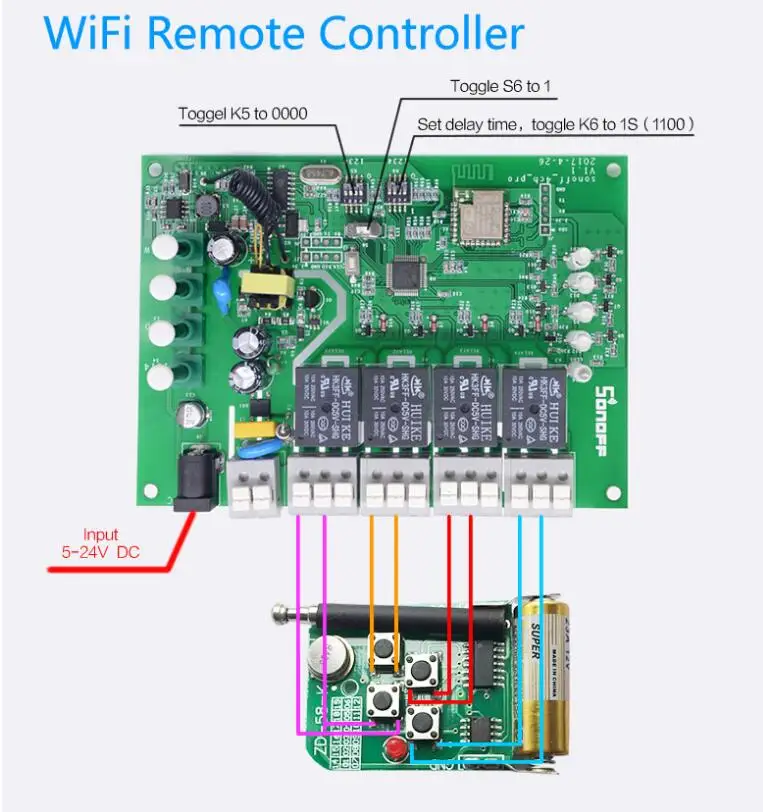

433MHz RF Remote control
Works with Alexa
Works with Nest
4CH PRO Specifications
Voltage range: 90-250v AC(50/60Hz) / 5-24v DC
Max current: 10A/gang
Max Power: 2200W/gang
Wireless Frequency: WiFi 2.4GHz
Operating Temperature(recommended): 0ºC-40ºC(32°F-104°F)
Operating Humidity: 5%-90%RH, Non-condensing
Unit Type:
piece
Package Weight:
0.45kg (0.99lb.)
Package Size:
15cm x 15cm x 10cm (5.91in x 5.91in x 3.94in)
