Hot 2CH 7V 12V 24V Smart WiFi Light Switch Relay Module Controlled by Phone On Android and IOS for Home Automation ITEAD Chip
Features:
Remote Control,Slot
Model Number:
WIFI SWITCH
Max Speed:
NONE
Control Channels:
2 Channels
Gyro:
NONE
Brand Name:
XIND ELE
State of Assembly:
Almost Ready
Scale:
NONE
Transmission mode:
Wi-Fi
Input voltage:
7V-24V
Output voltage:

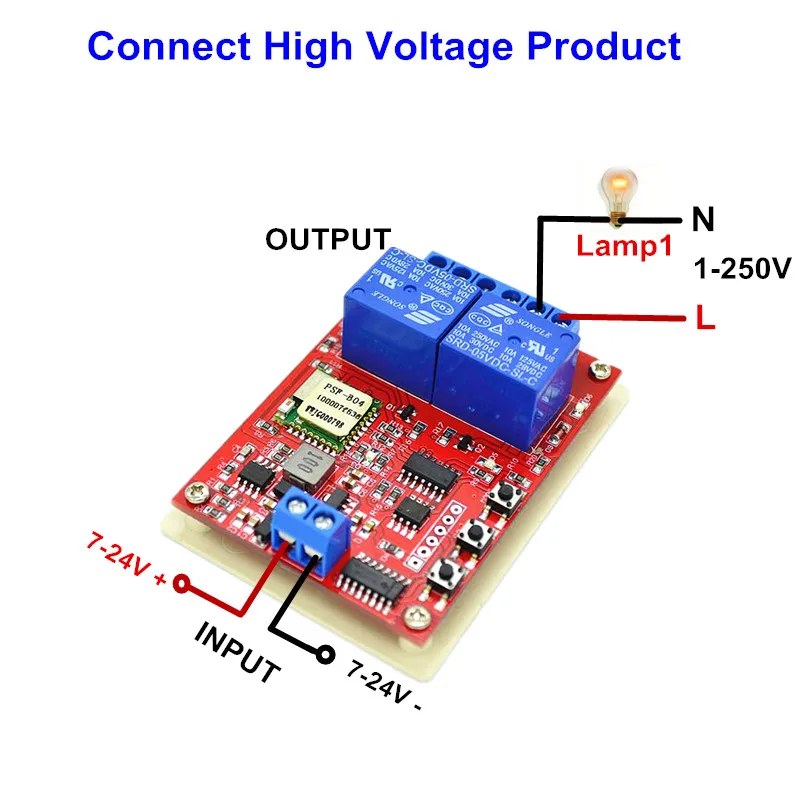

Passive output , support 1-250V
Power:
10A/1000W
Timer function:
Support
Wireless Standard:
IEEE 802.11 b/g/n
Support app:
eWeLink
Application:
Smart Home
Size:
75*55*24mm
Channel:
2 Channel
Hot 2CH 7V 12V 24V Smart WiFi Light Switch Relay Module Controlled by Phone On Android and IOS for Home Automation ITEAD Chip
Packing List Details:
1 X 7-24V 2CH Wi-fi Switch
Introduction:
1 Working voltage: DC 7V-24V
2 Maximum load: 10A
3 Working temperature: 0-60 centigrade
4 Controlled method: Smartphone APP + Manual Control
5 Transmission way: WIFI
6 Transmission Distance: As far as your phone be connected with internet
7 Channels: 2 Way

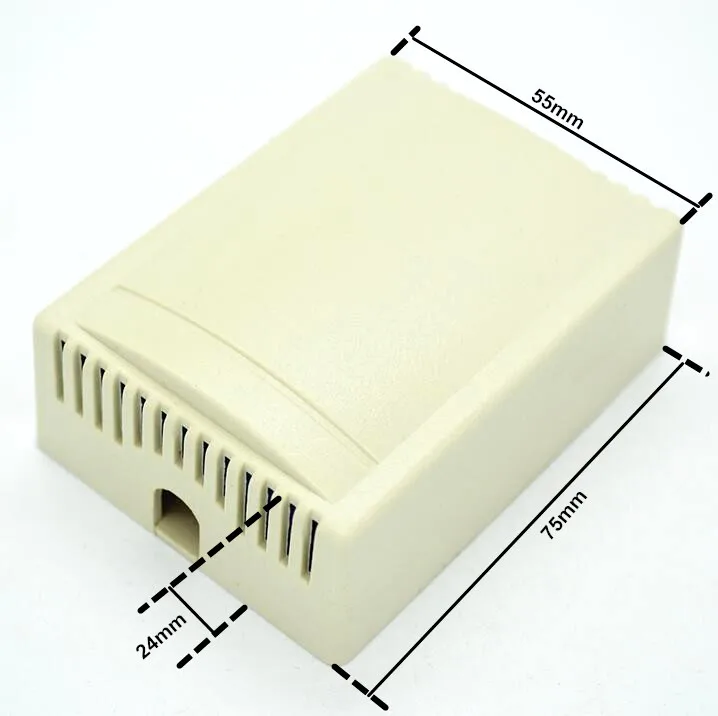

8 Size: 75*55*24mm

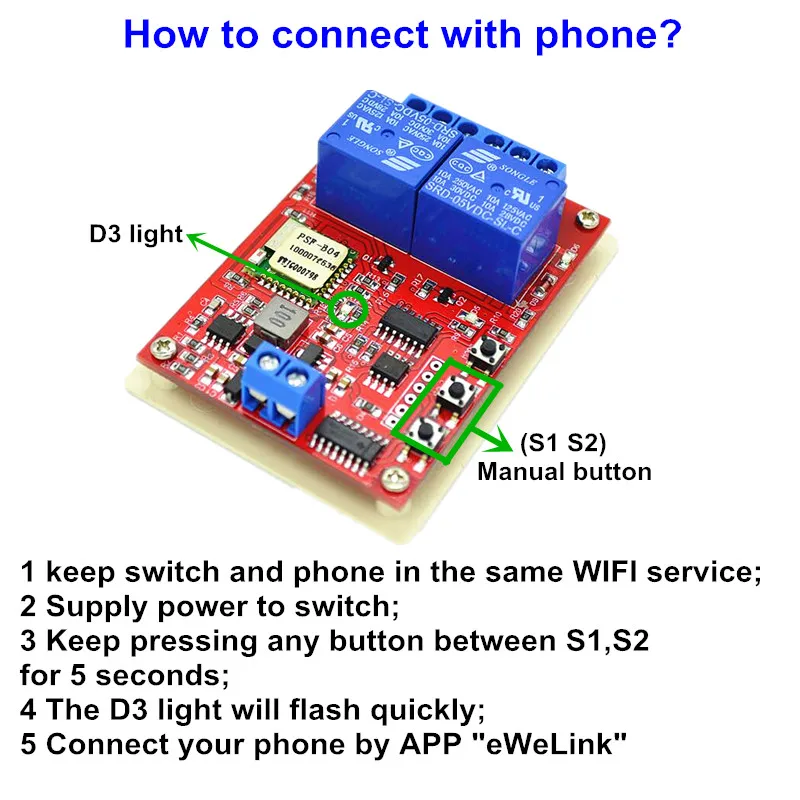

How to connect phone with switch?
1 Download and install the software of “eWeLink” from APP store or Google play store.
2 Follow “eWeLink” instructions to register an account on it.
3 Log in your account of “eWeLink”.
4 Press any manual control button (S1,S2) for 5 seconds until you see the LED D3 light flash quickly, then release it. Now add device on mobile phone by eWeLink APP according its introduction.
5 Now you can use your phone to control the switch under 2G/3G/4G signal.
6 You can name your own device and control it only by yourself.
7 You can also share your device with your family or friends.

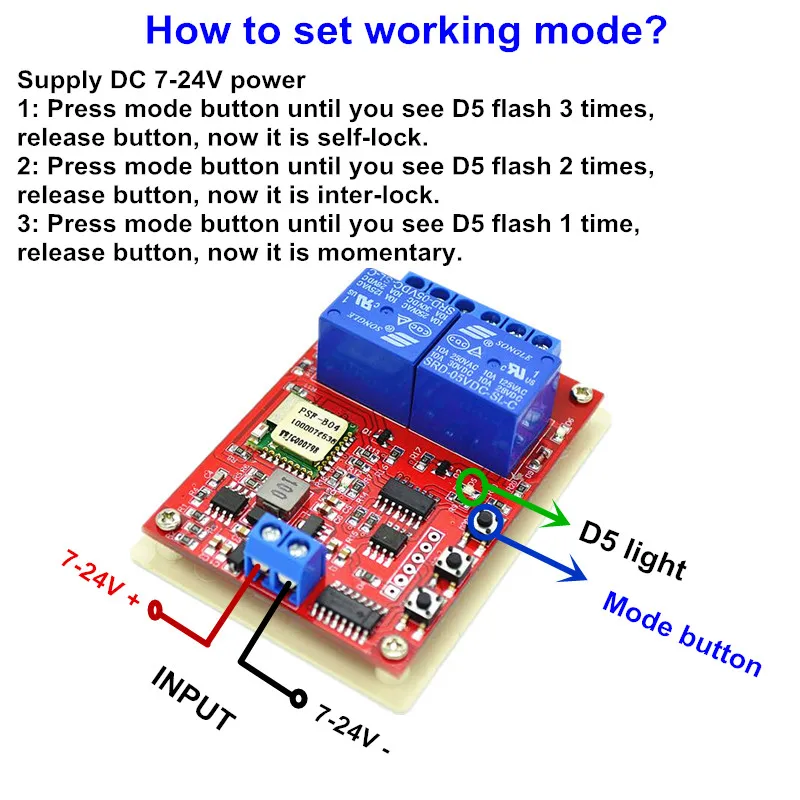

How to set working mode?
Supply DC 7-24V power to the relay.
1: Press mode button until you see D5 flash 3 times, release button, now it is self-lock.
2: Press mode button until you see D5 flash 2 times, release button, now it is inter-lock.
3: Press mode button until you see D5 flash 1 time, release button, now it is momentary.
What is the difference between working mode?
1 Self-lock: Press remote button A , receiver CH1 ON. press button A again, then receiver CH1 OFF
2 Inter-lock: Press remote button A , receiver CH1 ON, and receiver CH2,CH3,CH4 OFF.
3 Momentary: Press remote button A, receiver CH1 ON. After 1 seconds, receiver CH1 OFF
Payment
There are many payment methods available,Terms of payment allowed to be made by Escrow, Visa, MasterCard, Moneybookers, Western Union, Bank Transfer and so on.
You can choose a method which is the most convenient for you. To protect your interests, your payment will be temporarily held by Aliexpress, and will not be released to us until you receive your order and are satisfied with it.
if you do not know how to pay the money,
please see this link:http://help.aliexpress.com/payment_method.html
About delivery
1 Usually we will ship out the package within 1-3 working days.
2 Time in transit: Transit time varies with different shipping methods.
Warranty&Return Policy
1 All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
2 If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or manufacturer for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
3 If you want to exchange the items received, you must contact us within 3 days of the receipt of your order. And you should pay the additional shipping fees incurred and the items returned should be kept in their original status.
Unit Type:
piece
Package Weight:
0.075kg (0.17lb.)
Package Size:
15cm x 18cm x 3cm (5.91in x 7.09in x 1.18in)
