FREEJOIN wireless remote contro WIFI Switch 4Channel Relay rf receive Jog Inching Self-locking for smart home Automation Module
Camera Equipped:
No
State of Assembly:
Ready-to-Go
Model Number:
Freejoin
Compatibility:
All Compatible
Brand Name:
FREEJOIN

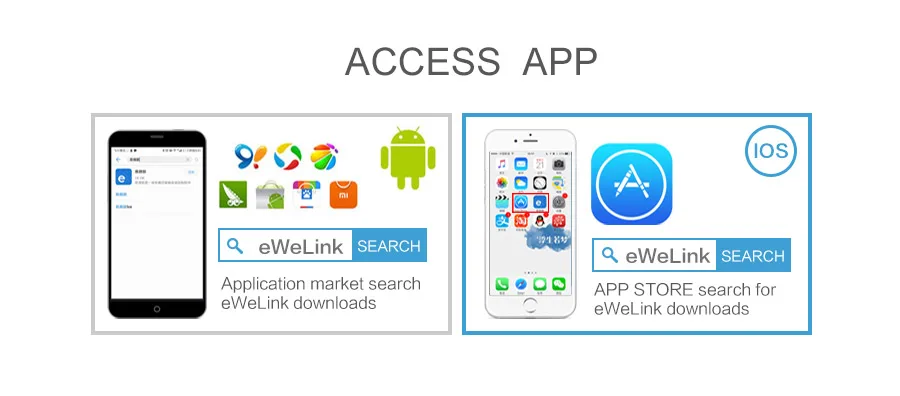

APP download
Adnroid APP: E-WeLink-2.1.13.apk
Support IOS cellphone also, you can search "e-welink" in App store to setup it;
Support IOS cellphone also, you can search "e-welink" in App store to setup it for English version;

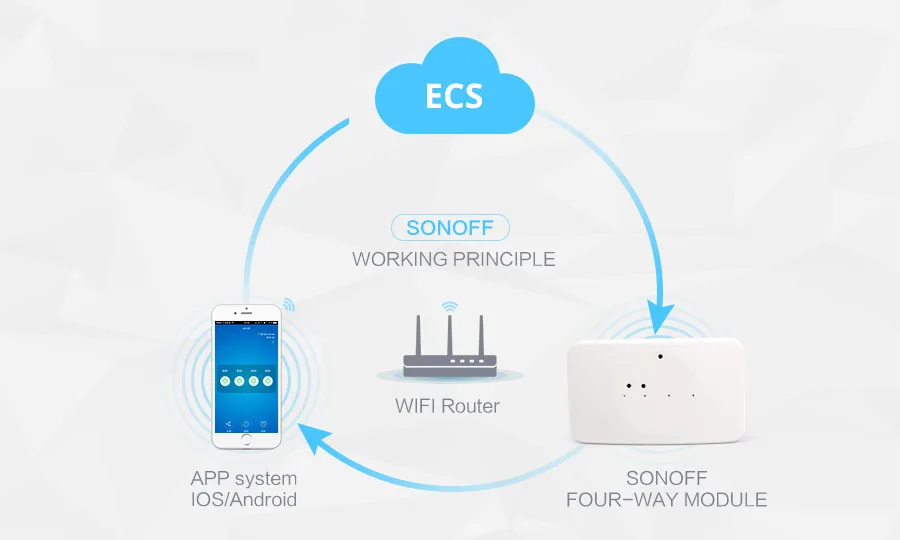

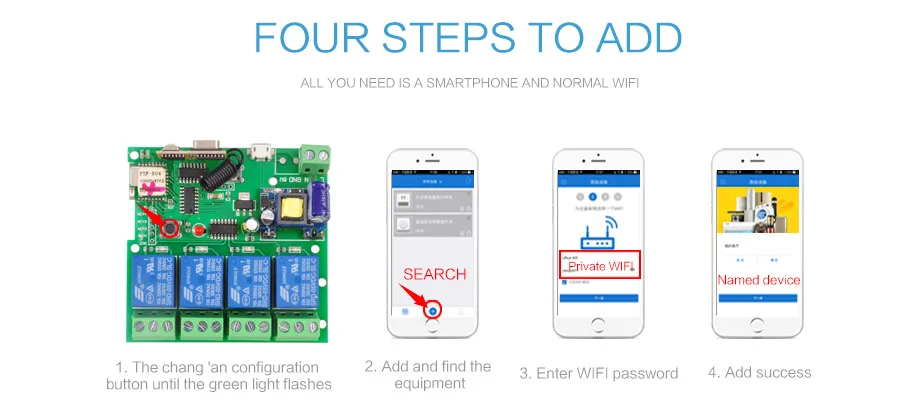

WIFI control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.
Features:
Option1.Two working voltage: USB 5V and DC 7V-32V

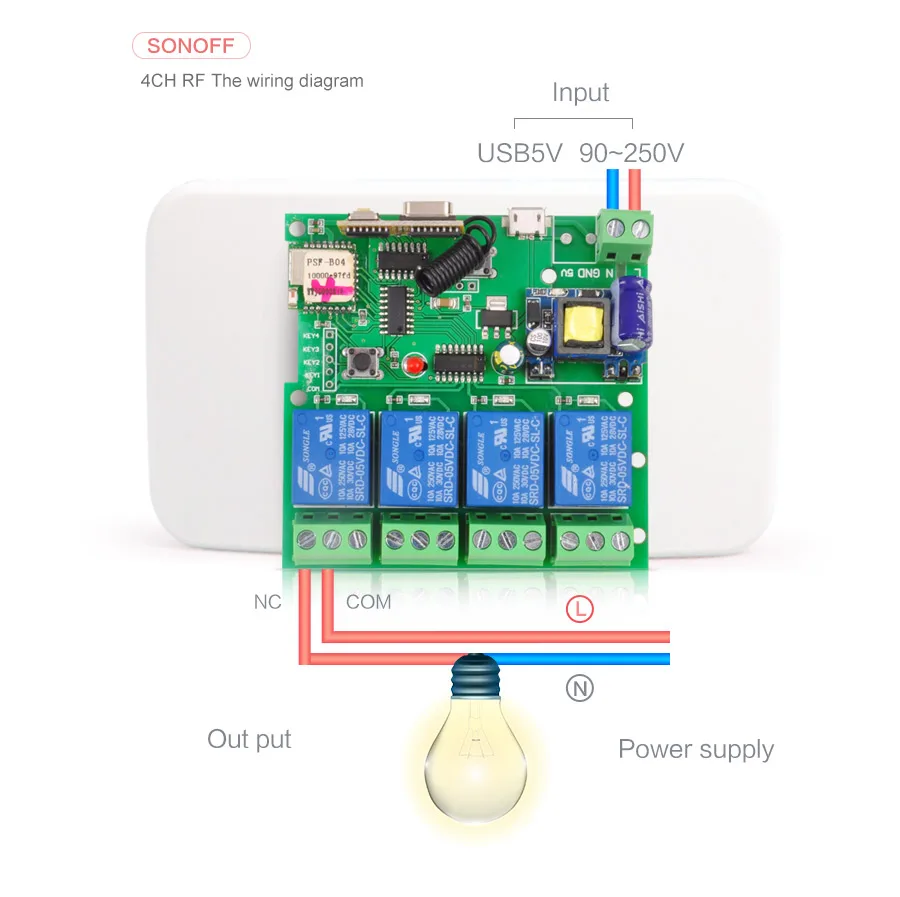

Option2.Two working voltage: USB 5V and AC90-250v

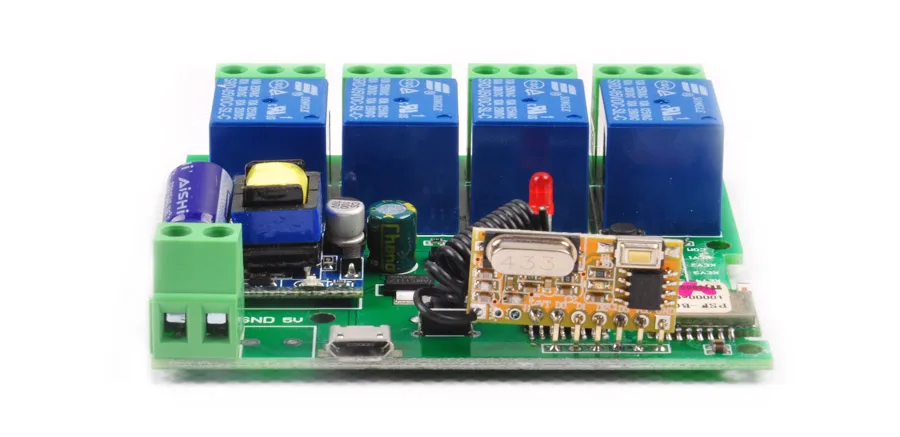

With signal instruction light and relay pull-on instruction light
Power < 1W, and quiescent current:80mA
Cutover current< 10A ,
10A Relay Model
The life of Relay Model is more than 1,000,000
Insulation resistance: 100M
Maximum pull-on time: 15mS
Maximum release time: 5mS
Working Temperature: -20 to 70degree
Working Humidity: 40% to 80% RH
Function:

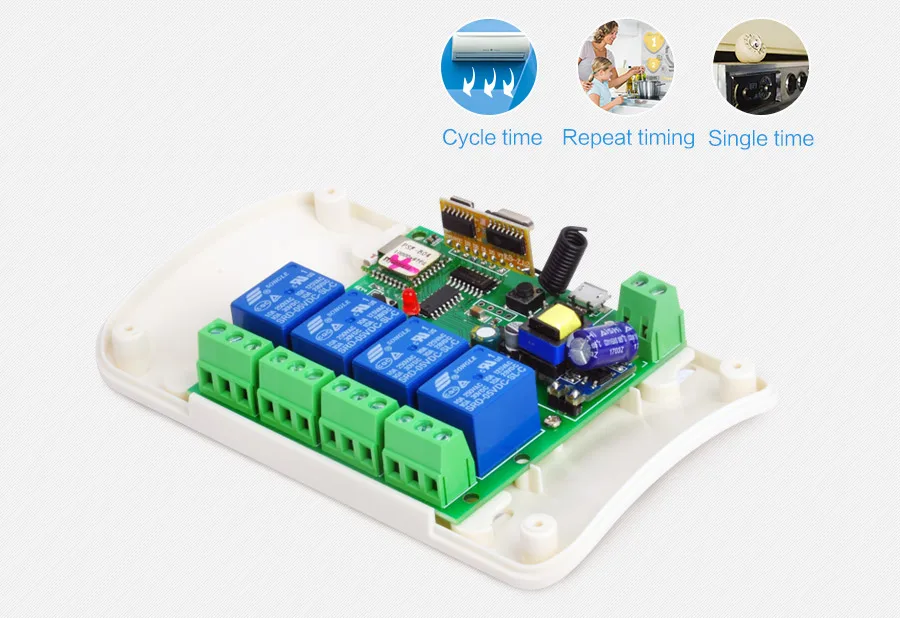

1. Default inching Function: Press the open relay by mobile phone, then cut off the pull-on immediately(default one second), it has the timing-share function at the same time.
2. Self-locking when press the inching and locking button with the light on.
Press open relay to pull-on, press close relay to cut off.

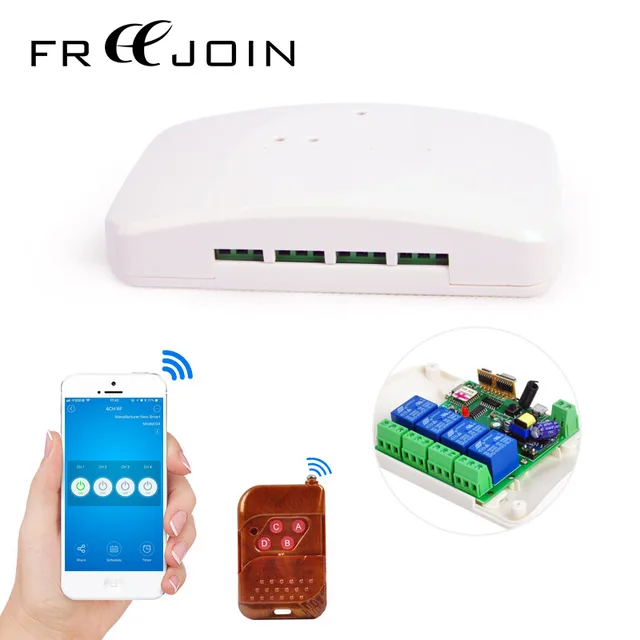

Package included:

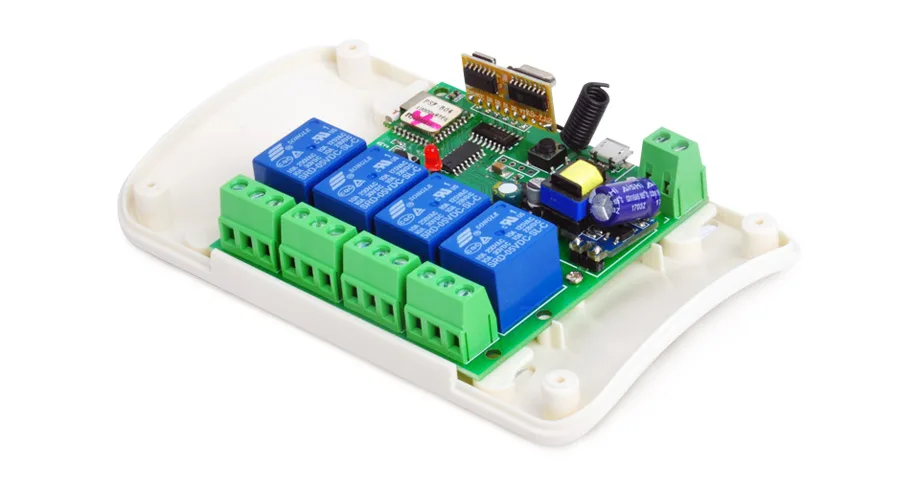

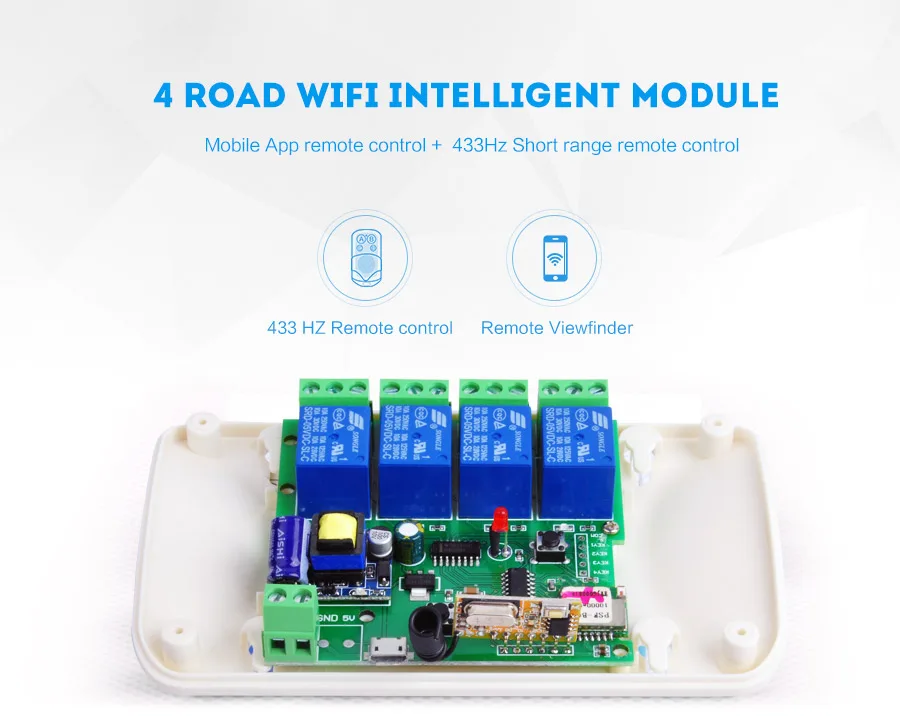

1 x Jog Inching Self-locking WIFI Wireless Smart Home Switch (With shell)
1 pcs remote control(433MHZ)
Product parameters
Unit Type:
piece
Package Weight:
0.16kg (0.35lb.)
Package Size:
5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)
