FERRJOIN DC5V 12v wifi switch wireless Relay module Smart home Automation for access control systemr Inching/Self-Locking

FERRJOIN DC5V 12v wifi switch wireless Relay module Smart home Automation for access control systemr Inching/Self-Locking

Product ID : 32874498102

Price : $9.45 - 12.60

Discount Price : $7.94 - 10.58

Item specifics

•
  Camera Equipped:
  No



•
  State of Assembly:
  Ready-to-Go



•
  Compatibility:
  All Compatible



•
  Brand Name:
  FREEJOIN


Product Description

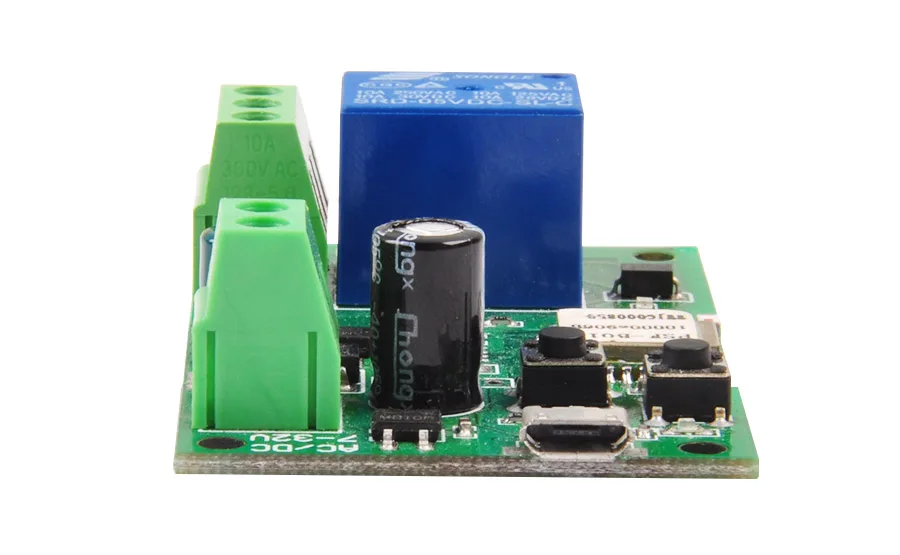

Wireless relay inching self-locking switch



Features and specifications:

Overview
This product is a wireless switch that supports inching/self-locking modes. Users can add the device to the APP eWeLink in order to remotely control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately. When in inching mode, customers can have two wiring ways to select:
• Turn on 1s and then auto-off
• Turn off 1s and then auto-on

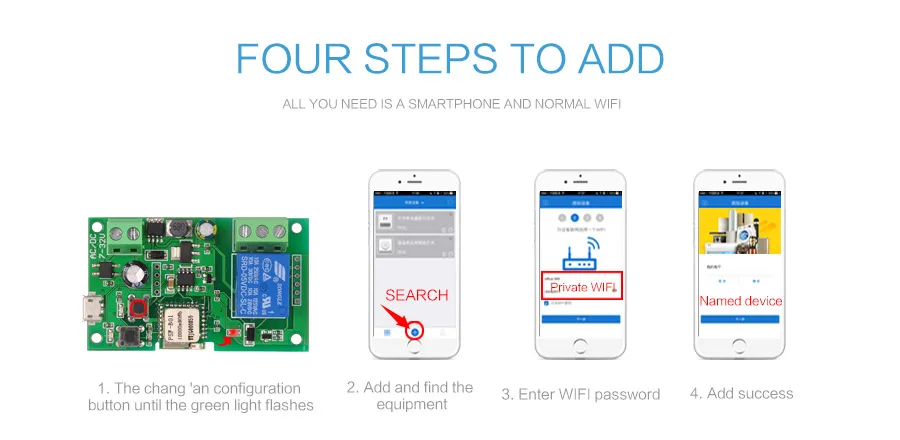

The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS. Supported functions include:
• Remote turn on/off
• Timing schedules
• Device sharing
• Group management
The self-lock/inching mode wireless switch has two input voltage supply specifications: 5 V and 5/12 V. Functions remain the same regardless of the selected specification.
5V, self-lock/inching, mode, wireless, switch

Reminder: Operating voltage at 90 - 250 V, please operate according to regulations,



There are two working modes for the product: Inching mode and self-locking mode. Users can press the self-lock/inching mode button to switch between these two modes.



When the module is switched to self-locking mode, users can turn on/off the connected appliance immediately. There are 2 wiring ways.



Self - lockIing - Inching - Mode - Wireless - Switch - 5V - self - locking - 1



self - locking - inching - wireless - switch - 5V - self - locking - 2

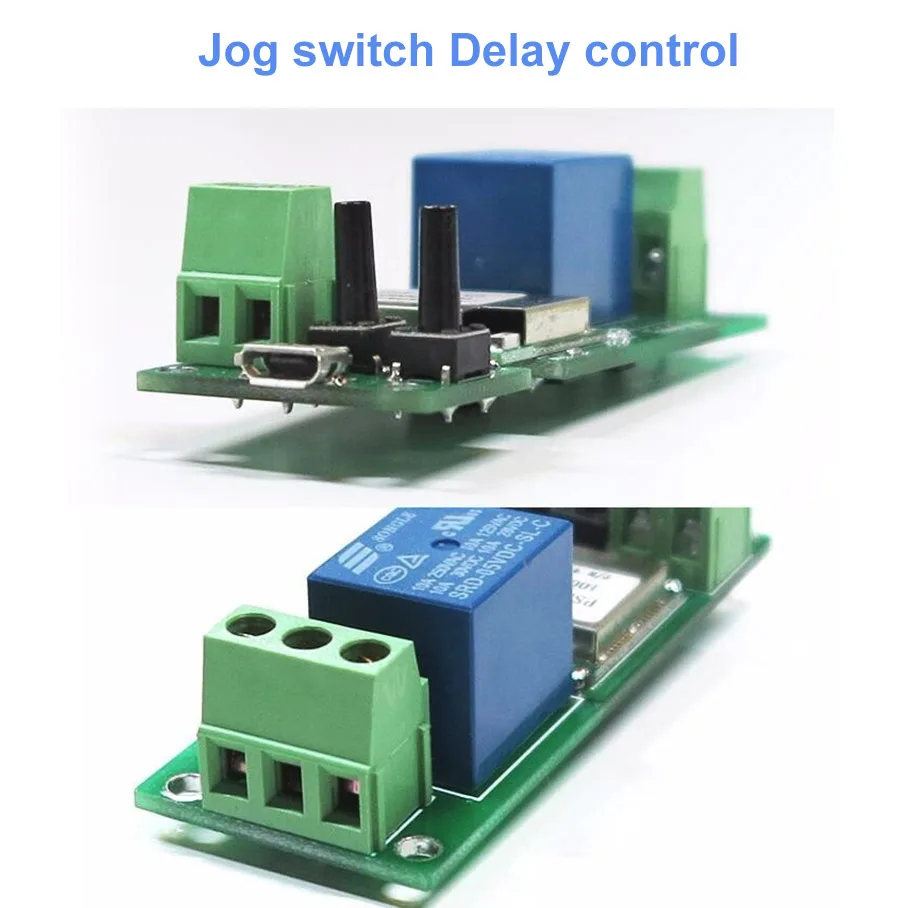

In inching mode, users can have two wiring ways to select:

• Turn on 1s and then auto-off

• Turn off 1s and then auto-on

When the module is switched to inching mode, users can press on/off toggle button to turn on or off connected device. There are 2 wiring ways.



self - locking - inching - wireless - switch - 5V - inching 1

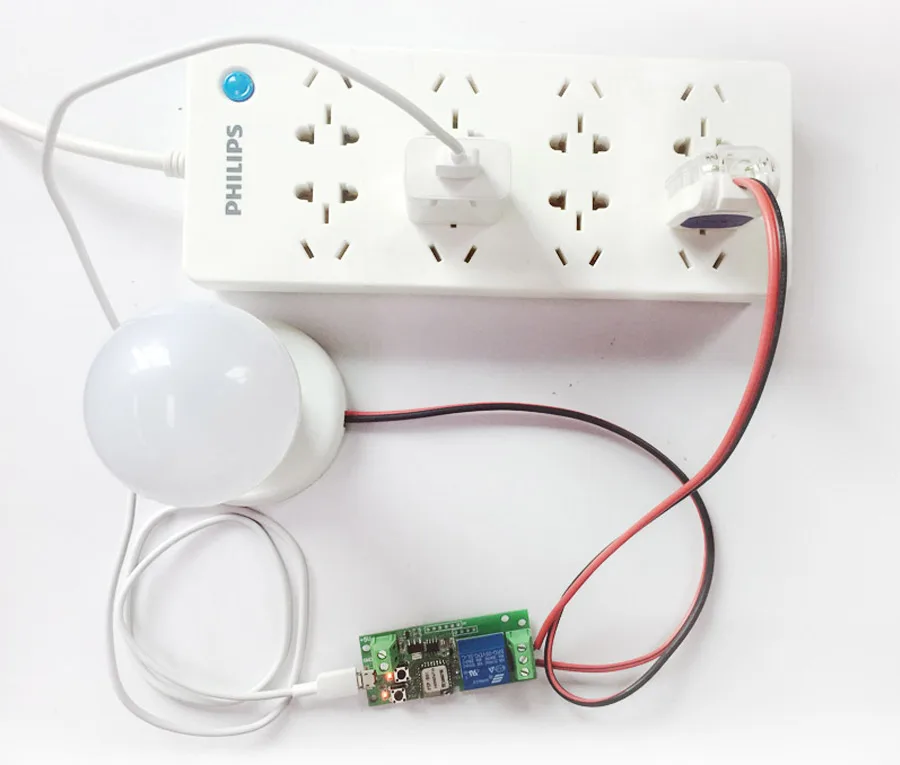

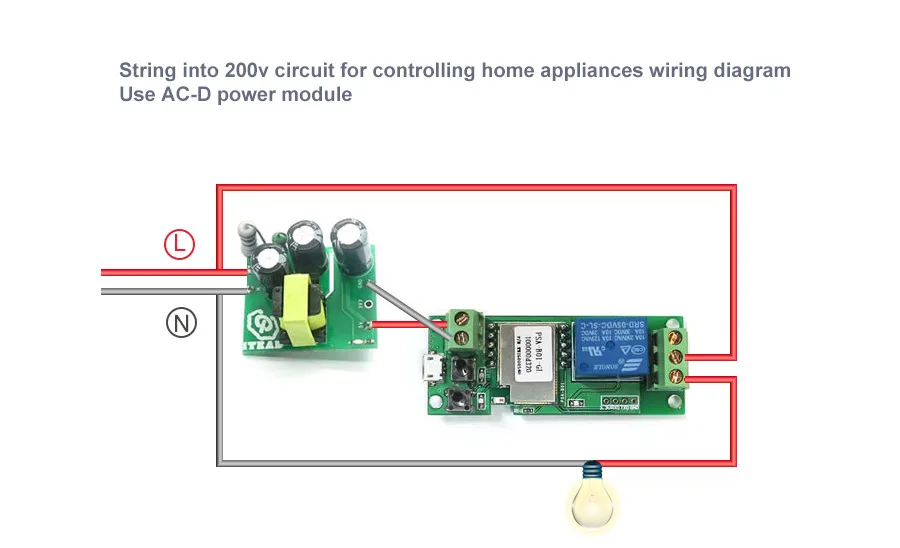

1) The first wiring way is to connect COM and NO with an appliance. In this way, when users press the setting button or use the APP to turn on, the connected appliance will be turned on for 1s and then auto turn off.



self - locking - inching - wireless - switch - 5V - inching 2

2) The second wiring way is to connect NC and COM with an appliance. In this way, when users press the setting button or use the APP to turn off, the connected appliance will be turned off for 1s and then auto turn on.



Specifications

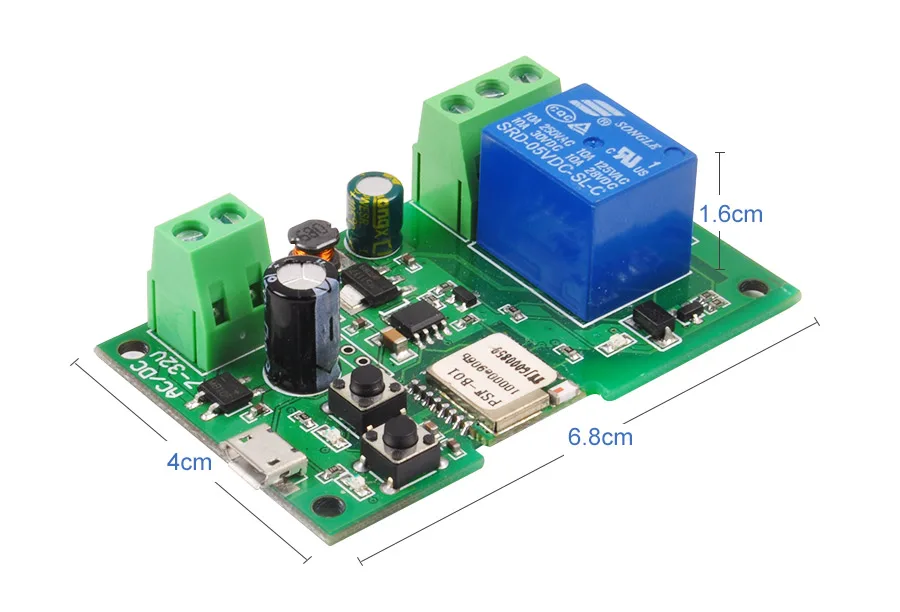

• Dimensions:70.5 x 27.4 x 23 mm

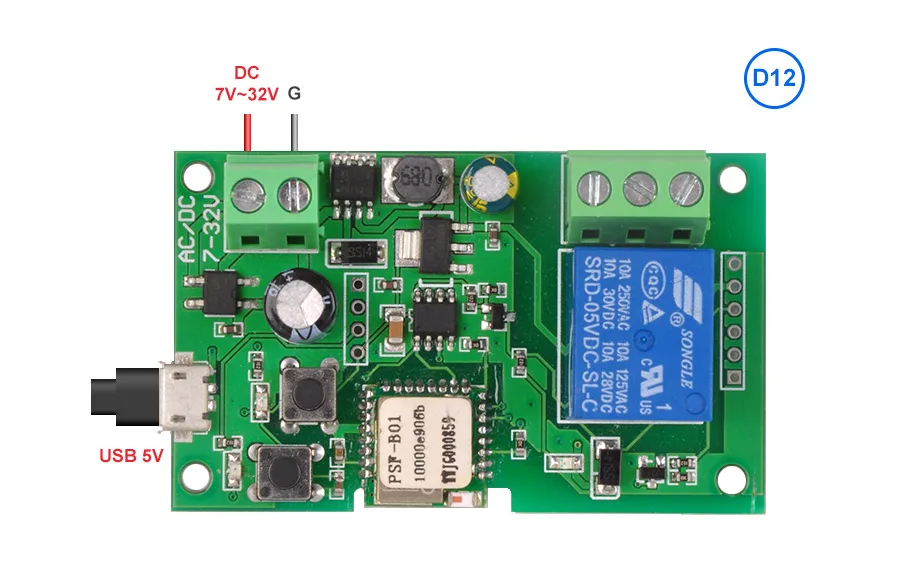

• Operating current: 5 V DC or 5/7 – 32 V DC

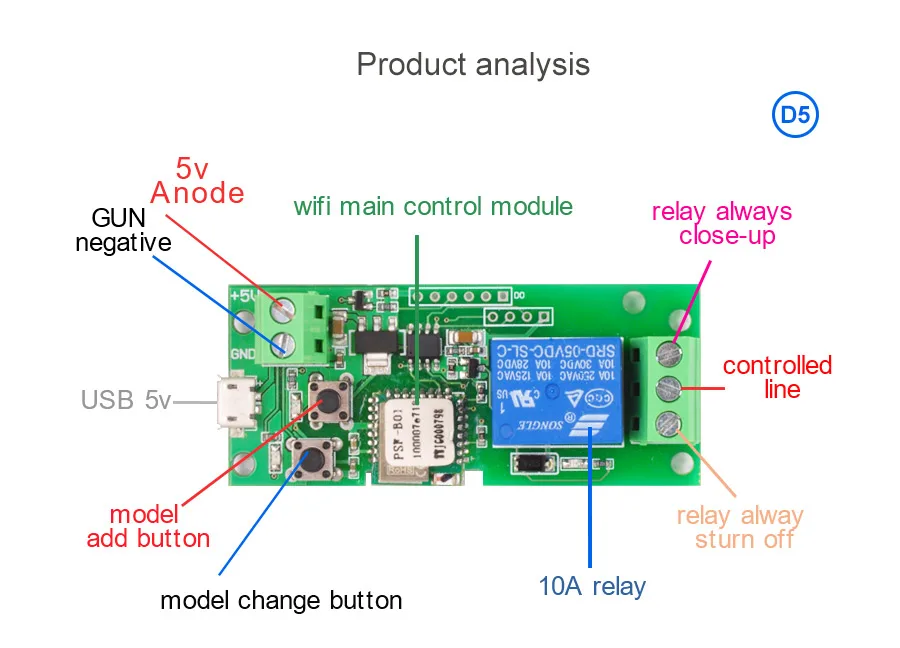

• LEDs: 3 LEDs which indicate working mode, WiFi status, relay on/off status respectively
• Two input interfaces
• Board consumption: <1 W
• Standby current: 80 mA
• Max input current: 10A
• Support to control different voltage ranges
• Relay lifespan: Over 1,000,000 times
• 100M electrical insulation resistance
• Electric shock voltage: 1000 V
• Relay maximum pull time: 15 ms
• Relay maximum release time: 5 ms
• Operating temperature: -40 to 70°C (-40 to 158°F)
• Operating humidity 40 to 80% RH

Applications:

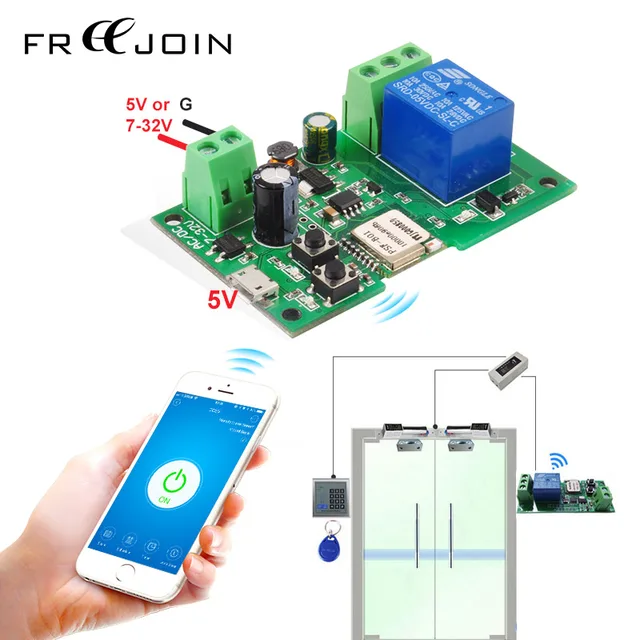

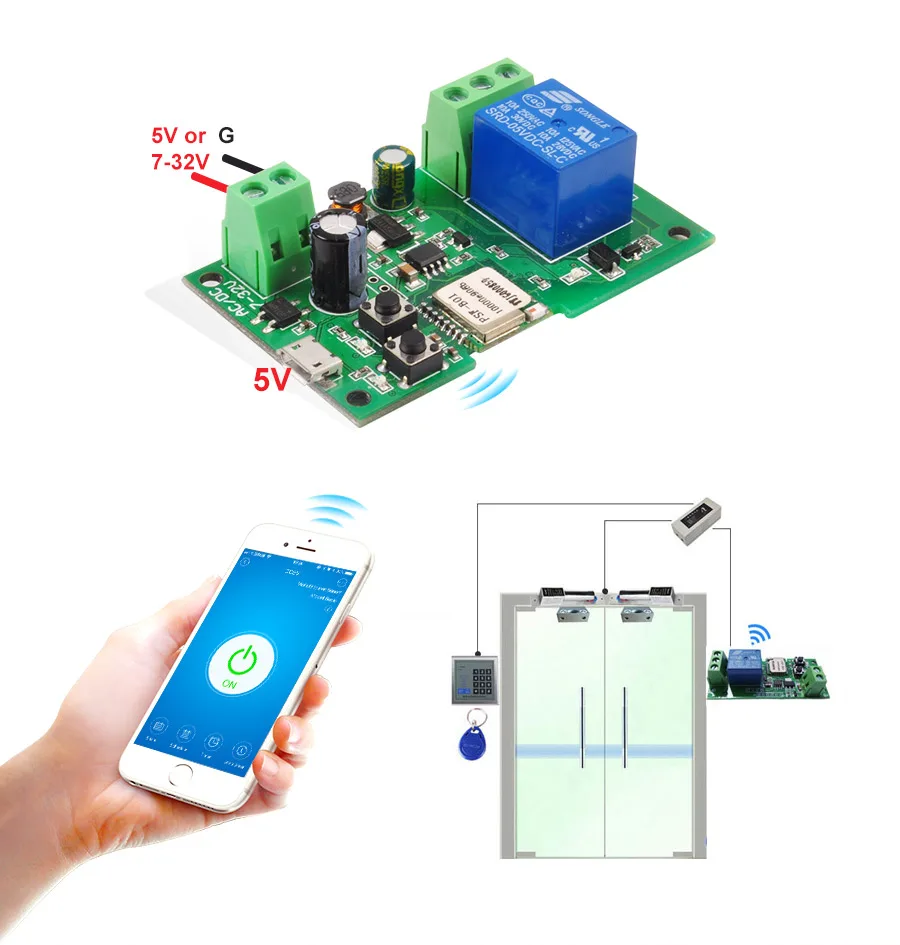

• The switch can be applied to access control, turn on PC, garage door, etc.
• Computer application
• Remote control computer boot
• USB port power supply conveniently
• Fully in line with the principle of mobile phone boot

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.04kg (0.09lb.)



•
  Package Size:
  5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)
