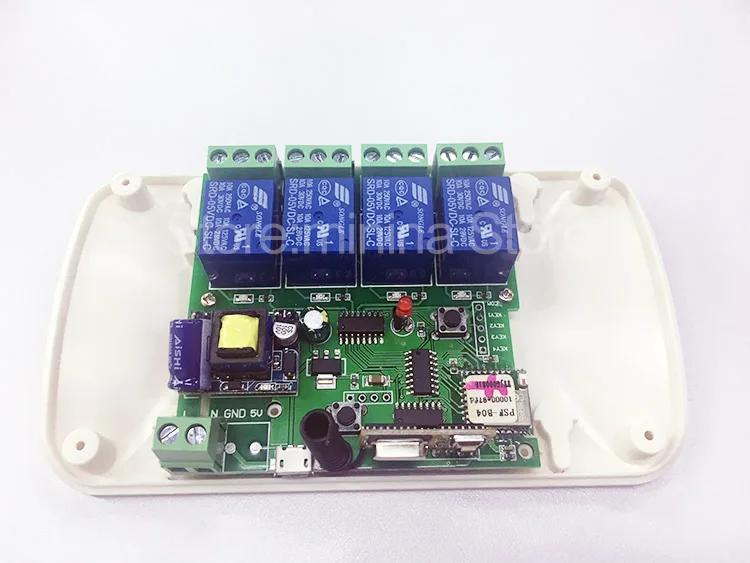

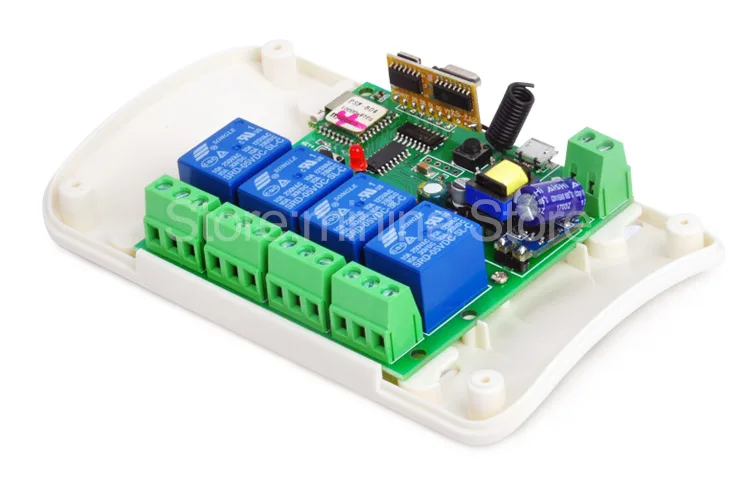

AC85-250V/7-32V Home Automation Modules Jog Inching WIFI Wireless Smart Switch Relay rf receive 433mhz Remote Control 4ch
Camera Equipped:
No
State of Assembly:
Ready-to-Go
Compatibility:
All Compatible
Brand Name:
FREEJOIN

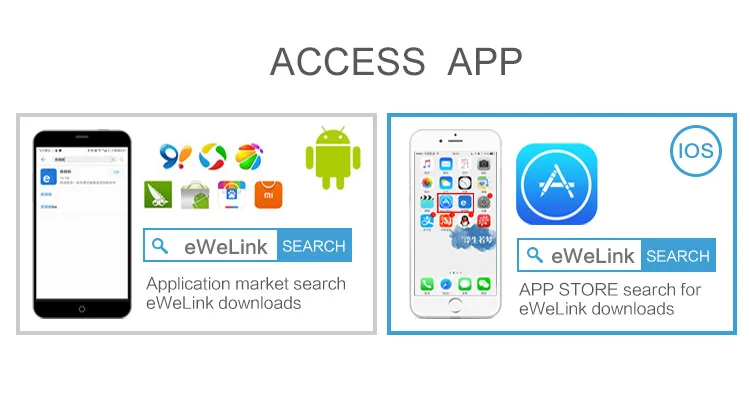

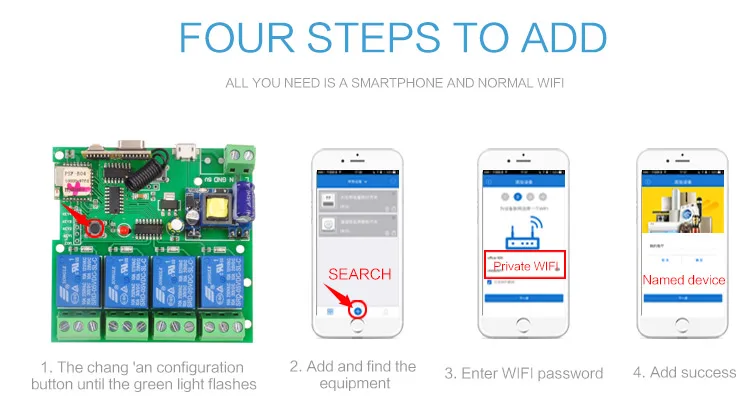

APP download
Adnroid APP: E-WeLink-2.1.13.apk
Support IOS cellphone also, you can search "e-welink" in App store to setup it;
Support IOS cellphone also, you can search "e-welink" in App store to setup it for English version;
WIFI control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.
Features:
Option1.Two working voltage: USB 5V and DC 7V-32V
Option2.Two working voltage: USB 5V and AC90-250v
With signal instruction light and relay pull-on instruction light
Power < 1W, and quiescent current:80mA
Cutover current< 10A ,
10A Relay Model
The life of Relay Model is more than 1,000,000
Insulation resistance: 100M
Maximum pull-on time: 15mS
Maximum release time: 5mS
Working Temperature: -20 to 70degree
Working Humidity: 40% to 80% RH

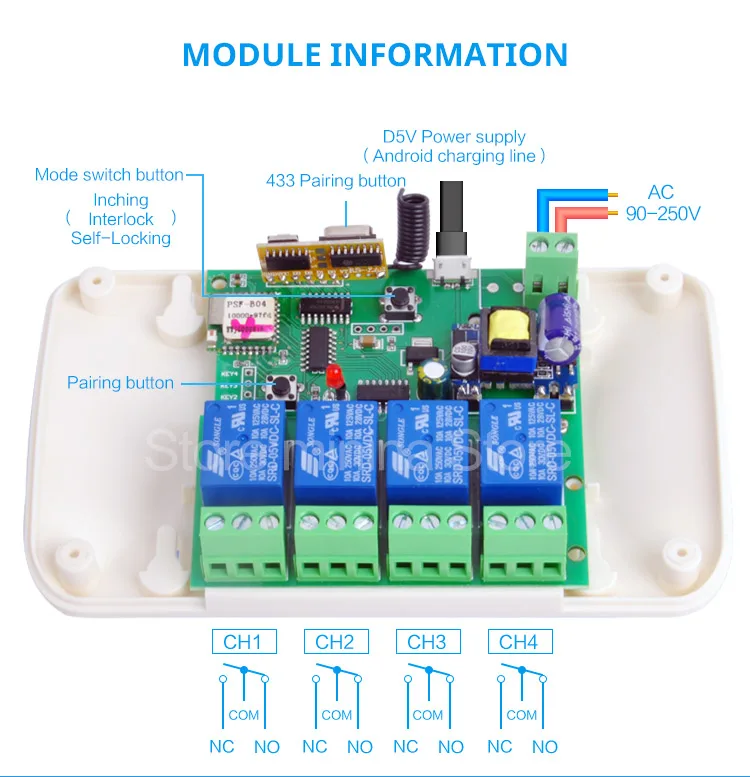

Function:
1. Default inching Function: Press the open relay by mobile phone, then cut off the pull-on immediately(default one second), it has the timing-share function at the same time.
2. Self-locking when press the inching and locking button with the light on.
Press open relay to pull-on, press close relay to cut off.
Package included:

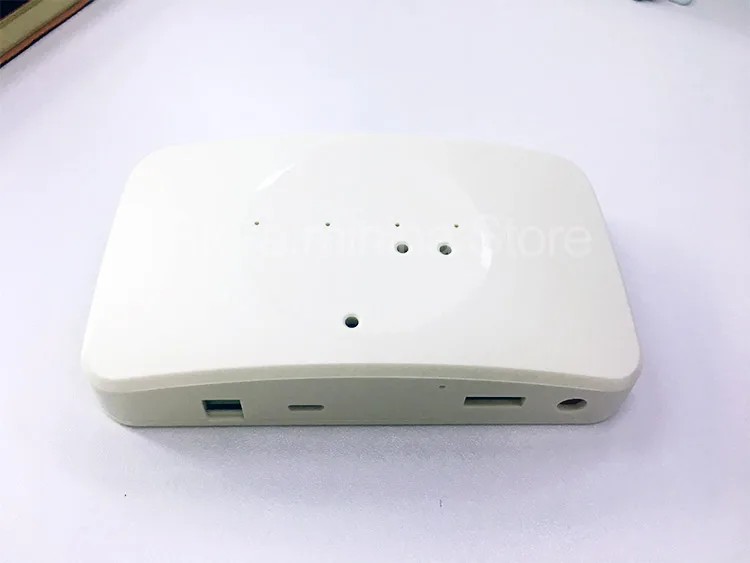

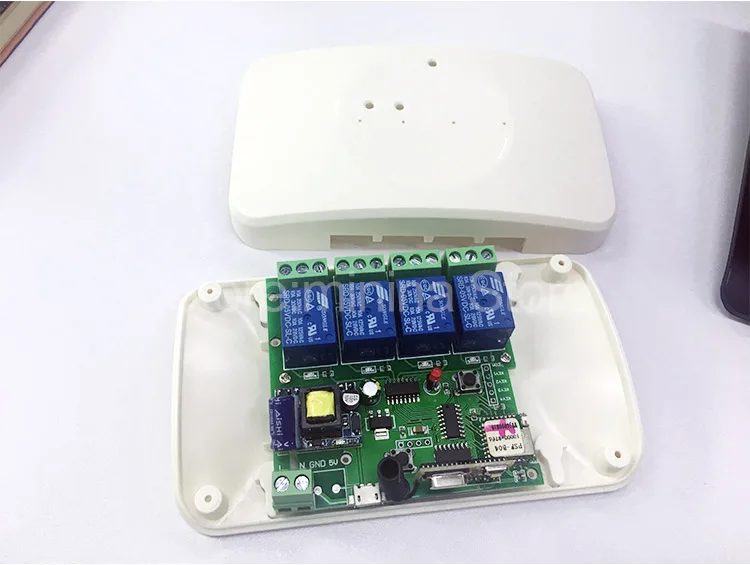

1 x Jog Inching Self-locking WIFI Wireless Smart Home Switch （With shell）
1 pcs remote control（433MHZ）(Battery not included)

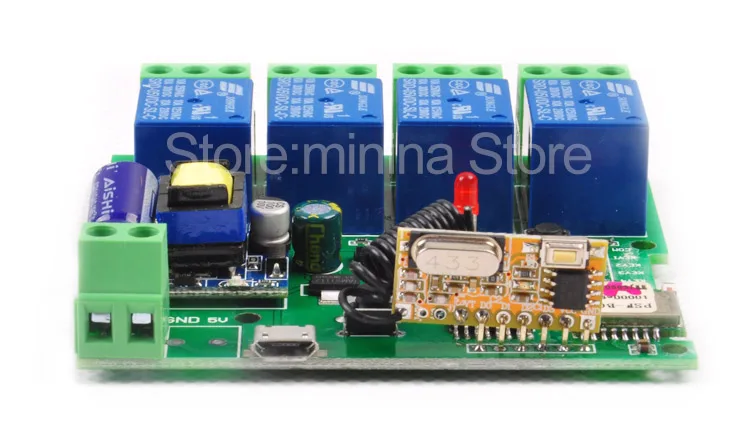

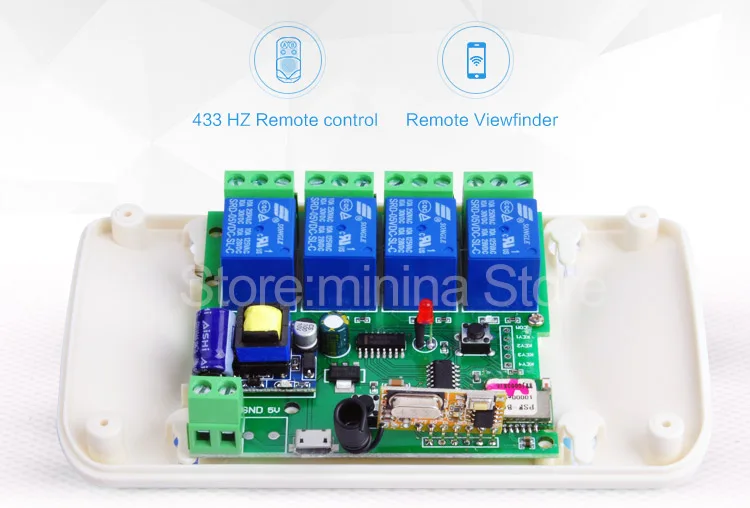

4 Road WiFi Intelligent Module

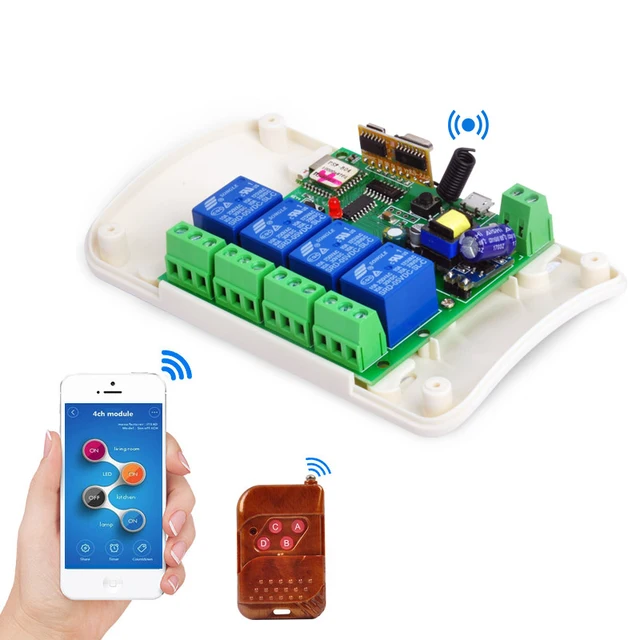

Mobile App remote control + 433Hz short range remote control
4 Channel control
Can control the shutter door, expansion door, electric curtain, fish tank.

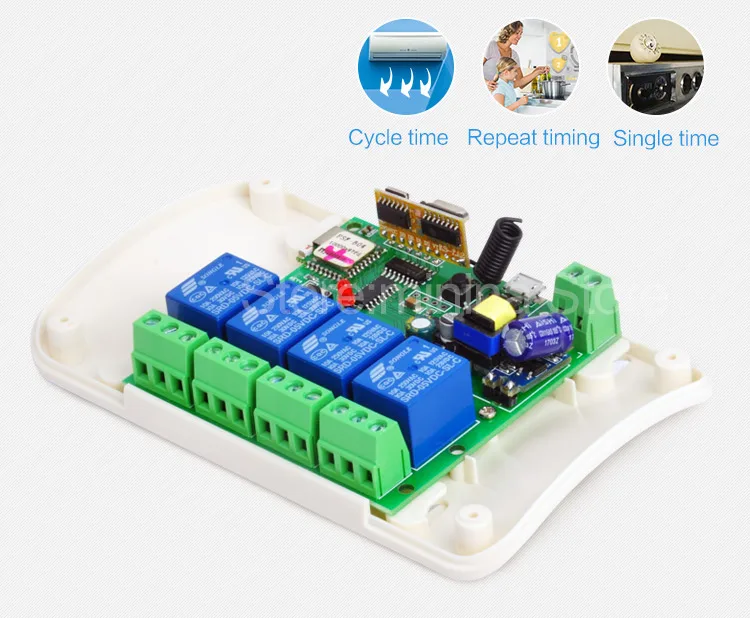

Three timing patterns
Time switch device supports up to 8 group, has a single, repeat and
delay the rapid timing model equipment can be set in offline
cases still perform good time switch, but need to keep
constant electrical equipment
Smart one-click sharing
Main account exclusive rights, but one key to share for the family use!
You can control your device with multiple mobile phones and never have to look for the remote again!

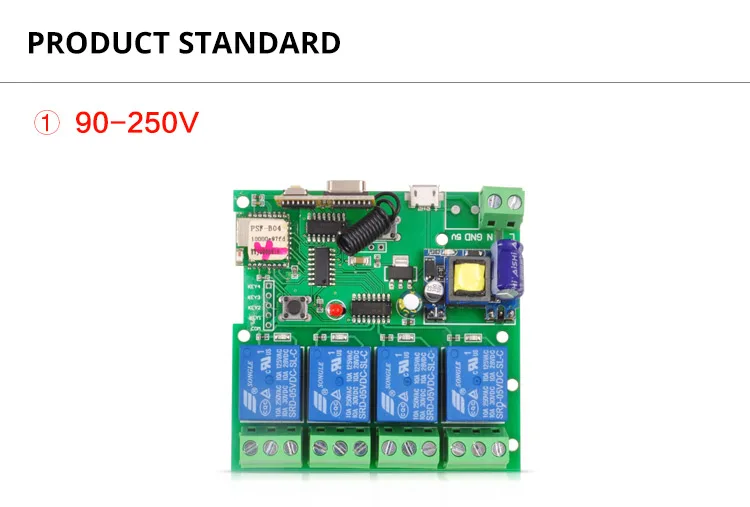

90~250V
Product parameters
The power supply voltage:5V AC : 90V~250V
Wireless standards: Wi-Fi 2.4GHz b / g / n
Security mechanism: WEP/WPA-PSK/WPA2-PSK
Working temperature: -20℃~70℃
Working humidity: ≤80%
Material: ABS
Interface: Common interface

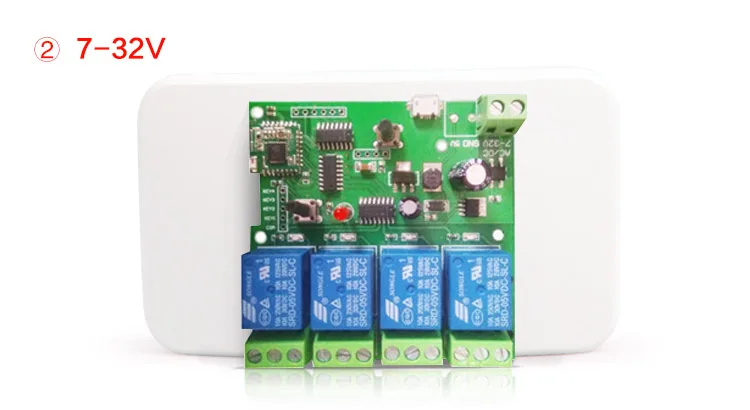

7~32V
Product parameters
The power supply voltage:5V DC : 7V~32V
Wireless standards: Wi-Fi 2.4GHz b / g / n
Security mechanism: WEP/WPA-PSK/WPA2-PSK
Working temperature: -20℃~70℃
Working humidity: ≤80%
Material: ABS
Interface: Common interface
[product name] : 4CH RF intelligent module
[control mode] : mobile APP
[transmission mode] : wifi/communication network
Single load: 10A/2200w
[4 road total load] : 16A/3500w
[temperature] : - 20 ℃ ~ 70 ℃
[remote distance] : infinity
[controllable line] : 4
[support system] : Android/ios
[working voltage] : USB5V , DC 5~32V / AC 90 ~ 250 v
[material] : flame retardant ABS shell
Unit Type:
piece
Package Weight:
0.16kg (0.35lb.)

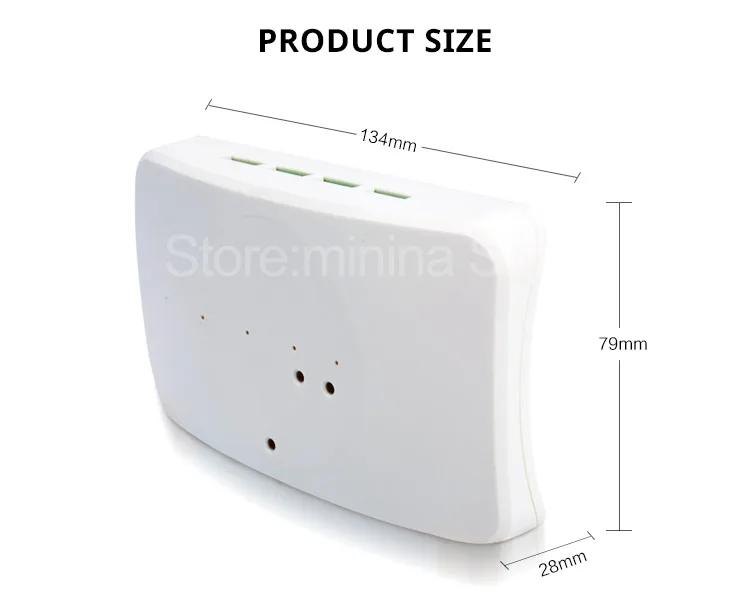

Package Size:
5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)
