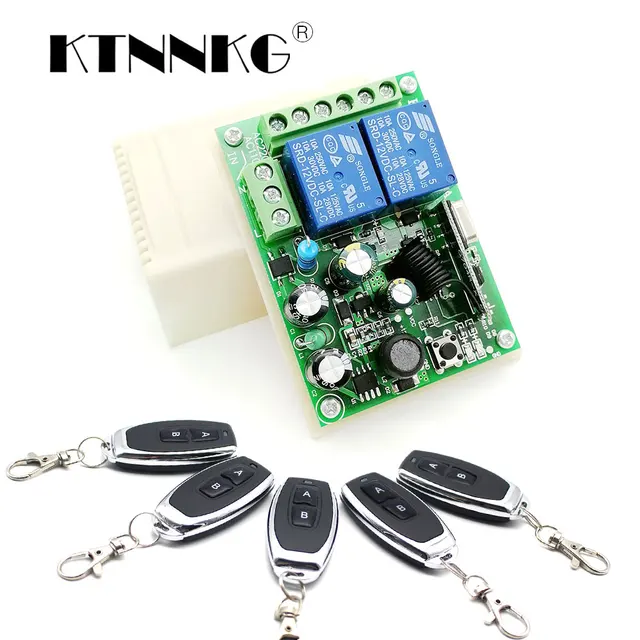

AC 110V 220V 433mhz Wireless Remote Switch Home Automation Module Controller 2CH Relay Receiver and 433Mhz RF Transmitter

AC 110V 220V 433mhz Wireless Remote Switch Home Automation Module Controller 2CH Relay Receiver and 433Mhz RF Transmitter

Product ID : 32885488135

Price : $16.97 - 26.79

Discount Price : $9.68

Item specifics

Model Number:
KG2202-A

Camera Equipped:
No

State of Assembly:
Ready-to-Go

Compatibility:
All Compatible

Brand Name:
KTNNKG

Working Voltage:
AC85-250V

Receiving sensitivity:
-105 dBm

Channel :
2 Channel

working mode:
Jog, self-locking, interlocking

work frequency:
433MHz

Load power:
Each channel 1000W

Battery Inside (Remote Controller):
Yes (lithium)

Remote control distance:
50-100m(wild)

Use 1:
Lighting,Electric Door,Automated curtains,Etc.

Use 2:
Switch,Speaker,Audio/Video Players, Camera / Video Camera,Computer

Product Description

Receiver Description:

1, the working voltage: AC85-250V

2, quiescent current: 8mA

3, operating frequency: 433MHz, other frequencies can be customized

4, load power: Each channel 1000W

5, receiving sensitivity: -105dbm

6, frequency deviation: ± 0.2MHz

7, coding method: learning type

8, working mode: jog, self-locking, interlocking

9, modulation method: ASK

10, remote control distance: 50-100M (wild)

11, PCBA size: 68mm*48mm*18mm

12, shell size: 76mm*55mm*30mm

Transmitter Description:

1,working voltage: DC6V , 2Pcs CR2016 Battery (Including)

2,working current:less than or equal to 10mA

3,operating frequency: 433MHz

4,transmit power: greater than or equal to 10mW

5,launch distance: 30-50m(wild)

6,frequency deviation: -0.2MHz ~ +0.2MHz

7,transmission rate: 50--60KHZ

8,modulation method: ASK

9,Oscillation resistance: 330K

10,working chip: Ev1527 (learning code remote control)

11,working temperature: -20 degrees ~+70 degrees

12,storage temperature: -10 degrees ~ +50 degrees

13,weight:28.5g

14.SIZE:60*28*13mm

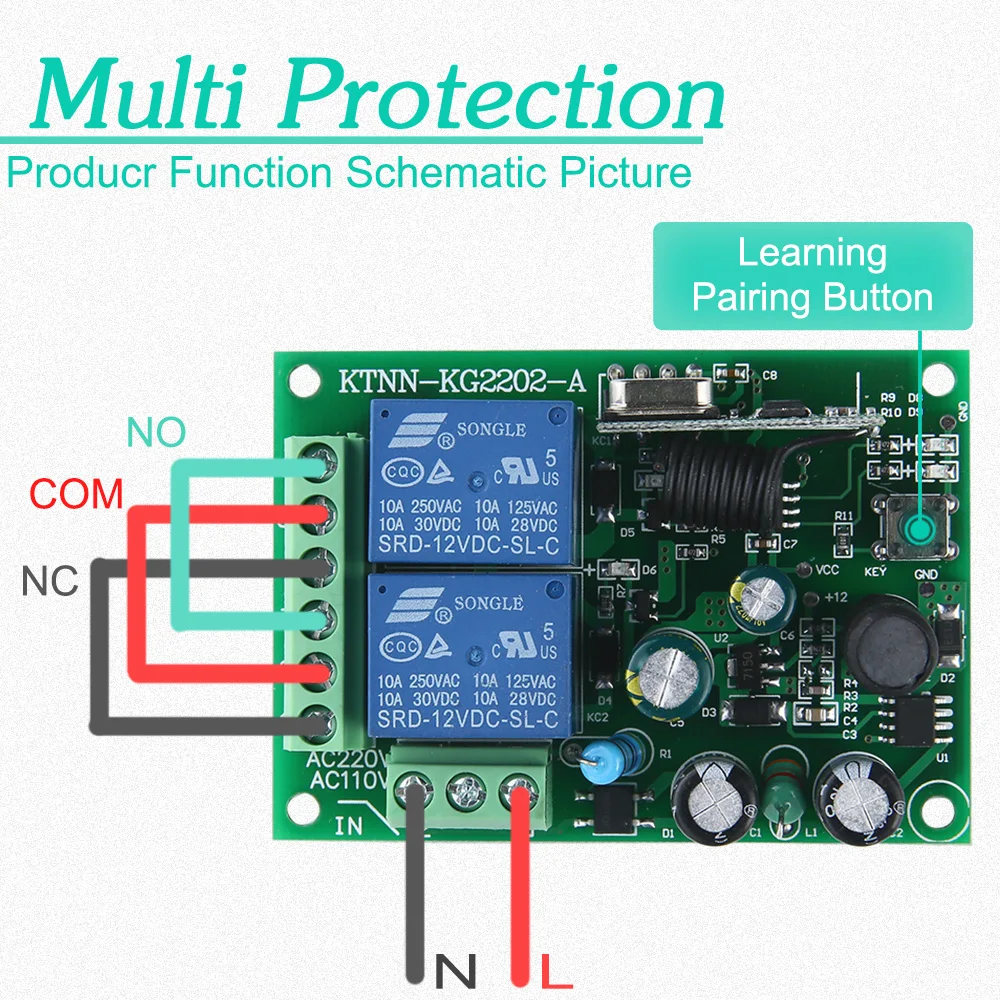

Learning Code (Note "Learning code" means "matching"):

1,
Jog/Momentary
function learning method:

Press the “Learning Pairing Button” on the receiving board once and the LED lights up. Release the “Learning Pairing Button” to enter the learning code mode. Press the remote control A button, the LED flashes 3 times, and then press the remote control B The key, the LED flashes 3 times, which means that the pairing is successful and the system automatically exits the learning mode. If there is no remote control signal after entering the learning code mode, the learning code mode will be automatically exited after 10 seconds.

2,
Self-locking/Toggle
function learning method:

Press the "" learning pairing button" on the receiver board twice, the LED lights up, release the "learning pairing button", enter the learning code mode, press the remote control A button, the LED flashes 3 times, and then press the remote control Button B, LED flashes 3 times, which means that the match is successful, the system automatically exits the learning mode.If you enter the learning code mode, there is no remote control signal, after 10 seconds, automatically exit the learning code mode.

3,
Interlock//Latched
function learning method:

Press the “Learning Pairing Button” on the receiving board three times, the LED lights up, release the “Learning Pairing Button”, enter the learning code mode, press the remote control A button, the LED flashes 3 times, and then press the remote control B The key, the LED flashes 3 times, means the match is successful, the system exits the learning mode automatically. If there is no remote control signal after entering the learning code mode, the learning code mode will be automatically exited after 10 seconds.

Clear data:

Press the "Learning Pairing Button" for 8 consecutive times. The LED indicator flashes 8 times. Then the clear code is completed and all remote control key codes learned before are cleared.

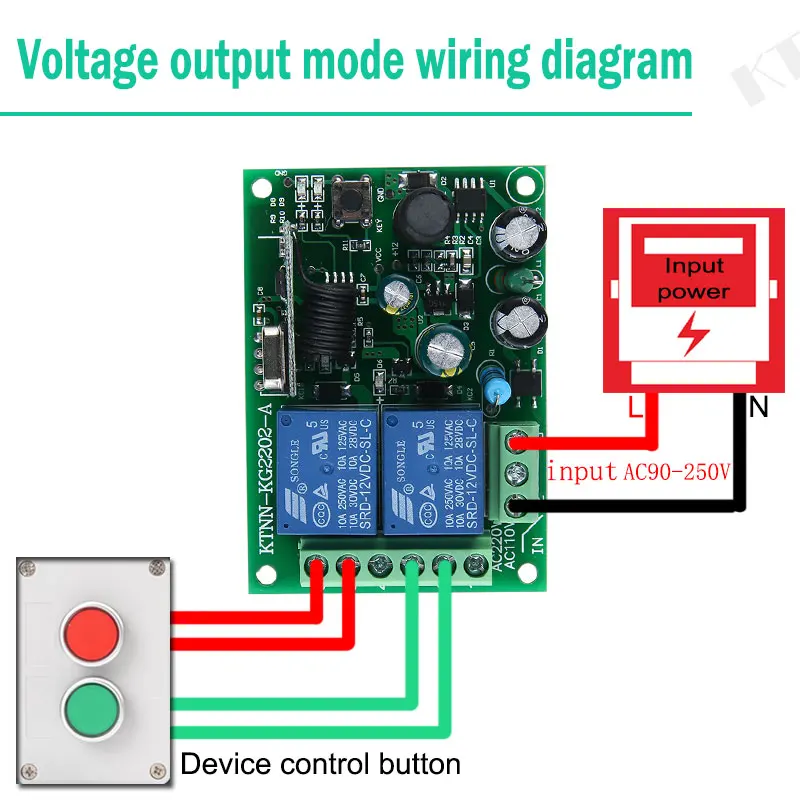

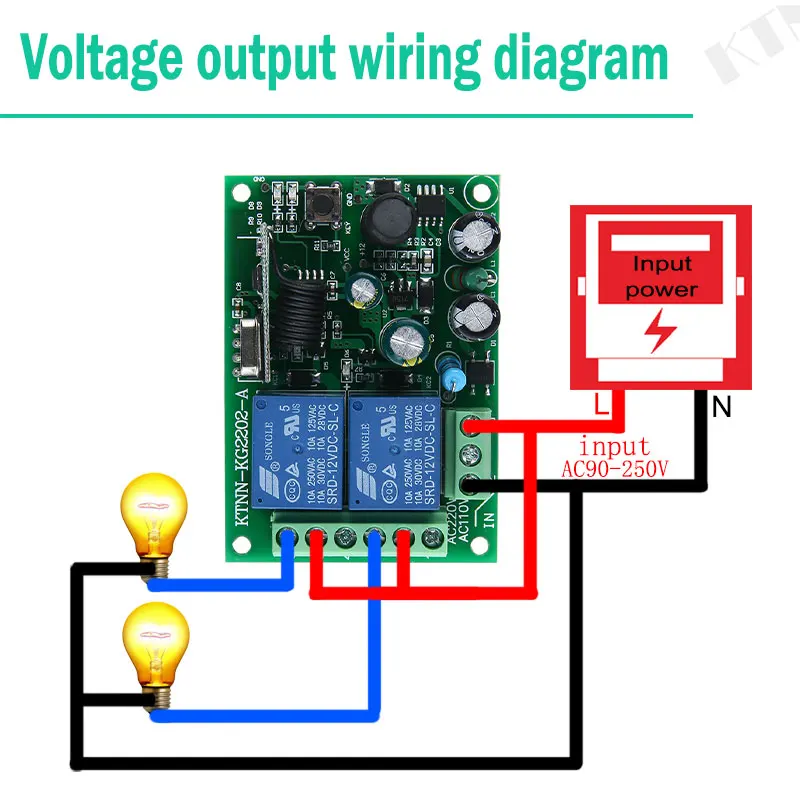

Output mode explanation:

1. Self-locking: Press the same remote control button, press, relay opens, press again, relay off.

2. Jog: press the remote control “A” key, the relay opens, release the remote control “A” key, the relay is off. If you keep pressing the "A" button on the remote control, the relay will remain on. When you release the remote control, the relay will turn off.

3, interlock: Press the remote control "A" button, the relay opens, press the remote control "B" button, the relay off.

Precautions:

1. Do not operate with electricity. Turn off the power and operate it. Check the power supply after use.

2. When the voltage of the remote controller is insufficient, please change the battery in time (when the remote controller battery voltage is insufficient, the general remote control distance becomes close).

3. When using wireless electronic products, care should be taken to avoid metal masks, large electronic devices, electromagnetic fields, etc., which have a strong source of interference, to avoid the remote control and the receiving distance being short or unable to work properly.

4. Do not use this electronic product abnormally. Unusual use will reduce product performance and longevity. In severe cases, damage to the product will also bring hidden dangers to your safety.
