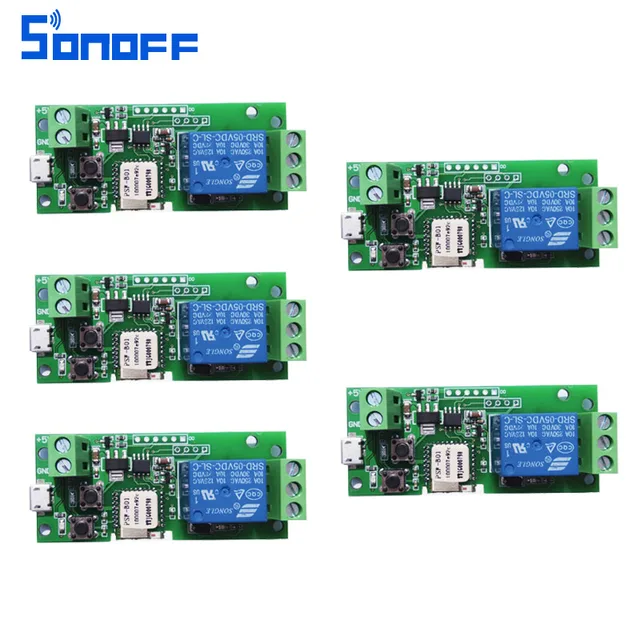

5PCS sonoff wifi switch module Inching Self Locking wireless Relay Smart home Automation for Computer access dc5V 1 channel
Brand Name:
SONOFF
Camera Equipped:
No
Model Number:
wifi switch Module
State of Assembly:
Almost Ready
Compatibility:
All Compatible
Input voltage:
DC 5V
Operating Humidity :
40% ~ 80% RH
the working temperature :
-40 degrees to +70 degrees
dimensions:
height 23mm long 70.5mmX wide 27.4mmX
Main chip:
WIFI module
Features2:
State feedback
Features 3:
1 second delay
Applicable scope:
Computer remote switch/ Access control/Water pump/ curtain
Type:
Smart Home Module
There are two working modes for the product: inching mode and self-locking mode. Users can press the self-lock/inching mode button to switch between these two modes.
When the module is switched to self-locking mode, users can turn on/off the connected appliance instantly. There are two wiring way.
The first wiring way is to connect COM and NO with an appliance. In this way, when users press the setting button or use the APP to turn on, connected appliance will be turned on for 1s and then auto turned off.
The second wiring way is to connect NC and COM with an appliance. In this way, when users press the setting button or use the APP to turn off, connected appliance will be turned off for 1s and then auto turned on.
New device for makers who want to build their own smart home system.
Sonoff is a universal swich for your smart home system to remotely or automatically turn on / off appliances. To work with the Sonoff SC, you will dig more possibilities. Learn more about the Sonoff SC HERE.
Overview
This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP eWeLink in order to remotely control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately. When in inching mode, customers can have two wiring ways to select:
Turn on 1s and then auto-off
Turn off 1s and then auto-on.
The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS. Supported functions include:
Remote turn on/off
Timing Schedules
Device Sharing
Group Management
The self-lock/inching mode wireless switch has two input voltage supply specifications: 5V and 5V/12V. No matter which specification is selected, the functions remain the same.
5V, self-lock/inching, mode, wireless, switch:
Specification
Dimensions:70.5mm*27.4mm*23mm
Operating current: 5V DC
LEDs: 3 LEDs which indicate working mode, wifi status, relay on/off status respectively.
Two input interfaces
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Supports to control different voltage ranges
Relay lifespan: more than one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH
Application
The switch can be applied to access control, turn on PC, garage door, etc.
Computer application
Remote control computer boot
USB port power supply more convenient
Fully in line with the principle of mobile phone boot
Supported languages: Chinese, Polish, Danish, English, Italian, Russian
There are two working modes for the product: inching mode and self-locking mode. Users can press the self-lock/inching mode button to switch between these two modes.
When the module is switched to self-locking mode, users can turn on/off the connected appliance instantly. There are two wiring way.
When the module is switched to inching mode, users can press on/off toggle button to turn on or off connected device. There are two kinds of wiring way.
The first wiring way is to connect COM and NO with an appliance. In this way, when users press the setting button or use the APP to turn on, connected appliance will be turned on for 1s and then auto turned off.
The second wiring way is to connect NC and COM with an appliance. In this way, when users press the setting button or use the APP to turn off, connected appliance will be turned off for 1s and then auto turned on.
LED Indicator:
There are 3 LEDs, the LED beside self-lock/inching mode button indicates the working mode(on: self-locking mode, off: inching mode).
The LED beside on/off setting button indicates WIFI status(enter pairing status: long press the setting button until LED blinks fast).
And the one below the relay indicates relay on or off status(on: turn on connected device, off: turn off connected device).
Add device to eWeLink:
Long press the setting button until the LED beside on/off setting button begins fast blinking.
Android: Add Device->select pairing method ->enter WiFi name and password->pairing and register->name device
iOS: go to phone setting->WiFi-> select the WiFi starts with ITEAD-********, enter default password to connect:12345678-> go to eWeLink->Add device->->select pairing method->enter WiFi name and password->pairing and register->name device
For more details about the APP eWeLink, please read:
Unit Type:
lot (5 pieces/lot)
Package Weight:
0.12kg (0.26lb.)
Package Size:
5cm x 5cm x 10cm (1.97in x 1.97in x 3.94in)
