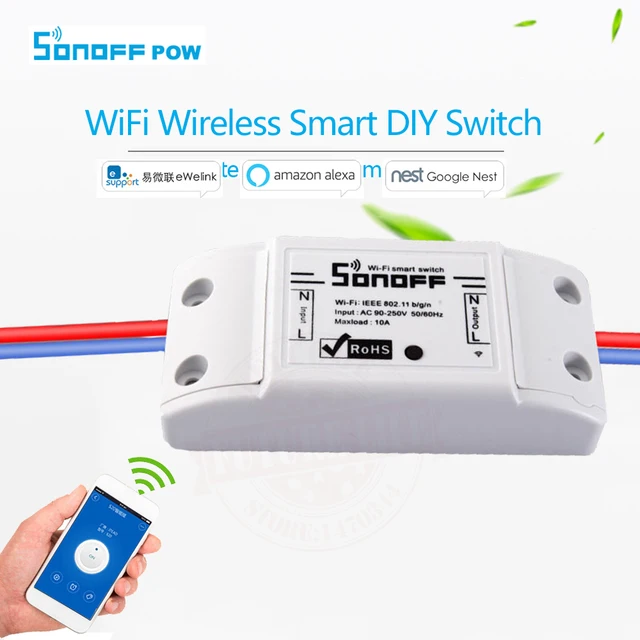

5pcs Itead Sonoff Wireless Switch Universal Smart Home Automation Module Timer Diy Wifi Switch Remote Controller via IOS Android

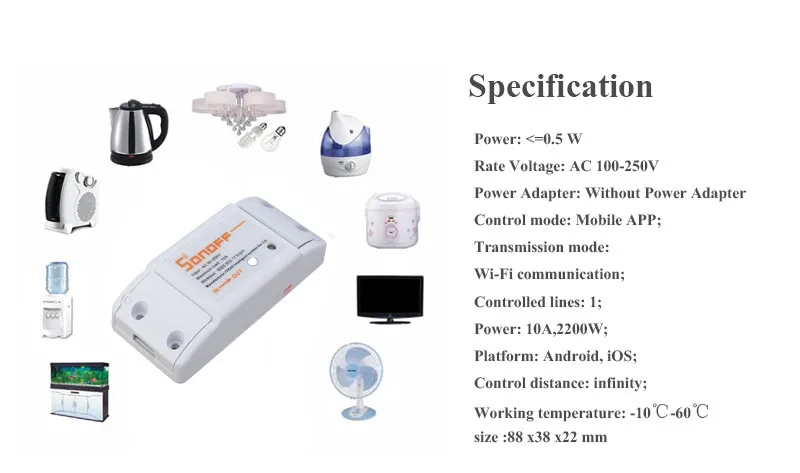

Brand Name:
SONOFF
Camera Equipped:
No
State of Assembly:
Ready-to-Go
Model Number:
Sonoff
Compatibility:
All Compatible
Transmission mode:
Wi-Fi communication
Power:
10A/2200W
Work voltage:
AC100-250V50/60HZ
Control channel:
1 channel
Maximum power:
2200w
Wireless Standard:
IEEE 802.11 b/g/n
Scope:
Ceiling lamps, lighting, fans, drinking fountains, sockets
Timer function:
yes
Support app:
eWeLink
Wireless Frequency:
2.4Ghz

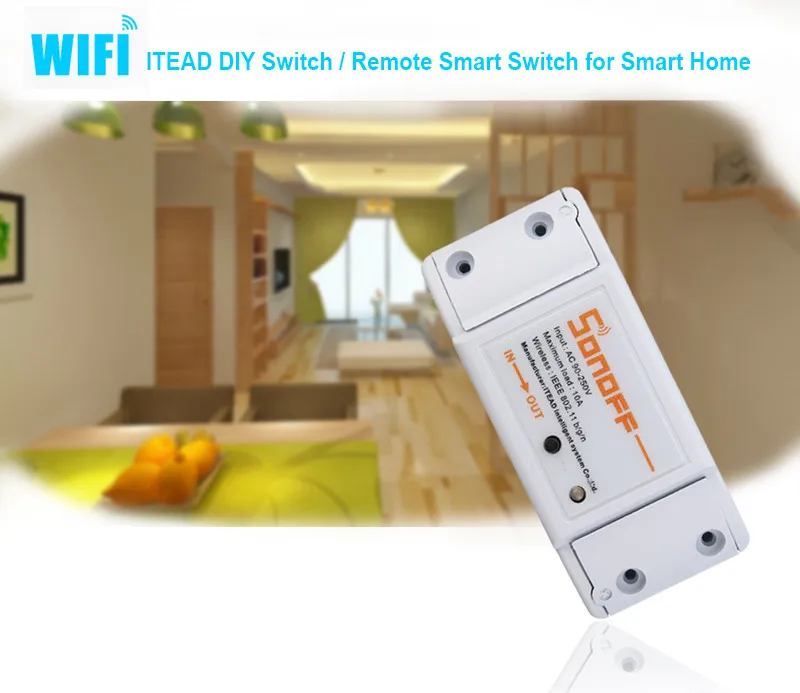

Itead Sonoff Wireless Switch Universal Smart Home Automation Module Timer Diy Wifi Switch Remote Controller Via IOS Android
Overview

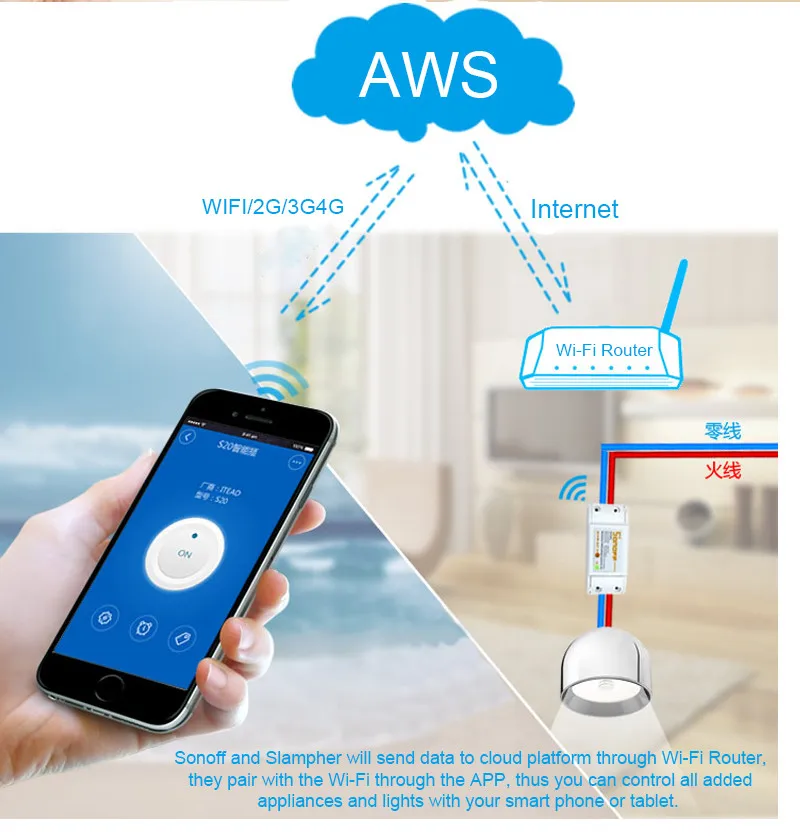

1.Sonoff is a low-cost, affordable device that help you to step into the amazing smart home.It is a WiFi wireless switch that can connect to appliance of different types and brands. Sonoff sends data to cloud platform through the WiFi Router, which enables you to remotely control all appliances with the App eWeLink on your smart phone.
2.Sonoff makes all your home appliances smart, as long as your phone has network you can remotely turn on or turn off your appliances from anywhere at any time. And by setting timing schedules for your appliances, you can maintain a carefree life.
3.The App eWeLink enables you to control your devices easily. You can download the iOS version in App Store and the Android version in Google Play.There is a key to share the function and you can control one switch with your family members or friends at the same time by sonoff switch.

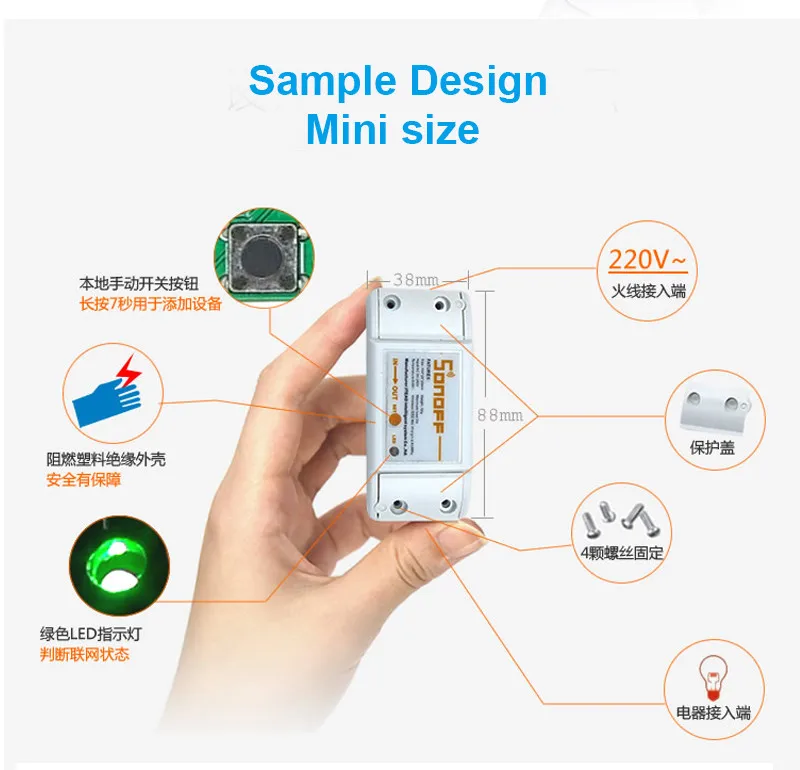

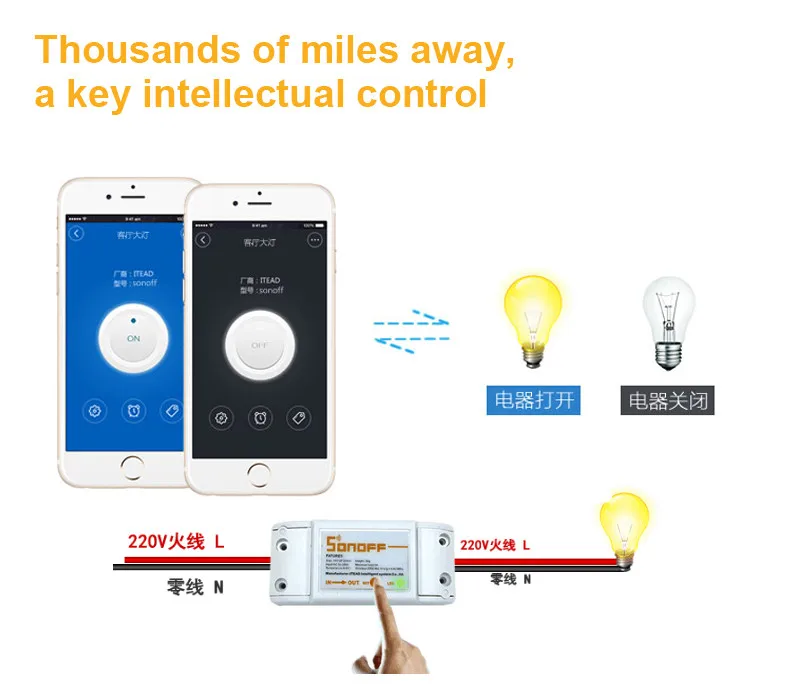

To install Sonoff, pay attention to the IN and Out mark on Sonoff.
1. Switch off electricity source

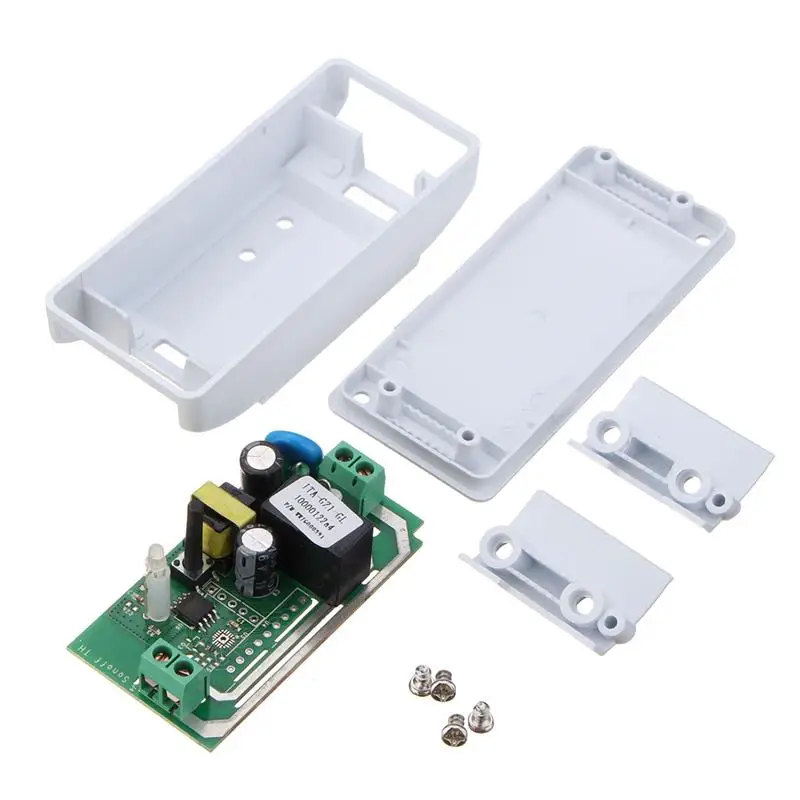

2. Open the two yellow shells at both ends
3. Connect the two electricity source cables(Live and Neutral) to the 2 ports with “IN” mark, one cable for one port, and there’s no limitation for which port to connect
4. Connect the two appliance cables(Live and Neutral) to the 2 ports with “OUT” mark, one cable for one port, and there’s no limitation for which port to connect
5. Cover the shells and screw firmly
if you don\'t know how to install the item and use,please contact us anytime.
Note: If you can not install and set it,please download the user guide when you can not set it right.You can contact us anytime when you have a problem.
Unit Type:
lot (5 pieces/lot)
Package Weight:
0.75kg (1.65lb.)
Package Size:
10cm x 5cm x 5cm (3.94in x 1.97in x 1.97in)
