5pcs DC 5V 32V Sonoff WiFi Smart Switch diy Relay Module Smart Home via ios Android phone remote control Automation Modules

5pcs DC 5V 32V Sonoff WiFi Smart Switch diy Relay Module Smart Home via ios Android phone remote control Automation Modules

Product ID : 32808270516

Price : $55.90

Discount Price : $46.40

Item specifics

•
  Brand Name:
  SONOFF



•
  Camera Equipped:
  No



•
  Model Number:
  sonoff DC 5V 12V



•
  State of Assembly:
  Almost Ready



•
  Compatibility:
  All Compatible



•
  Input voltage:
  DC 5V / DC7-32V



•
  Operating Humidity:
  40% ~ 80% RH



•
  Working temperature :
  -40 degrees to +70 degrees



•
  Main chip:
  WIFI module



•
  Features1:
  remote control and 1 second delay



•
  Features2:
  State feedback and timing



•
  Features3:
  Power consumption is less than 1 w static current 80 ma



•
  Features4:
  Mobile phone remote control, many people share



•
  size:
  L70*w40*g30(mm)


Product Description

Overview

This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP eWeLink in order to remotely control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately. When in inching mode, customers can have two wiring ways to select:
Turn on 1s and then auto-off
Turn off 1s and then auto-on.
The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS. Supported functions include:
Remote turn on/off

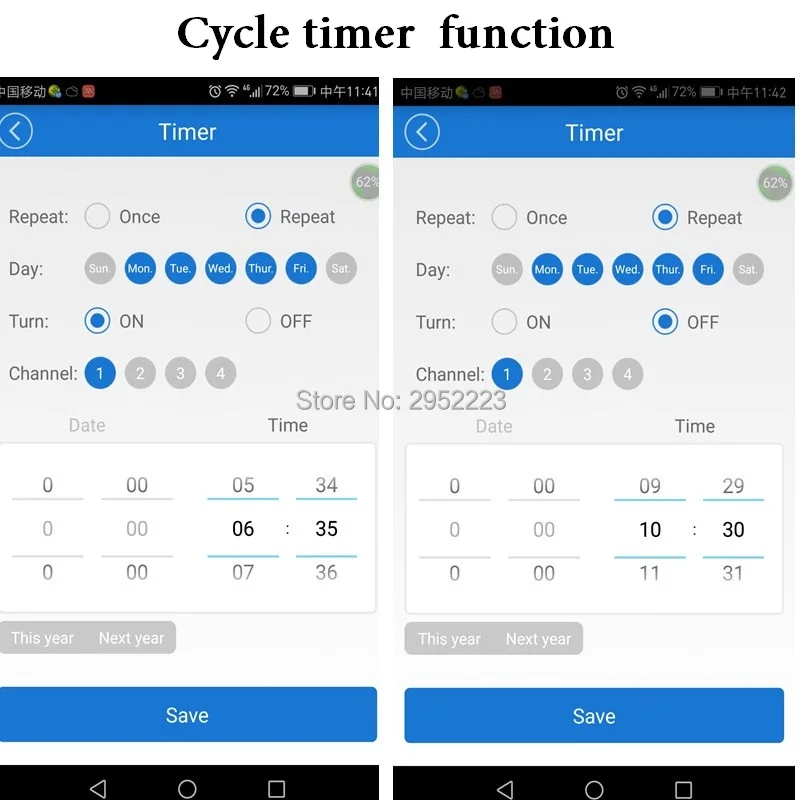

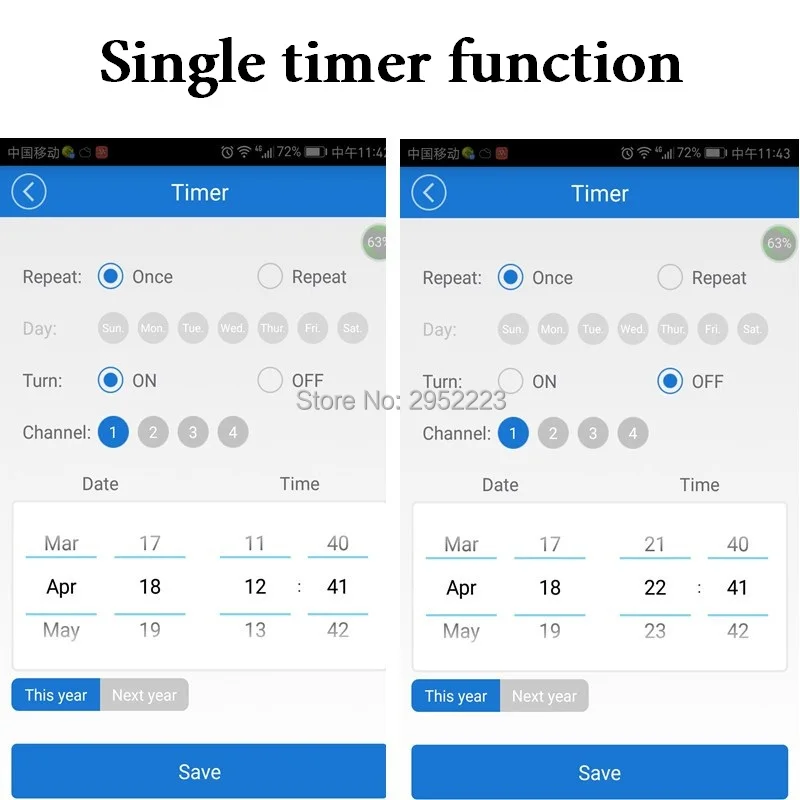

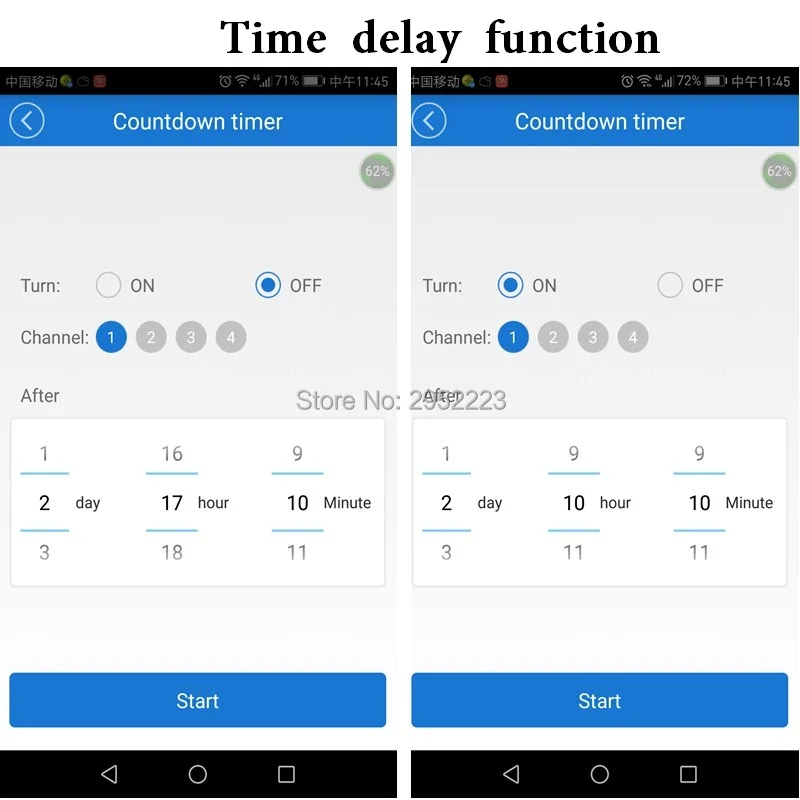

Timing Schedules
Device Sharing
Group Management
The self-lock/inching mode wireless switch has two input voltage supply specifications: 5V and 5V/12V. No matter which specification is selected, the functions remain the same.

5V self-lock/inching mode wireless switch：



Specification

Dimensions:70.5mm*27.4mm*23mm

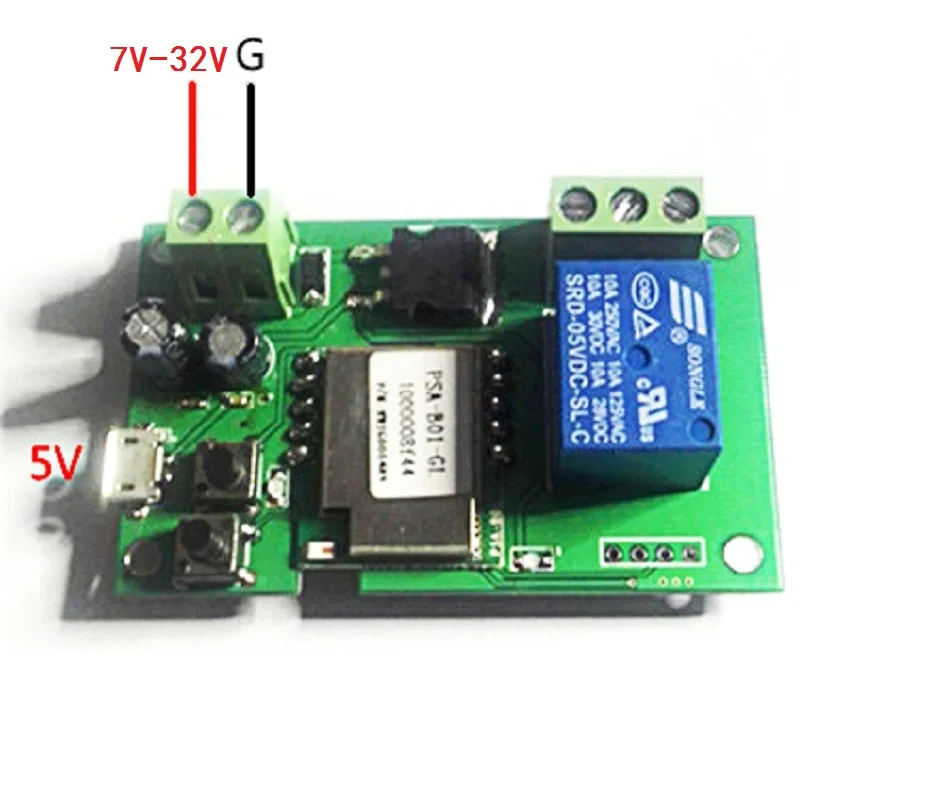

Operating current: 5V DC or 7-32V DC
LEDs: 3 LEDs which indicate working mode, wifi status, relay on/off status respectively.
Two input interfaces
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Supports to control different voltage ranges
Relay lifespan: more than one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH
Application

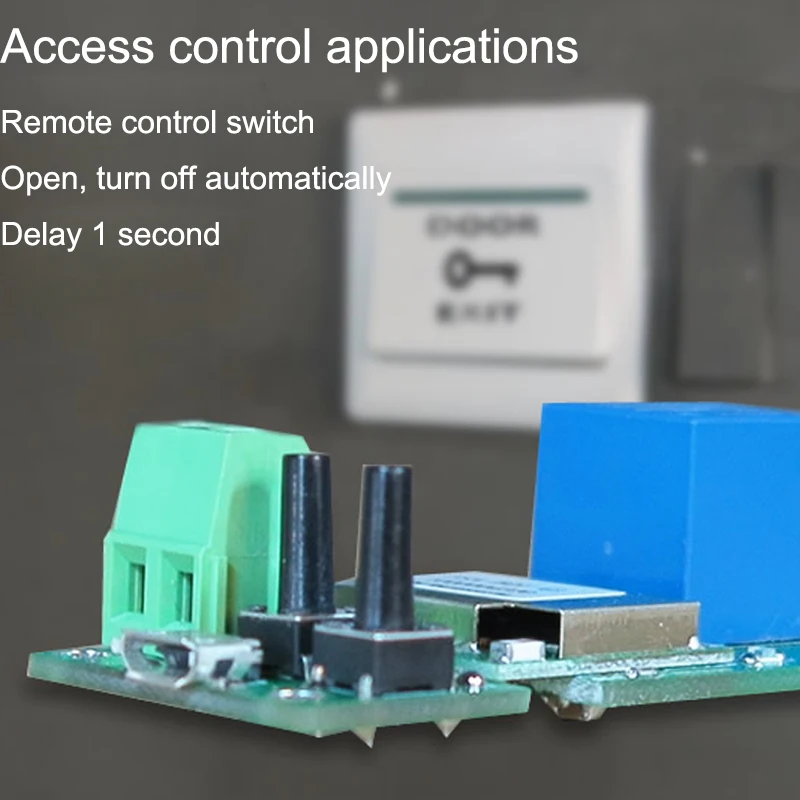

The switch can be applied to access control, turn on PC, garage door, etc.

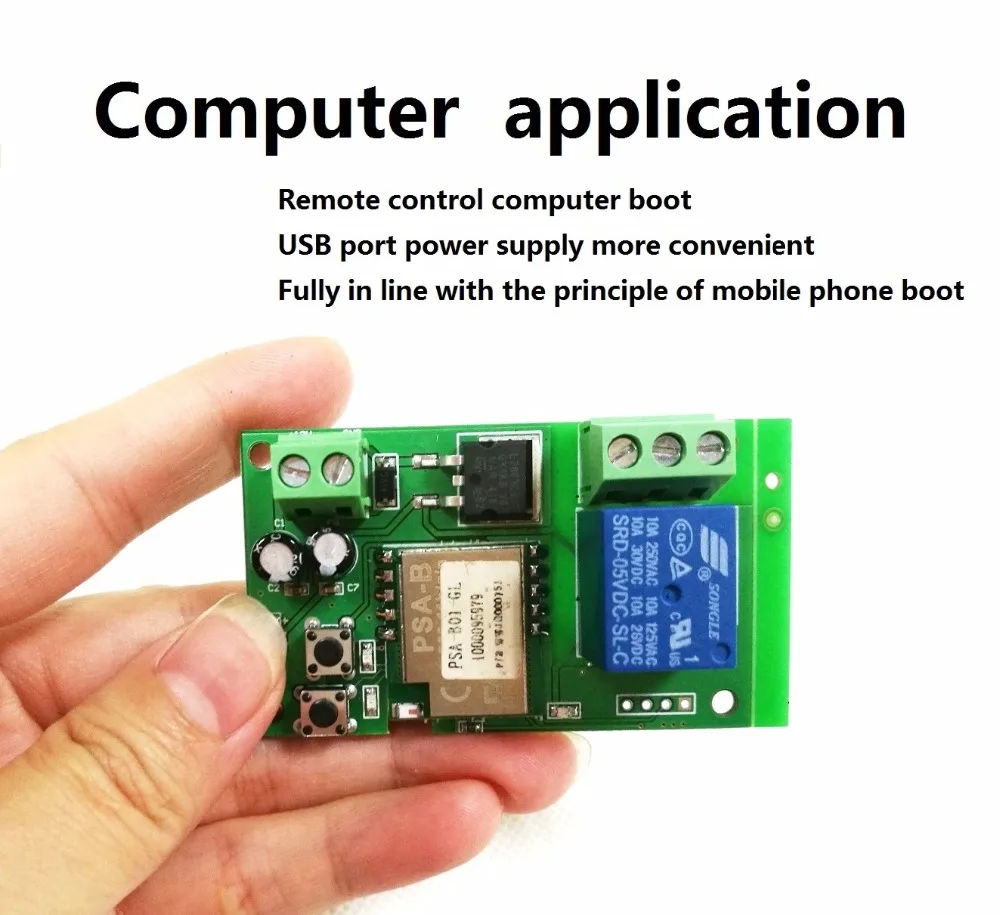

Computer application

Remote control computer boot

USB port power supply more convenient
Fully in line with the principle of mobile phone boot

This is the APP, using a mobile phone to download and install, affter the success of the equipment configuationg, We can use the mobile wireless remote control







​

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.2kg (0.44lb.)



•
  Package Size:
  10cm x 8cm x 3cm (3.94in x 3.15in x 1.18in)
