4CH AC85-250V Wireless Remote Switch DIY Relay Receiver Home Automation Module and 433 MHz RF Remote Controller Transmitter

4CH AC85-250V Wireless Remote Switch DIY Relay Receiver Home Automation Module and 433 MHz RF Remote Controller Transmitter

Product ID : 32869656542

Price : $9.79 - 26.79

Discount Price : $10.20

Item specifics

Support APP:
No

Use:
Audio / Video Players,Lighting,Switch,Computer,Air Conditioner,Electric Door,Automated curtains,TV,Speaker,Camera / Video Camera,Universal

Model Number:
KG2204-A

Frequency:
433 MHz

Brand Name:
KTNNKG

Channel:
4

Package:
Yes

Wireless Communication:
RF

Working Voltage:
AC85-250V

Receiver Channel:
4 Way

Battery Inside (Remote Control) :
yes (lithium)

working mode 7 options:
Jog, self-locking, interlocking, etc.

Conductive material:
Pure copper

load power:
each channel 500W

Receiving sensitivity:
-105 dBm

Coding method:
Learning type

Remote control distance(Receiver):
100m(wild)

Controller Model:
Learning model (work with Receiver)

Product Description

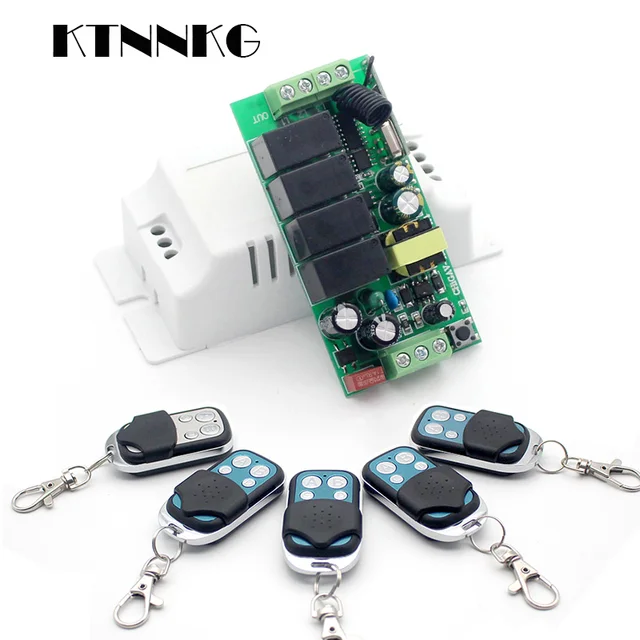

Receiver Description：

1, the working voltage: AC85-250V

2, quiescent current: 8mA

3, operating frequency: 433MHz, other frequencies can be customized

4,load power: Each channel 500W

5, receiving sensitivity: -105dbm

6, frequency deviation: ± 0.2MHz

7, coding method: learning type

8. Working mode: jog, self-locking, interlocking, (two-way self-locking + two-way jogging) (two-way self-locking + two-way interlocking) (two-way jogging + two-way interlock) (two ways Interlock + two-way interlock

9, modulation method: ASK

10, remote control distance: 100M (wild)

11, PCBA size: 65mm*35mm*18mm

12, shell size: 85MM * 40MM * 25MM

Transmitter Description:

1,working voltage: DC6V ,2Pcs CR2016 Battery (Including)

2,working current:less than or equal to 10mA

3,operating frequency: 433MHz

4,transmit power: greater than or equal to 10mW

5,launch distance: 30-50m(wild)

6,frequency deviation: -0.2MHz ~ +0.2MHz

7,transmission rate: 50--60KHZ

8,modulation method: ASK

9,Oscillation resistance: 330K

10,working chip: Ev1527 (learning code remote control)

11,working temperature: -20 degrees ~+70 degrees

12,storage temperature: -10 degrees ~ +50 degrees

13,weight:34.5g

14.SIZE: 68*37*16(mm)

Work mode choices：

1, Jog / Momentary

2, Self-locking / Toggle

3, Interlock / Latched

4, Two-way self-locking + two-way jogging

5, two-way self-locking + two interlocking

6, Two-way jogging + two interlocking

7. Two-way interlocking + two-way interlocking

Remote control and receiver matching method:

1, jog function learning method：

Press the learning pairing button on the receiver board once, the LED lights up, release the learning pairing button, enter the learning code mode, press any button on the remote control, the LED flashes 3 times, which means the learning of the inching mode is successful, the system automatically Quit learning mode. If there is no remote control signal after entering the learning code mode, the learning code mode will be automatically exited after 10 seconds.

2, self-locking function learning method：

Press the learning pairing button on the receiver board twice, the LED lights up, release the learning pairing button, enter the learning code mode, press any button of the remote controller, the LED flashes 3 times, which means that the self-locking mode is successfully learned. Exit learning mode automatically. If there is no remote control signal after entering the learning code mode, the learning code mode will be automatically exited after 10 seconds.

3, interlocking function learning method:

Press the learning pairing button on the receiver board three times, the LED lights up, release the learning pairing button, enter the learning code mode, press any button of the remote control, the LED flashes 3 times, which means that the interlock mode learning is successful, the system automatically Quit learning mode. If there is no remote control signal after entering the learning code mode, the learning code mode will be automatically exited after 10 seconds.

4, two-way self-locking + two-point jog learning method：

Press the Learning Pairing button on the receiver board four times, the LED lights up, release the Learn Pairing button, enter the learning code mode, press any button on the remote control, the LED flashes 3 times, which means that the two ways are self-locking + 2 The learning mode of the road jog mode was successful and the system automatically exited the learning mode. If there is no remote control signal after entering the learning code mode, the learning code mode will be automatically exited after 10 seconds.

5. Two-way self-locking + two-way interlocking learning method:

Press the Learning Pairing button on the receiver board five times to turn on the LED. Release the Learn Pairing button to enter the learning code mode. Press any button on the remote control and the LED flashes 3 times. This means that the two channels are self-locked and the two are The road interlock mode was successfully learned and the system automatically exited the learning mode. If there is no remote control signal after entering the learning code mode, the learning code mode will be automatically exited after 10 seconds.

6. Two-way jog + two-way interlocking learning method：

Press the learning pairing button on the receiving board six times, the LED lights up, release the learning pairing button, enter the learning code mode, press any button on the remote control, the LED flashes 3 times, which means that the two points move + two The road interlock mode was successfully learned and the system automatically exited the learning mode. If there is no remote control signal after entering the learning code mode, the learning code mode will be automatically exited after 10 seconds.

7. Two-way interlocking + two-way interlocking learning method：

Press the learning pairing button on the receiver board seven times, the LED lights up, release the learning pairing button, enter the learning code mode, press any button on the remote control, the LED flashes 3 times, which means that the two channels are interlocked + two The road interlock mode was successfully learned and the system automatically exited the learning mode. If there is no remote control signal after entering the learning code mode, the learning code mode will be automatically exited after 10 seconds.

Clear the data：

Press the learning pairing button on the receiving board for 8 consecutive times and the LED indicator flashes 8 times. Then the clear code is completed and all remote control key codes learned before are cleared.

The output mode explained:：

1. Self-locking: Press the same remote control button, press, relay opens, press again, relay off.

2. Interlock: Press the remote control “A” key, the relay opens, press the remote control “B” key, the relay is off.

3, jog: press the remote control "A" button, the relay opens, release the remote control "A" button, the relay off. If you keep pressing the "A" button on the remote control, the relay will remain on. When you release the remote control, the relay will turn off.
