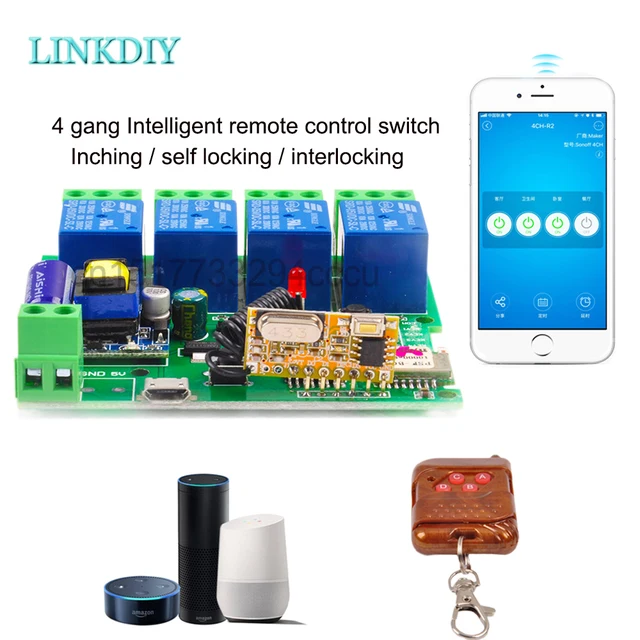

4 gang Wifi switch wireless Relay module Smart home Automation for Computer access dc5V/12v 24v 32v Inching/Self-Locking IOS
Model Number:
LD4chmode
Camera Equipped:
No
State of Assembly:
Ready-to-Go
Brand Name:
LINKDIY
Compatibility:
All Compatible
Operating Voltage:

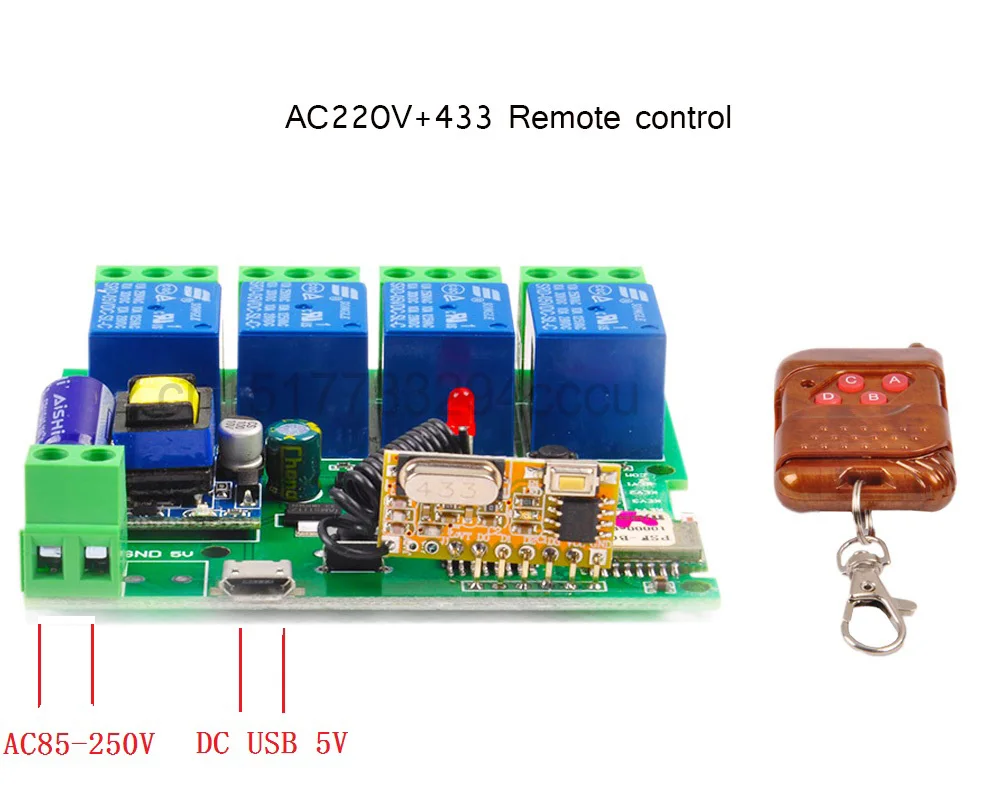

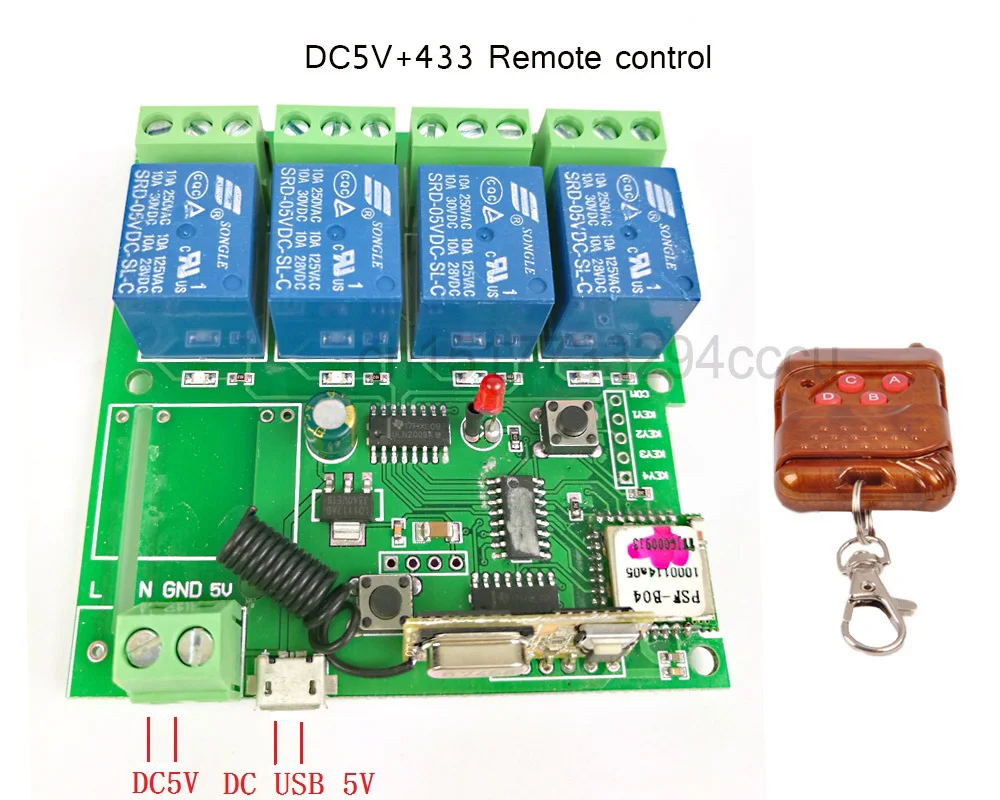

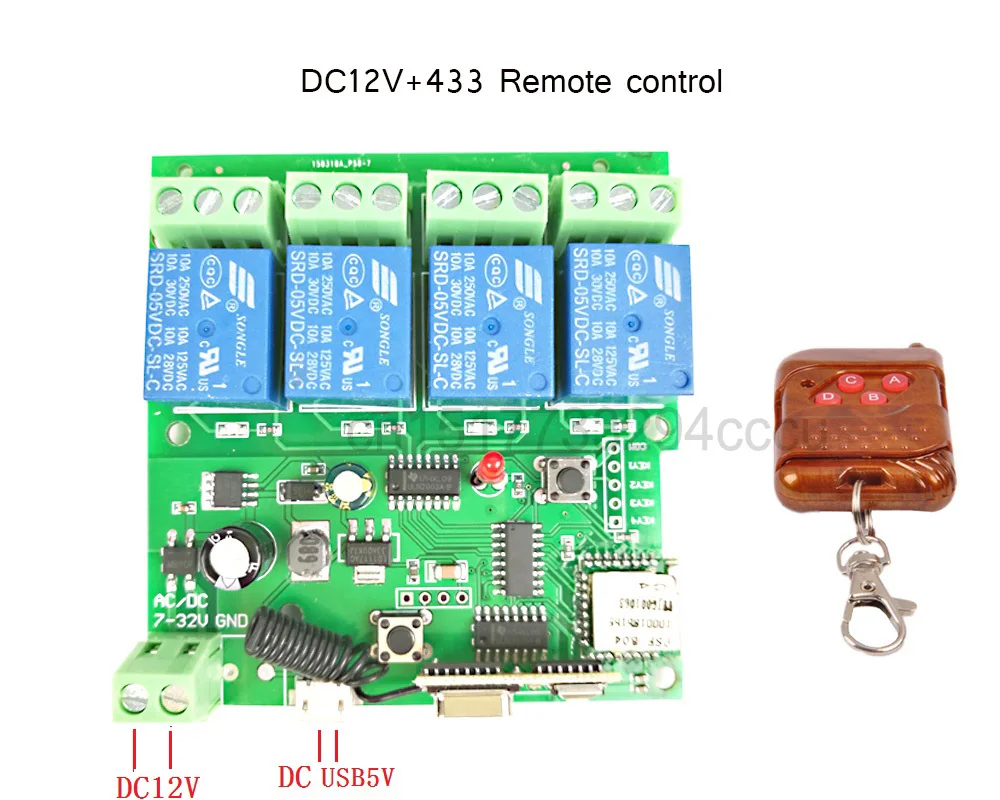

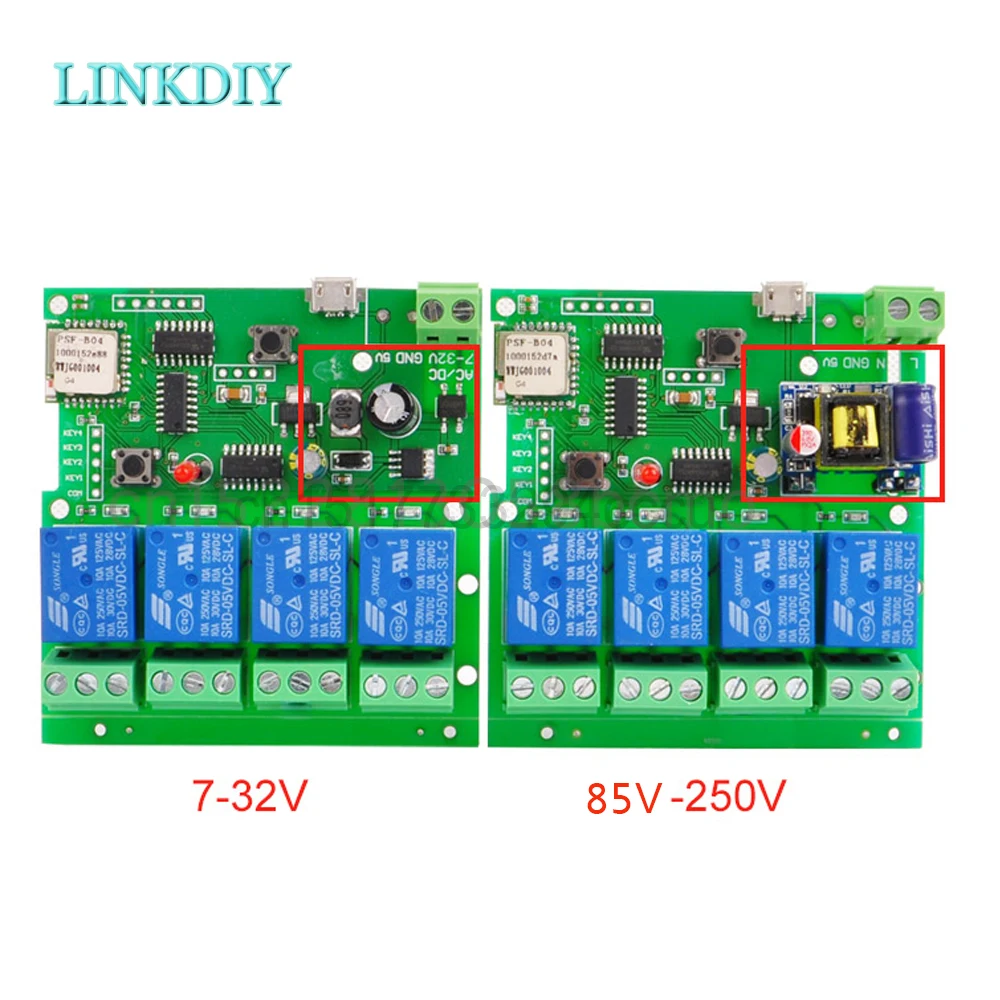

a.USB 5V AND DC 7 -32V b.USB5V AND 220V Ch
Working mode:
Inching/ Self-locking/ Interlocking
Applicable scope:

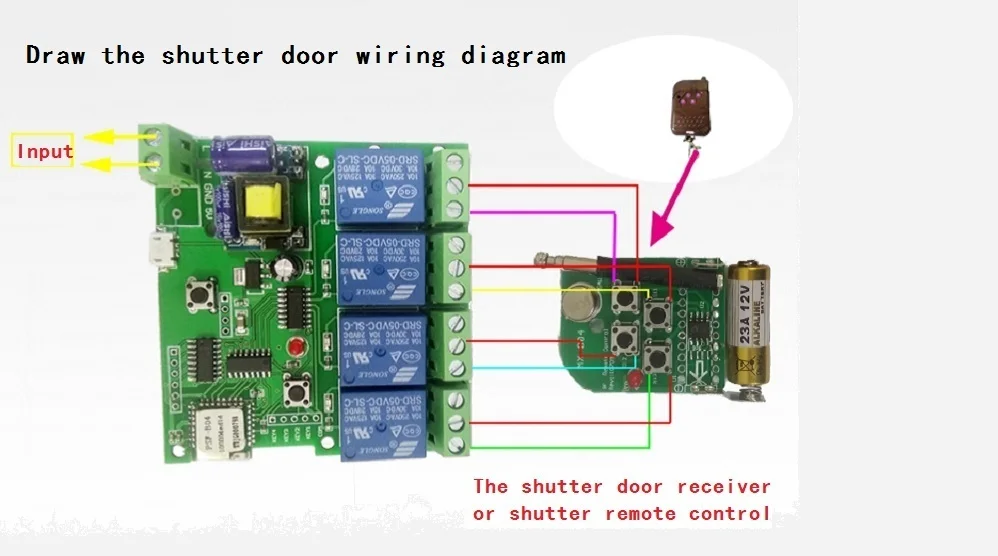

Computer remote switch/ Access control/Wate
APP:
EWeLink
Function1:

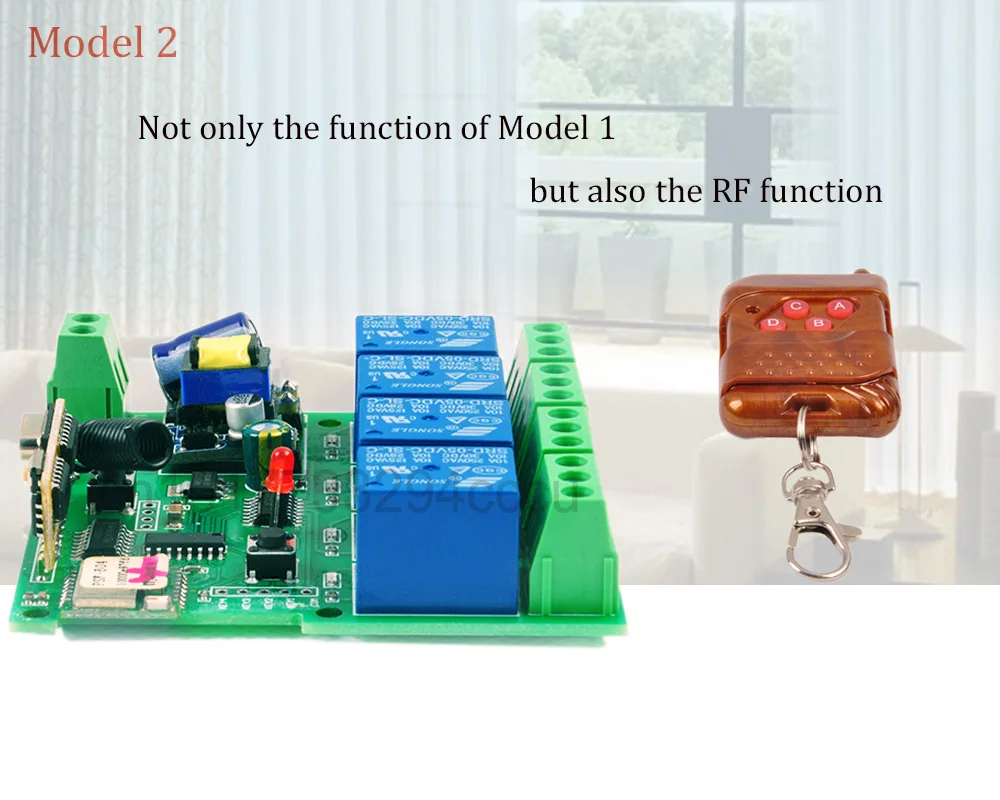

mobile phone remote control, RF remote control,
Function2:

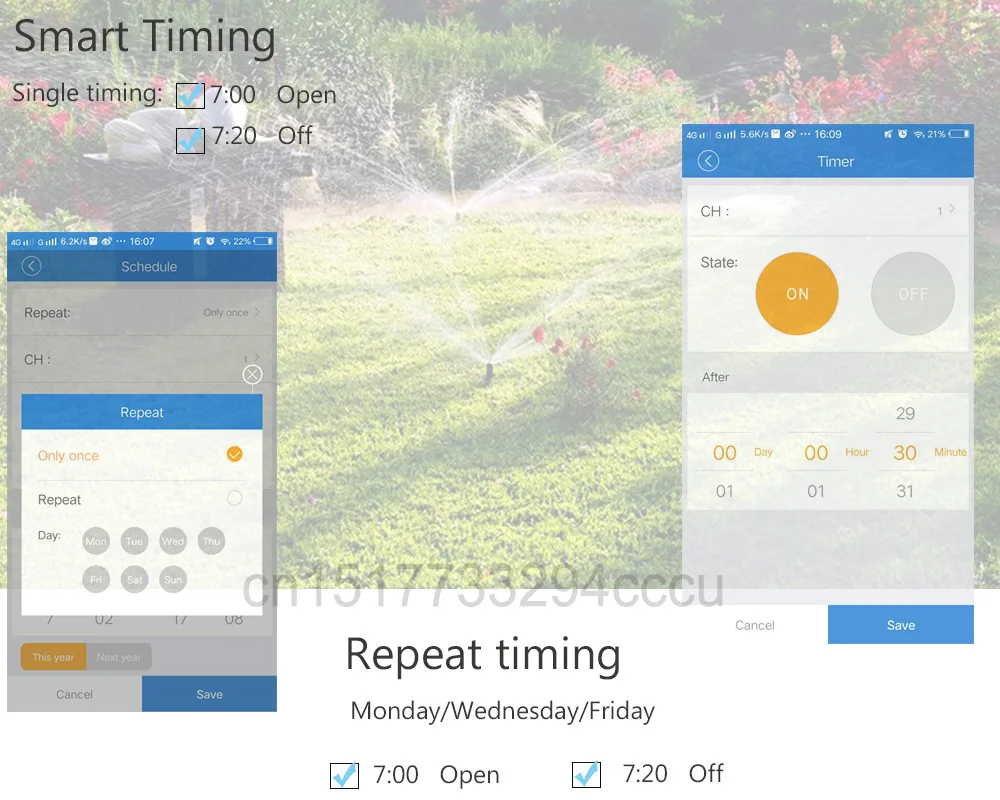

Timing / delay
Function3:
Sharing / grouping management

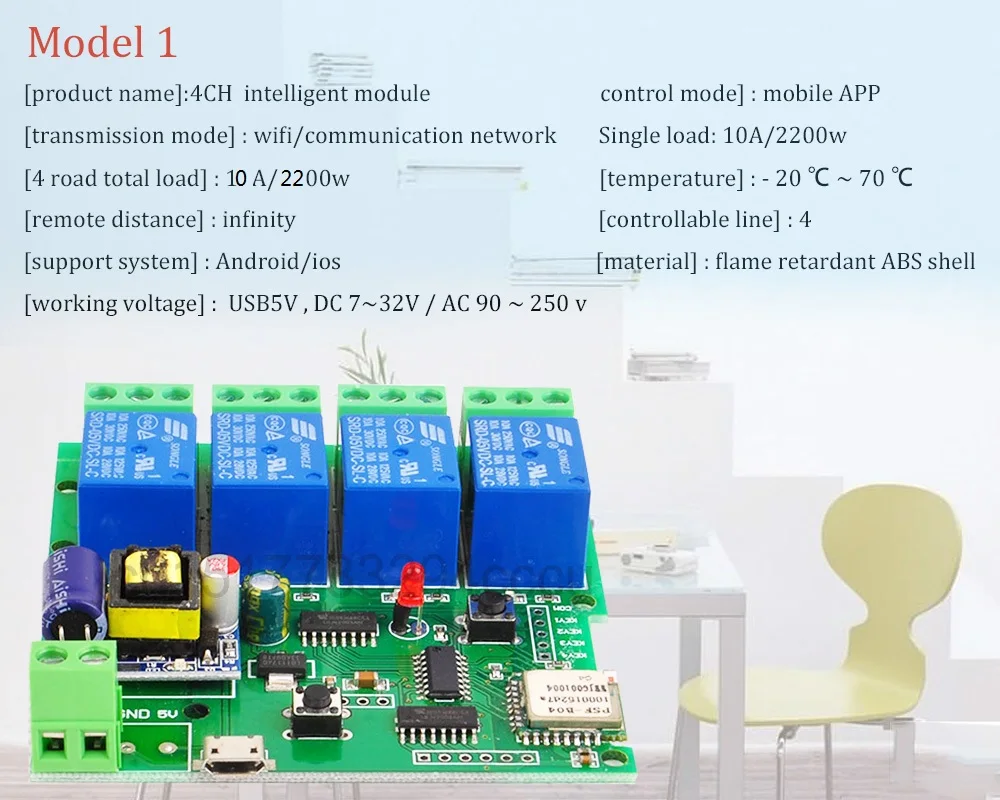

Fool type wifi control module, no programming, only need to download an APP, link WIFI can control the own cloud. As long as the module links WIFI, the phone can be controlled anywhere in the country.
1, With a signal indicator, relay pull the light.
2, The board power consumption of static current 80MA relay all open is about 380MA peak
3, 1 relay rated switching current of less than 10A, switching voltage within 250V
4, 4 10A relays
5, Relay life of more than 1000000 times.
6, Electrical insulation resistance 100M
7, Electric shock voltage 1000V
8, The relay maximum suction time 15mS milliseconds
9, Tthe relay maximum release time 5mS milliseconds
10, The operating temperature of -40 degrees to +70 degrees
11, Working humidity 40% ~ 80% RH
Applicable occasions: smart home. Wifi control
Note: The remote control needs battery, because of customs inspection reasons, our price package does not include battery
Unit Type:
piece
Package Weight:
0.25kg (0.55lb.)
Package Size:
15cm x 10cm x 5cm (5.91in x 3.94in x 1.97in)
