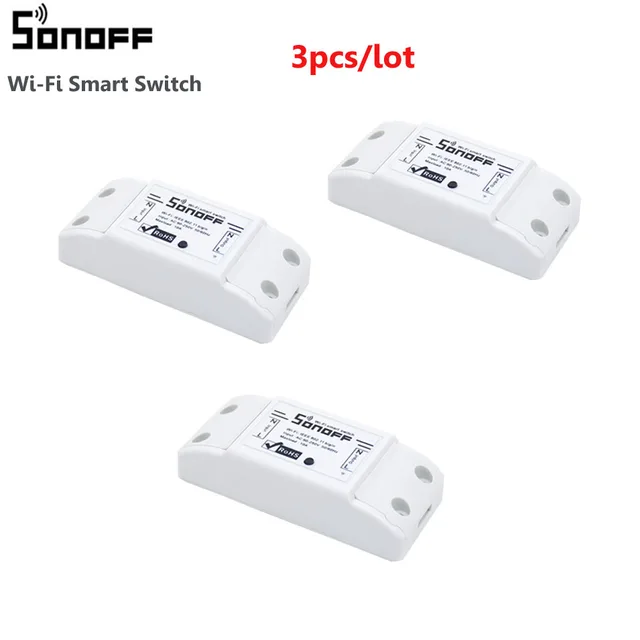

3PCS Itead Sonoff Wifi Smart Switch Wireless Relay Switch Universal DIY Automation Module Smart Home Wifi Switch Domotica Device
Brand Name:
SONOFF
Camera Equipped:
No
Model Number:
3PCS Sonoff Basic
State of Assembly:
Ready-to-Go
Compatibility:
All Compatible
Product type:
Sonoff WIFI Wireless Smart Switch
Work voltage:
AC100-250V 50/60HZ
Max Wattage:
2200W
App name :
Ewelink
Wireless Standard:
IEEE 802.11 b/g/n
Transmission mode:
Wi-Fi communication
Appliable to:
Ceiling lamps, lighting, fans, drinking fountains
Supports APP:
Works with Alexa, Google Home
Dimensions:
88*38*23mm (L*W*H)
Max Current:
10A
3PCS Itead Sonoff Wifi Smart Switch Wireless Relay Switch Universal DIY Automation Module Smart Home Wifi Switch Domotica Device
Features
- Supports WiFi network.
- Supports status tracking: device status timely provided to the EWeLink.
- Supports remotely turn on or off connected appliance/light.
- Supports max 8 enabled scheduled/countdown/loop timers for each device.
- Supports numerous WiFi smart switches on one smart phone.
- Works with Amazon Echo, Echo Dot, Amazon Tap
- Works with Google Home
- Works with Google Nest

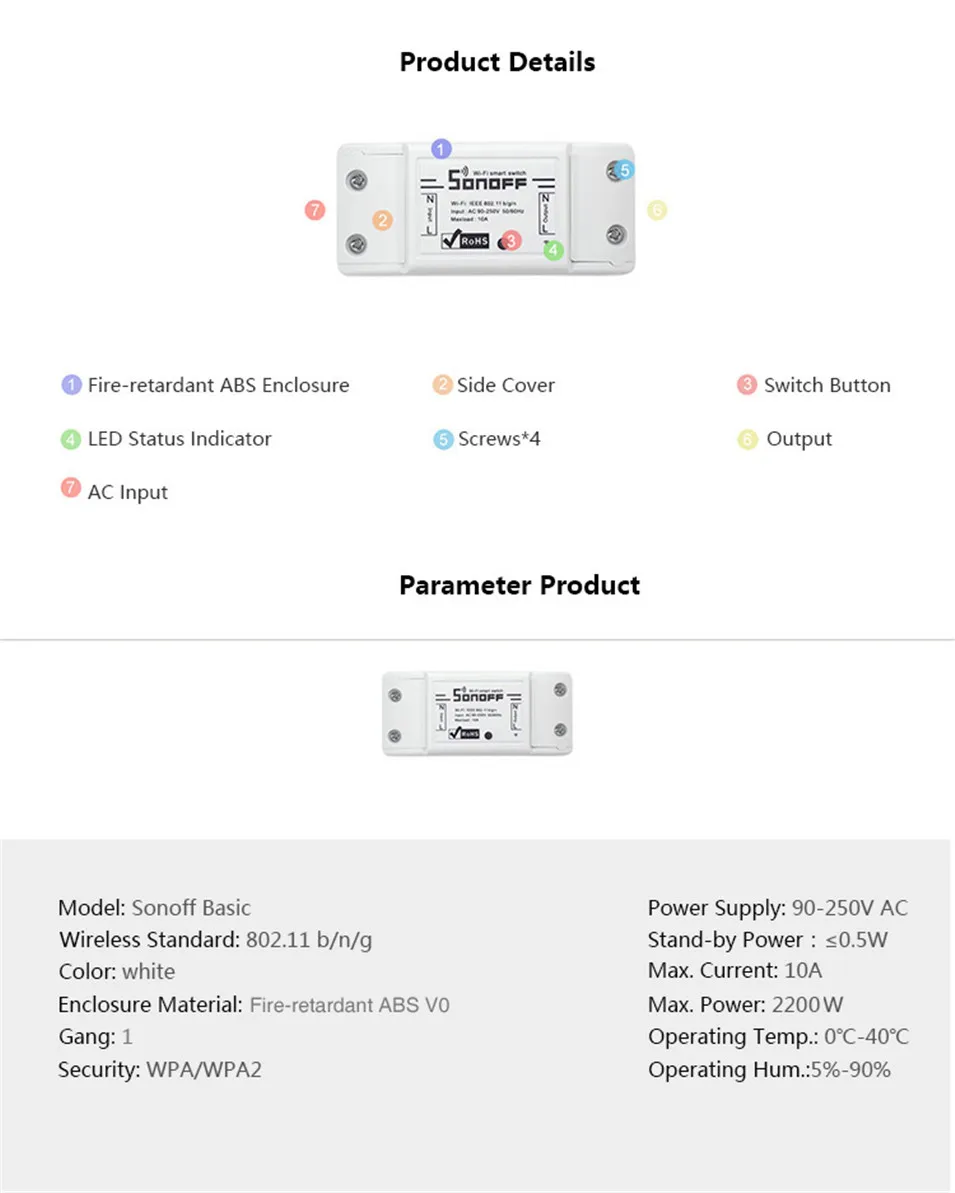

Specification
- Voltage range: 90-250v AC(50/60Hz)
- Max current: 10A
- Max Wattage: 2200W

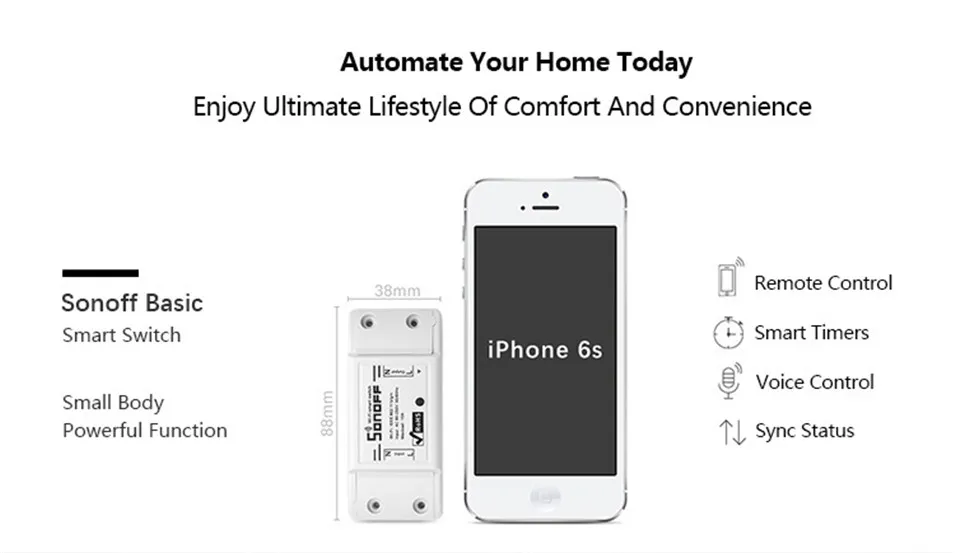

- Dimensions: 88*38*23mm (L*W*H)
- Enclosure Material: Fire-retardant ABS V0
- Humidity: 5%-90%RH, Non-condensing
- Wireless Standard: 802.11 b/g/n
- Security Mechanism: WPA-PSK/WPA2-PSK
- Operating Temperature: 0ºC-40ºC(32°F-104°F)
- Color: White
Sonoff WiFi controlled switch makes all home appliances smart. As long as the mobile phone has network(2G/3G/4G/WiFi), users can remotely control the appliances by turning them on off from anywhere at any time. Another feature available is to set timers for the appliances, which can include countdown/scheduled/loop timers, and can thus, help users maintain an easy life.
The mobile application eWeLink enables users to control the appliances easily. The iOS version of the application can be downloaded in App Store while the Android version in Google Play.
Note: Sonoff Basic does NOT have 433Mhz RF receiver module. If you want RF function, please buy Sonoff RF.
If you need 10pcs Sonoff wifi smart switch, please click the below link:
https://www.aliexpress.com/store/product/10pcs-Itead-sonoff-Smart-Remote-Control-wifi-DIY-Home-automation-Modules-Switch-with-timer-on-off/1937572_32830145520.html?spm=2114.12010612.0.0.5bdadf47T9td16

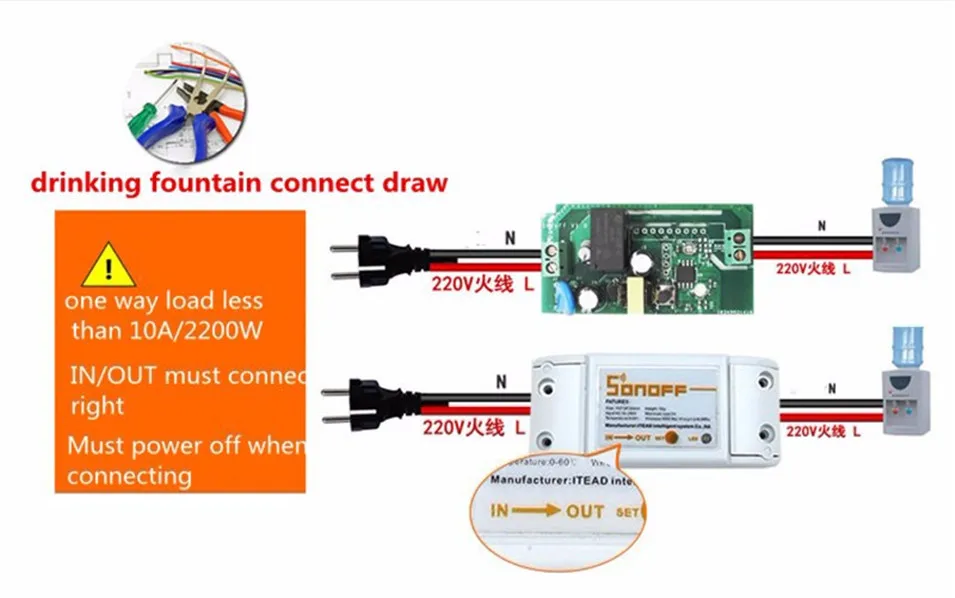

How to install the Sonoff WiFi wireless switch?
Preparation: Switch off all related electricity source first.
Attention: The power input L N cables must connect with the “INPUT” side. The electricity output L N cables must connect with "OUTPUT" side. Remember DON`T mistaken the directions!
When connect Sonoff to home appliance(within 2200W), actually the two terminal connector ports at "INPUT" can connect to input cable L and N randomly, and "OUTPUT" can connect to output cable L and N randomly. But in order to avoid from any safety problems, please strickly follow the wiring connection as follows:
Input Output
N ————N
L————-L
In-out Connect way must be strictly according to below draw, live wire and zero wire can be connect randomly
FAQ:
1. My device has added successfully, but stays “Offline”.
Replys: The new added device need 1-2 min to connect to your router and the Internet. If it stay offline for long time, please judge the problem by the green led status:
1.1. Green led quickly blinks one time and repeats, which means device failed to connect to router. The reason may be you have entered wrong WiFi password or your device is too far away from router, which causes a weak WiFi signal. The device can not be added to the 5G-wifi-router,only the 2.4G-wifi is OK. At last, make sure that your router is MAC-open.
1.2. Green led slowly blinks one time and repeats, which means device has connected to router and server, but failed to be added to device list. Then power on the device again, if it still not working, just add the device again.
1.3. Green led quickly blinks twice and repeats, this means the device has connected to router but failed to connect to server. Then please confirm your WiFi router works normally.
2. Why the APP can not find the device in paring status?
Answers: That’s because of your phone’s cache. Please close the Wlan of your phone then open it after a minute. At the same time,please power off the device if you can,then power up to try again.
3. My WiFi is expired, can I connect the devices to LAN? Can my phone be directly connected to device hotspot?
Answers: Currently eWeLink do not support LAN or directly connect to deceive hotspot. All devices must be connected to router, thus they can communicate with the Internet cloud server.
4. The green led keeps off, even if the device is powered on. Press the button but the device does not work.
Answers: The circuit may be broken, please send it back for testing. Return shipping postage and packaging will be at buyer’s expense, if the device is damaged by the buyer, and the buyer should bear extra repair cost.
Sonoff Smart Home Product List
| Product Name | Feature | Input Voltage | Max Current | Max Power | Wireless Frequency | Shopping | |
|
Sonoff 4CH | 4-channel Wireless switch | 90~250V AC | 10A | 2200W | 2.4Ghz | Click | |
| Sonoff RF | 433 RF remote | 90~250V AC | 10A | 2200W | 2.4Ghz | Click | |
|
Sonoff TH10/TH16 | Monitor and set Temp.&Hum. | 90~250V AC | 10A/16A | 2200W(10A)/3500W(16A) | 2.4Ghz | Click | |
|
Sonoff Dual | Remote control 2 devices | 90~250V AC | 16A | 3500W | 2.4Ghz | Click | |
|
Sonoff Pow | Report power &power usage | 90~250V AC | 16A | 3500W | 2.4Ghz | Click | |
| Sonoff Touch | WiFi wall touch switch | 90~250V AC | 2A | 400W | 2.4Ghz | Click | |
|
Slampher | Wireless control light holder | 90~260V AC | 2A | 200W | 2.4Ghz | Click | |
|
S20 Smart Socket | Smart socket | 90~250V AC | 10A | 2000W | 2.4Ghz | Click |
Unit Type:
lot (3 pieces/lot)
Package Weight:
0.18kg (0.40lb.)
Package Size:
10cm x 6cm x 5cm (3.94in x 2.36in x 1.97in)
