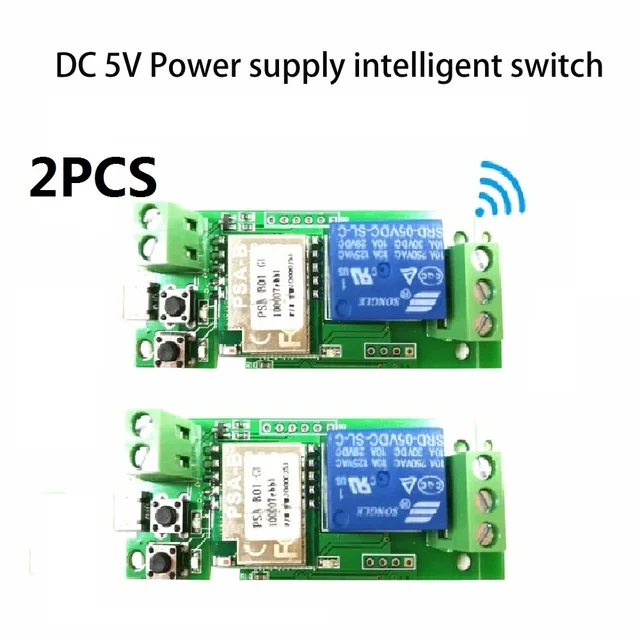

2PCS dc 5V sonoff wifi switch module dc 5V Inching Self Locking wireless Relay Switch Smart home Automation for Computer access
Brand Name:
SONOFF
Camera Equipped:
No
State of Assembly:
Almost Ready
Model Number:
sonoff DC5v 5pcs
Compatibility:
All Compatible
Input voltage:
DC 5V
Operating Humidity:
40% ~ 80% RH
Working temperature :
-40 degrees to +70 degrees
Main chip:
WIFI module
Features1:
Remote control and 1 second delay
Features2:
MMobile phone remote control, many people share
Features3:
State feedback and timing
Features4:
Power consumption is less than 1 w static current 80 ma
size:
L7.5*w3*g3(cm)

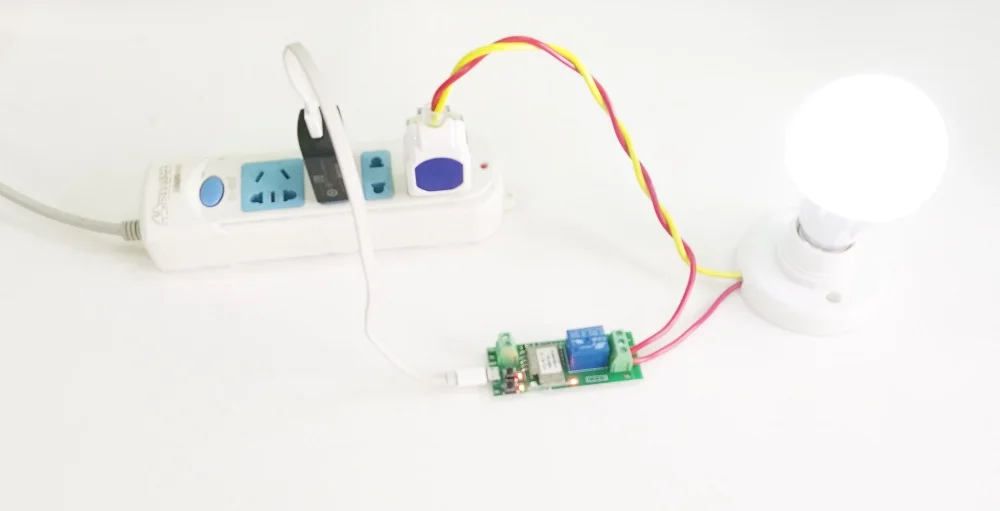

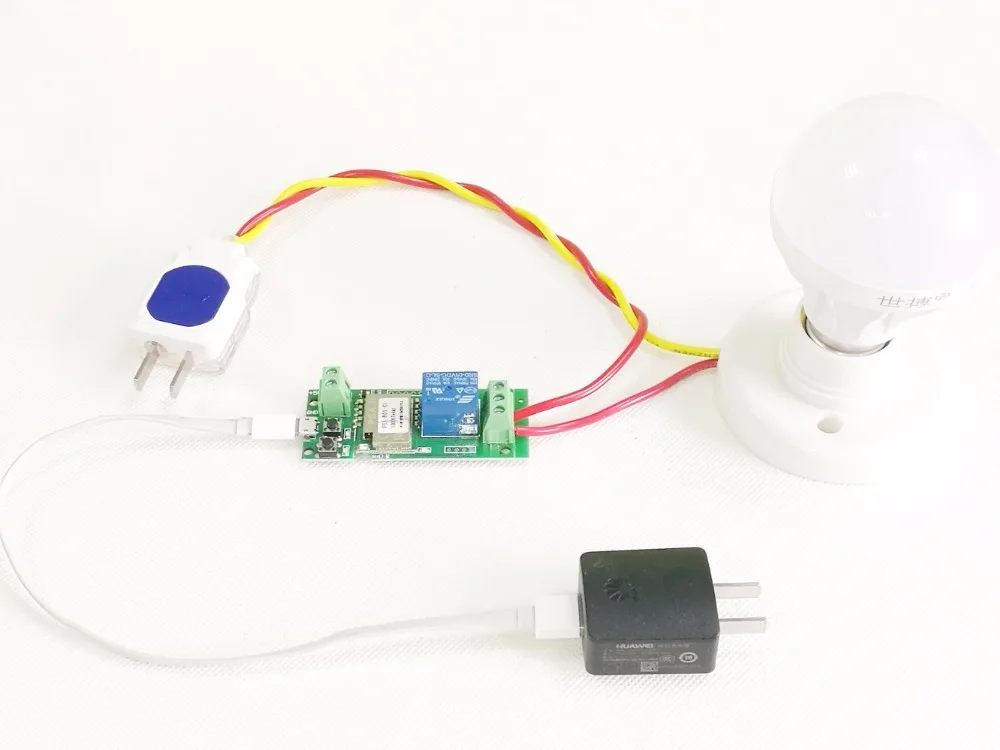

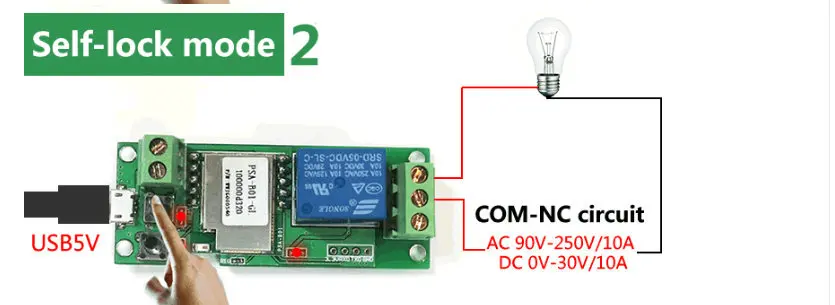

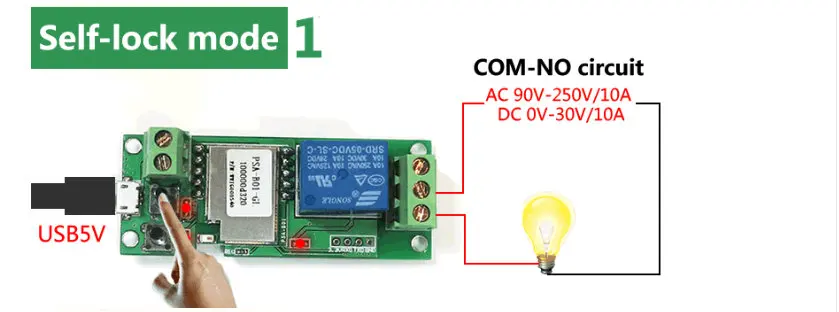

This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP eWeLink in order to remotely control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately. When in inching mode, customers can have two wiring ways to select:
Turn on 1s and then auto-off
Turn off 1s and then auto-on.
The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS. Supported functions include:
Remote turn on/off
Timing Schedules
Device Sharing
Group Management
The self-lock/inching mode wireless switch has two input voltage supply specifications: 5V and 5V/12V. No matter which specification is selected, the functions remain the same.
5V self-lock/inching mode wireless switch：
Specification

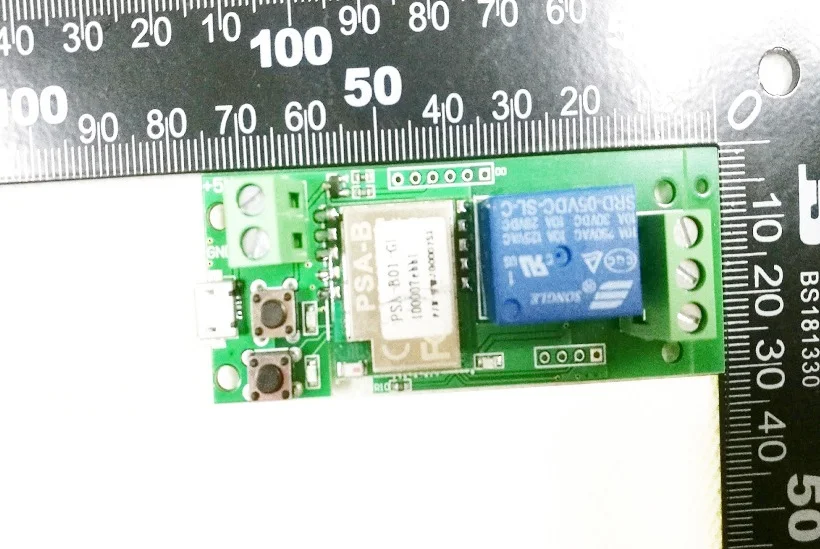

Dimensions:70.5mm*27.4mm*23mm
Operating current: 5V DC

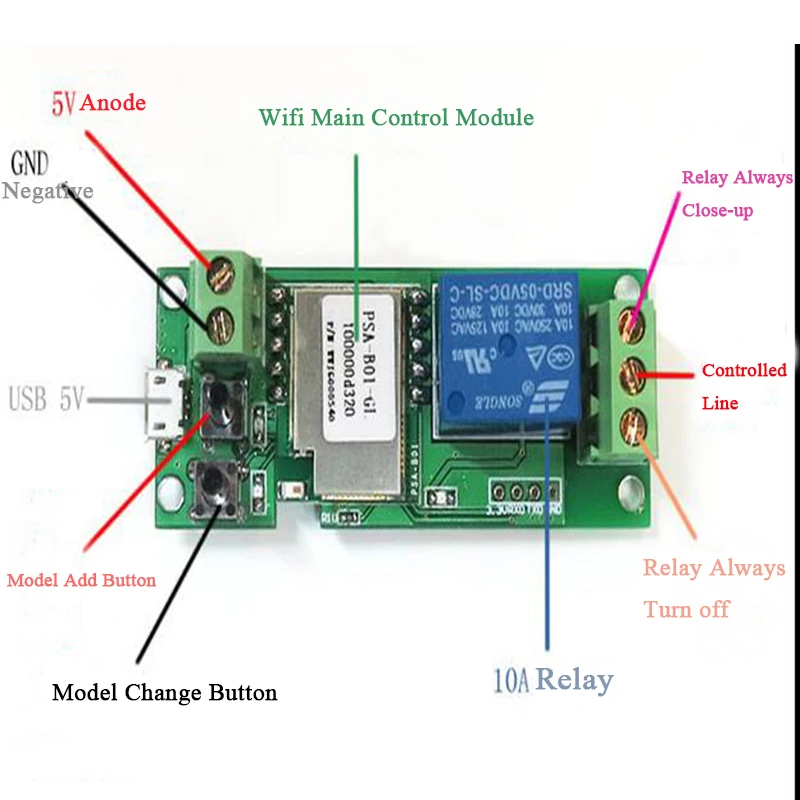

LEDs: 3 LEDs which indicate working mode, wifi status, relay on/off status respectively.
Two input interfaces
Board consumption: <1W
Standby current: 80mA
Max input current: 10A

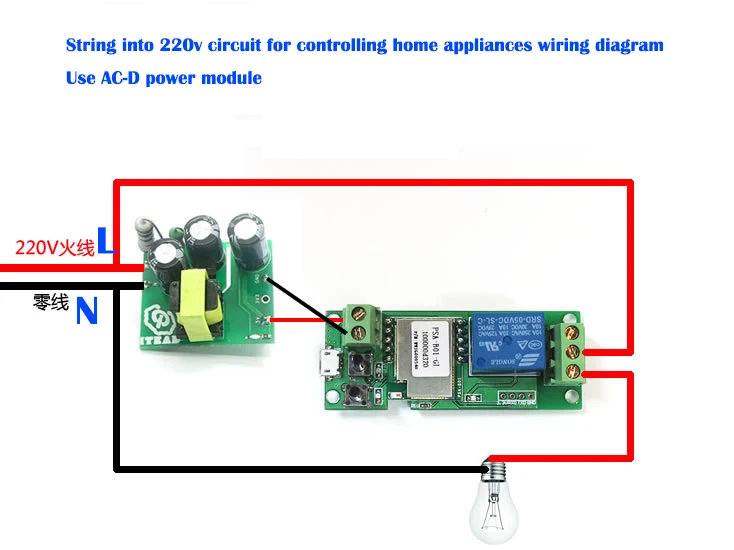

Supports to control different voltage ranges
Relay lifespan: more than one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH
Application

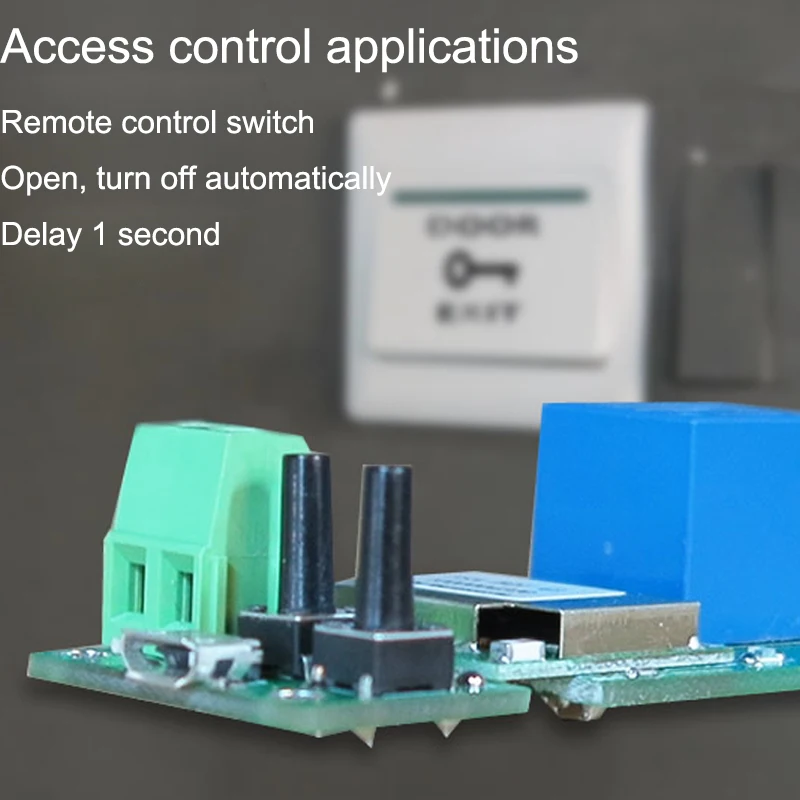

The switch can be applied to access control, turn on PC, garage door, etc.

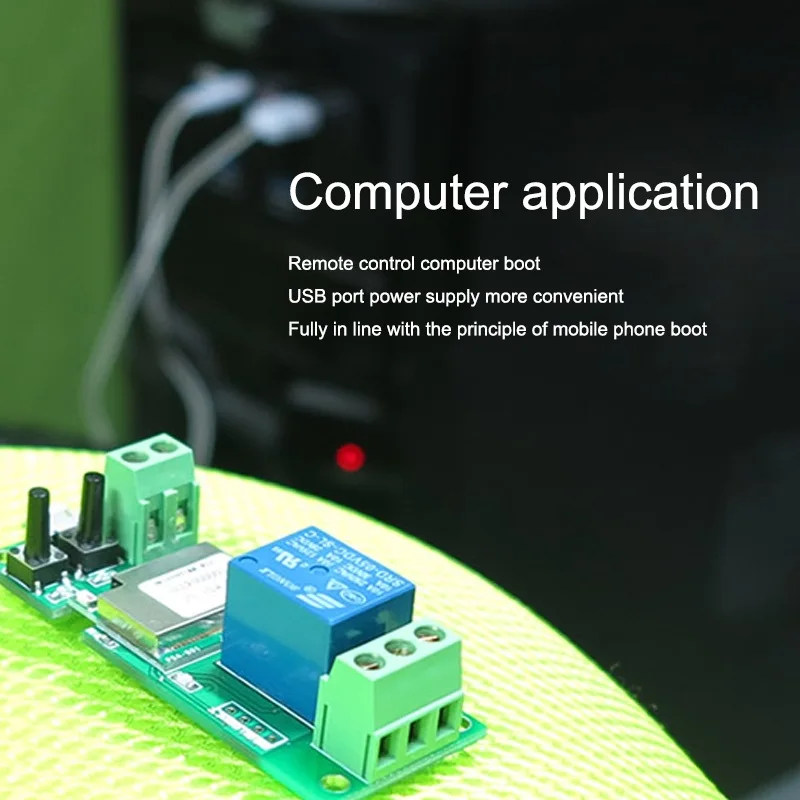

Computer application
Remote control computer boot
USB port power supply more convenient
Fully in line with the principle of mobile phone boot
This is the APP to download and install, after the success of the
equipment configuration, we can use mobile phone remote control
module
Unit Type:
lot (2 pieces/lot)
Package Weight:
0.09kg (0.20lb.)
Package Size:
7cm x 3cm x 3cm (2.76in x 1.18in x 1.18in)
