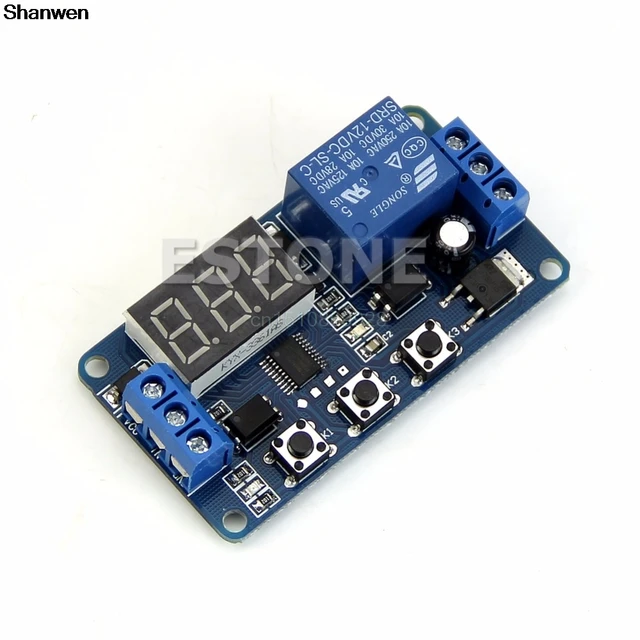

1pc 12V LED Home Automation Delay Timer Control Switch Relay Module Digital display

1pc 12V LED Home Automation Delay Timer Control Switch Relay Module Digital display

Product ID : 32666199799

Price : $4.40

Discount Price : $3.39

Item specifics

•
  Brand Name:
  Shanwen



•
  Power Source:
  DC



•
  Model Number:
  see information



•
  Theory:
  other



•
  Contact Load:
  see information



•
  Voltage:
  see information



•
  Protect Feature:
  see information



•
  Usage:
  see information


Product Description

• New upgrades to simplify,to meet customer needs.


• Increase the supply anti-reversefunction.


• The use of opto isolated input and output,enhanced anti-jamming capabilit
  consumption.


• Set parameter after power for ever memories.


• Signal terminal voltage signal can be maintained for a longtime.


• to ensure stability,industrial grade board,class PLC.
  Product parameters:


• Size:64.2mm*34.8mm*18.5mm.


• Relay Specifications:AC 220V 10A or DC 30V 10A.


• Quiescent Current:20mA,Operating Current:50mA.


• Working voltage:10~16V (if other ranges can be customized).


• Signal voltage:4V~20V (if other ranges can be customized).


• life:about100,000times,Working temperature:-40~85'C.



• Working mode selection:After power on,long press K12 seconds later into the select function mode,P1-1~P1-4forchoose.
  P1-1 operating modes:a signal to trigger relay, time is up,the relay
  disconnect users,You can set relay time T,click K2 the hundreddigital
  tube starts flashing,then press K3, the hundred digital change;click K2
  ten digital tube starts flashing,then press K3,ten digit changes;click K2
  bit digital tube starts flashing, then press K3, single-digit change;then
  click K2,; digital pipe does not blink,then press the K3, shifting the
  decimalpoint,the decimalpointin abitindicates 0-999minutesin ten
  represents 0 to 99.9 seconds withou tadecimalpointrepresents 0-999
  seconds;goodchoice,bringing the time setting is completed.Short press
  K1,enterfunction offine-tuning settings,triggerthedefaultdelayperiod
  is invalid, press K1, during the delay trigger active(re-timing),clickon
  the K1, during the delay reset (timer turned off,the relay reset) press
  again to repeat the default settings for the first time.
  P1-2 operating modes:Asignal trigger ,digital countdown begins,X
  seconds after,there lay open Y seconds,then close.Users can set the relay
  time X,Y;P1-1different time settings similar to the blue lights that set
  the relay time,blue light indicates setting relay off time. Short press K1,
  enter function offine-tuning the set,the default trigger is invalid during
  the delay,pressK1,during the delay trigger active(re-timing),then click
  the first repeat default settings.
  P1-3 operating modes:Open X seconds,disconnect Yseconds, infinite
  loop.Users can set the relay timeX,Y;time setting similar to P1-2.Short
  press K1,enter function offine-tuning set,The default function is:set up
  an electric circuit the relay first open, press the K1,there lay first
  close.Press again to repeat the default functionality.
  P1-4 operating modes:a signal to trigger the relay open but do not start
  the timer,when the trigger signal disappears,digital count down begins,X
  time after,the relayclose; During the delay,again to the signal,digital
  count down canceled, stays energized, the signal disappears, restart
  count down; (equivalentto release the button to start timing, commonly
  usedin power-offdelay).Users canset the relay time X; time setting similar to P1-1.




• Package includes:


• 1 x DC12V Delay Timer Control Switch Module


•

Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.09kg (0.20lb.)



•
  Package Size:
  18cm x 15cm x 8cm (7.09in x 5.91in x 3.15in)
